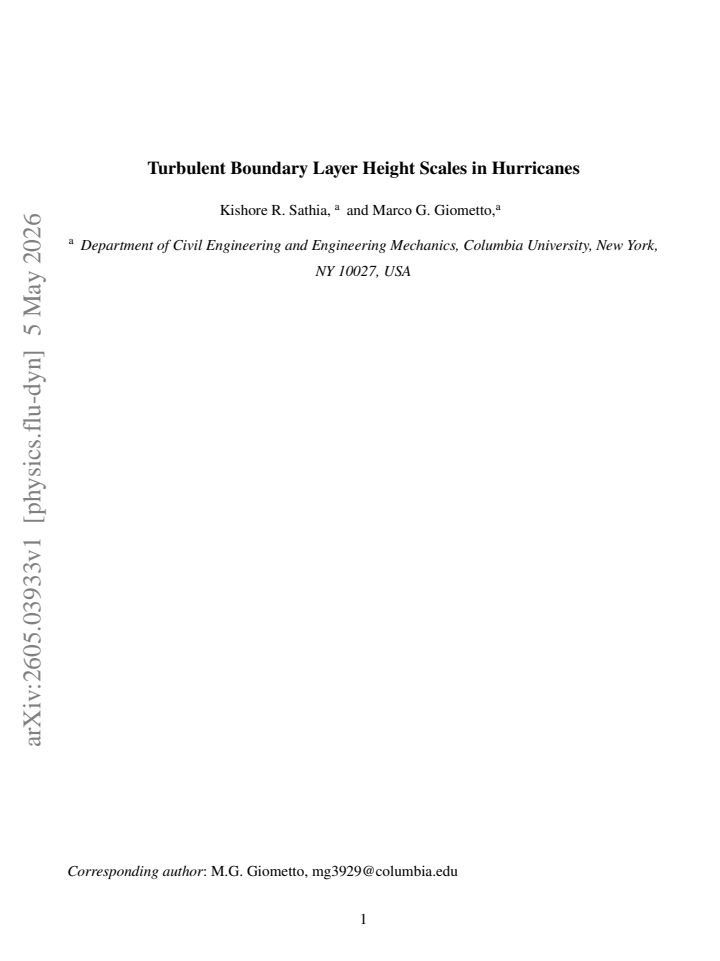

Turbulent Boundary Layer Height Scales in Hurricanes
Pith reviewed 2026-05-07 13:40 UTC · model grok-4.3
The pith
Hurricane turbulent boundary layer heights outside the eyewall scale with friction velocity and vorticity.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The paper claims that the turbulent boundary layer height in hurricanes outside the eyewall follows the scaling u_star over beta for neutral stratification and u_star over the square root of beta times N for stable stratification. These expressions are obtained through analytical derivation analogous to standard atmospheric boundary layer theory. They are validated on velocity profiles from large-eddy simulations and observations, achieving an average relative error of 2.5 percent while producing good collapse away from the surface. The scalings further support quantitative links between boundary layer height and other scales such as the height of maximum wind speed and the depth of the Inow
What carries the argument
The proposed height scales u_star/beta for neutral stratification and u_star/sqrt(beta N) for stable stratification, which directly tie boundary layer height to friction velocity, absolute vorticity, and background stratification frequency.
If this is right
- The scalings enable quantitative relationships between boundary layer height, the height of maximum wind speed, and the depth of the inflow layer.
- They supply a practical basis for interpreting observational data and informing mesoscale simulations of hurricanes.
- The expressions allow specification of turbulent flow statistics in wind engineering and coastal resilience models.
Where Pith is reading between the lines
- These height formulas could be inserted into operational hurricane models to reduce errors in predicted surface winds and moisture fluxes.
- The same vorticity-based approach might apply to other intense rotating flows such as tropical cyclones or laboratory vortex experiments.
- Adoption would support direct comparisons of boundary layer structure across different storm intensities using only readily measured quantities like friction velocity and vorticity.
Load-bearing premise
The boundary-layer height outside the eyewall is governed by the same vorticity and stratification scalings that apply to ordinary neutrally and stably stratified atmospheric boundary layers, without dominant hurricane-specific effects such as strong radial gradients or curvature.
What would settle it
Large-eddy simulations or field observations of boundary layer heights in hurricanes outside the eyewall that deviate by more than 5 percent from the values given by u_star/beta or u_star/sqrt(beta N) would falsify the scalings.
read the original abstract
Boundary layer processes drive the air-sea exchange of momentum, heat, and moisture that powers and shapes hurricanes. The height of the boundary layer is a critical parameter in engineering and meteorological models of hurricane wind speed, turbulence intensity, and storm strength. Existing models rely on a height scale derived with the assumption of a constant eddy viscosity, a strong simplification that limits physical accuracy. This work proposes formulae for the turbulent boundary layer height in hurricanes outside the eyewall. The proposed scalings are $u_\star/\beta$ for neutral stratification, and $u_\star/\sqrt{\beta N}$ for stable stratification, where $u_\star$ is the friction velocity, $\beta$ is the absolute fluid vorticity and N is the Brunt-Vaisala frequency of the background stratification. These scalings are analogous to those used in the literature for neutrally and stably stratified turbulent atmospheric boundary layers. The formulae are backed by analytical derivation and validated against velocity profiles from large-eddy simulations and field observations. They are predictive to within 2.5% relative error on average and yield a good collapse of the simulated and observational velocity profiles away from the surface. The results further enable quantitative relationships between boundary layer height and other characteristic scales, including the height of maximum wind speed and the depth of the inflow layer. The proposed expressions offer a practical basis for interpreting observational data, informing mesoscale simulations, and specifying turbulent flow statistics in wind engineering and coastal resilience.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes analytical formulae for the turbulent boundary layer height in hurricanes outside the eyewall: u*/β for neutral stratification and u*/√(βN) for stable stratification. These are presented as analogous to standard ABL scalings, derived analytically, and validated to within 2.5% average relative error against LES velocity profiles and field observations, yielding profile collapse away from the surface and quantitative links to the height of maximum wind speed and inflow layer depth.
Significance. If the analytical derivation is robust and the scalings hold beyond the specific cases examined, the work would provide a physically grounded, low-parameter alternative to constant-eddy-viscosity models for hurricane boundary layers. This could improve accuracy in mesoscale simulations, observational analysis, and engineering applications for wind loading and coastal resilience, with the reported profile collapse and error level representing a concrete advance.
major comments (2)
- [Analytical derivation (Abstract)] The analytical derivation (Abstract and the section presenting the derivation): no explicit scaling analysis is provided showing that radial advection (u_r ∂u_θ/∂r) and centrifugal curvature (u_θ²/r) terms are subdominant to the β term inside the boundary layer for the regimes outside the eyewall. This is load-bearing for the central claim, because the 2.5% predictive accuracy and direct transfer of the u*/β and u*/√(βN) scalings from flat ABL theory require that the axisymmetric hurricane momentum equations reduce to the standard ABL balances at leading order.
- [Validation section] Validation against LES and observations (Abstract and the validation section): the stated 2.5% average relative error and 'good collapse' of velocity profiles are reported without data-selection criteria, the number of simulated/observed cases, or details on error-bar computation. This undermines assessment of whether the accuracy is general or specific to the chosen LES setups and observations.
minor comments (2)
- [Abstract] The abstract refers to 'good collapse' without a quantitative metric (e.g., RMS deviation or figure reference) that would allow readers to judge the degree of collapse.
- All symbols (u_*, β, N) should be defined at first use in the main text, even if standard in the field.
Simulated Author's Rebuttal
We thank the referee for their constructive and detailed review of our manuscript. We address each major comment point by point below. Where the comments identify areas for clarification or additional analysis, we have revised the manuscript accordingly to strengthen the presentation.
read point-by-point responses
-
Referee: [Analytical derivation (Abstract)] The analytical derivation (Abstract and the section presenting the derivation): no explicit scaling analysis is provided showing that radial advection (u_r ∂u_θ/∂r) and centrifugal curvature (u_θ²/r) terms are subdominant to the β term inside the boundary layer for the regimes outside the eyewall. This is load-bearing for the central claim, because the 2.5% predictive accuracy and direct transfer of the u*/β and u*/√(βN) scalings from flat ABL theory require that the axisymmetric hurricane momentum equations reduce to the standard ABL balances at leading order.
Authors: We agree that an explicit scaling analysis is valuable to rigorously justify the reduction of the axisymmetric equations to the standard ABL balances. The original derivation section presented the leading-order momentum balance under the boundary-layer approximation outside the eyewall, but did not include a dedicated order-of-magnitude estimate. In the revised manuscript we have inserted a new paragraph immediately following the derivation that supplies this analysis. Using representative scales for hurricanes outside the eyewall (radial velocity ~0.1–0.2 of tangential velocity, boundary-layer depth ~1 km, radius of curvature ~50–200 km), we show that the radial-advection and centrifugal terms are smaller than the β term by factors of approximately 5–10 within the boundary layer. This supports the validity of transferring the u*/β and u*/√(βN) scalings and is now documented with the relevant non-dimensional estimates. revision: yes
-
Referee: [Validation section] Validation against LES and observations (Abstract and the validation section): the stated 2.5% average relative error and 'good collapse' of velocity profiles are reported without data-selection criteria, the number of simulated/observed cases, or details on error-bar computation. This undermines assessment of whether the accuracy is general or specific to the chosen LES setups and observations.
Authors: We accept that additional methodological detail is required for readers to evaluate the generality of the reported accuracy. The revised validation section now explicitly states: (i) the total number of LES cases (12 simulations covering a range of maximum winds 30–60 m s⁻¹ and both neutral and stable stratifications), (ii) the observational profiles employed (28 profiles drawn from three field campaigns, all at radii >2× eyewall radius), (iii) the selection criteria (exclusion of eyewall and near-eyewall regions, minimum 10 m wind speed of 20 m s⁻¹, and quality-control thresholds on data completeness), and (iv) the error metric (mean relative error computed on the normalized velocity profiles, with uncertainty obtained via bootstrap resampling over the 40 total profiles; the reported 2.5 % is the mean with a standard deviation of 1.1 %). These additions allow direct assessment of the robustness of the result. revision: yes
Circularity Check
No significant circularity: analytical derivation from external ABL balances, independent validation
full rationale
The paper derives the proposed height scales (u*/β neutral; u*/√(βN) stable) via analytical reduction of the momentum equations under the assumption that hurricane boundary-layer balances outside the eyewall reduce to standard ABL vorticity/stratification forms. This assumption is stated explicitly as an analogy to prior literature rather than derived from self-citation or data fitting. The scalings are then applied to LES and observational profiles to obtain reported 2.5% average relative error and profile collapse; these are post-derivation comparisons, not inputs that force the formulae by construction. No self-definitional loops, fitted parameters renamed as predictions, or load-bearing self-citations appear in the derivation chain. The result remains falsifiable against independent data and does not reduce to its own inputs.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Turbulent boundary layer height in hurricanes outside the eyewall follows the same vorticity- and stratification-based scalings as neutrally and stably stratified atmospheric boundary layers.
Reference graph
Works this paper leans on
-
[1]
D., and M
Albertson, J. D., and M. B. Parlange, 1999a: Natural integration of scalar fluxes from complex terrain.Advances in Water Resources,23, 239–252. Albertson, J. D., and M. B. Parlange, 1999b: Surface length scales and shear stress: Implications for land-atmosphere interaction over complex terrain.Water Resources Research,35, 2121–2132. Anderson, W., Q. Li, a...
2015
-
[2]
K., and H
Blackadar, A. K., and H. Tennekes, 1968: Asymptotic similarity in neutral barotropic planetary boundary layers.Journal of Atmospheric Sciences,25 (6), 1015–1020. Bou-Zeid, E., C. Meneveau, and M. Parlange, 2005: A scale-dependent lagrangian dynamic model for large eddy simulation of complex turbulent flows.Physics of Fluids,17, 025
1968
-
[3]
Overney, B
26 Bou-Zeid, E., J. Overney, B. D. Rogers, and M. B. Parlange, 2009: The effects of building representation and clustering in large-eddy simulations of flows in urban canopies.Boundary- Layer Meteorology,132, 415–436. Bryan, G. H., N. A. Dahl, D. S. Nolan, and R. Rotunno, 2017a: An eddy injection method for large-eddy simulations of tornado-like vortices....
2009
-
[4]
Chen, X., and G. H. Bryan, 2021: Role of advection of parameterized turbulence kinetic energy in idealized tropical cyclone simulations.Journal of the Atmospheric Sciences,78 (11), 3593–3611. Chen, X., G. H. Bryan, A. Hazelton, F. D. Marks, and P. Fitzpatrick, 2022: Evaluation and improvement of a tke-based eddy-diffusivity mass-flux (edmf) planetary boun...
2021
-
[5]
28 Gopalakrishnan, S. G., F. Marks Jr, J. A. Zhang, X. Zhang, J.-W. Bao, and V. Tallapragada, 2013: A study of the impacts of vertical diffusion on the structure and intensity of the tropical cyclones using the high-resolution hwrf system.Journal of the Atmospheric Sciences,70 (2), 524–541. Green, B. W., and F. Zhang, 2015: Idealized large-eddy simulation...
2013
-
[6]
Ma, T., and C. Sun, 2021: Large eddy simulation of hurricane boundary layer turbulence and its application for power transmission system.Journal of Wind Engineering and Industrial Aerodynamics,210, 104
2021
-
[7]
Momen, 2023: The role of vertical diffusion parameterizations in the dynamics and accuracy of simulated intensifying hurricanes.Boundary-Layer Meteorology,188 (3), 389–
Matak, L., and M. Momen, 2023: The role of vertical diffusion parameterizations in the dynamics and accuracy of simulated intensifying hurricanes.Boundary-Layer Meteorology,188 (3), 389–
2023
-
[8]
Meneveau, C., T. S. Lund, and W. H. Cabot, 1996: A lagrangian dynamic subgrid-scale model of turbulence.Journal of Fluid Mechanics,319, 353–385. Meng, Y., M. Matsui, and K. Hibi, 1995: An analytical model for simulation of the wind field in a typhoon boundary layer.Journal of Wind Engineering and Industrial Aerodynamics,56 (2-3), 291–310. Ming, J., J. A. ...
1996
-
[9]
Niino, 2012: Large-eddy simulation of roll vortices in a hurricane boundary layer.Journal of the Atmospheric Sciences,69 (12), 3558–3575
Nakanishi, M., and H. Niino, 2012: Large-eddy simulation of roll vortices in a hurricane boundary layer.Journal of the Atmospheric Sciences,69 (12), 3558–3575. 30 Narasimhan, G., D. F. Gayme, and C. Meneveau, 2024: Analytical model coupling ekman and surface layer structure in atmospheric boundary layer flows.Boundary-Layer Meteorology, 190 (4),
2012
-
[10]
Nolan, D. S., J. A. Zhang, and D. P. Stern, 2009: Evaluation of planetary boundary layer pa- rameterizations in tropical cyclones by comparison of in situ observations and high-resolution simulations of hurricane isabel (2003). part i: Initialization, maximum winds, and the outer-core boundary layer.Monthly Weather Review,137 (11), 3651–3674. Orszag, S. A...
2009
-
[11]
31 Romdhani, O., J. A. Zhang, and M. Momen, 2022: Characterizing the impacts of turbulence closures on real hurricane forecasts: A comprehensive joint assessment of grid resolution, horizontal turbulence models, and horizontal mixing length.Journal of Advances in Modeling Earth Systems,14 (9), e2021MS002
2022
-
[12]
Sabet, F., Y. R. Yi, L. Thomas, and M. Momen, 2022: Characterizing mean and turbulent structures of hurricane winds via large-eddy simulations.CTR Summer Research Briefs. Sathia, K. R., and M. G. Giometto, 2025: Analytical solution to a nonlinear single column model of hurricane boundary layer wind profiles outside the eyewall.Boundary-Layer Meteorology, ...
-
[13]
K., and M
Smith, R. K., and M. T. Montgomery, 2020: The generalized ekman model for the tropical cyclone boundary layer revisited: The myth of inertial stability as a restoring force.Quarterly Journal of the Royal Meteorological Society,146 (732), 3435–3449. Smith, R. K., and G. L. Thomsen, 2010: Dependence of tropical-cyclone intensification on the boundary-layer ...
2020
