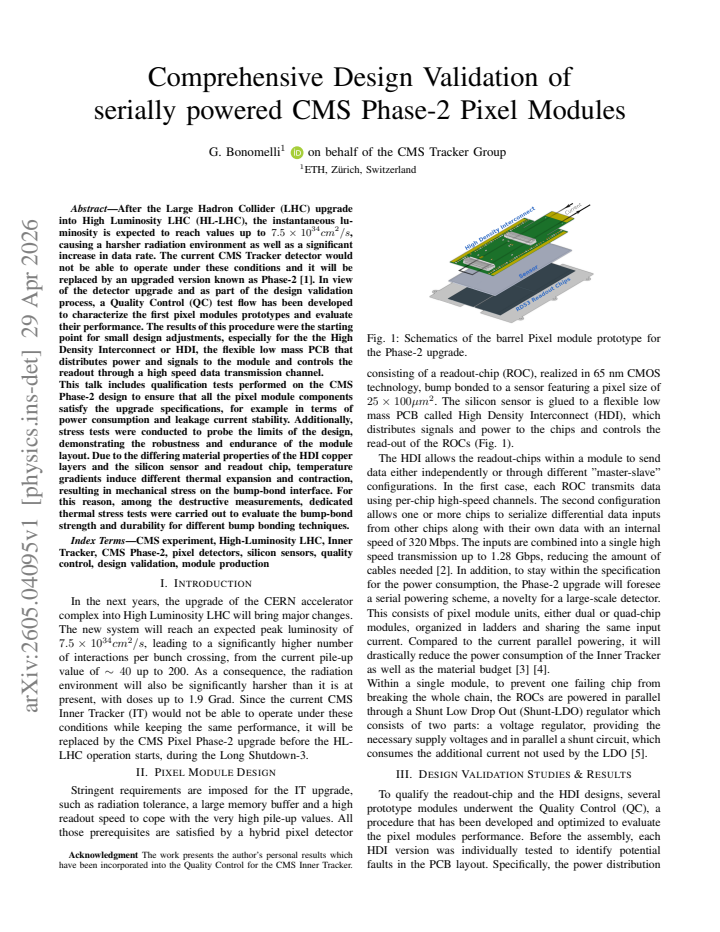

Comprehensive Design Validation of serially powered CMS Phase-2 Pixel Modules

Giorgia Bonomelli (on behalf of the CMS Tracker Group)

Pith reviewed 2026-05-09 20:21 UTC · model grok-4.3

classification ⚛️ physics.ins-det hep-ex

keywords CMSPhase-2pixel modulesHL-LHCbump bondingthermal stressquality controlHDI

0 comments

The pith

A quality control test flow on early prototypes validates the CMS Phase-2 pixel module design and guides small adjustments to the HDI.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes a QC test flow applied to the first prototypes of serially powered pixel modules for the CMS Phase-2 tracker upgrade. Electrical qualification tests confirm that power consumption and leakage current remain stable within upgrade specifications. Results from these tests prompted targeted changes to the high-density interconnect layout. Thermal stress cycles then evaluated bump-bond strength for different bonding techniques, establishing the mechanical endurance of the assembled module under temperature-induced expansion mismatches.

Core claim

The authors establish that the QC procedure, consisting of qualification measurements on power and current stability plus destructive thermal stress tests on bump bonds, demonstrates the robustness of the module layout while providing the basis for minor design refinements focused on the HDI.

What carries the argument

The QC test flow that includes thermal cycling to measure bump-bond durability across bonding techniques.

If this is right

The module layout satisfies the power consumption and leakage stability requirements for the HL-LHC upgrade.
Small adjustments to the HDI improve the design based on observed test outcomes.
Different bump bonding techniques exhibit measurable differences in durability under thermal stress.
The overall assembly shows mechanical endurance sufficient to pass the applied stress limits.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If prototype results hold at scale, production of the full Phase-2 tracker can proceed with reduced risk of early failures.
The same test sequence could be adapted to qualify other silicon detector assemblies facing similar thermal mismatch issues.
Monitoring bump-bond integrity after installation may still be needed, since the tested cycle counts are lower than the expected lifetime exposure.

Load-bearing premise

Tests performed on a small set of early prototypes will correctly predict failure rates for thousands of modules once exposed to the full HL-LHC radiation, thermal cycling, and mechanical environment.

What would settle it

Observation of widespread bump-bond failures or power instability in modules subjected to more thermal cycles or combined radiation exposure than the prototype tests.

Figures

Figures reproduced from arXiv: 2605.04095 by Giorgia Bonomelli (on behalf of the CMS Tracker Group).

**Figure 2.** Figure 2: Power consumption for quad (2x2) and dual (1x2) chip [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

**Figure 3.** Figure 3: Leakage current stability over time measured on the [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗

read the original abstract

After the Large Hadron Collider (LHC) upgrade into High Luminosity LHC (HL-LHC), the instantaneous luminosity is expected to reach values up to 7.5x10^34cm^2/s, causing a harsher radiation environment as well as a significant increase in data rate. The current CMS Tracker detector would not be able to operate under these conditions and it will be replaced by an upgraded version known as Phase-2. In view of the detector upgrade and as part of the design validation process, a Quality Control (QC) test flow has been developed to characterize the first pixel modules prototypes and evaluate their performance. The results of this procedure were the starting point for small design adjustments, especially for the the High Density Interconnect or HDI, the flexible low mass PCB that distributes power and signals to the module and controls the readout through a high speed data transmission channel. This talk includes qualification tests performed on the CMS Phase-2 design to ensure that all the pixel module components satisfy the upgrade specifications, for example in terms of power consumption and leakage current stability. Additionally, stress tests were conducted to probe the limits of the design, demonstrating the robustness and endurance of the module layout. Due to the differing material properties of the HDI copper layers and the silicon sensor and readout chip, temperature gradients induce different thermal expansion and contraction, resulting in mechanical stress on the bump-bond interface. For this reason, among the destructive measurements, dedicated thermal stress tests were carried out to evaluate the bump-bond strength and durability for different bump bonding techniques.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This is a routine engineering report on prototype QC tests and minor HDI tweaks for CMS Phase-2 pixel modules, with no new methods or quantitative surprises.

read the letter

This paper walks through the quality control tests developed for the first prototypes of the CMS Phase-2 pixel modules. They used the test results to make small changes to the high density interconnect, ran checks on power consumption and leakage current, and performed thermal stress tests to look at bump bond strength under different bonding methods. It does a good job explaining why thermal gradients matter here, with the copper in the HDI expanding differently from the silicon parts, and why that puts stress on the connections. The tests seem to confirm the layout is robust enough for the upgrade conditions. The main limitation is that the description stays at a high level. We hear that adjustments were made and endurance was shown, but there are no specifics on how many modules were tested, what the actual measurements were, or how they compare to the required specs for HL-LHC operation. That makes it harder to judge the strength of the validation. This is targeted at the instrumentation community working on the CMS tracker upgrade. A reader involved in similar detector builds would pick up practical details on the test flow and the thermal issues. It is worth sending to peer review because the work supports a major project and these kinds of reports help build the engineering record. I recommend accepting it for review.

Referee Report

3 major / 2 minor

Summary. The manuscript describes the development of a Quality Control (QC) test flow for early prototypes of serially powered CMS Phase-2 pixel modules. It reports small design adjustments to the High Density Interconnect (HDI), qualification tests for power consumption and leakage current stability to meet upgrade specifications, and thermal stress tests to assess bump-bond strength and durability across different bonding techniques, with the goal of validating module robustness under HL-LHC radiation, thermal, and mechanical conditions.

Significance. If supported by detailed data, the work would contribute to the practical validation of the CMS Phase-2 pixel detector upgrade by addressing key engineering challenges such as HDI layout and bump-bond reliability under thermal gradients. The empirical prototype testing approach is appropriate for an upgrade program, but the absence of quantitative outcomes limits its immediate utility for assessing long-term performance predictions.

major comments (3)

[Abstract] Abstract: The central claims that the QC procedure 'were the starting point for small design adjustments' and demonstrated 'the robustness and endurance of the module layout' are presented without any quantitative results (e.g., measured power values, leakage currents, thermal cycle counts, failure rates, sample sizes, or comparisons to specifications). This absence makes it impossible to evaluate whether the tests actually support the design validation conclusions.
[Thermal stress tests description] Thermal stress tests section: The description of dedicated thermal stress tests for bump-bond strength mentions evaluation 'for different bump bonding techniques' but provides no specifics on test parameters (temperature ranges, number of cycles, ramp rates), failure criteria, statistical outcomes, or comparative data between techniques. Without these, the claim that the tests probe the limits of the design cannot be verified.
[Abstract and conclusions] Overall manuscript: The weakest assumption—that limited prototype tests on early modules accurately predict long-term failure rates under full HL-LHC conditions—is not addressed with any discussion of test scope limitations, radiation effects, or statistical extrapolation methods, which is load-bearing for the robustness demonstration.

minor comments (2)

[Abstract] Abstract contains a typographical error: 'especially for the the High Density Interconnect'.
[Abstract] The abstract refers to 'this talk' and lacks references to specific figures, tables, or sections in the full manuscript that would present the test data.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. We agree that incorporating quantitative results and explicitly discussing test limitations will strengthen the presentation of the QC test flow and design validation for the CMS Phase-2 pixel modules. We address each major comment below and will revise the manuscript accordingly.

read point-by-point responses

Referee: [Abstract] Abstract: The central claims that the QC procedure 'were the starting point for small design adjustments' and demonstrated 'the robustness and endurance of the module layout' are presented without any quantitative results (e.g., measured power values, leakage currents, thermal cycle counts, failure rates, sample sizes, or comparisons to specifications). This absence makes it impossible to evaluate whether the tests actually support the design validation conclusions.

Authors: We agree that the abstract would benefit from quantitative results to support the claims. In the revised manuscript, we will update the abstract to include key measured outcomes from the qualification and stress tests, such as power consumption values, leakage current stability metrics, thermal cycle counts completed without failure, sample sizes, and comparisons to specifications. These data are reported in the body of the paper and will now be summarized in the abstract to facilitate evaluation of the design validation. revision: yes
Referee: [Thermal stress tests description] Thermal stress tests section: The description of dedicated thermal stress tests for bump-bond strength mentions evaluation 'for different bump bonding techniques' but provides no specifics on test parameters (temperature ranges, number of cycles, ramp rates), failure criteria, statistical outcomes, or comparative data between techniques. Without these, the claim that the tests probe the limits of the design cannot be verified.

Authors: We acknowledge that the thermal stress tests section lacks sufficient detail on the experimental parameters. In the revised manuscript, we will expand this section to provide the specific test parameters used, including temperature ranges, number of cycles, ramp rates, failure criteria, statistical outcomes across samples, and comparative results between the different bump bonding techniques. This will enable verification that the tests probe the limits of the design under relevant thermal gradients. revision: yes
Referee: [Abstract and conclusions] Overall manuscript: The weakest assumption—that limited prototype tests on early modules accurately predict long-term failure rates under full HL-LHC conditions—is not addressed with any discussion of test scope limitations, radiation effects, or statistical extrapolation methods, which is load-bearing for the robustness demonstration.

Authors: We recognize the need to address the scope and limitations of the prototype testing more explicitly. In the revised manuscript, we will add a discussion in the conclusions (or a new subsection) clarifying that these tests on early prototypes focus on thermal and mechanical stresses under expected operating conditions as part of an iterative validation process. We will note that radiation effects are evaluated in separate irradiation studies, that the small sample sizes preclude statistical extrapolation to long-term failure rates under full HL-LHC conditions, and that the results confirm robustness for the tested parameters rather than providing comprehensive long-term predictions. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical prototype validation is self-contained

full rationale

The paper describes a QC test flow for CMS Phase-2 pixel module prototypes, reports measured outcomes on power consumption, leakage current, and bump-bond durability under thermal stress, and notes that test results prompted minor HDI design adjustments. No equations, fitted parameters, model predictions, or derivation chains appear. Claims rest directly on physical measurements of early modules rather than on any self-referential loop or imported uniqueness result. This is the expected pattern for a detector-upgrade engineering report and carries no circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a purely experimental engineering validation paper. No mathematical derivations, fitted constants, or postulated entities are introduced; all claims rest on the described physical tests of hardware prototypes.
