Random sampling of self-avoiding theta-graphs

Aleksander L. Owczarek, Nicholas R. Beaton

Pith reviewed 2026-05-08 17:32 UTC · model grok-4.3

classification ❄️ cond-mat.stat-mech cond-mat.soft
keywords self-avoiding walkstheta-graphscritical exponentsMonte Carlo samplingWang-Landau algorithmlattice embeddingspolymer statistics
0
0 comments X

The pith

Numerical sampling estimates critical exponents for self-avoiding theta-graphs on lattices and supports a conjecture for equal-arm cases in two dimensions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The work develops a Monte Carlo method to sample self-avoiding embeddings of theta-graphs, which consist of two points joined by three paths, on the square lattice in two dimensions and the cubic lattice in three dimensions. It calculates how the total number of such graphs scales with size and how the lengths of the three arms are distributed on average. These scaling exponents are then compared to known values for knotted loops in three dimensions. For graphs where the three arms have identical lengths, the two-dimensional results align with a specific conjectured exponent value.

Core claim

A combination of the modified BFACF algorithm for degree-three vertices and Wang-Landau sampling generates large sets of self-avoiding theta-graph embeddings on lattices. Critical exponents are extracted for the growth in the number of such graphs and for the distributions of arm lengths. These are compared to prime-knot exponents in three dimensions. In two dimensions the equal-arm-length subclass provides supporting evidence for a conjectured value of the critical exponent.

What carries the argument

The modified BFACF algorithm adapted for degree-three vertices, paired with Wang-Landau flat-histogram sampling to generate unbiased theta-graph configurations.

If this is right

  • The number of theta-graphs grows according to a power law whose exponent can be read from the sampled ensembles.
  • The distribution of arm lengths obeys scaling relations whose moments supply additional critical exponents.
  • In three dimensions the theta-graph exponents stand in a definite relation to those already known for prime knots.
  • In two dimensions the monodisperse subclass obeys an exponent consistent with the value conjectured for equal-arm theta-graphs.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same sampling scheme could be applied to theta-graphs whose arms are further constrained by knotting or by fixed total perimeter.
  • Agreement with the two-dimensional conjecture would tighten the connection between theta-graph counting and two-dimensional loop models.
  • Reliable three-dimensional exponents would supply input for polymer models in which three paths link a pair of endpoints.

Load-bearing premise

The sampling algorithm produces configurations whose statistics accurately capture the infinite-size limiting behavior without persistent biases from the way degree-three vertices or lattice edges are handled.

What would settle it

An exact enumeration of all theta-graphs up to moderate sizes on the square lattice that yields a different growth rate or arm-length distribution from the Monte Carlo extrapolation would falsify the estimated exponents.

Figures

Figures reproduced from arXiv: 2605.04367 by Aleksander L. Owczarek, Nicholas R. Beaton.

Figure 1
Figure 1. Figure 1: (a) A star, (b) a watermelon, (c) a comb, (d) a tadpole, and (e) a dumbbell. 1 arXiv:2605.04367v1 [cond-mat.stat-mech] 6 May 2026 view at source ↗
Figure 2
Figure 2. Figure 2: A size 500 theta on the square lattice, with arm lengths 18, 66 and 416. different ‘knot’ types, which can be grouped according to their crossing number in a similar manner to regular knots, and for which there exist invariants for distinguishing them [46]. While the methods we use here can be applied to thetas of any specified knot type, we focus only on ‘unknotted’ thetas with crossing number 0 (equivale… view at source ↗
Figure 3
Figure 3. Figure 3: (a) and (b) Two thetas with different distributions of arm lengths. (c) A trefoil knot with a localised knot component. (d) A theta with non-trivial ‘knot’ type view at source ↗
Figure 4
Figure 4. Figure 4: The basic BFACF moves for the square and cubic lattices. shapes and sizes, in order to compute estimates of the number of thetas of a given size, as well as the distribution of the length of shortest or second-shortest arm, or the sum of both. From these data, we calculate estimates for several critical exponents, namely those which govern the number of thetas, the number of monodisperse thetas, the averag… view at source ↗
Figure 5
Figure 5. Figure 5: The set of BFACF moves for spatial graphs on the cubic lattice. The moves in (a) do not change the location of the vertices of degree 3, while the moves in (b) do move at least one of the degree 3 vertices. These are in addition to the regular BFACF moves in view at source ↗
Figure 6
Figure 6. Figure 6: A plot of the average error (3.7) for the Wang-Landau algorithm, sampling SAPs on the square lattice up to size nmax = 130, with a total of 2×108 samples. Algorithm 2 is in green, while Algorithm 3 coincides with Algorithm 2 up to ≈ 1.47 × 107 samples, after which it switches to the “1/t algorithm” and is plotted in blue. It remains to define the random walk over the set of SAPs of size ≤ Nmax. This is whe… view at source ↗
Figure 7
Figure 7. Figure 7: (a) A plot of L ∗ n − n log µ − (α − 2) log n for the square lattice against 1 n . The data are from (I) (blue), (II) (orange) and (III) (green), taken by first averaging over the 20 independent Wang-Landau runs. (b) The same data, except with the value −1.459 used instead of (α − 2). Square lattice For the square and cubic lattices we essentially have two sequences – one for even n and one for odd n. We e… view at source ↗
Figure 8
Figure 8. Figure 8: (a) Plots of the estimated values of ζ for the square lattice, using median data from (I) (blue), (II) (orange) and (III) (green). These are obtained using Mathematica’s LinearModelFit function, fitting L ∗ n − n log µ. The top three sets are fit without any correction-to-scaling term, while the bottom three do include the a n∆ term, with ∆ = 1. The horizontal axis is 1 nmin . (b) A plot of R∗ n as per (4.… view at source ↗
Figure 9
Figure 9. Figure 9: (a) Plots of θ [1]∗ n −n log µ−(α−2) (blue) and similarly for θ [2]∗ n (orange) and θ [12]∗ n (green), all against 1 n , for the square lattice. These have been shifted vertically so that the final term is 0 (so that they all fit on the same plot). The plots are linear as expected. (b) A similar plot to view at source ↗
Figure 10
Figure 10. Figure 10: (a) A plot of L ∗ n − n log µ0 − (α − 2) log n for the cubic lattice against √ 1 n . The data are from (I) (blue), (II) (orange) and (III) (green), taken by first averaging over the 20 independent Wang-Landau runs. (b) A plot of R∗ n as per (4.11), using data from (I) (blue), (II) (orange) and (III) (green) computed by first averaging over the 20 independent Wang-Landau runs. The horizontal axis is √ 1 n . 13 view at source ↗
Figure 11
Figure 11. Figure 11: (a) A plot of L ∗ n−n log µ0−(−1.67) log n for the cubic lattice against 1 n . The data are from (I) (blue), (II) (orange) and (III) (green), taken by first averaging over the 20 independent Wang-Landau runs. (b) A plot of R∗ n as per (4.11), using data from (I) (blue), (II) (orange) and (III) (green) computed by first averaging over the 20 independent Wang-Landau runs. The horizontal axis is 1 n . A line… view at source ↗

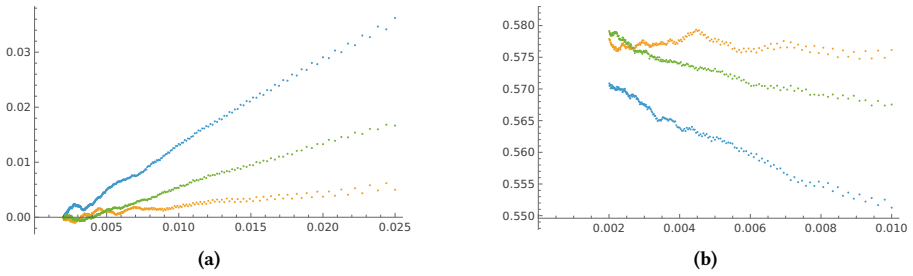

Figure 12
Figure 12. Figure 12: (a) Plots of ⟨ℓ1⟩ ∗ n − 0.574 log n (blue), ⟨ℓ2⟩ ∗ n − 0.579 log n (orange) and ⟨ℓ12⟩ ∗ n − 0.579 log n (green) against 1 n for the square lattice. These have been shifted vertically so that the final term is 0. (b) Plots of the analogous quantities to (4.20), with the same colour schemes. Linear fits have intercepts 0.575 (blue), 0.577 (orange) and 0.581 (green). for a constant s. For 3D we consider both… view at source ↗

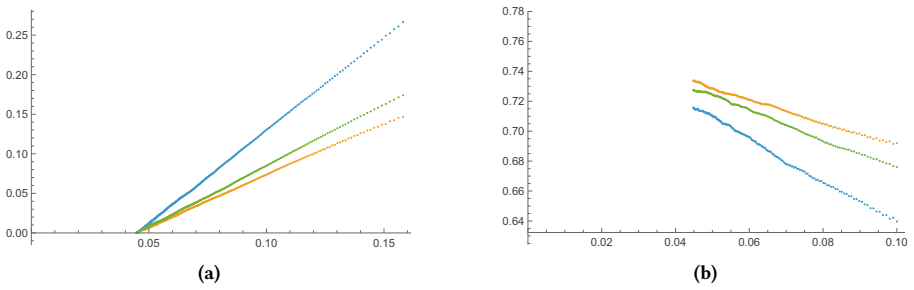

Figure 13
Figure 13. Figure 13: (a) Plots of ⟨ℓ1⟩ ∗ n − 0.779 log n (blue), ⟨ℓ2⟩ ∗ n − 0.769 log n (orange) and ⟨ℓ12⟩ ∗ n − 0.769 log n (green) against √ 1 n for the cubic lattice. These have been shifted vertically so that the final term is 0. (b) Plots of the analogous quantities to (4.20), with the same colour schemes, plotted against √ 1 n . Linear fits have intercepts 0.781 (blue), 0.768 (orange) and 0.773 (green). 0.05 0.10 0.15 0… view at source ↗
Figure 14
Figure 14. Figure 14: (a) The distribution of ℓ1 (i.e. the fraction of thetas with a given ℓ1) across thetas of size n = 200 (blue), 300 (orange), 400 (green) and 500 (red). The horizontal axis has been scaled by n. (b) The same plot for the cubic lattice. 16 view at source ↗
Figure 15
Figure 15. Figure 15: Ratio plots for estimating 2η on the (a) square lattice and (b) cubic lattice, both plotted against 1 n and using the median data in all cases. The Metropolis-Hastings transition probabilities were calculated using estimates from (I) (blue), (II) (orange) and (III) (green). 5 Results: monodisperse theta-graphs In this section we consider monodisperse theta-graphs, where the three arms have the same length… view at source ↗

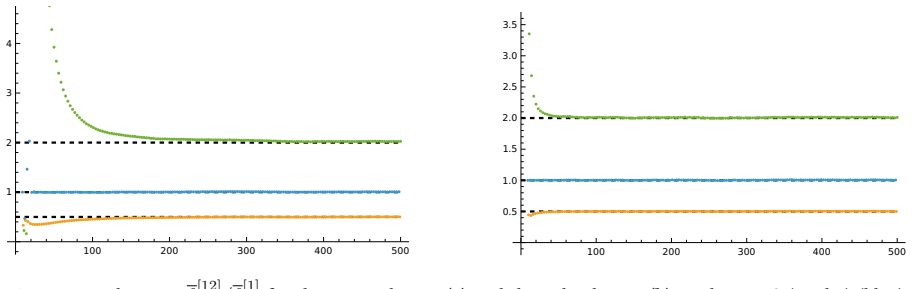

Figure 16
Figure 16. Figure 16: The ratio θ [12] n /θ [1] n for the square lattice (a) and the cubic lattice (b), with n ≡ 0 (mod 3) (blue), n ≡ 1 (mod 3) (orange), and n ≡ 2 (mod 3) (green). The ratios were computed by first averaging over the 10 independent Wang-Landau runs. 0.002 0.004 0.006 0.008 0.010 -4.0 -3.8 -3.6 -3.4 -3.2 0.002 0.004 0.006 0.008 0.010 -3.930 -3.925 -3.920 -3.915 -3.910 -3.905 -3.900 view at source ↗

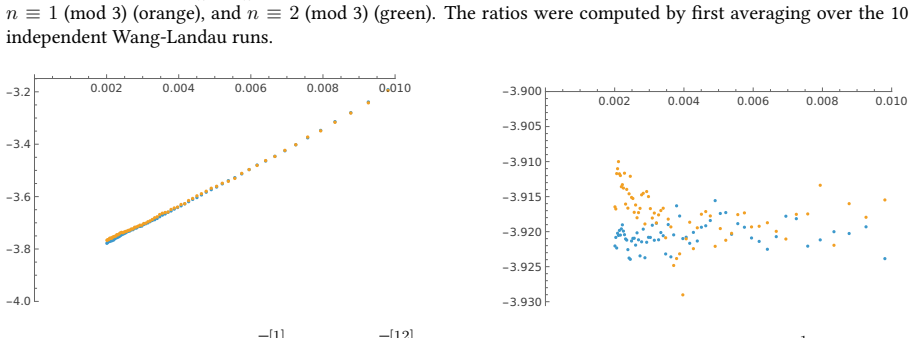

Figure 17
Figure 17. Figure 17: (a) A ratio plot for θ [1] n (blue) and θ [12] n (orange) on the square lattice, plotted against 1 n (using only values of n which are multiples of 6). Taking linear fits through the last 50 points of both gives the intercept −3.908. (b) The equivalent plot for the cubic lattice. Square lattice Two-dimensional polymer networks with a fixed typology were studied by Duplantier in [17] using renormalisation … view at source ↗
read the original abstract

Theta-graphs are a type of spatial graph with two vertices connected by three edges. We investigate embeddings of theta-graphs in the square and simple cubic lattices, using a combination of the Wang-Landau Monte Carlo method with a variant of the BFACF algorithm which accommodates vertices of degree 3. This allows us to estimate the critical exponents governing the number of theta-graphs and the distributions of the different arm-lengths. For the cubic lattice these values can be compared to the corresponding exponents for prime knots. We also study the number of `monodisperse' theta-graphs where the three arms have the same lengths, and find evidence supporting a conjecture for the critical exponent in two dimensions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript uses a modified BFACF algorithm combined with Wang-Landau Monte Carlo sampling to generate self-avoiding embeddings of theta-graphs on the square and simple cubic lattices. It estimates critical exponents for the number of theta-graphs and arm-length distributions, compares the cubic-lattice results to those for prime knots, and reports numerical evidence supporting a conjecture on the critical exponent for monodisperse (equal arm-length) theta-graphs in two dimensions.

Significance. If the sampling procedure is unbiased and the finite-size analysis is robust, the work supplies new numerical data on the scaling of self-avoiding spatial graphs, extending established techniques from self-avoiding walks and knots. The comparison with knot exponents and the 2D monodisperse conjecture support are of interest to the statistical mechanics of polymers and entangled graphs.

major comments (2)
  1. [Methods] Methods section: The variant of the BFACF algorithm that accommodates degree-3 vertices is described only at a high level; no explicit move set, acceptance probabilities, or handling of the vertex constraint is provided. Because all reported exponent estimates rest on the assumption that this sampler produces unbiased configurations, the absence of these details prevents verification that systematic errors from vertex handling or lattice boundaries are absent.
  2. [Results] Results and finite-size scaling: No error bars, autocorrelation times, convergence diagnostics, or explicit finite-size scaling procedure (e.g., how the effective exponents are extrapolated to the infinite-volume limit) are reported for the central exponent estimates. This directly affects the reliability of the claimed support for the 2D monodisperse conjecture.
minor comments (2)
  1. [Abstract] The abstract states that cubic-lattice values 'can be compared' to knot exponents but does not indicate whether any quantitative comparison or table is provided in the text.
  2. [Introduction] Notation for the critical exponents (e.g., how the growth constant and entropic exponents are defined) should be introduced consistently in the introduction and used uniformly in all figures and tables.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments, which highlight important aspects of reproducibility and statistical reliability. We address each major comment below and outline the revisions we will make.

read point-by-point responses

  1. Referee: [Methods] Methods section: The variant of the BFACF algorithm that accommodates degree-3 vertices is described only at a high level; no explicit move set, acceptance probabilities, or handling of the vertex constraint is provided. Because all reported exponent estimates rest on the assumption that this sampler produces unbiased configurations, the absence of these details prevents verification that systematic errors from vertex handling or lattice boundaries are absent.

    Authors: We agree that the current description of the modified BFACF algorithm is at a high level and insufficient for full verification. In the revised manuscript we will expand the Methods section to include: (i) the complete move set for degree-3 vertices (including the specific local moves that preserve the theta-graph topology while maintaining self-avoidance), (ii) the acceptance probabilities derived from the Wang-Landau flat-histogram sampling, and (iii) the explicit rules used to enforce the vertex constraint and handle lattice-boundary effects. We will also add a short pseudocode outline of the update procedure. These additions will allow independent confirmation that the sampler is unbiased and free of the systematic errors noted by the referee. revision: yes

  2. Referee: [Results] Results and finite-size scaling: No error bars, autocorrelation times, convergence diagnostics, or explicit finite-size scaling procedure (e.g., how the effective exponents are extrapolated to the infinite-volume limit) are reported for the central exponent estimates. This directly affects the reliability of the claimed support for the 2D monodisperse conjecture.

    Authors: We acknowledge that the Results section currently omits quantitative error analysis and a transparent description of the extrapolation procedure. In the revision we will: (i) report statistical error bars on all exponent estimates, (ii) include measured autocorrelation times and convergence diagnostics (e.g., integrated autocorrelation times and histogram flatness checks) for the Wang-Landau runs, and (iii) detail the finite-size scaling ansatz and fitting protocol used to extrapolate effective exponents to the infinite-volume limit. With these additions the numerical support for the 2D monodisperse conjecture will be presented with the necessary statistical safeguards. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper generates numerical estimates of theta-graph counts and arm-length distributions via direct Monte Carlo sampling on lattices using a modified BFACF algorithm with Wang-Landau sampling. Critical exponents are extracted from finite-size scaling of these independently generated counts, including for monodisperse cases, without any algebraic derivation, parameter fitting to prior outputs, or self-referential definitions that reduce the reported results to their inputs by construction. Support for the 2D exponent conjecture follows from these simulation outputs rather than from any load-bearing self-citation or ansatz smuggled in via prior work.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on the assumption that the adapted Monte Carlo algorithm correctly samples the self-avoiding theta-graph ensemble and that finite-size data can be extrapolated to obtain reliable critical exponents.

axioms (1)
  • domain assumption The modified BFACF algorithm generates an unbiased sample of self-avoiding theta-graphs on the lattice.
    The paper's exponent estimates depend on this sampling step being statistically correct.

pith-pipeline@v0.9.0 · 5416 in / 1237 out tokens · 71462 ms · 2026-05-08T17:32:22.895172+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.
