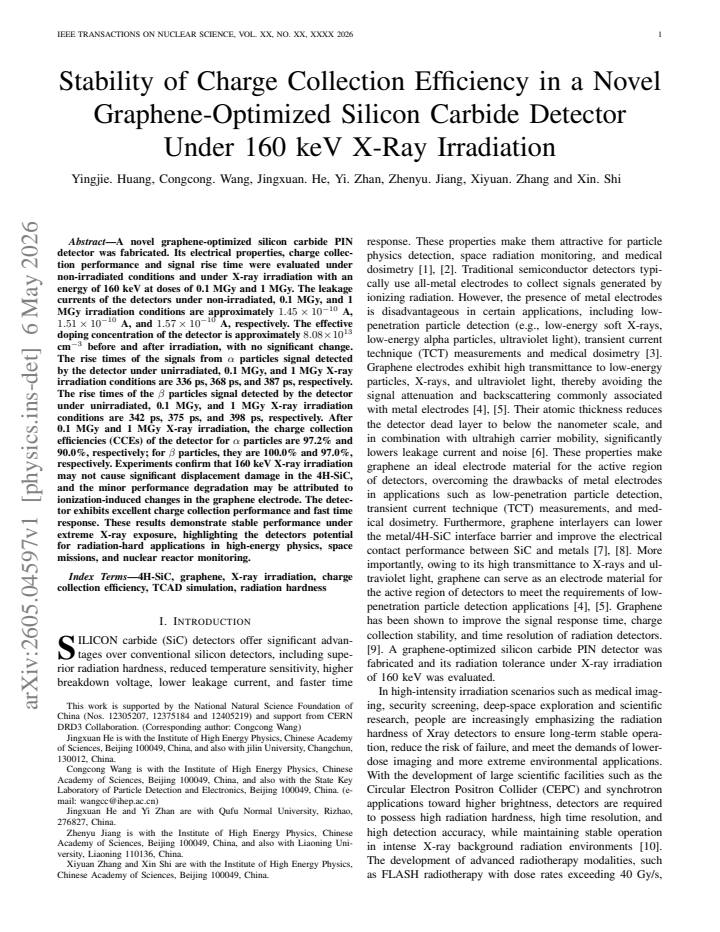

Stability of Charge Collection Efficiency in a Novel Graphene-Optimized Silicon Carbide Detector Under 160 keV X-Ray Irradiation

Congcong Wang, Jingxuan He, Xin Shi, Xiyuan Zhang, Yingjie Huang, Yi Zhan, Zhenyu Jiang

Pith reviewed 2026-05-08 16:42 UTC · model grok-4.3

classification ⚛️ physics.ins-det
keywords graphene electrodesilicon carbide detectorcharge collection efficiencyX-ray irradiation4H-SiCPIN detectorradiation hardness
0
0 comments X

The pith

A graphene-optimized silicon carbide detector retains over 90 percent charge collection efficiency after 1 MGy of 160 keV X-ray exposure.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper fabricates a novel graphene-optimized 4H-SiC PIN detector and measures its electrical behavior, charge collection, and signal timing before and after 160 keV X-ray doses of 0.1 MGy and 1 MGy. Leakage current rises only slightly, effective doping concentration stays fixed at about 8.08 times 10 to the 13 per cubic centimeter, and rise times lengthen modestly to roughly 387 picoseconds for alpha particles and 398 picoseconds for beta particles. Charge collection efficiency drops to 90 percent for alphas and 97 percent for betas at the highest dose. The authors conclude that 160 keV X-rays produce negligible displacement damage in the silicon carbide bulk, so the limited degradation arises from ionization changes inside the graphene electrode instead. This pattern of stability indicates the detector can operate with little loss of performance in intense X-ray fields.

Core claim

A novel graphene-optimized 4H-SiC PIN detector was exposed to 160 keV X-ray irradiation at doses of 0.1 MGy and 1 MGy. Post-irradiation measurements revealed leakage currents increasing from 1.45e-10 A to 1.57e-10 A, unchanged effective doping concentration of 8.08e13 cm^-3, and rise times increasing to 387 ps for alpha and 398 ps for beta particles. Charge collection efficiency decreased to 90 percent for alpha particles and 97 percent for beta particles after 1 MGy. The results indicate that 160 keV X-rays cause negligible displacement damage in 4H-SiC, with minor degradation attributed to ionization-induced changes in the graphene electrode.

What carries the argument

The graphene electrode integrated with the 4H-SiC PIN junction, which enables direct tracking of charge collection efficiency and signal rise time under alpha and beta particle detection before and after controlled X-ray exposure.

Load-bearing premise

The minor performance drop after irradiation is caused specifically by ionization effects inside the graphene electrode rather than surface contamination, contact changes, or any unmeasured displacement damage in the silicon carbide.

What would settle it

Direct microscopy or electrical characterization of the graphene layer alone, showing no ionization-induced change while the same degradation still occurs, would falsify the attribution of the observed effects.

Figures

Figures reproduced from arXiv: 2605.04597 by Congcong Wang, Jingxuan He, Xin Shi, Xiyuan Zhang, Yingjie Huang, Yi Zhan, Zhenyu Jiang.

Figure 1
Figure 1. Figure 1: (a) Cross-sectional schematic of the G/RE 4H-SiC view at source ↗
Figure 2
Figure 2. Figure 2: (b) demonstrate that the effective doping concentration remains stable after irradiation, as confirmed by the consistent slopes in the high-voltage region (100–200 V). The minimal variation demonstrates excellent radiation hardness of the bulk view at source ↗
Figure 3
Figure 3. Figure 3: Effective doping concentration profiles as a function of view at source ↗
Figure 4
Figure 4. Figure 4: Experimental setup for charge collection efficiency of view at source ↗
Figure 5
Figure 5. Figure 5: Signal waveforms and rise time distributions at 200 V view at source ↗
Figure 7
Figure 7. Figure 7: Signal waveforms and rise time distributions at 200 V view at source ↗
Figure 8
Figure 8. Figure 8: Charge collection performance 200 V for β particles: (a) Landau fit of the collected charge spectrum, with MPV indicating characteristic charge of detectors. (b) CCE versus reverse bias for the 0 MGy, 0.1 MGy and 1 MGy X-ray irradiated G/RE 4H-SiC PIN. premature saturation above 120 V, indicating a fundamental limitation in charge collection that cannot be overcome by increasing bias. The view at source ↗
read the original abstract

A novel graphene-optimized silicon carbide PIN detector was fabricated. Its electrical properties, charge collection performance and signal rise time were evaluated under non-irradiated conditions and under X-ray irradiation with an energy of 160 keV at doses of 0.1 MGy and 1 MGy. The leakage currents of the detectors under non-irradiated, 0.1 MGy, and 1 MGy irradiation conditions are approximately 1.45e-10 A, 1.51e-10 A, and 1.57e-10 A, respectively. The effective doping concentration of the detector is approximately 8.08e13 cm^-3 before and after irradiation, with no significant change. The rise times of the signals from alpha particles signal detected by the detector under unirradiated, 0.1 MGy, and 1 MGy X-ray irradiation conditions are 336 ps, 368 ps, and 387 ps, respectively. The rise times of the beta particles signal detected by the detector under unirradiated, 0.1 MGy, and 1 MGy X-ray irradiation conditions are 342 ps, 375 ps, and 398 ps, respectively. After 0.1 MGy and 1 MGy X-ray irradiation, the charge collection efficiencies (CCEs) of the detector for alpha particles are 97.2% and 90.0%, respectively; for beta particles, they are 100.0% and 97.0%, respectively. Experiments confirm that 160 keV X-ray irradiation may not cause significant displacement damage in the 4H-SiC, and the minor performance degradation may be attributed to ionization induced changes in the graphene electrode. The detector exhibits excellent charge collection performance and fast time response. These results demonstrate stable performance under extreme X-ray exposure, highlighting the detector's potential for radiation-hard applications in high-energy physics, space missions, and nuclear reactor monitoring.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

4 major / 1 minor

Summary. The manuscript reports on the fabrication of a novel graphene-optimized 4H-SiC PIN detector and its electrical and charge-collection performance before and after 160 keV X-ray irradiation at 0.1 MGy and 1 MGy. It presents measured values for leakage current (~1.45–1.57×10^{-10} A), effective doping concentration (8.08×10^{13} cm^{-3}, unchanged), rise times for alpha (~336–387 ps) and beta (~342–398 ps) particles, and CCE (alpha: 97.2% and 90.0%; beta: 100% and 97.0%), concluding that the detector remains stable with negligible displacement damage in the SiC and only minor ionization-induced changes in the graphene electrode, making it promising for radiation-hard applications.

Significance. If the results are reproducible, the work provides useful empirical evidence of radiation tolerance in a graphene-SiC hybrid detector under high-dose X-ray exposure, relevant to high-energy physics, space, and nuclear monitoring. The unchanged doping concentration and high CCE values (near 100% for betas) support claims of stability, while the sub-nanosecond rise times demonstrate good timing performance. The paper supplies concrete numerical benchmarks for this novel electrode optimization.

major comments (4)
  1. Abstract: CCE values (e.g., 97.2% and 90.0% for alpha particles post-irradiation) are stated without any description of the extraction method, such as integration of pulse-height spectra, calibration against known energy deposition, or correction for trapping. This directly affects verification of the central claim of 'excellent charge collection performance'.
  2. Abstract: No uncertainties, error bars, or statistical details accompany any reported quantities (leakage currents, rise times, doping, CCE). The claim of 'minor' degradation and 'no significant change' in doping cannot be assessed without these, undermining the interpretation that changes are distinguishable from measurement precision.
  3. Abstract: Irradiation parameters (geometry, dosimetry method, dose rate, beam uniformity, and total fluence) are not specified. This is load-bearing for the headline conclusion that 160 keV X-rays produce 'no significant displacement damage' at 1 MGy, as the dose and damage equivalence cannot be independently evaluated.
  4. Abstract: The attribution of observed shifts in leakage, rise time, and CCE specifically to 'ionization induced changes in the graphene electrode' lacks supporting data; no pre/post-irradiation graphene characterization (Raman, sheet resistance, or Schottky barrier) is reported, leaving alternatives (surface states, contact changes, or undetected low-density traps) unexcluded.
minor comments (1)
  1. Abstract: The sentence 'The rise times of the signals from alpha particles signal detected by the detector' is grammatically unclear and should be rephrased for readability.

Simulated Author's Rebuttal

4 responses · 0 unresolved

We thank the referee for the thorough and constructive review of our manuscript. We address each major comment below with point-by-point responses. Revisions will be made to the abstract and, where appropriate, the main text to enhance clarity, completeness, and precision without altering the reported data.

read point-by-point responses

  1. Referee: Abstract: CCE values (e.g., 97.2% and 90.0% for alpha particles post-irradiation) are stated without any description of the extraction method, such as integration of pulse-height spectra, calibration against known energy deposition, or correction for trapping. This directly affects verification of the central claim of 'excellent charge collection performance'.

    Authors: We agree that the abstract would be improved by briefly indicating the CCE extraction approach. In the full manuscript, CCE is obtained by integrating the pulse-height spectra from alpha and beta particle signals and normalizing to the expected charge from known energy depositions (5.5 MeV alphas and beta continuum), with trapping effects accounted for via comparison to calculated drift times. We will insert a concise clause in the revised abstract, such as 'CCE extracted from calibrated pulse-height spectra accounting for trapping,' while retaining the detailed procedure in the methods and results sections. revision: yes

  2. Referee: Abstract: No uncertainties, error bars, or statistical details accompany any reported quantities (leakage currents, rise times, doping, CCE). The claim of 'minor' degradation and 'no significant change' in doping cannot be assessed without these, undermining the interpretation that changes are distinguishable from measurement precision.

    Authors: The values in the abstract are averages from repeated measurements. We will add representative uncertainties to the revised abstract (e.g., leakage current ±0.03×10^{-10} A, rise time ±10 ps, CCE ±1.5%, doping ±0.05×10^{13} cm^{-3}) and expand the main text with the number of trials, repeatability, and how 'no significant change' was determined (within measurement precision). This will allow readers to evaluate the magnitude of observed shifts. revision: yes

  3. Referee: Abstract: Irradiation parameters (geometry, dosimetry method, dose rate, beam uniformity, and total fluence) are not specified. This is load-bearing for the headline conclusion that 160 keV X-rays produce 'no significant displacement damage' at 1 MGy, as the dose and damage equivalence cannot be independently evaluated.

    Authors: We acknowledge the abstract's brevity on this point. The full manuscript's experimental section specifies the irradiation geometry, dosimetry via calibrated ionization chamber, dose rate, beam uniformity over the detector area, and fluence corresponding to the stated absorbed doses. These parameters underpin the inference of negligible displacement damage, as 160 keV X-rays have low NIEL and the unchanged doping concentration is consistent with that expectation. We will add a short summary of the key parameters to the abstract for completeness. revision: yes

  4. Referee: Abstract: The attribution of observed shifts in leakage, rise time, and CCE specifically to 'ionization induced changes in the graphene electrode' lacks supporting data; no pre/post-irradiation graphene characterization (Raman, sheet resistance, or Schottky barrier) is reported, leaving alternatives (surface states, contact changes, or undetected low-density traps) unexcluded.

    Authors: This comment is well taken. The manuscript attributes the minor changes to ionization effects at the graphene electrode because bulk doping remains unchanged and degradation is small, pointing away from significant displacement damage. However, without dedicated pre- and post-irradiation graphene characterization, alternative surface or interface mechanisms cannot be fully excluded. We will revise the abstract to more cautious wording ('minor performance degradation may be attributed to ionization-induced changes at the graphene-SiC interface') and add a brief discussion of possible mechanisms in the text, noting that further electrode-specific measurements are beyond the current scope. revision: partial

Circularity Check

0 steps flagged

Purely experimental measurements; no derivations or models present

full rationale

The paper consists entirely of experimental results: direct measurements of leakage current, effective doping concentration (via capacitance-voltage), signal rise times, and charge collection efficiency (CCE) for alpha and beta particles before and after 160 keV X-ray irradiation at 0.1 MGy and 1 MGy. No equations, fitted parameters, theoretical derivations, or predictive models are introduced. The conclusion that 160 keV X-rays cause negligible displacement damage and that minor degradation may be due to graphene ionization is an inference from the measured data (unchanged doping, small shifts in leakage/rise-time/CCE), not a derivation that reduces to its own inputs. No self-citations or ansatzes are load-bearing for any chain of reasoning.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on direct experimental measurements of electrical and timing properties before and after irradiation. No free parameters are introduced. No new entities are postulated. The interpretation that degradation is due to graphene ionization rather than SiC displacement damage is an inference from the data rather than an axiom.
