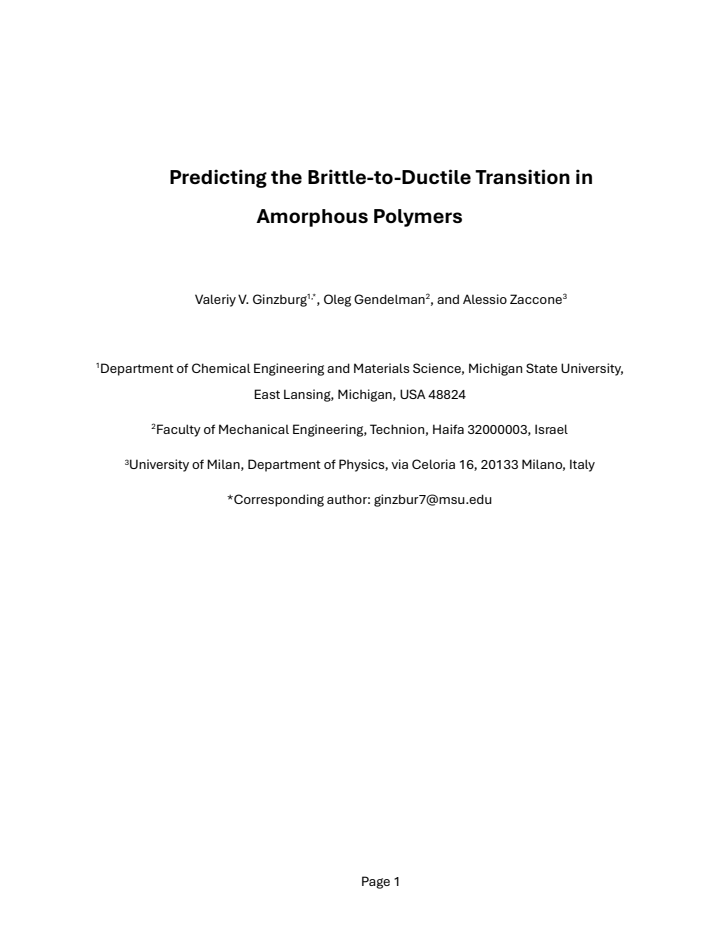

Predicting the Brittle-to-Ductile Transition in Amorphous Polymers

Alessio Zaccone, Oleg Gendelman, Valeriy V. Ginzburg

Authors on Pith no claims yet

Pith reviewed 2026-05-08 15:25 UTC · model grok-4.3

classification ❄️ cond-mat.soft cond-mat.mtrl-sci
keywords brittle-ductile transitionamorphous polymersbeta-relaxationviscoplastic flowSanchez-Lacombe modelstrain ratetemperature dependence
0
0 comments X

The pith

A scalar model sets the brittle-to-ductile transition in polymers to an upper strain-rate limit inversely proportional to beta-relaxation time.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds a simple scalar model of visco-elasto-plastic stress-strain response in amorphous polymers that depends on temperature and strain rate. Within the model an upper bound always exists on the strain rate permitting uniform viscoplastic flow, and the authors identify this bound with the brittle-to-ductile transition. They stipulate that the bound scales inversely with the Johari-Goldstein beta-relaxation time and insert the Sanchez-Lacombe two-state two-time-scale description to compute the transition for polystyrene, poly(methyl methacrylate), and poly(vinyl chloride). The resulting predictions agree with measured data across strain rates. A reader would care because the approach supplies an explicit way to forecast when a polymer will switch from brittle failure to ductile yielding without needing full molecular dynamics.

Core claim

Within the SL-TS2 model, the brittle-to-ductile transition is identified with the highest strain rate at which uniform viscoplastic flow remains possible; this rate is stipulated to equal the reciprocal of the Johari-Goldstein beta-relaxation time. When the model is evaluated for polystyrene, PMMA, and PVC it reproduces the observed dependence of the transition on temperature and strain rate.

What carries the argument

The Sanchez-Lacombe two-state, two-time-scale (SL-TS2) model, which generates visco-elasto-plastic shear curves and produces an intrinsic upper bound on strain rate for uniform flow.

If this is right

  • The transition temperature rises with increasing strain rate following the temperature dependence of the beta-relaxation time.
  • Polymers whose beta-relaxation occurs at shorter times remain ductile up to higher strain rates.
  • The same model equations can be reused for any amorphous polymer once its beta time is known from dielectric or mechanical spectroscopy.
  • Above the bound the material cannot sustain uniform flow and therefore fails by localized brittle fracture at low strain.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If beta-relaxation times can be shifted by plasticizers or chain modifications, the model immediately forecasts the resulting change in transition strain rate.
  • The framework may apply to semicrystalline polymers provided the beta process still controls the onset of uniform flow.
  • Independent measurement of beta times in a wider set of polymers would supply a direct test of the proportionality without fitting any additional parameters.

Load-bearing premise

The upper bound on strain rate for uniform viscoplastic flow is taken to represent the brittle-to-ductile transition and is assumed to scale directly as the inverse of the beta-relaxation time.

What would settle it

Measure the beta-relaxation time and the critical strain rate for the onset of brittle failure in a fresh polymer at several temperatures; if the critical rate does not equal the inverse of the measured beta time within experimental scatter the stipulated proportionality fails.

read the original abstract

Brittle-ductile transition (BDT) is an important characteristic of amorphous (and semicrystalline) polymers. For a given strain rate, at temperatures above BDT, the polymers exhibit strain softening followed by yield and strain hardening, while at temperatures below BDT, the same materials exhibit brittle failure at relatively low strains. Surprisingly, today there is no simple model describing BDT as a function of polymer chemistry, sample history, deformation type, and strain rate. Experimental data suggest that BDT is often, though not always, associated with the beta-transition. We formulate a simple scalar model to describe the visco-elasto-plastic shear stress-strain curves as functions of temperature and strain rate. We also show that within this model, there is always an upper bound on the strain rate where the material can have a uniform viscoplastic flow; this upper bound is taken to represent the BDT. We stipulate that this upper bound is inversely proportional to the Johari-Goldstein beta-relaxation time. Using our "general" Sanchez-Lacombe "two-state, two-(time)scale" (SL-TS2) model, we compute the BDT for three polymers (polystyrene, poly(methylmethacrylate), and poly(vinylchloride)) and found a good agreement with experimental data.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

4 major / 1 minor

Summary. The manuscript presents a scalar Sanchez-Lacombe two-state, two-time-scale (SL-TS2) model for the visco-elasto-plastic shear response of amorphous polymers. Within this model an upper bound on strain rate for uniform viscoplastic flow is identified and taken to represent the brittle-to-ductile transition (BDT); the authors stipulate that this bound scales inversely with the Johari-Goldstein beta-relaxation time. Using the model they compute BDT values for polystyrene, PMMA and PVC and report agreement with experimental data.

Significance. If the stipulated mapping from the 1-D model's strain-rate bound to experimental BDT holds, the work supplies a simple, low-parameter route to predict BDT from beta-relaxation times inside an existing constitutive framework. The explicit extraction of a model-derived upper bound on uniform flow is a concrete strength. However, because the identification is introduced by stipulation rather than derived from multi-axial instability or fracture mechanics, the result remains tied to the three fitted polymers and does not yet constitute a general predictive theory.

major comments (4)
  1. Abstract: the claim that the model's strain-rate upper bound 'is taken to represent the BDT' and 'is inversely proportional to the Johari-Goldstein beta-relaxation time' is introduced as a stipulation without derivation from the SL-TS2 equations or from a multi-axial failure criterion (shear-band vs. craze competition).
  2. The manuscript does not specify the numerical or analytic criterion used to extract the upper bound on strain rate from the SL-TS2 constitutive equations (e.g., loss of steady-state solution, divergence of strain-rate sensitivity, or onset of negative stiffness).
  3. No fitting details, value of the single free proportionality constant, error analysis, or sensitivity checks are provided for the three polymers; the reported 'good agreement' therefore cannot be assessed for robustness.
  4. Because the model remains strictly scalar (1-D shear) and contains no explicit localization or fracture mode, agreement for PS, PMMA and PVC does not test whether the beta-relaxation association holds when that association is weak or absent in other polymers.
minor comments (1)
  1. The abstract refers to a 'general' SL-TS2 model; the main text should explicitly state whether this is identical to the prior SL-TS2 formulation or contains any new parameters beyond the BDT proportionality constant.

Simulated Author's Rebuttal

4 responses · 0 unresolved

We thank the referee for the thoughtful and constructive comments on our manuscript. We have carefully considered each point and revised the manuscript to improve clarity, provide missing details, and discuss limitations. Our responses to the major comments are as follows.

read point-by-point responses

  1. Referee: Abstract: the claim that the model's strain-rate upper bound 'is taken to represent the BDT' and 'is inversely proportional to the Johari-Goldstein beta-relaxation time' is introduced as a stipulation without derivation from the SL-TS2 equations or from a multi-axial failure criterion (shear-band vs. craze competition).

    Authors: We acknowledge that the association between the model's strain-rate upper bound and the BDT, as well as its inverse proportionality to the beta-relaxation time, is introduced as a modeling stipulation rather than derived from the constitutive equations or a multi-axial analysis. This stipulation is based on extensive experimental literature linking the BDT to the Johari-Goldstein beta-relaxation in amorphous polymers. In the revised manuscript, we will update the abstract and relevant sections to clearly indicate that this is a hypothesis motivated by experimental observations, and we will elaborate on the rationale in the introduction. revision: yes

  2. Referee: The manuscript does not specify the numerical or analytic criterion used to extract the upper bound on strain rate from the SL-TS2 constitutive equations (e.g., loss of steady-state solution, divergence of strain-rate sensitivity, or onset of negative stiffness).

    Authors: We appreciate this observation. The upper bound is determined as the critical strain rate at which the SL-TS2 model ceases to admit a steady-state uniform shear flow solution. We will add a detailed description of this analytic criterion, including the relevant equations and conditions for identifying the bound, in the revised manuscript. revision: yes

  3. Referee: No fitting details, value of the single free proportionality constant, error analysis, or sensitivity checks are provided for the three polymers; the reported 'good agreement' therefore cannot be assessed for robustness.

    Authors: We agree that these details were omitted and will include them in the revision. The single free proportionality constant is determined by fitting the model-predicted BDT strain rates to experimental values for each polymer. We will report the fitted constant value, the specific experimental data points used, quantitative measures of agreement (e.g., percentage errors), and sensitivity of the results to variations in other model parameters. revision: yes

  4. Referee: Because the model remains strictly scalar (1-D shear) and contains no explicit localization or fracture mode, agreement for PS, PMMA and PVC does not test whether the beta-relaxation association holds when that association is weak or absent in other polymers.

    Authors: This comment correctly identifies a key limitation of our approach. The SL-TS2 model is a scalar formulation focused on uniform shear response and does not include mechanisms for localization or fracture. Consequently, while it reproduces the BDT for the three polymers where the beta-relaxation association is strong, it does not provide a test for cases where the association is weak. We will add a dedicated paragraph in the discussion section acknowledging this limitation and outlining potential future directions for multi-dimensional extensions. revision: partial

Circularity Check

1 steps flagged

BDT is defined as the SL-TS2 model's strain-rate upper bound for uniform flow and then stipulated to scale as 1/tau_beta, reducing the 'prediction' to the chosen mapping.

specific steps
  1. self definitional [Abstract]
    "We also show that within this model, there is always an upper bound on the strain rate where the material can have a uniform viscoplastic flow; this upper bound is taken to represent the BDT. We stipulate that this upper bound is inversely proportional to the Johari-Goldstein beta-relaxation time."

    The BDT is defined by construction as the model's derived upper bound on strain rate permitting uniform flow; the inverse scaling with beta-relaxation time is then stipulated (not obtained from the two-state, two-time-scale equations or from shear-band vs. craze mechanics) so that a single fitted constant produces the reported match to experiment.

full rationale

The paper derives an upper bound on strain rate for uniform viscoplastic flow inside the scalar SL-TS2 model, then explicitly equates that bound to the experimental BDT and imposes inverse proportionality to the Johari-Goldstein beta time via stipulation rather than from the model's equations or a multi-axial failure criterion. The proportionality constant is absorbed into a single free parameter that is adjusted to match data for PS, PMMA, and PVC. Because the identification and scaling are introduced by 'taken to represent' and 'we stipulate' (not derived), the reported agreement is a direct consequence of the mapping choice. The underlying SL-TS2 constitutive relations may be independent, but the central BDT claim reduces to this definitional step.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the SL-TS2 framework (presumably developed in prior work) plus one key stipulation linking the strain-rate bound to beta-relaxation time; no new particles or forces are introduced.

free parameters (1)
  • proportionality constant relating BDT strain rate to inverse beta-relaxation time
    Stipulated to produce agreement with experimental BDT values for the three polymers.
axioms (1)
  • domain assumption The upper bound on strain rate for uniform viscoplastic flow represents the brittle-to-ductile transition
    Explicitly taken as the definition of BDT inside the model.
