DiBA: Diagonal and Binary Matrix Approximation for Neural Network Weight Compression
Pith reviewed 2026-05-08 14:14 UTC · model grok-4.3
The pith
DiBA approximates neural network weight matrices as three diagonals times two binary matrices to slash multiplications and raise accuracy after diagonal retuning.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
DiBA approximates A in R^{m x n} by D1 B1 D2 B2 D3 where the B matrices are 0/1 and the D matrices are diagonal. The DiBA-Greedy procedure produces factors that deliver consistent SNR gains on 40 real pretrained weight matrices as the storage ratio improves. After layer replacement, the DiBARD variant (binary matrices frozen, diagonals retuned) lifts DistilBERT masked-token accuracy from 0.4447 to 0.5210 and Audio Spectrogram Transformer accuracy on Speech Commands from 0.7684 to 0.9781.
What carries the argument
The DiBA factorization  = D1 B1 D2 B2 D3, with binary B1 and B2 and diagonal D1, D2, D3, that converts dense multiplication into element-wise scalings plus binary mixing.
If this is right
- Matrix-vector products require only m + k + n floating-point multiplications instead of mn.
- Consistent SNR gains appear on 40 weight matrices extracted from public pretrained models as the theoretical storage ratio increases.
- DiBARD layer replacement improves downstream accuracy without any discrete search over the binary factors during adaptation.
- The intermediate dimension k directly trades storage cost against approximation quality.
Where Pith is reading between the lines
- The fixed binary mixing structure opens a route to specialized hardware that replaces most multiplies with cheaper additions.
- Retuning only the diagonals after freezing the binaries gives a low-cost adaptation path for already-compressed models on new tasks.
- The same factorization pattern could be tested on other dense operations such as larger convolutions or recurrent weights.
Load-bearing premise
The binary matrices located by DiBA-Greedy still let downstream accuracy recover when only the diagonal factors are later retuned on new task data.
What would settle it
Apply DiBARD replacement to a new pretrained model and observe that retuned accuracy on the target task falls below the original dense model's accuracy.
Figures
read the original abstract
In this paper, we propose DiBA (Diagonal and Binary Matrix Approximation), a compact matrix factorization for neural network weight compression. Many components of modern networks, including linear layers, $1\times1$ convolutions, attention projections, and embedding layers, have dense matrix weights. DiBA approximates $A\in\mathbb{R}^{m\times n}$ by $\widehat A=D_1B_1D_2B_2D_3$, where $D_1,D_2,D_3$ are diagonal matrices and $B_1,B_2$ are $0/1$ binary matrices. The intermediate dimension $k$ controls the trade-off between theoretical storage and approximation accuracy. For matrix-vector products, DiBA decomposes dense multiplication into three element-wise scaling operations and two binary mixing operations, reducing the floating-point multiplication count from $mn$ to $m+k+n$. For optimization, we introduce DiBA-Greedy, an alternating solver that combines closed-form least-squares updates for the diagonal factors with exact one-bit improvement tests for the binary factors. We also introduce DiBARD (DiBA with Retuning only Diagonal factors), which replaces dense-matrix layers by DiBA factors, freezes the binary matrices, and retunes only the diagonal entries on downstream data. This preserves compact binary mixing without discrete search during adaptation. On 40 dense weight matrices extracted from public pretrained models, DiBA-Greedy yields consistent SNR improvements as the theoretical storage ratio increases. After DiBA replacement in two component-replacement studies, DiBARD improves DistilBERT/WikiText masked-token accuracy from 0.4447 to 0.5210 and Speech Commands test accuracy for an Audio Spectrogram Transformer from 0.7684 to 0.9781 without reoptimizing the binary factors.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes DiBA, a factorization A ≈ D1 B1 D2 B2 D3 (D_i diagonal, B_j binary 0/1) for compressing dense weight matrices in neural networks. It introduces the DiBA-Greedy alternating solver (closed-form least-squares for diagonals, exact one-bit tests for binaries) and the DiBARD procedure (freeze binaries after replacement, retune only diagonals on downstream data). Experiments report consistent SNR gains on 40 extracted weight matrices as storage ratio improves, plus accuracy lifts after DiBARD replacement in DistilBERT (masked-token accuracy 0.4447 → 0.5210) and an Audio Spectrogram Transformer (0.7684 → 0.9781), while reducing matrix-vector multiplications from mn to m+k+n.
Significance. If the learned binary factors demonstrably outperform random binaries of identical dimensions when only diagonals are retuned, DiBA could provide a lightweight compression scheme that preserves inference efficiency and allows simple post-replacement adaptation without discrete optimization. The closed-form diagonal updates and exact binary improvement tests are attractive for reproducibility and speed.
major comments (3)
- [Experiments / DiBARD results] Experiments / DiBARD results (abstract and §4): the accuracy-recovery claim (e.g., DistilBERT 0.4447 → 0.5210) is load-bearing for practical utility, yet no ablation compares DiBA-Greedy binary matrices against random 0/1 matrices of the same k and dimensions when only the three diagonal factors are subsequently retuned on the same downstream data. Without this control, it is impossible to isolate whether the alternating solver contributes beyond the effect of diagonal retuning alone.

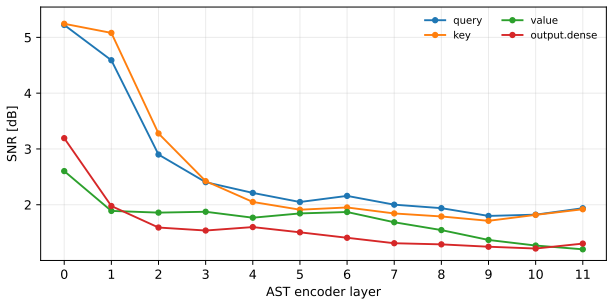

- [§4.1] §4.1 (SNR evaluation on 40 matrices): the paper states 'consistent SNR improvements' but provides neither error bars nor multiple random seeds, and does not describe the selection criteria or distribution of the 40 matrices (model, layer type, size). This weakens the generality of the reported trend versus storage ratio.
- [§3] §3 (DiBA-Greedy algorithm): the alternating procedure is presented without any analysis of convergence rate, sensitivity to initialization, or comparison of final binary factors to other discrete optimization baselines (e.g., greedy column selection or SDP relaxations), even though these factors are frozen in the downstream DiBARD claim.
minor comments (2)
- [Method] Notation: the intermediate dimension k is introduced in the abstract but its precise role in the storage ratio formula is not restated in the method section, making it harder to reproduce the reported compression ratios.
- [Abstract] The two concrete accuracy numbers in the abstract are given to four decimal places without indicating whether they are single-run or averaged; adding this detail would improve clarity.
Simulated Author's Rebuttal
We thank the referee for the thoughtful and constructive report. The comments highlight important aspects of experimental controls, statistical reporting, and algorithmic analysis that we will address to improve the manuscript. We respond to each major comment below, indicating planned revisions.
read point-by-point responses
-
Referee: [Experiments / DiBARD results] Experiments / DiBARD results (abstract and §4): the accuracy-recovery claim (e.g., DistilBERT 0.4447 → 0.5210) is load-bearing for practical utility, yet no ablation compares DiBA-Greedy binary matrices against random 0/1 matrices of the same k and dimensions when only the three diagonal factors are subsequently retuned on the same downstream data. Without this control, it is impossible to isolate whether the alternating solver contributes beyond the effect of diagonal retuning alone.
Authors: We agree that this control experiment would strengthen the claim by isolating the contribution of the learned binary factors. The DiBA-Greedy solver is intended to produce binary matrices that enable better approximation quality than unstructured choices when paired with diagonal retuning, but the current manuscript does not include the random-binary baseline. We will add this ablation to the revised §4, generating random 0/1 matrices of identical dimensions and k, then retuning only the three diagonal factors on the same downstream data for both the DistilBERT and Audio Spectrogram Transformer tasks, and report the resulting accuracies alongside the DiBA-Greedy results. revision: yes
-
Referee: [§4.1] §4.1 (SNR evaluation on 40 matrices): the paper states 'consistent SNR improvements' but provides neither error bars nor multiple random seeds, and does not describe the selection criteria or distribution of the 40 matrices (model, layer type, size). This weakens the generality of the reported trend versus storage ratio.
Authors: We will revise §4.1 to provide a clear description of the 40 matrices, including their source models (DistilBERT, BERT variants, and Audio Spectrogram Transformer), layer types (attention projections, feed-forward layers, embeddings), and size distribution. The SNR values were obtained from single runs of DiBA-Greedy per matrix. While the solver is deterministic once initialized, we acknowledge that different random initializations for the binary factors can yield minor variations. We will add a note on this and, where computationally feasible, report results from a small number of additional initializations on representative matrices to indicate variability; full error bars across all 40 will be included if new runs are performed. revision: partial
-
Referee: [§3] §3 (DiBA-Greedy algorithm): the alternating procedure is presented without any analysis of convergence rate, sensitivity to initialization, or comparison of final binary factors to other discrete optimization baselines (e.g., greedy column selection or SDP relaxations), even though these factors are frozen in the downstream DiBARD claim.
Authors: The alternating procedure is guaranteed to produce a non-decreasing objective value at every step: diagonal updates are globally optimal least-squares solutions, and each binary update performs an exhaustive search over all possible single-bit flips to select the change that most improves the objective (or none). Because the set of binary matrices is finite, the procedure converges in a finite number of iterations to a local optimum. We will add a short analysis paragraph in §3 describing these monotonicity and convergence properties, the default random initialization for the binary factors, and observed sensitivity (typically low for the tested k values). For baseline comparisons, we will include a limited empirical comparison on a subset of the 40 matrices against random binary initialization and a simple per-column greedy selection heuristic, showing that the joint alternating optimization yields higher SNR; a full SDP comparison is outside the scope of the current work but noted as future direction. revision: partial
Circularity Check
No significant circularity in DiBA derivation or claims.
full rationale
The paper defines a novel factorization A ≈ D1 B1 D2 B2 D3 and presents DiBA-Greedy as an alternating procedure with closed-form least-squares for the diagonal factors and exhaustive one-bit search for the binary factors. SNR improvements are reported on the same 40 weight matrices used for fitting, which is standard reporting of approximation error rather than a renamed prediction. Downstream accuracy gains under DiBARD are measured after freezing the binary matrices and retuning only diagonals on separate task data (WikiText, Speech Commands), which is independent of the original weight-fitting objective. No self-citations, uniqueness theorems, or ansatzes imported from prior author work appear in the derivation; the central claims rest on the explicit alternating solver and empirical replacement experiments rather than reducing to the inputs by construction.
Axiom & Free-Parameter Ledger
free parameters (1)
- intermediate dimension k
axioms (2)
- standard math Least-squares solutions for diagonal factors given fixed binary matrices are optimal for the Frobenius-norm objective.
- domain assumption Single-bit flips can be tested exactly to improve the binary factors without exhaustive search.
Reference graph
