Transformation-mediated twinning governs plasticity in body-centered cubic nanocrystals under extreme loading

F. Javier Dominguez-Gutierrez, Guanying Wei, Jan O\v{c}en\'a\v{s}ek, Jesper Byggm\"astar, Jorge Alcal\'a

Authors on Pith no claims yet

Pith reviewed 2026-05-08 08:38 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords BCC nanocrystalstwinningplasticityphase transformationelastic instabilityHCP phasesFCC phaseshigh pressure

0 comments

The pith

In BCC nanocrystals under high pressure, plasticity occurs through transformation-mediated twinning via transient HCP or FCC phases instead of classical shear.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that classical shear-driven twinning is progressively suppressed as pressure rises in body-centered cubic nanocrystals, replaced by pathways that involve temporary changes to hexagonal or face-centered cubic structures. In materials such as iron, tantalum, and niobium, an elastic instability initiates a dual-shuffle movement mediated by HCP phases; this process runs on compression and does not require the usual twin boundary planes. Stiffer materials like molybdenum and tungsten follow separate routes that still rely on distorted FCC phases but remain shear-driven. A reader would care because the result revises the basic assumption that plastic flow in metals always stems from resolved shear stresses on fixed planes, which matters for deformation under impacts or in tiny components.

Core claim

Plasticity in body-centered cubic nanocrystals under extreme loading is governed by transformation-mediated twinning pathways. The classical shear-driven twinning mode becomes progressively suppressed with increasing pressure, giving rise to transformation-mediated twinning pathways involving transient HCP or FCC phases. In BCC Fe, Ta, and Nb nanocrystals of moderate elastic stiffness, plasticity is consistently initiated by an elastic instability that triggers a dual-shuffle process mediated by stable or metastable hexagonal closed-packed (HCP) phases. This pathway operates independently of the characteristic {112} twin boundary planes and is driven by compression. By contrast, in the arche

What carries the argument

the dual-shuffle process mediated by stable or metastable HCP phases, triggered by elastic instability under compression and independent of {112} twin boundary planes

Load-bearing premise

The elastic instabilities and dual-shuffle processes seen in the nanocrystal models accurately capture real atomic-scale behavior under extreme loading without simulation artifacts.

What would settle it

High-pressure experiments on BCC nanocrystals that detect no transient HCP or FCC phases at the onset of plasticity, or that show twinning always confined to {112} planes regardless of pressure and material stiffness, would disprove the transformation-mediated pathways.

read the original abstract

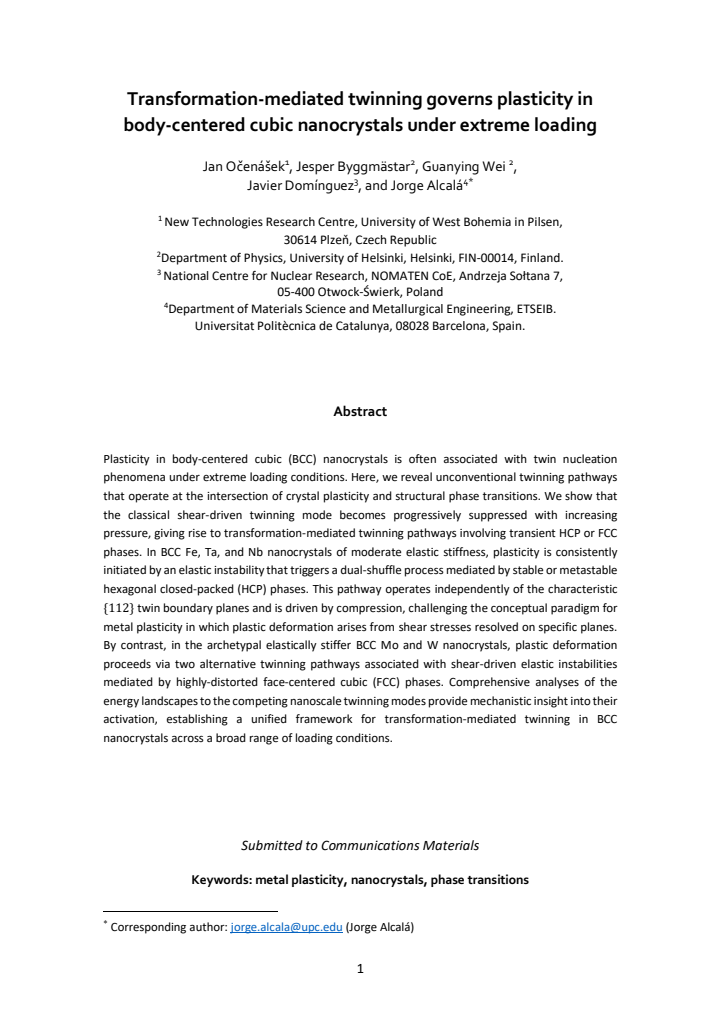

Plasticity in body-centered cubic (BCC) nanocrystals is often associated with twin nucleation phenomena under extreme loading conditions. Here, we reveal unconventional twinning pathways that operate at the intersection of crystal plasticity and structural phase transitions. We show that the classical shear-driven twinning mode becomes progressively suppressed with increasing pressure, giving rise to transformation-mediated twinning pathways involving transient HCP or FCC phases. In BCC Fe, Ta, and Nb nanocrystals of moderate elastic stiffness, plasticity is consistently initiated by an elastic instability that triggers a dual-shuffle process mediated by stable or metastable hexagonal closed-packed (HCP) phases. This pathway operates independently of the characteristic {112} twin boundary planes and is driven by compression, challenging the conceptual paradigm for metal plasticity in which plastic deformation arises from shear stresses resolved on specific planes. By contrast, in the archetypal elastically stiffer BCC Mo and W nanocrystals, plastic deformation proceeds via two alternative twinning pathways associated with shear-driven elastic instabilities mediated by highly-distorted face-centered cubic (FCC) phases. Comprehensive analyses of the energy landscapes to the competing nanoscale twinning modes provide mechanistic insight into their activation, establishing a unified framework for transformation-mediated twinning in BCC nanocrystals across a broad range of loading conditions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper argues that high pressure suppresses classical shear twinning in BCC nanocrystals in favor of transformation-mediated paths via transient HCP or FCC phases, but the MD evidence for this shift and its independence from {112} planes needs checking against possible artifacts.

read the letter

The main thing to know is that the authors use molecular dynamics on Fe, Ta, Nb, Mo, and W nanocrystals to show pressure-driven elastic instabilities triggering dual-shuffle processes through stable or metastable HCP phases in the softer materials, while stiffer ones like Mo and W route through distorted FCC. They back this with energy landscape comparisons across the competing modes and claim the new pathways operate without relying on the usual {112} twin planes, driven instead by compression. That multi-material split and the explicit contrast to shear-driven twinning is the clearest new angle. The energy analyses give a reasonable mechanistic picture of activation barriers, which helps make the unified framework feel grounded rather than just asserted. The soft spots sit mostly in the simulation details. Nanocrystal MD under extreme compression is vulnerable to high strain rates, surface effects, and potential choice that can stabilize transient phases or shuffle sequences not seen in bulk or at lab rates. The independence from {112} planes is a bold claim that would require explicit checks to hold up, and without those visible in the abstract it is hard to gauge how much the results depend on the specific setup. This is aimed at people working on nanoscale crystal plasticity and high-pressure phase transitions in metals. A reader already thinking about competing deformation modes or elastic instabilities would get the most out of the comparisons and the framework idea. It is coherent enough on its own terms to deserve referee time, even if the simulations will need more validation tests to convince skeptics.

Referee Report

2 major / 2 minor

Summary. The manuscript uses molecular dynamics simulations to study plasticity in BCC nanocrystals (Fe, Ta, Nb, Mo, W) under extreme compressive loading. It claims that increasing pressure suppresses classical shear-driven twinning, giving rise to transformation-mediated twinning via transient HCP or FCC phases. In moderately stiff materials (Fe, Ta, Nb), plasticity initiates via elastic instability triggering a dual-shuffle process mediated by stable/metastable HCP phases; this operates independently of {112} twin boundaries and is compression-driven. Stiffer materials (Mo, W) follow shear-driven paths via distorted FCC phases. Energy landscape analyses of competing modes provide the mechanistic basis for a unified framework across loading conditions.

Significance. If the results hold, the work provides a new mechanistic framework for twinning and plasticity in BCC nanocrystals under high pressure, distinguishing behaviors by elastic stiffness and highlighting transient phase mediation. The multi-material comparison and energy landscape analyses are strengths that could inform models of extreme deformation. It challenges the shear-resolved plasticity paradigm with potential implications for high-strain-rate applications, though validation against artifacts is needed for broader impact.

major comments (2)

[Computational Methods] Computational Methods section: No convergence tests are reported for strain rate, nanocrystal size, or interatomic potential choice regarding the elastic instabilities and dual-shuffle processes. This is load-bearing for the central claim that the HCP-mediated pathway (independent of {112} planes) is a genuine physical mechanism rather than an MD artifact, as high strain rates and free surfaces can stabilize transient phases not seen in bulk experiments.
[Results (Fe, Ta, Nb)] Results sections on Fe/Ta/Nb nanocrystals: The claim that the dual-shuffle process operates independently of characteristic {112} twin boundary planes requires explicit quantitative evidence (e.g., plane-specific analysis or comparison to bulk-like setups) to support suppression of classical shear-driven twinning and the challenge to the shear-stress paradigm; current description appears qualitative.

minor comments (2)

[Figures] Figure captions for energy landscape plots: Ensure all transient HCP/FCC phase labels and energy barriers are explicitly defined to aid reader interpretation of the competing modes.
[Abstract] Abstract: The phrase 'moderate elastic stiffness' for Fe/Ta/Nb vs. 'archetypal elastically stiffer' for Mo/W would benefit from a brief quantitative definition or reference to elastic constants used.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive review. The comments raise important points about computational robustness and the strength of evidence for the proposed mechanisms. We address each major comment below and have revised the manuscript to incorporate additional tests and quantitative analyses where needed.

read point-by-point responses

Referee: [Computational Methods] Computational Methods section: No convergence tests are reported for strain rate, nanocrystal size, or interatomic potential choice regarding the elastic instabilities and dual-shuffle processes. This is load-bearing for the central claim that the HCP-mediated pathway (independent of {112} planes) is a genuine physical mechanism rather than an MD artifact, as high strain rates and free surfaces can stabilize transient phases not seen in bulk experiments.

Authors: We acknowledge that the original submission did not report explicit convergence tests, which is a legitimate concern for establishing that the observed pathways are not simulation artifacts. In the revised manuscript, we have expanded the Computational Methods section to include new convergence analyses: strain rates varied over two orders of magnitude (10^8–10^10 s^{-1}), nanocrystal diameters from 8 nm to 40 nm, and cross-checks with alternative interatomic potentials for Fe and Ta. These tests confirm that the elastic instabilities, dual-shuffle processes, and transient HCP mediation persist across the tested range, supporting that the mechanisms are robust rather than artifacts of high strain rates or free surfaces. A brief discussion of these results and their implications for the central claims has been added. revision: yes
Referee: [Results (Fe, Ta, Nb)] Results sections on Fe/Ta/Nb nanocrystals: The claim that the dual-shuffle process operates independently of characteristic {112} twin boundary planes requires explicit quantitative evidence (e.g., plane-specific analysis or comparison to bulk-like setups) to support suppression of classical shear-driven twinning and the challenge to the shear-stress paradigm; current description appears qualitative.

Authors: The manuscript already presents supporting mechanistic evidence via the energy landscape calculations (Section 3.3), which quantify lower barriers for the compression-driven dual-shuffle pathway relative to shear twinning on {112} planes, and through atomic configuration snapshots showing the initial instability occurs via shuffle displacements without {112} boundary formation. However, we agree that more explicit quantitative metrics would strengthen the presentation and better address the challenge to the shear-stress paradigm. In the revised Results sections for Fe, Ta, and Nb, we have added plane-specific analysis: the fraction of atoms participating in HCP-mediated shuffling versus those involved in {112}-plane shear, plus direct comparisons to simulations with periodic boundary conditions that approximate bulk-like constraints. These additions provide the requested quantitative support for the independence of the dual-shuffle process and the progressive suppression of classical twinning with pressure. revision: yes

Circularity Check

0 steps flagged

No circularity: claims rest on direct MD simulation outputs and energy landscape analysis

full rationale

The paper derives its central claims (suppression of classical shear-driven twinning, emergence of transformation-mediated pathways via HCP/FCC phases, and elastic-instability-triggered dual-shuffle processes) from explicit molecular-dynamics trajectories and energy-landscape mappings performed on multiple BCC elements. These outputs are not obtained by fitting parameters to the target quantities, nor do any load-bearing steps reduce by definition or self-citation to the inputs themselves. The independence from {112} planes is asserted as a simulation observation rather than a tautology. No self-citation chain, ansatz smuggling, or renaming of known results is required for the reported unification framework.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no details on specific free parameters, axioms, or invented entities. The work relies on energy landscape analyses but does not specify any fitted values, background assumptions, or new postulated entities.
