arxiv: 2605.07108 · v1 · submitted 2026-05-08 · ✦ hep-ex · hep-ph

Recognition: no theorem link

Search for Sub-GeV Axion-Like Particles at EBES Pilot Run Using 4 GeV Positron Beam at KEK LINAC

Takahiro Fusayasu , Tomoya Iizawa , Fumihito Ikeda , Akimasa Ishikawa , Masako Iwasaki , Hiroshi Iwase , Takahiro Kawahara , Aoi Masaki

show 13 more authors

Fusashi Miyahara Yu Morikawa Yuichi Okayasu Toshiyuki Ono Hidetoshi Otono Yasuhito Sakaki Takumi Seino Yuta Shimasaki Taikan Suehara Yosuke Takubo Shusaku Tsumura Kosuke Uemura Yifu Zhang

Authors on Pith no claims yet

Pith reviewed 2026-05-11 00:56 UTC · model grok-4.3

classification ✦ hep-ex hep-ph

keywords axion-like particlessub-GeVPrimakoff processtwo-photon decaybeam dumpupper limitsnull resultpositron beam

0 comments

The pith

A beam-dump search with positrons observes no events and derives new 90% CL upper limits on sub-GeV axion-like particles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports results from a search for axion-like particles below 1 GeV mass using positrons directed onto a beam dump. Bremsstrahlung photons from the positrons can produce ALPs through the Primakoff process, and any ALPs decaying to two photons are detected in a calorimeter. Background is estimated directly from data, and a signal region is defined with expected background below 0.1 events. After unblinding, zero events are seen in data corresponding to 1.3 times 10 to the 14 positrons on target. This null result is converted into 90% confidence level upper limits on the ALP-photon coupling across a range of sub-GeV masses, reaching parameter space not covered by earlier experiments.

Core claim

The central claim is that no candidate events appear in the signal region after unblinding. From this zero-event observation the experiment extracts 90% confidence level upper limits on ALP-photon coupling strength as a function of ALP mass for the production channel in which bremsstrahlung photons create ALPs via the Primakoff process and the ALPs subsequently decay to two photons.

What carries the argument

Primakoff production of ALPs by bremsstrahlung photons inside the dump material, followed by the two-photon decay mode, with limits extracted from a zero-event count inside a data-driven signal region whose expected background is kept below 0.1 events.

If this is right

The derived limits exclude ALP-photon couplings above a certain curve for masses below 1 GeV in a region previously unconstrained.
The experimental configuration demonstrates that positron beams can be used to probe ALP parameter space with low expected background.
Continued data taking with the same method would tighten the limits at fixed mass or extend them to smaller couplings.
The null result confirms that the background suppression and signal acceptance estimates are consistent with observation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If future runs maintain the same background level, the approach can systematically close remaining gaps in the sub-GeV ALP window.
The data-driven background technique may be adopted in other low-rate beam-dump or fixed-target searches for light particles.
Tighter limits would further restrict the parameter space in which ALPs could contribute to dark matter or other cosmological signals.
Comparison of these limits with theoretical production rates at different beam energies could guide the design of next-generation runs.

Load-bearing premise

The data-driven background prediction accurately and without bias gives the true number of events expected inside the chosen signal region.

What would settle it

A re-analysis that finds one or more events inside the signal region, or that shows the background yield was substantially underestimated, would weaken or remove the derived upper limits.

Figures

Figures reproduced from arXiv: 2605.07108 by Akimasa Ishikawa, Aoi Masaki, Fumihito Ikeda, Fusashi Miyahara, Hidetoshi Otono, Hiroshi Iwase, Kosuke Uemura, Masako Iwasaki, Shusaku Tsumura, Taikan Suehara, Takahiro Fusayasu, Takahiro Kawahara, Takumi Seino, Tomoya Iizawa, Toshiyuki Ono, Yasuhito Sakaki, Yifu Zhang, Yosuke Takubo, Yuichi Okayasu, Yu Morikawa, Yuta Shimasaki.

**Figure 2.** Figure 2: Overview of the beamlines in SY3 and the location of the EBES target complex. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

**Figure 3.** Figure 3: Oscilloscope traces of the fiber loss monitor signals measured before beam tuning [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

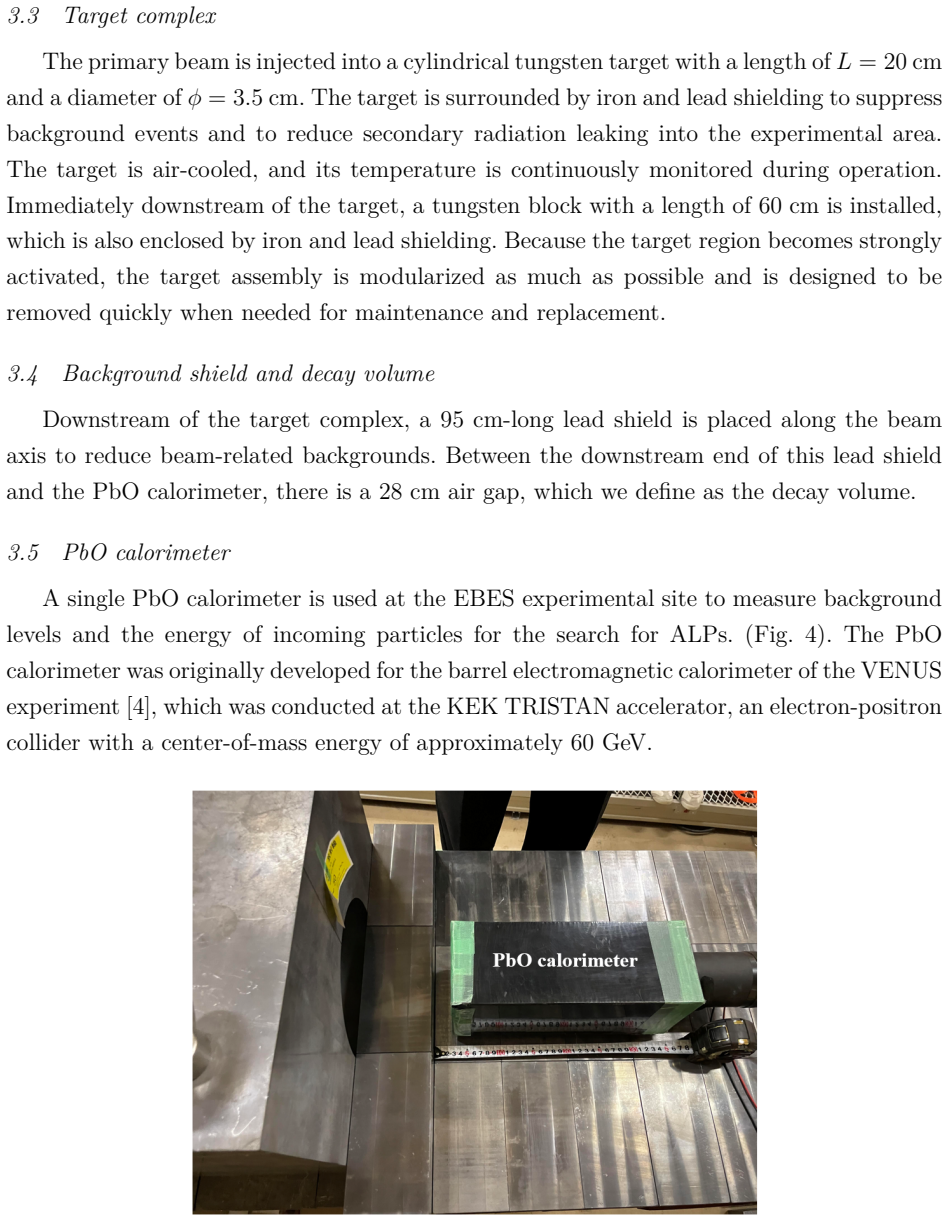

**Figure 4.** Figure 4: PbO calorimeter. 6 [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

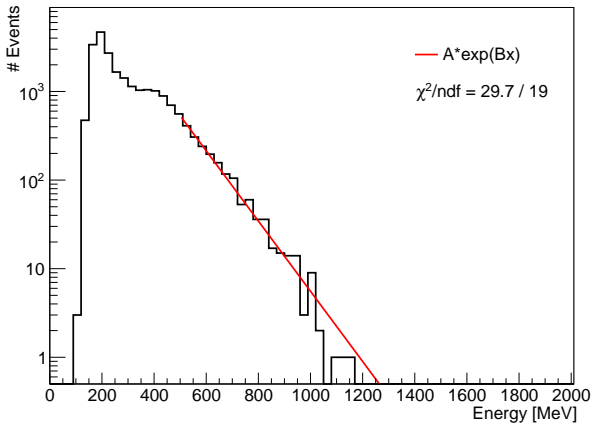

**Figure 5.** Figure 5: Energy deposit collected with a bias voltage of 1700 V applied to the PMT and scaled [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗

**Figure 6.** Figure 6: Energy deposit by the ALP signal events with [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗

**Figure 7.** Figure 7: Energy deposit collected with a bias voltage of 1800 V applied to the PMT. The [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗

**Figure 8.** Figure 8: The 90% confidence level upper limits in the ALP mass–coupling plane. The yellow [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗

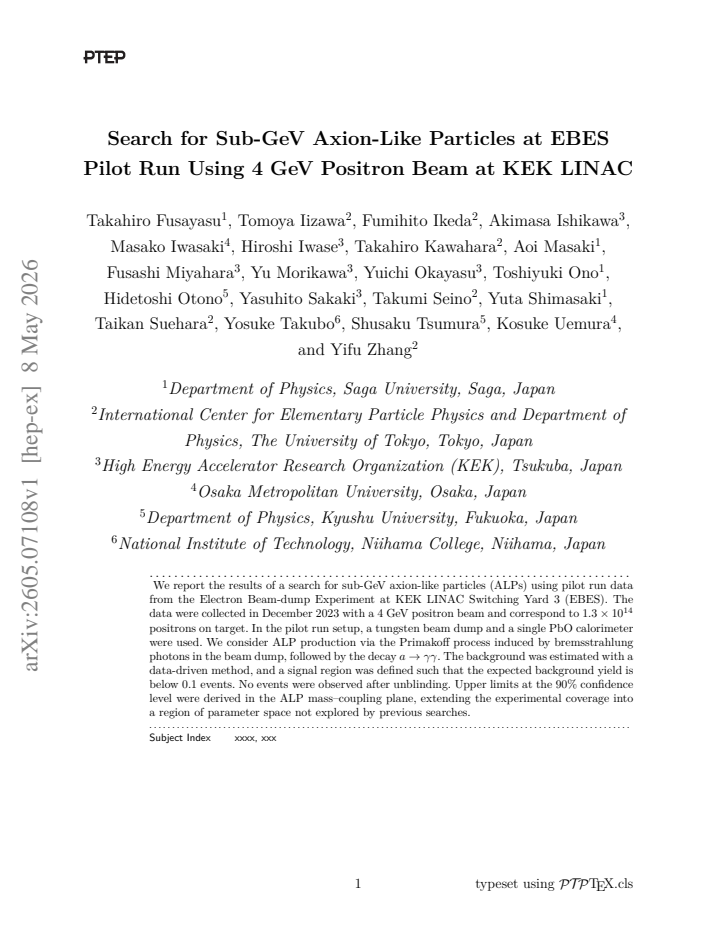

read the original abstract

We report the results of a search for sub-GeV axion-like particles (ALPs) using pilot run data from the Electron Beam-dump Experiment at KEK LINAC Switching Yard 3 (EBES). The data were collected in December 2023 with a 4 GeV positron beam and correspond to $1.3\times10^{14}$ positrons on target. In the pilot run setup, a tungsten beam dump and a single PbO calorimeter were used. We consider ALP production via the Primakoff process induced by bremsstrahlung photons in the beam dump, followed by the decay $a\to\gamma\gamma$. The background was estimated with a data-driven method, and a signal region was defined such that the expected background yield is below 0.1 events. No events were observed after unblinding. Upper limits at the 90% confidence level were derived in the ALP mass-coupling plane, extending the experimental coverage into a region of parameter space not explored by previous searches.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This pilot run from the new EBES setup at KEK sets first limits on sub-GeV ALPs that reach into uncovered parameter space, but the single-calorimeter background estimate with expected yield below 0.1 needs explicit validation checks.

read the letter

The EBES pilot run has delivered the first limits on sub-GeV axion-like particles from this KEK setup, using a 4 GeV positron beam and a simple tungsten dump plus single calorimeter. No events were seen, and the limits extend into new parts of the mass-coupling plane. They collected data corresponding to 1.3 times 10 to the 14 positrons on target in December 2023. The analysis follows the usual path for these searches: Primakoff production in the dump, a to gamma gamma decay, and a data-driven background estimate. They set the signal region so expected background is less than 0.1 events and observed zero after unblinding. That part is solid and standard. The main concern is whether the background estimate holds up. In a single-calorimeter setup, validating the extrapolation from sidebands or control regions is key, especially for things like merged photons or beam-related backgrounds. The paper does not show explicit closure tests or uncertainty breakdowns, so it is not clear how much room there is for a small bias that could push the background up to order one event. For a pilot run this is understandable, but it means the limits are preliminary. This paper is useful for experimentalists working on light dark matter and ALP searches. It demonstrates that the EBES facility can run these kinds of searches and provides initial coverage in an interesting region. It should go to peer review. The data is real and the result is new, even if the setup is basic. Referees can check the background modeling and efficiency calculations in detail.

Referee Report

2 major / 2 minor

Summary. The manuscript reports results from a pilot run of the EBES experiment at KEK LINAC, using 1.3×10^14 positrons on target at 4 GeV incident on a tungsten beam dump with a single PbO calorimeter. ALPs are searched for via Primakoff production followed by a→γγ decay. A data-driven background estimate is used to define a signal region with expected background yield below 0.1 events; no events are observed after unblinding, leading to 90% CL upper limits in the ALP mass-coupling plane that extend prior experimental coverage.

Significance. If the background estimation and efficiency modeling hold, the result provides new constraints on sub-GeV ALPs in a previously unexplored region of parameter space using a beam-dump approach. The pilot-run demonstration of the setup, the no-event observation, and the direct limit-setting from observed counts are strengths; the data-driven method avoids reliance on simulation for background but requires validation to support the central claim.

major comments (2)

[Background estimation and signal region definition] Background estimation section: The data-driven background method is used to define the signal region with expected yield <0.1 events, but no closure test, sideband consistency check, or uncertainty breakdown on the extrapolation is reported. In the single-calorimeter setup this is load-bearing, as any unaccounted bias (e.g., from photon merging or residual beam backgrounds) could shift the effective background to O(1) and weaken the zero-event upper limits.
[Analysis and efficiency calculations] Efficiency and acceptance modeling: The Primakoff production plus a→γγ kinematics and single PbO calorimeter acceptance are central to converting the null result into limits, yet the manuscript provides no detailed validation or systematic uncertainty table for these quantities (e.g., photon merging effects or beam-related backgrounds).

minor comments (2)

[Abstract] The abstract states that coverage is extended but does not quantify the mass or coupling range achieved relative to prior experiments.
[Results and limits] The limit plot (presumably Figure X) should overlay previous experimental constraints for immediate visual comparison.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful and constructive review of our manuscript. We have addressed the major comments by expanding the relevant sections in the revised version to include additional validation and documentation. Point-by-point responses follow.

read point-by-point responses

Referee: [Background estimation and signal region definition] Background estimation section: The data-driven background method is used to define the signal region with expected yield <0.1 events, but no closure test, sideband consistency check, or uncertainty breakdown on the extrapolation is reported. In the single-calorimeter setup this is load-bearing, as any unaccounted bias (e.g., from photon merging or residual beam backgrounds) could shift the effective background to O(1) and weaken the zero-event upper limits.

Authors: We thank the referee for highlighting this important aspect of our analysis. The data-driven background estimation, based on extrapolation from sideband regions in energy and timing, is indeed central to defining the signal region. We acknowledge that the original manuscript did not include explicit closure tests or a full uncertainty breakdown. In the revised manuscript, we have added a new subsection with a closure test performed on simulated background samples and a consistency check using independent sideband regions. We also include a breakdown of uncertainties on the extrapolation (dominated by sideband statistics and photon merging modeling), showing the expected background remains below 0.1 events with an uncertainty of ~0.03 events. These additions directly address potential biases in the single-calorimeter setup. revision: yes
Referee: [Analysis and efficiency calculations] Efficiency and acceptance modeling: The Primakoff production plus a→γγ kinematics and single PbO calorimeter acceptance are central to converting the null result into limits, yet the manuscript provides no detailed validation or systematic uncertainty table for these quantities (e.g., photon merging effects or beam-related backgrounds).

Authors: We appreciate the referee's comment on the need for more detailed documentation of the efficiency and acceptance. These quantities were derived from GEANT4 simulations of Primakoff production, ALP decay, and detector response. In the revised manuscript, we have added a dedicated paragraph describing validation of the simulation against data in control regions (e.g., bremsstrahlung photon spectrum and timing). We have also inserted a new systematic uncertainty table that quantifies contributions from photon merging (4%), beam-related backgrounds (2%), calorimeter calibration (3%), and other sources, for a total of 6% on signal efficiency. This table is now referenced in the limit-setting section. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental limit-setting from observed counts and data-driven background

full rationale

The paper is an experimental search report. It collects data with a 4 GeV positron beam on a tungsten dump, uses a single PbO calorimeter, applies a data-driven background estimate, defines a signal region with expected background yield below 0.1 events, observes zero events after unblinding, and sets 90% CL upper limits on ALP parameters. No derivation chain, parameter fitting, ansatz, or self-citation is invoked that reduces the central result (zero events and limits) to its own inputs by construction. Background estimation and efficiency enter the limit calculation in the standard way for counting experiments; they do not create a self-referential loop. This matches the default expectation for a direct experimental result.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an experimental search paper relying on standard particle physics assumptions for ALP production and decay; no free parameters, axioms, or invented entities are introduced beyond conventional beam-dump techniques.

pith-pipeline@v0.9.0 · 5588 in / 1052 out tokens · 27086 ms · 2026-05-11T00:56:48.109460+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

19 extracted references · 12 canonical work pages

[1]

Akimasa Ishikawa, Yasuhito Sakaki, and Yosuke Takubo, PTEP, 2022(11), 113B05 (2022), arXiv:2107.06431

work page arXiv 2022
[2]

Yung-Su Tsai, Phys. Rev. D, 34, 1326 (1986)

1986
[3]

R. R. Dusaev, D. V. Kirpichnikov, and M. M. Kirsanov, Phys. Rev. D, 102(5), 055018 (2020), arXiv:2004.04469

work page arXiv 2020
[4]

Ogawa, K

K. Ogawa, K. Hayashi, T. Sumiyoshi, F. Takasaki, Y. Teramoto, T. Uehara, S. Sugimoto, H. Kusumoto, J. Iwahori, and H. Yoshida, Nucl. Instrum. Meth. A, 243, 58–66 (1986)

1986
[5]

KEK, Test beam line at kek pf-ar, https://itdc.kek.jp/en/testBeamLine/index.html (2026)

2026
[6]

CAEN, N1407 power supply modules, https://www.caen.it/products/n1470/ (2026)

2026
[7]

Tatsuhiko Sato et al., J. Nucl. Sci. Tech., 61(1), 127–135 (2024)

2024
[8]

Yasuhito Sakaki, Yoshihito Namito, Toshiya Sanami, Hiroshi Iwase, and Hideo Hirayama, Nucl. Instrum. Meth. A, 977, 164323 (2020), arXiv:2004.00212

work page arXiv 2020
[9]

ATLAS Collaboration, TRExFitter, Zenodo, https://doi.org/10.5281/zenodo.14845712 (2026)

work page doi:10.5281/zenodo.14845712 2026
[10]

J. D. Bjorken, S. Ecklund, W. R. Nelson, A. Abashian, C. Church, B. Lu, L. W. Mo, T. A. Nunamaker, and P. Rassmann, Phys. Rev. D, 38, 3375 (1988)

1988
[11]

Blumlein et al., Z

J. Blumlein et al., Z. Phys. C, 51, 341–350 (1991)

1991
[12]

Babette Döbrich, Joerg Jaeckel, and Tommaso Spadaro, JHEP, 05, 213, [Erratum: JHEP 10, 046 (2020)] (2019), arXiv:1904.02091

work page arXiv 2020
[13]

Abbiendi et al., Eur

G. Abbiendi et al., Eur. Phys. J. C, 26, 331–344 (2003), hep-ex/0210016

work page arXiv 2003
[14]

Simon Knapen, Tongyan Lin, Hou Keong Lou, and Tom Melia, Phys. Rev. Lett., 118(17), 171801 (2017), arXiv:1607.06083

work page arXiv 2017
[15]

Larin et al., Phys

I. Larin et al., Phys. Rev. Lett., 106, 162303 (2011), arXiv:1009.1681

work page arXiv 2011
[16]

Daniel Aloni, Cristiano Fanelli, Yotam Soreq, and Mike Williams, Phys. Rev. Lett., 123(7), 071801 (2019), arXiv:1903.03586

work page arXiv 2019
[17]

Banerjee et al., Phys

D. Banerjee et al., Phys. Rev. Lett., 125(8), 081801 (2020), arXiv:2005.02710

work page arXiv 2020
[18]

Abudin´ enet al.(Belle-II), Phys

F. Abudinén et al., Phys. Rev. Lett., 125(16), 161806 (2020), arXiv:2007.13071

work page arXiv 2020
[19]

Roshan Mammen Abraham et al., JHEP, 01, 199 (2025), arXiv:2410.10363. 15

work page arXiv 2025
