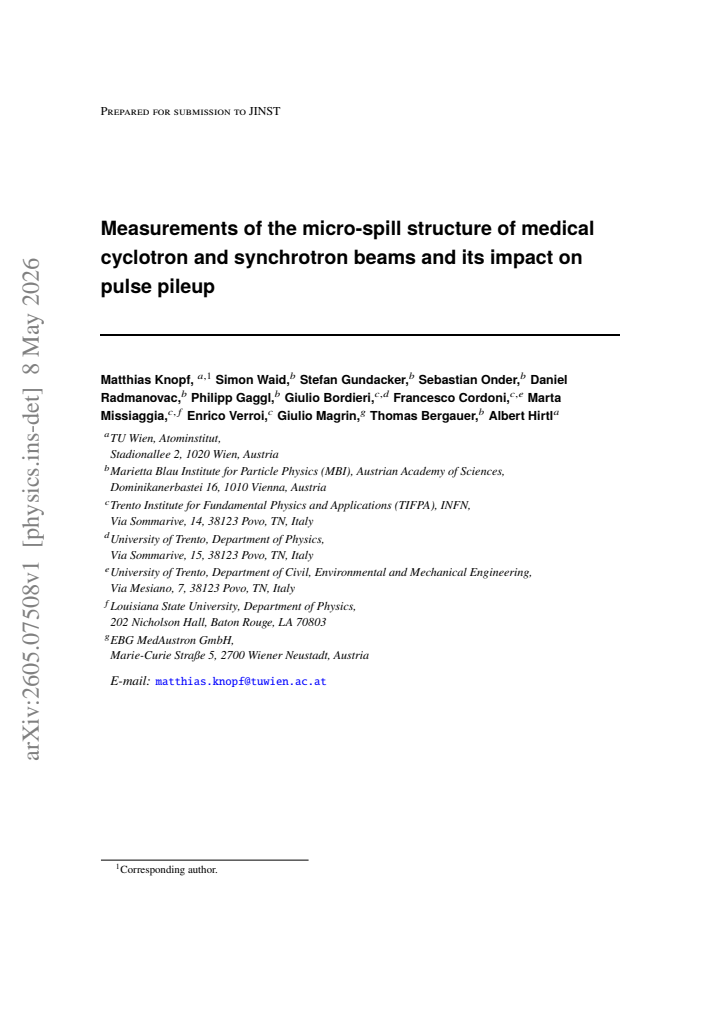

Measurements of the micro-spill structure of medical cyclotron and synchrotron beams and its impact on pulse pileup

Matthias Knopf , Simon Waid , Stefan Gundacker , Sebastian Onder , Daniel Radmanovac , Philipp Gaggl , Giulio Bordieri , Francesco Cordoni
show 5 more authors
Marta Missiaggia Enrico Verroi Giulio Magrin Thomas Bergauer Albert Hirtl
Authors on Pith no claims yet

Pith reviewed 2026-05-11 01:55 UTC · model grok-4.3

classification ⚛️ physics.ins-det hep-ex
keywords SiC sensorsmicro-spill structurepulse pileupcyclotron beamssynchrotron beamsbeam timingRF modulationmedical accelerators
0
0 comments X

The pith

Silicon carbide sensors with 6 GHz readout resolve sub-nanosecond micro-spill structures in medical cyclotron and synchrotron beams, modulated by RF frequencies.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper measures the fine arrival-time structure of particle beams from medical accelerators to help particle physics experiments avoid data loss from pileup. Precise timing information matters because overlapping signals from multiple particles arriving close together degrade single-particle resolution. Using custom SiC diodes read out at 6 GHz, the work maps beam arrivals on sub-nanosecond scales and finds clear periodic modulations that match the accelerators' radio-frequency cycles. These patterns arise directly from the extraction processes used in cyclotrons and synchrotrons. The resulting distributions allow direct calculation of expected pileup rates and give concrete limits for building faster readout electronics.

Core claim

Using custom silicon carbide diodes paired with a 6 GHz readout system, the micro-spill structure of both cyclotron and synchrotron beams is characterized on a sub-nanosecond timescale. The measured arrival-time distributions exhibit modulation with the accelerator RF frequencies, reflecting features of the extraction process. This resolution enables quantitative estimation of pileup contributions and provides design constraints for future readout electronics.

What carries the argument

Silicon carbide particle sensor with high carrier saturation velocity and high bias tolerance, read out at 6 GHz to capture individual particle arrival times.

If this is right

  • Pileup contributions in detector data can be calculated quantitatively from the observed arrival-time distributions.
  • Readout electronics can be designed with specific constraints derived from the measured micro-spill patterns.
  • Characterization of beam time structure becomes essential for any high-precision detector system operating at these facilities.
  • The same measurement approach applies equally to cyclotron and synchrotron beams.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could be repeated at other accelerator facilities to improve data quality in experiments that rely on single-particle resolution.
  • Knowledge of the RF-tied spill structure might guide adjustments to beam extraction settings to reduce unwanted time bunching.
  • Future detectors could incorporate accelerator-phase information to apply real-time corrections for the expected pileup patterns.

Load-bearing premise

The SiC diodes and 6 GHz readout system record the true particle arrival-time distribution without adding measurable timing jitter, efficiency losses, or distortions from the sensor itself.

What would settle it

An independent measurement with a different fast-timing detector technology, such as diamond sensors, that shows no RF-frequency modulation in the arrival times would falsify the reported micro-spill structure.

read the original abstract

Detector characterization and instrumentation testing are often performed at cyclotron and synchrotron facilities, many of which were originally developed for medical applications in cancer therapy. For particle physics experiments requiring a single-particle resolution, pileup can significantly degrade data quality, making precise knowledge of the beam time structure essential for selecting appropriate readout parameters. However, such information is often unavailable from the facilities and challenging to determine experimentally. Here, we report measurements of the spill time structure at two medical accelerator facilities using a silicon carbide (SiC) particle sensor coupled to a high-frequency readout system. Owing to its high carrier saturation velocity and the tolerance to large bias voltages, SiC is well suited for fast readout and measurements requiring precise timing. Using a 6 GHz readout with custom SiC diodes, we characterize the micro-spill structure of both cyclotron and synchrotron beams on a sub-nanosecond timescale. The measured arrival-time distributions exhibit modulation with the accelerator RF frequencies, reflecting features of the extraction process. The resolved micro-spill structure enables quantitative estimation of pileup contributions and provides design constraints for future readout electronics. The presented results emphasize the importance of the characterization of the beam time-structure characterization for the development of precise readout systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper describes measurements of the micro-spill time structure of beams from medical cyclotrons and synchrotrons performed with custom SiC diodes read out at 6 GHz. The authors report sub-nanosecond arrival-time distributions that show modulation at the accelerator RF frequencies, attribute these features to the extraction process, and argue that the resolved structure permits quantitative estimation of pulse pileup for particle-physics applications.

Significance. If the detector response is shown to be linear and free of rate- or time-dependent distortions, the results supply practical constraints on readout design for experiments that use these beams. The choice of SiC for its high saturation velocity and the demonstration of GHz-scale timing constitute a concrete experimental contribution to beam instrumentation.

major comments (1)
  1. [Abstract and results description] The central claim that the observed RF-correlated modulations reflect the beam extraction process (rather than sensor or readout artifacts) rests on the unverified assumption that the SiC diode plus 6 GHz chain adds negligible timing jitter, efficiency variation, or pulse-shape distortion. No quantitative timing-resolution measurement, efficiency map versus instantaneous rate or time within the RF period, or cross-check against an independent fast detector or accelerator model is presented. This directly affects the reliability of the pileup estimation discussed in the abstract.
minor comments (1)
  1. [Abstract] The abstract contains the redundant phrase 'the importance of the characterization of the beam time-structure characterization'.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We are grateful to the referee for providing a detailed and insightful report on our manuscript. The major comment concerning the verification of the detector system's timing fidelity is taken seriously, and we outline our response and planned revisions below.

read point-by-point responses

  1. Referee: [Abstract and results description] The central claim that the observed RF-correlated modulations reflect the beam extraction process (rather than sensor or readout artifacts) rests on the unverified assumption that the SiC diode plus 6 GHz chain adds negligible timing jitter, efficiency variation, or pulse-shape distortion. No quantitative timing-resolution measurement, efficiency map versus instantaneous rate or time within the RF period, or cross-check against an independent fast detector or accelerator model is presented. This directly affects the reliability of the pileup estimation discussed in the abstract.

    Authors: We thank the referee for this critical observation, which highlights a potential weakness in the current presentation of our results. The choice of SiC diodes was motivated by their superior timing properties compared to silicon, including higher saturation velocity enabling faster signal rise times. The 6 GHz readout was selected to ensure that the sampling rate exceeds the expected RF frequencies by a large margin. Nevertheless, we concede that no explicit measurement of the overall timing resolution or efficiency as a function of rate and RF phase was reported. In the revised manuscript, we will incorporate a quantitative estimate of the timing jitter derived from the system parameters (diode area, bias, and amplifier bandwidth) and demonstrate through simulation that pulse-shape distortions are negligible at the observed particle rates. We will also add a discussion of why efficiency variations within the RF period are not expected to mimic the observed modulations. A direct cross-check with another detector was not feasible within the scope of this work due to limited beam time, but the precise alignment of the modulation periods with independently known accelerator RF values serves as supporting evidence. These revisions will be made to bolster the abstract's claims on pileup estimation. revision: partial

Circularity Check

0 steps flagged

No circularity: purely experimental measurement with no derivation chain

full rationale

The paper reports direct experimental measurements of beam micro-spill structure using custom SiC diodes and a 6 GHz readout system at two accelerator facilities. No equations, fitted parameters, predictions, or derivation steps are present that could reduce to inputs by construction. The observed modulation with RF frequencies is presented as an empirical finding compared against known accelerator parameters, not derived from or fitted to the data itself. Self-citations, if any, are not load-bearing for any central claim, and the work contains no ansatz, uniqueness theorem, or renaming of results. The analysis is self-contained as instrumentation characterization.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Work rests on standard assumptions about SiC detector performance and accelerator RF extraction; no free parameters, new entities, or ad-hoc axioms introduced.

axioms (1)
  • domain assumption SiC material offers high carrier saturation velocity and tolerance to large bias voltages enabling sub-nanosecond timing.
    Invoked in abstract to justify choice of sensor technology.
