arxiv: 2605.07688 · v1 · submitted 2026-05-08 · ⚛️ physics.flu-dyn

Recognition: 1 theorem link

· Lean Theorem

Cassie-Wenzel transition induced by localized freezing after droplet impact on supercooled micro-patterned surfaces

Huafeng Liu, Jun Fang, Mengqi Ye, Tianyou Wang, Yupeng Jiang, Zhizhao Che

Authors on Pith no claims yet

Pith reviewed 2026-05-11 03:13 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn
keywords droplet impactfreezing dynamicsCassie-Wenzel transitionsupercooled surfacesmicro-patterned surfacesanti-icingwetting statessolidification
0
0 comments X

The pith

Rapid localized freezing after impact forces droplets into the Cassie wetting state on supercooled micro-patterned surfaces

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines droplet behavior upon hitting supercooled micro-patterned surfaces and finds that the final wetting state can be controlled by adjusting impact speed and surface temperature. At lower speeds and colder temperatures, rapid freezing at the contact point traps air in the patterns, producing a Cassie state instead of allowing liquid to penetrate for a Wenzel state. High-speed imaging and infrared thermography track how this freezing halts penetration and alters spreading diameter, freezing time, and final height. The work shows the transition arises from the interplay of spreading speed, heat transfer at the interface, and solidification that solidifies the bottom before liquid seeps in. This outcome matters for anti-icing because the Cassie configuration keeps droplets from fully wetting and freezing in place.

Core claim

A Cassie state of final wetting of a droplet upon impact on a micro-patterned surface is achieved through rapid localized freezing in the droplet-surface contact region by tuning the coupled interplay among droplet spreading kinetics, interfacial heat transfer, and solidification dynamics. Variations in impact velocity and wall temperature lead to a final frozen wetting-state transition from the Wenzel to the Cassie regime, with changes in freezing time, final spreading diameter, and frozen height. The transition is attributed to rapid localized freezing at the droplet bottom suppressing liquid penetration into the micro-pattern, with lower velocities and temperatures favoring Cassie states.

What carries the argument

Rapid localized freezing at the droplet bottom, which solidifies the contact region fast enough to block liquid penetration into the micro-pattern grooves before spreading completes.

If this is right

  • Lower impact velocities and lower surface temperatures produce Cassie states with extended freezing durations.
  • Higher velocities or temperatures drive faster penetration into the patterns and accelerate overall freezing.
  • The final wetting state directly controls spreading diameter and frozen height after impact.
  • Micro-pattern design governs the balance between penetrating flow and solidification that sets the wetting outcome.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same freezing-suppression effect could be tested on nano-scale or hierarchical textures to widen the velocity-temperature window for Cassie retention.
  • Adding controlled surface roughness variations might reveal how pattern spacing interacts with freezing speed to set the transition threshold.
  • The mechanism suggests a route to passive anti-icing where ambient cold triggers the protective state without external energy input.

Load-bearing premise

Rapid localized freezing occurs fast enough in the contact region to suppress liquid penetration into the micro-pattern before significant spreading or Wenzel transition takes place.

What would settle it

High-speed imaging and infrared thermography that would show whether the bottom contact zone fully solidifies before liquid enters the micro-pattern grooves across a range of impact velocities and wall temperatures.

Figures

Figures reproduced from arXiv: 2605.07688 by Huafeng Liu, Jun Fang, Mengqi Ye, Tianyou Wang, Yupeng Jiang, Zhizhao Che.

Figure 2
Figure 2. Figure 2 [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: In comparison with the micro-patterned surface, the morphological differences of the droplet [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 7
Figure 7. Figure 7: (a) Images of droplets completely frozen after impacting [PITH_FULL_IMAGE:figures/full_fig_p016_7.png] view at source ↗
read the original abstract

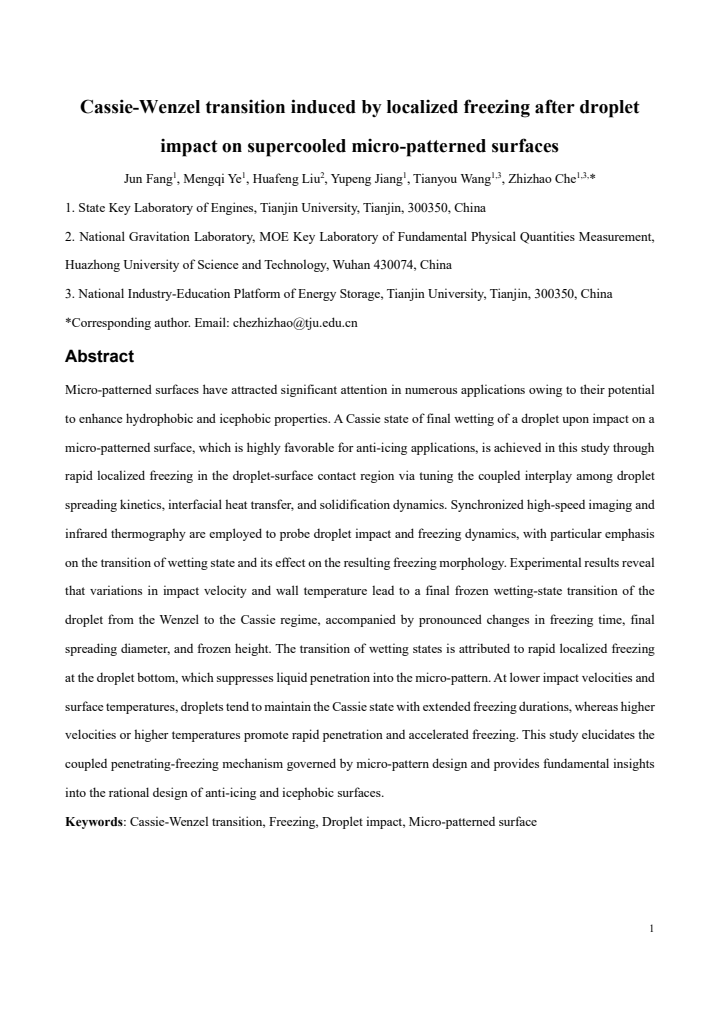

Micro-patterned surfaces have attracted significant attention in numerous applications owing to their potential to enhance hydrophobic and icephobic properties. A Cassie state of final wetting of a droplet upon impact on a micro-patterned surface, which is highly favorable for anti-icing applications, is achieved in this study through rapid localized freezing in the droplet-surface contact region via tuning the coupled interplay among droplet spreading kinetics, interfacial heat transfer, and solidification dynamics. Synchronized high-speed imaging and infrared thermography are employed to probe droplet impact and freezing dynamics, with particular emphasis on the transition of wetting state and its effect on the resulting freezing morphology. Experimental results reveal that variations in impact velocity and wall temperature lead to a final frozen wetting-state transition of the droplet from the Wenzel to the Cassie regime, accompanied by pronounced changes in freezing time, final spreading diameter, and frozen height. The transition of wetting states is attributed to rapid localized freezing at the droplet bottom, which suppresses liquid penetration into the micro-pattern. At lower impact velocities and surface temperatures, droplets tend to maintain the Cassie state with extended freezing durations, whereas higher velocities or higher temperatures promote rapid penetration and accelerated freezing. This study elucidates the coupled penetrating-freezing mechanism governed by micro-pattern design and provides fundamental insights into the rational design of anti-icing and icephobic surfaces.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper reports an experimental investigation of droplet impact and freezing on supercooled micro-patterned surfaces. Using synchronized high-speed imaging and infrared thermography, the authors observe a transition from Wenzel to Cassie wetting states as impact velocity decreases and wall temperature is lowered. They attribute the maintenance of the Cassie state to rapid localized freezing at the contact region that suppresses liquid penetration into the micro-patterns, with accompanying changes in freezing time, spreading diameter, and frozen height. The study emphasizes the coupled effects of spreading kinetics, interfacial heat transfer, and solidification dynamics for anti-icing applications.

Significance. If the proposed mechanism holds, the work provides useful experimental evidence for tuning wetting states via localized freezing on textured surfaces, which could inform design of icephobic coatings. The synchronized imaging-IR approach is a strength for capturing coupled dynamics, and the parametric variation of velocity and temperature yields clear trends in final morphology. However, the absence of quantitative time-scale analysis limits the ability to confirm causality over correlation.

major comments (2)
  1. [Discussion] Discussion (around the interpretation of freezing morphology and transition): The central claim that 'rapid localized freezing at the droplet bottom suppresses liquid penetration' is not supported by explicit comparison of relevant time scales. The inertial-capillary spreading time (~sqrt(ρR³/σ)), capillary wicking time into the micro-pattern (~sqrt(σ cosθ/(μ·feature size))), and freezing-front propagation speed (Stefan condition with reported supercooling and heat transfer) are not estimated or contrasted using the experimental parameters. Without these or a supporting model, the mechanism remains an interpretation of the observed correlation between lower velocity/temperature and Cassie outcomes rather than a demonstrated sequence.
  2. [Results] Results section on freezing time and morphology: While trends with impact velocity and wall temperature are reported, no error bars, statistical replicates, or uncertainty quantification on the measured freezing times, spreading diameters, or transition thresholds are provided. This weakens the robustness of the claimed transition boundaries and their attribution to the freezing-penetration interplay.
minor comments (2)
  1. [Abstract/Introduction] The abstract and introduction use 'rapid localized freezing' repeatedly without defining the criterion (e.g., time relative to spreading or a temperature threshold from IR data).
  2. [Figures and Methods] Figure captions and text should explicitly label the micro-pattern geometry (pillar height, spacing, diameter) and material thermal properties, as these are central to the claimed mechanism but appear only qualitatively.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and positive assessment of the experimental approach. We address each major comment below and have revised the manuscript accordingly to strengthen the mechanistic support and statistical robustness.

read point-by-point responses

  1. Referee: The central claim that 'rapid localized freezing at the droplet bottom suppresses liquid penetration' is not supported by explicit comparison of relevant time scales. The inertial-capillary spreading time (~sqrt(ρR³/σ)), capillary wicking time into the micro-pattern (~sqrt(σ cosθ/(μ·feature size))), and freezing-front propagation speed (Stefan condition with reported supercooling and heat transfer) are not estimated or contrasted using the experimental parameters. Without these or a supporting model, the mechanism remains an interpretation of the observed correlation between lower velocity/temperature and Cassie outcomes rather than a demonstrated sequence.

    Authors: We agree that explicit time-scale comparisons would better substantiate the proposed mechanism over correlation. In the revised manuscript, we have added order-of-magnitude estimates for the inertial-capillary spreading time, capillary wicking time into the micro-patterns, and freezing-front propagation time (via Stefan condition) using the reported experimental parameters (droplet radius, surface tension, viscosity, feature size, supercooling, and heat transfer). These show that at lower velocities and temperatures, freezing becomes competitive with or faster than wicking, supporting penetration suppression. This analysis is now included in a dedicated paragraph in the Discussion section. revision: yes

  2. Referee: While trends with impact velocity and wall temperature are reported, no error bars, statistical replicates, or uncertainty quantification on the measured freezing times, spreading diameters, or transition thresholds are provided. This weakens the robustness of the claimed transition boundaries and their attribution to the freezing-penetration interplay.

    Authors: We acknowledge this limitation in the original submission. The experiments were repeated at least three times per condition, with reported values as averages. In the revised manuscript, we have added error bars (standard deviations) to all plots of freezing time, spreading diameter, and frozen height. We have also added text specifying the number of replicates and uncertainty ranges for the transition thresholds based on replicate variability in wetting outcomes. revision: yes

Circularity Check

0 steps flagged

Purely experimental study with no derivations, equations, or fitted predictions

full rationale

The paper reports direct experimental observations of droplet impact, spreading, and freezing on micro-patterned surfaces using synchronized high-speed imaging and infrared thermography. No mathematical models, derivations, parameter fittings, or predictive equations are present in the abstract or described methodology. The central claim attributes the Cassie-Wenzel transition to rapid localized freezing suppressing penetration, but this is presented as an interpretation of measured outcomes (freezing times, spreading diameters, morphologies) correlated with impact velocity and wall temperature, without any self-referential reduction or construction from inputs. No self-citations, ansatzes, or uniqueness theorems are invoked in a load-bearing way. The derivation chain is absent, rendering circularity analysis inapplicable; the work is self-contained as empirical reporting.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

As an experimental paper, the claim rests on the validity of interpreting visual and thermal data as evidence of wetting-state transitions and on standard assumptions about fluid dynamics and heat transfer. No free parameters, new entities, or ad-hoc axioms are introduced in the abstract.

axioms (1)
  • domain assumption The micro-pattern geometry remains stable and the surface properties allow clear distinction between Cassie and Wenzel states during and after freezing.
    Invoked implicitly when attributing final morphology to wetting-state transition.
