RFNoC-Based FPGA Offloading for Fully Programmable PHY Acceleration

A. Oguz Kislal , Osman Mert Yilmaz , Bengu Bilgic Keskin , Ibrahim Hokelek , Ali Gorcin
Authors on Pith no claims yet

Pith reviewed 2026-05-11 02:10 UTC · model grok-4.3

classification 📡 eess.SP
keywords RFNoCFPGA accelerationphysical layerLDPC codesOpenAirInterface5G networkshardware offloadingreal-time throughput
0
0 comments X

The pith

RFNoC FPGA framework offloads PHY tasks to reach 900 Mbps in live smartphone tests

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents an RFNoC-based framework that moves key physical layer operations from software to an FPGA for acceleration in wireless systems. The design targets LDPC encoding and decoding along with rate matching, interleaving, scrambling, and log likelihood ratio estimation, then integrates directly into OpenAirInterface so the same FPGA handles both radio front-end control and high-speed data processing. Real-time experiments confirm that a commercial smartphone connects successfully to the network while the system sustains approximately 900 Mbps throughput using only moderate FPGA resources. The work matters because future wireless networks will require far more intensive signal processing than general-purpose processors can deliver efficiently without hardware support.

Core claim

The framework offloads LDPC encoding and decoding, rate matching and unmatching, interleaving and deinterleaving, scrambling and descrambling, and log likelihood ratio estimation to an FPGA via RFNoC. This accelerator is integrated into OpenAirInterface radio access network software, enabling the FPGA to act simultaneously as radio front-end driver and high-throughput PHY processor. Real-time validation shows a commercial smartphone connecting to the network with achievable throughput of about 900 Mbps under moderate FPGA resource utilization.

What carries the argument

RFNoC-based hardware acceleration framework that offloads specific PHY procedures while sharing the FPGA with radio front-end control through OpenAirInterface integration

If this is right

  • Higher sustained data rates become possible in 5G and 6G systems by shifting intensive computations away from software processors.
  • The same FPGA resource can handle both radio interfacing and acceleration, reducing overall hardware requirements.
  • Integration with OpenAirInterface shows the approach works inside existing open-source RAN stacks without full redesign.
  • Moderate resource use indicates the acceleration is practical for deployment rather than requiring high-end FPGA models.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same offloading pattern could apply to additional procedures such as channel estimation or beamforming in future releases.
  • Base-station power draw might decrease if more PHY work moves to energy-efficient FPGA fabric instead of CPU or GPU cycles.
  • Similar RFNoC structures could be ported to other programmable radio platforms to accelerate PHY across different software ecosystems.

Load-bearing premise

Offloaded PHY procedures integrate with radio front-end control on the same FPGA without unacceptable latency or compatibility issues during live network operation.

What would settle it

A real-time test in which the commercial smartphone fails to connect or the measured throughput falls substantially below 900 Mbps under the reported conditions would falsify the central performance claim.

Figures

Figures reproduced from arXiv: 2605.07704 by Ali Gorcin, A. Oguz Kislal, Bengu Bilgic Keskin, Ibrahim Hokelek, Osman Mert Yilmaz.

Figure 1
Figure 1. Figure 1: Block diagram of PHY layer encoder procedures. Here, green blocks are offloaded to FPGA. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Block diagram of PHY layer decoder procedures. Here, green blocks are offloaded to FPGA. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

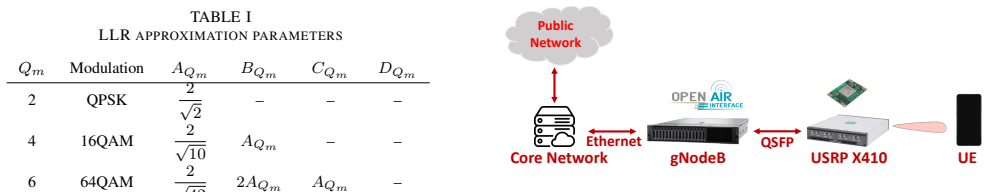

Figure 3. Figure 3: Testbed system model. USRP Hardware Driver (UHD) SFP+ Interface Crossbar Encoding Chain Decoding Chain ADC/DAC Driver HOST PC RFNoC RFNoC Control API Hardware Accelerator USRP RFSoC [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Functional block diagram of the hardware accelarated gNB. [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

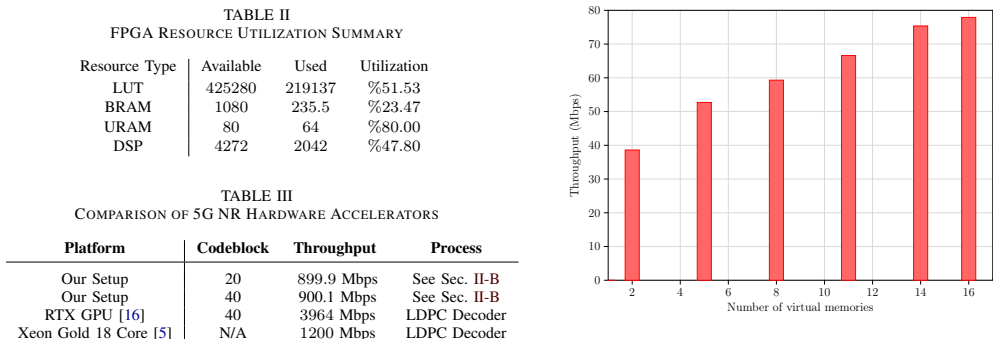

Figure 5. Figure 5: The average throughput as a function of number of virtual memories. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
read the original abstract

Hardware acceleration has emerged as a key research topic for supporting computationally intensive signal processing and artificial intelligence applications in 6G research and development studies. This paper presents an RF Network on Chip (RFNoC) based hardware acceleration framework that offloads key physical layer procedures to a field programmable gate array (FPGA). The proposed design accelerates procedures, including low density parity check codes (LDPC) encoding and decoding, rate matching and unmatching, interleaving and deinterleaving, scrambling and descrambling, and log likelihood ratio estimation. The accelerator is integrated directly into the OpenAirInterface radio access network software, enabling simultaneous use of the FPGA as driver of the radio front end and a high throughput accelerator. The proposed system is validated through real time experiments with a commercial smartphone successfully connecting to the network. The implementation results demonstrate that a throughput of about 900 Mbps is achiievable using a moderate FPGA resource utlization.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents an RFNoC-based FPGA acceleration framework that offloads PHY procedures (LDPC encoding/decoding, rate matching/unmatching, interleaving/deinterleaving, scrambling/descrambling, and LLR estimation) and integrates them directly into OpenAirInterface, allowing the FPGA to simultaneously serve as radio front-end driver and high-throughput accelerator. It claims validation via real-time experiments in which a commercial smartphone successfully attaches, with reported throughput of approximately 900 Mbps under moderate FPGA resource utilization.

Significance. The real-time experiment with a commercial smartphone attachment provides concrete evidence of practical integration with an open-source RAN stack, which is a strength. If the concurrent PHY offload and front-end control can be shown to operate without unacceptable latency or contention, the work would be significant for 6G hardware acceleration research by demonstrating a programmable, offload-capable PHY path that bridges FPGA resources with existing software frameworks.

major comments (2)
  1. [Abstract] Abstract: The central claim of successful real-time validation and ~900 Mbps throughput rests on the smartphone connection experiment, but supplies no measured end-to-end latency, jitter, or FPGA resource-sharing overhead figures for the case of simultaneous LDPC/rate-matching offload and radio front-end control. This quantification is load-bearing for the weakest assumption that integration introduces no unacceptable latency or compatibility issues.
  2. [Implementation and Results] Implementation and Results sections: No quantitative breakdown of FPGA resource utilization (e.g., LUTs, DSP slices, BRAMs, or clock rates) or direct comparison against a non-offloaded baseline is provided, leaving the 'moderate' utilization claim and the throughput number difficult to evaluate for reproducibility or scaling.
minor comments (2)
  1. [Abstract] Abstract: Typo 'achiievable' should read 'achievable'.
  2. [Abstract] Abstract: Typo 'utlization' should read 'utilization'.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their detailed review and constructive comments. We address each major comment below and indicate the changes we will make to the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim of successful real-time validation and ~900 Mbps throughput rests on the smartphone connection experiment, but supplies no measured end-to-end latency, jitter, or FPGA resource-sharing overhead figures for the case of simultaneous LDPC/rate-matching offload and radio front-end control. This quantification is load-bearing for the weakest assumption that integration introduces no unacceptable latency or compatibility issues.

    Authors: We agree that providing quantitative measurements of end-to-end latency, jitter, and any overhead due to resource sharing between the PHY offload and radio front-end control would strengthen the validation of our real-time experiment. In the revised manuscript, we will include these metrics from our experimental setup, demonstrating that the integration operates without unacceptable latency or compatibility issues. This will be added to the Results section alongside the existing throughput and smartphone attachment results. revision: yes

  2. Referee: [Implementation and Results] Implementation and Results sections: No quantitative breakdown of FPGA resource utilization (e.g., LUTs, DSP slices, BRAMs, or clock rates) or direct comparison against a non-offloaded baseline is provided, leaving the 'moderate' utilization claim and the throughput number difficult to evaluate for reproducibility or scaling.

    Authors: We acknowledge the need for a detailed quantitative breakdown of FPGA resource utilization and a comparison to a non-offloaded baseline to support the claims of moderate utilization and the reported throughput. In the revised version, we will add a table detailing the utilization of LUTs, DSP slices, BRAMs, and the operating clock rates. Additionally, we will include a comparison of the accelerated throughput against a software-only implementation on the host processor to aid reproducibility and evaluation of scaling. revision: yes

Circularity Check

0 steps flagged

No circularity in experimental implementation and validation paper

full rationale

The paper presents an RFNoC-based FPGA offloading framework for PHY procedures (LDPC, rate matching, interleaving, scrambling, LLR estimation) integrated into OpenAirInterface, with validation via real-time experiments showing smartphone attachment and ~900 Mbps throughput under moderate resource use. No derivation chain, equations, fitted parameters, or predictions exist that could reduce to inputs by construction. Claims rest on direct experimental outcomes rather than self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations. This is a standard hardware implementation study with no circular elements.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on standard assumptions of FPGA design, RFNoC framework correctness, and OpenAirInterface software behavior; no free parameters, new axioms, or invented entities are introduced in the abstract.
