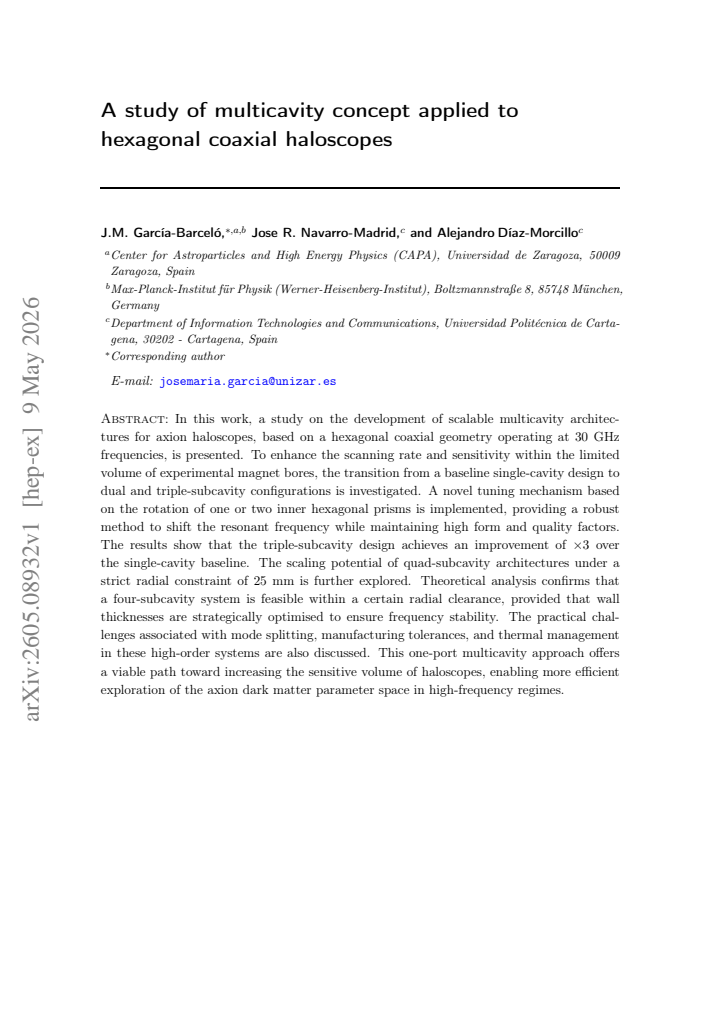

A study of multicavity concept applied to hexagonal coaxial haloscopes

Alejandro D\'iaz-Morcillo, J.M. Garc\'ia-Barcel\'o, Jose R. Navarro-Madrid

Pith reviewed 2026-05-12 01:45 UTC · model grok-4.3

classification ✦ hep-ex physics.ins-det
keywords axion haloscopemulticavityhexagonal coaxialtuning mechanismsensitive volumedark matter search30 GHz
0
0 comments X

The pith

A triple-subcavity hexagonal coaxial haloscope triples sensitive volume over a single cavity at 30 GHz.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops multicavity architectures for axion haloscopes in a hexagonal coaxial geometry at 30 GHz to increase the effective volume inside limited magnet bores. It demonstrates that dual and triple subcavity configurations, tuned by rotating one or two inner hexagonal prisms, maintain high form and quality factors while delivering a threefold improvement in scanning rate and sensitivity compared with a single-cavity baseline. Theoretical analysis further shows that a four-subcavity system remains feasible within a 25 mm radial constraint when wall thicknesses are optimized for frequency stability. The work addresses practical issues including mode splitting, manufacturing tolerances, and thermal management, offering a route to larger sensitive volumes for high-frequency axion searches.

Core claim

By transitioning from a single-cavity baseline to dual and triple-subcavity configurations in a hexagonal coaxial geometry, and implementing a rotational tuning mechanism with inner prisms, the design achieves a threefold increase in effective sensitive volume while preserving resonant performance at 30 GHz. Theoretical modeling confirms that quad-subcavity systems are viable under strict radial limits provided wall thicknesses are strategically chosen to stabilize frequencies.

What carries the argument

Hexagonal coaxial multicavity architecture with one or two rotatable inner prisms that shift resonant frequency while keeping form factor and quality factor high.

If this is right

  • The triple-subcavity design delivers a measured factor-of-three gain in scanning rate and sensitivity.
  • A four-subcavity layout fits inside a 25 mm radial clearance once wall thicknesses are chosen to stabilize frequencies.
  • The rotational tuning method shifts frequency without degrading form or quality factors.
  • Mode splitting, manufacturing tolerances, and thermal management become the dominant engineering limits in higher-order multicavity systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar subcavity scaling could be tested at neighboring frequencies to map how volume gains behave as frequency rises.
  • If wall optimization proves robust, the same geometry might allow existing magnet bores to host larger effective volumes without new hardware.
  • Practical tests of thermal management in these high-order cavities would reveal whether cryogenic operation remains straightforward.

Load-bearing premise

Wall thicknesses in a four-subcavity system can be optimized to keep frequencies stable without unacceptable mode mixing or loss of performance.

What would settle it

Fabricate a triple-subcavity prototype, measure its quality factor and form factor across the tuned frequency range, and compare the observed scanning-rate gain directly against the single-cavity baseline under identical magnet conditions.

read the original abstract

In this work, a study on the development of scalable multicavity architectures for axion haloscopes, based on a hexagonal coaxial geometry operating at $30$ GHz frequencies, is presented. To enhance the scanning rate and sensitivity within the limited volume of experimental magnet bores, the transition from a baseline single-cavity design to dual and triple-subcavity configurations is investigated. A novel tuning mechanism based on the rotation of one or two inner hexagonal prisms is implemented, providing a robust method to shift the resonant frequency while maintaining high form and quality factors. The results show that the triple-subcavity design achieves an improvement of $\times3$ over the single-cavity baseline. The scaling potential of quad-subcavity architectures under a strict radial constraint of $25$ mm is further explored. Theoretical analysis confirms that a four-subcavity system is feasible within a certain radial clearance, provided that wall thicknesses are strategically optimised to ensure frequency stability. The practical challenges associated with mode splitting, manufacturing tolerances, and thermal management in these high-order systems are also discussed. This one-port multicavity approach offers a viable path toward increasing the sensitive volume of haloscopes, enabling more efficient exploration of the axion dark matter parameter space in high-frequency regimes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 4 minor

Summary. The manuscript studies multicavity architectures for axion haloscopes based on hexagonal coaxial geometry at 30 GHz. It examines the transition from a single-cavity baseline to dual- and triple-subcavity configurations, introducing a tuning mechanism via rotation of one or two inner hexagonal prisms that preserves high form and quality factors. The central result is that the triple-subcavity design yields a factor-of-three improvement over the single-cavity case; the work also explores quad-subcavity feasibility under a 25 mm radial constraint through theoretical analysis of wall-thickness optimization and discusses challenges including mode splitting, manufacturing tolerances, and thermal management.

Significance. If the reported simulation results on form factor, quality factor, and effective volume hold, the one-port multicavity approach would meaningfully increase the sensitive volume and scanning rate of high-frequency axion haloscopes within constrained magnet bores, offering a practical route to broader coverage of the axion dark-matter parameter space.

minor comments (4)
  1. Abstract: the statement that the triple-subcavity design 'achieves an improvement of ×3' should be accompanied by the explicit numerical values of form factor, quality factor, and effective volume (or their ratios) that produce this factor, so readers can assess the gain without consulting the full simulation section.
  2. The quad-subcavity feasibility discussion would benefit from a brief table or plot showing the optimized wall thicknesses, resulting frequency shifts, and stability margins under the 25 mm radial limit.
  3. A short comparison table contrasting the single-, dual-, triple-, and (where feasible) quad-cavity metrics would make the scaling argument more transparent.
  4. The manuscript should cite at least two or three prior multicavity haloscope designs (e.g., those using cylindrical or rectangular cavities) to place the hexagonal-coaxial choice in context.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our work on multicavity hexagonal coaxial haloscopes and the recommendation for minor revision. The summary accurately captures the key elements of the study, including the threefold improvement in scanning rate for the triple-subcavity design and the exploration of quad-subcavity feasibility under the 25 mm constraint. No specific major comments were raised in the report, so we provide no point-by-point rebuttals below. We are prepared to make any minor editorial or clarification changes requested by the editor.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper reports performance gains for multicavity haloscope designs from direct geometric modeling and electromagnetic simulations of form factor, quality factor, and effective volume under hexagonal coaxial constraints and prism-rotation tuning. The ×3 improvement for the triple-subcavity case is computed relative to an independent single-cavity baseline, with no parameters fitted to the target result and then reused as a prediction. No self-citations, uniqueness theorems, or ansatzes from prior author work are invoked to justify the central scaling claims. The derivation remains self-contained against external simulation benchmarks and standard cavity theory.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The study rests on standard electromagnetic cavity theory and geometric optimization; no new particles, forces, or ad-hoc constants are introduced.

axioms (2)
  • standard math Standard Maxwell equations and boundary conditions govern resonant modes in coaxial cavities
    Invoked implicitly for calculating frequencies, form factors, and quality factors in the multicavity geometries.
  • domain assumption Form factor and quality factor remain high under small geometric perturbations from rotation
    Central to the claim that rotational tuning preserves performance.
