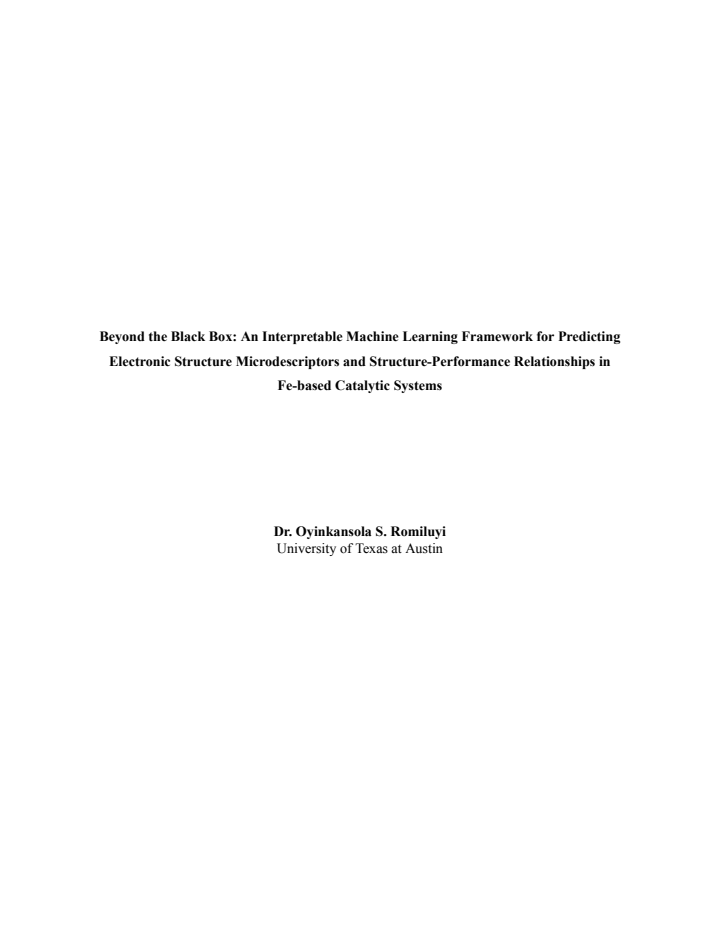

Beyond the Black Box: An Interpretable Machine Learning Framework for Predicting Electronic Structure Microdescriptors and Structure-Performance Relationships in Fe-based Catalytic Systems
Pith reviewed 2026-05-12 02:14 UTC · model grok-4.3
The pith
Thermodynamic lattice stability and geometric factors primarily determine the electronic band gap in iron-based catalysts rather than their bulk composition.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The framework reveals that thermodynamic lattice stability and geometric factors are the primary drivers of electronic band gap in Fe-based catalytic systems, rather than bulk stoichiometry. Tree-based ensemble models with SHAP analysis achieve R-squared values of 0.61 to 0.77 for predicting band gap, compared to 0.32 for linear baselines.
What carries the argument
SHAP-based feature importance analysis integrated with tree-based ensembles like Random Forest and Bayesian-optimized CatBoost to identify and rank microdescriptors influencing the electronic band gap.
If this is right
- Non-linear models predict electronic band gap with substantially higher accuracy than linear regression on the same features.
- A short list of thermodynamic and geometric microdescriptors can accelerate initial catalyst screening before experiments.
- The ranked features can be inserted directly into microkinetic models to build digital twins of reactor systems.
- The workflow supports predictive optimization loops inside autonomous laboratory platforms.
Where Pith is reading between the lines
- The same ranking approach could be tested on other transition-metal catalysts to check whether lattice stability remains dominant outside iron systems.
- Pairing the ML predictions with direct measurements of selectivity and stability would test how well band gap functions as a performance proxy.
- Adding quantum-derived descriptors for the same geometric factors might tighten the R2 gap between non-linear and linear models.
Load-bearing premise
The limited dataset is representative enough for SHAP values to identify physically causal drivers rather than dataset-specific correlations, and that electronic band gap serves as a reliable proxy for macroscale selectivity, activity, and stability without further validation.
What would settle it
A new, larger dataset of Fe-catalysts in which linear regression matches or exceeds the R2 of the tree ensembles on band gap prediction, or in which SHAP consistently ranks bulk stoichiometry above thermodynamic stability and geometric factors.
read the original abstract
The current catalyst discovery and development pipeline for energy-intensive applications like methane conversion remains bottlenecked by expensive trial-and-error experimentation, irreproducible chemical intuition, and a lack of frameworks linking complex catalytic design spaces to performance. This work presents an interpretable machine learning framework that integrates SHAP-based feature importance analysis (Explainable AI) with tree-based ensembles (Random Forest and Bayesian-optimized CatBoost) to characterize Fe-zeolite and oxide-supported catalysts for the partial oxidation of methane (POM). Despite limited data, the framework decodes complex structure-performance relationships by identifying and ranking thermodynamic, structural, and geometric microdescriptors that influence the electronic band gap and govern macroscale performance metrics such as selectivity, activity, and stability. This work explicitly demonstrates that thermodynamic lattice stability and geometric factors are the primary drivers of electronic band gap (a critical proxy for redox reactivity) rather than bulk stoichiometry. Non-linear models achieve an R2 of 0.61 - 0.77, significantly outperforming traditional linear baselines (R2 = 0.32). This workflow provides both a light-weight generalizable methodology and a prioritized list of physical features for accelerated catalyst screening - and these features can subsequently be integrated into microkinetic and reaction engineering models to create digital twins of complex reactor systems and to enable predictive optimization in autonomous R&D laboratories.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents an interpretable machine learning framework that combines SHAP-based feature importance with tree-based ensembles (Random Forest and Bayesian-optimized CatBoost) applied to Fe-zeolite and oxide-supported catalysts for partial oxidation of methane. It claims that thermodynamic lattice stability and geometric factors are the primary drivers of electronic band gap (used as a proxy for redox reactivity) rather than bulk stoichiometry, with non-linear models achieving R² values of 0.61–0.77 versus 0.32 for linear baselines. The work positions this as a lightweight, generalizable workflow for catalyst screening and integration into microkinetic models.
Significance. If the central claims hold after proper validation, the framework could provide a practical, interpretable route to prioritizing physical microdescriptors for Fe-based catalyst design in energy applications. The explicit use of post-hoc explainability tools to link structure to electronic properties is a constructive contribution. However, the moderate R² range and reliance on limited data temper the immediate significance for robust causal inference or broad deployment.
major comments (2)
- [Abstract] Abstract: The assertion that thermodynamic lattice stability and geometric factors are the primary drivers (rather than bulk stoichiometry) rests on SHAP rankings from models with R² = 0.61–0.77. Without reported details on dataset size, cross-validation strategy, or bootstrap stability of the SHAP values, it is unclear whether these rankings reflect robust physical drivers or dataset-specific correlations.
- [Abstract] Abstract: Electronic band gap is presented as a reliable proxy for macroscale selectivity, activity, and stability, yet no direct experimental correlations or validation against measured POM performance metrics are described to support this leap.
minor comments (1)
- [Abstract] Abstract: The reported R² range (0.61–0.77) should be disaggregated by model (Random Forest vs. CatBoost) and accompanied by error bars or confidence intervals for clarity.
Simulated Author's Rebuttal
We thank the referee for their constructive and detailed review of our manuscript. We address each major comment point by point below, indicating the revisions we will make to improve clarity and rigor while remaining faithful to the scope of this computational and machine-learning study.
read point-by-point responses
-
Referee: [Abstract] Abstract: The assertion that thermodynamic lattice stability and geometric factors are the primary drivers (rather than bulk stoichiometry) rests on SHAP rankings from models with R² = 0.61–0.77. Without reported details on dataset size, cross-validation strategy, or bootstrap stability of the SHAP values, it is unclear whether these rankings reflect robust physical drivers or dataset-specific correlations.
Authors: We agree that additional methodological details are needed to support the robustness of the SHAP-based rankings. The manuscript notes the limited data but does not fully specify the validation procedures in the abstract or methods summary. In the revised manuscript we will expand the Methods and Results sections to report the exact dataset size, the cross-validation strategy (including the number of folds and any stratification), and bootstrap resampling results (e.g., 1000 iterations) to quantify the stability of the SHAP feature importances. These additions will allow readers to assess whether the dominance of thermodynamic lattice stability and geometric factors over bulk stoichiometry is reproducible rather than an artifact of the particular data split. revision: yes
-
Referee: [Abstract] Abstract: Electronic band gap is presented as a reliable proxy for macroscale selectivity, activity, and stability, yet no direct experimental correlations or validation against measured POM performance metrics are described to support this leap.
Authors: The electronic band gap is employed as a proxy on the basis of established literature linking it to redox activity and oxygen vacancy energetics in Fe-based systems. We acknowledge, however, that the manuscript does not present new direct experimental correlations between the predicted band gaps and measured POM selectivity or stability metrics. Because this is a computational/ML study rather than an experimental one, we cannot generate such validation data at this stage. In the revision we will add a concise discussion paragraph that cites the key experimental papers supporting the proxy relationship, explicitly states the correlative (rather than causal) nature of the link, and notes the limitation that direct POM performance validation lies outside the present scope. revision: partial
Circularity Check
No circularity: standard ML training and post-hoc SHAP on external catalyst data
full rationale
The paper trains Random Forest and CatBoost models on a dataset of Fe-zeolite and oxide-supported catalysts to predict electronic band gap from thermodynamic, structural, and geometric microdescriptors. SHAP values are then computed on the fitted models to rank feature importance. The central claim (thermodynamic lattice stability and geometric factors as primary drivers rather than bulk stoichiometry) is an interpretation of these post-training attributions, not a quantity defined by construction from the model outputs or inputs. Reported R2 values (0.61-0.77) are standard performance metrics on the data and do not tautologically equal any fitted parameter or input feature. No self-citations, uniqueness theorems, or ansatzes are invoked to justify the pipeline; the derivation chain consists of ordinary supervised learning followed by explainability tools. The workflow is self-contained against external benchmarks of catalyst data and does not reduce any reported result to its own inputs.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
Datasets and Methodology This study was designed to be a compact R&D screening pipeline using supervised ML, SHAP and feature importance analyses, and Bayesian optimization to analyze and quantify microdescriptor-performance or (electronic) structure-performance relationships relevant to the Fe-based catalyst, methane partial oxidation (i..e, POM) reactio...
-
[2]
Results and Discussion 3.1 The Band Gap Landscape Of Fe/Si/Al/O Materials Across the just under 300 Fe/Si/Al/O entries extracted from the dataset, band gaps spanned from 0 eV (indicative of metallic or near-metallic materials behavior) up to 5.749 eV (more indicative of insulating and semiconducting materials). This empirical distribution is highly right-...
-
[3]
Conclusion Catalyst discovery for commercially-relevant engineered systems, such as for methane partial oxidation (i.e., POM), remains fundamentally constrained by slow, costly, and intuition-dependent experimentation. The size of the catalyst design space and the complexity inherent in the interplay of microenvironmental catalyst features like electronic...
-
[4]
Heterogeneous Catalysis by Metals,
References (IEEE) [1] Z. Ma and F. Zaera, “Heterogeneous Catalysis by Metals,” in Encyclopedia of Inorganic and Bioinorganic Chemistry , John Wiley & Sons, Ltd, 2014, pp. 1–16. doi: 10.1002/9781119951438.eibc0079.pub2. [2] “Introduction to Surface Chemistry and Catalysis, 2nd Edition | Wiley,” Wiley.com. [Online]. Available: https://www.wiley.com/en-us/In...
-
[5]
Machine Learning on Contact Angles of Liquid Metals and Solid Oxides,
L. Zuo, P. Ni, T. Tanaka, and Y. Li, “Machine Learning on Contact Angles of Liquid Metals and Solid Oxides,” Metall. Mater. Trans. B , vol. 52, no. 1, pp. 17–22, Feb. 2021, doi: 10.1007/s11663-020-02013-5. [20] A. Jain et al. , “Commentary: The Materials Project: A materials genome approach to accelerating materials innovation,” APL Mater. , vol. 1, no. 1...
-
[6]
Bayesian Reaction Optimization as a Tool for Chemical Synthesis
B. J. Shields et al. , “Bayesian reaction optimization as a tool for chemical synthesis,” Nature , vol. 590, no. 7844, pp. 89–96, Feb. 2021, doi: 10.1038/s41586-021-03213-y. [40] F. Häse, L. M. Roch, C. Kreisbeck, and A. Aspuru-Guzik, “Phoenics: A Bayesian Optimizer for Chemistry,” ACS Cent. Sci. , vol. 4, no. 9, pp. 1134–1145, Sept. 2018, doi: 10.1021/ac...
