A Bundle-Theoretic Formulation of Phonons in Crystalline Phases

Aleksey Prots

Authors on Pith no claims yet

Pith reviewed 2026-05-12 02:09 UTC · model grok-4.3

classification 🧮 math-ph math.MP

keywords phononstorus bundleEhresmann connectiondisplacement gradientcrystalline orderlinear elasticitypoint group

0 comments

The pith

The displacement gradient for phonons is the covariant differential on a section of an associated torus bundle.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper supplies a global geometric description of the translational order parameter once crystal orientations are fixed. It models translations as sections of a torus bundle associated to the reduced frame bundle, equipped with a canonical flat connection coming from the discrete point group. The resulting covariant differential replaces the ordinary displacement gradient as a globally defined object. A sympathetic reader would care because the construction yields a first-order field theory for phonons that recovers the standard local acoustic spectrum without altering the local equations.

Core claim

After reduction of the orthonormal frame bundle to the discrete point group, the translational order parameter is described as a section of an associated torus bundle. The discreteness of the structure group induces a canonical flat Ehresmann connection. The corresponding covariant differential of the translational field is a globally defined object which locally coincides with the ordinary displacement gradient. This covariant differential is then used to formulate the phonon sector as a first-order Lagrangian field theory. For derivative-only quadratic elastic Lagrangians satisfying the standard objectivity condition, the theory reduces locally to linear elasticity and to the standard acou

What carries the argument

The associated torus bundle carrying a canonical flat Ehresmann connection induced by the discrete point-group reduction, whose covariant differential acts on sections to replace the local displacement gradient.

Load-bearing premise

The discreteness of the reduced structure group permits a canonical flat Ehresmann connection on the associated torus bundle so that the covariant differential is globally well-defined.

What would settle it

Explicit computation of the proposed covariant differential on a simple cubic lattice that fails to reproduce the ordinary displacement gradient at every point would falsify the local coincidence claim.

read the original abstract

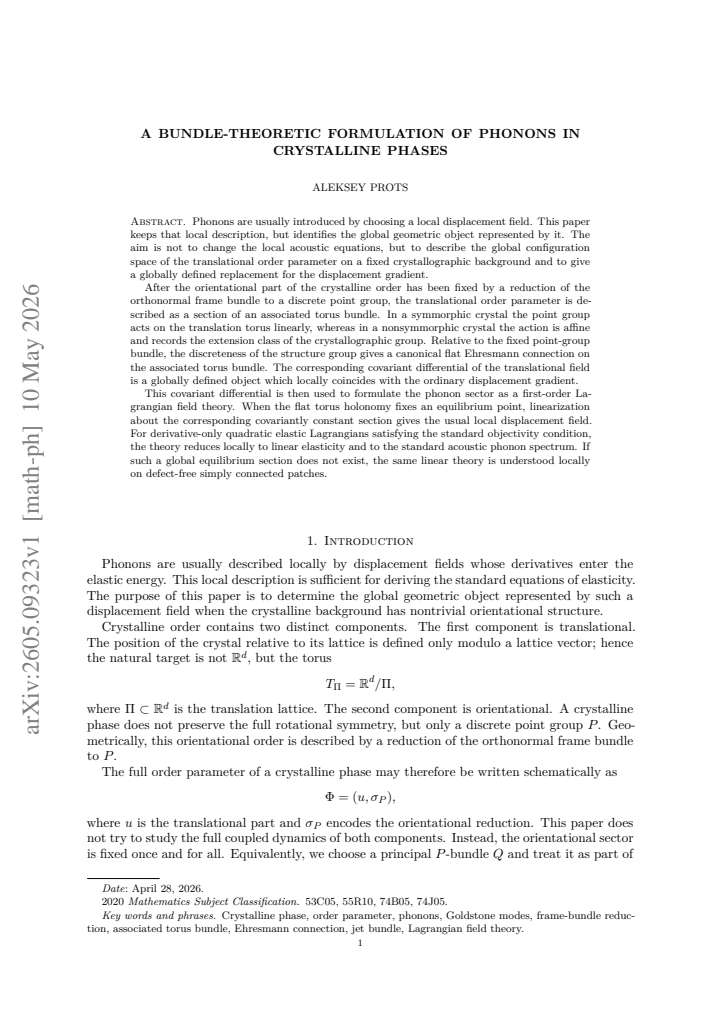

Phonons are usually introduced by choosing a local displacement field. This paper keeps that local description, but identifies the global geometric object represented by it. The aim is not to change the local acoustic equations, but to describe the global configuration space of the translational order parameter on a fixed crystallographic background and to give a globally defined replacement for the displacement gradient. After the orientational part of the crystalline order has been fixed by a reduction of the orthonormal frame bundle to a discrete point group, the translational order parameter is described as a section of an associated torus bundle. In a symmorphic crystal the point group acts on the translation torus linearly, whereas in a nonsymmorphic crystal the action is affine and records the extension class of the crystallographic group. Relative to the fixed point-group bundle, the discreteness of the structure group gives a canonical flat Ehresmann connection on the associated torus bundle. The corresponding covariant differential of the translational field is a globally defined object which locally coincides with the ordinary displacement gradient. This covariant differential is then used to formulate the phonon sector as a first-order Lagrangian field theory. When the flat torus holonomy fixes an equilibrium point, linearization about the corresponding covariantly constant section gives the usual local displacement field. For derivative-only quadratic elastic Lagrangians satisfying the standard objectivity condition, the theory reduces locally to linear elasticity and to the standard acoustic phonon spectrum. If such a global equilibrium section does not exist, the same linear theory is understood locally on defect-free simply connected patches.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper gives a global bundle description of the phonon displacement field via a torus bundle over the point-group reduction, with a flat connection that matches the usual gradient locally and handles nonsymmorphic cases, but leaves all local equations and predictions unchanged.

read the letter

The main thing here is that the work builds a global geometric object for the translational order parameter as a section of an associated torus bundle after reducing the frame bundle to the discrete point group. It equips this with a canonical flat Ehresmann connection induced by the discreteness of the group, so the covariant differential coincides locally with the ordinary displacement gradient. For nonsymmorphic crystals the action is affine and encodes the extension class, which is a clean way to keep everything consistent on the fixed crystallographic background. The phonon sector is then written as a first-order Lagrangian field theory on this bundle, and linearization about a covariantly constant section recovers standard linear elasticity and the acoustic spectrum on local patches. When no global equilibrium section exists, the same local theory applies on defect-free simply-connected regions. This is a solid consistency check rather than a derivation that fits new parameters. The construction looks careful and avoids internal contradictions, with the flatness following directly from the trivial Lie algebra of the discrete group. What is new is the specific torus-bundle formulation together with the affine action for nonsymmorphic cases; geometric approaches to crystals exist, but this one ties the translational field directly to the reduced point-group bundle in a first-order Lagrangian setting. The paper does well at keeping the local physics untouched while supplying a globally defined replacement for the displacement gradient. The soft spots are proportionate and limited. No new measurable predictions or changes to the phonon spectrum appear, so the value is conceptual and may help with global issues like defects but will not shift calculations or experiments. The abstract and reduction steps check out without gaps, though full transition functions and explicit Lagrangian expansions would be needed to verify every local identification. This is for readers working at the geometry-condensed-matter boundary who want a cleaner global picture of crystalline order parameters. Someone after new spectra, numerics, or material predictions will not find them. I would send it for peer review; the framework is coherent and could be a useful reference for later work on topological aspects of crystals.

Referee Report

0 major / 3 minor

Summary. The manuscript develops a global geometric formulation of phonons by reducing the orthonormal frame bundle to a principal bundle with discrete crystallographic point group G. The translational order parameter is realized as a section of the associated torus bundle P ×_G T (with linear G-action for symmorphic crystals and affine action encoding the extension class for nonsymmorphic ones). A canonical flat Ehresmann connection is induced by the discreteness of G; its covariant differential coincides locally with the ordinary displacement gradient. This object is used to write a first-order Lagrangian for the phonon sector. Linearization about a covariantly constant section recovers the standard acoustic phonon equations and linear elasticity for derivative-only quadratic objective Lagrangians, at least locally on defect-free simply-connected patches.

Significance. If the constructions and reductions hold, the work supplies a coordinate-free, globally defined replacement for the displacement gradient together with a precise description of the configuration space of translational order on a fixed crystallographic background. The clean separation of symmorphic and nonsymmorphic cases via the action on the translation torus, and the automatic flatness of the connection, are mathematically economical features that could support future extensions to defect theory or global topology while leaving local acoustic physics unchanged.

minor comments (3)

The explicit form of the bundle transition functions for the associated torus bundle (especially the affine cocycle in the nonsymmorphic case) should be written out in the section that defines P ×_G T, so that the reader can directly verify that the chosen horizontal distribution is indeed G-invariant and flat.
In the linearization step, the expansion of the Lagrangian about the covariantly constant section should be displayed with the resulting quadratic form in the covariant derivative; this would make the reduction to the standard acoustic spectrum fully explicit rather than asserted.
Clarify whether the equilibrium section is assumed to exist globally or only locally; the statement that the linear theory is understood on simply-connected patches when no global section exists should be accompanied by a brief remark on the obstruction class in H^1(M; T).

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the careful and accurate summary of the manuscript. The report correctly captures the geometric setup, the distinction between symmorphic and nonsymmorphic cases, the canonical flat connection, and the local recovery of standard acoustic phonons and linear elasticity. No specific major comments or requests for clarification were raised.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper constructs the torus bundle and canonical flat Ehresmann connection directly from the reduction of the frame bundle to the discrete crystallographic point group and the lattice periodicity, with the local coincidence of the covariant differential and displacement gradient following by definition of the connection in local trivializations. The linearization of the derivative-only quadratic Lagrangian is presented explicitly as a consistency check reproducing the standard acoustic phonon spectrum on defect-free patches, rather than an independent prediction or fitted result. No load-bearing self-citations, ansatzes smuggled via prior work, or uniqueness theorems are invoked; the central claims are geometric reformulations whose local reduction is the intended outcome of the setup, with no reduction of outputs to inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The paper relies on standard differential geometry (frame bundles, associated bundles, Ehresmann connections) and crystallographic group theory. No free parameters are fitted. The torus bundle is a derived mathematical object rather than a new physical entity.

axioms (2)

domain assumption The crystallographic point group acts on the translation torus, linearly in the symmorphic case and affinely in the nonsymmorphic case, recording the extension class of the crystallographic group.
Invoked to define the structure of the associated torus bundle.
domain assumption The discreteness of the structure group induces a canonical flat Ehresmann connection on the associated torus bundle.
Used to define the globally covariant differential of the translational section.

invented entities (1)

Associated torus bundle for the translational order parameter no independent evidence
purpose: To encode the global configuration space of atomic displacements on the fixed crystallographic background.
Constructed from the reduced frame bundle and the lattice periodicity; no independent physical evidence is supplied beyond the mathematical construction.
