End-to-End Keyword Spotting on FPGA Using Graph Neural Networks with a Neuromorphic Auditory Sensor

Angel Jim\'enez-Fern\'andez, Antonio Rios-Navarro, Kamil Jeziorek, Piotr Wzorek, Tom\'as Mu\~noz, Tomasz Kryjak, Wiktor Matykiewicz

Pith reviewed 2026-05-12 02:45 UTC · model grok-4.3

classification 💻 cs.LG
keywords keyword spottingFPGAgraph neural networksneuromorphic auditory sensorevent-based processingedge computinglow-power inference
0
0 comments X

The pith

A single FPGA chip can run real-time keyword spotting by feeding raw events from a neuromorphic auditory sensor straight into a graph neural network without conventional preprocessing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that an end-to-end keyword spotting pipeline can be built on one FPGA by wiring a neuromorphic auditory sensor directly to a graph neural network. The sensor produces sparse event streams that encode audio changes, and the network classifies keywords from those events alone. This removes the usual stages of signal filtering, feature extraction, and separate processors. The resulting system reaches 87.43 percent accuracy after quantization on the Google Speech Commands v2 dataset, with latency under 35 microseconds and average power of 1.12 watts. The approach targets edge devices that need low-power, always-on audio intelligence.

Core claim

The authors present the first end-to-end FPGA implementation of a keyword spotting system that integrates a Neuromorphic Auditory Sensor and a graph neural network on a single device, enabling real-time processing of raw audio data through a compute-near-memory architecture that operates directly on event-based streams.

What carries the argument

The compute-near-memory network architecture that places GNN inference close to memory handling the sparse event data from the neuromorphic auditory sensor, allowing direct classification without intermediate feature steps.

If this is right

  • The system delivers 87.43 percent accuracy on the Google Speech Commands v2 dataset after quantization.
  • End-to-end latency stays below 35 microseconds while processing raw sensor events.
  • Average power consumption is 1.12 watts on the single FPGA device.
  • No conventional signal preprocessing steps are required between the sensor and the classifier.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The single-chip design could reduce board complexity for always-on audio systems in small robots or wearables.
  • Event-based input may lower data movement costs compared with dense audio frames in other edge audio tasks.
  • The same sensor-plus-GNN pattern could be tested on different neuromorphic sensors to check whether the accuracy holds across modalities.

Load-bearing premise

The sparse event streams produced by the neuromorphic auditory sensor contain enough information for the graph neural network to reach usable keyword-spotting accuracy after quantization and without any conventional feature extraction.

What would settle it

Deploying the full quantized model on the FPGA and running it on the Google Speech Commands v2 dataset processed through the neuromorphic sensor; accuracy falling below roughly 80 percent or latency exceeding real-time bounds would show the approach does not deliver usable performance.

Figures

Figures reproduced from arXiv: 2605.09570 by Angel Jim\'enez-Fern\'andez, Antonio Rios-Navarro, Kamil Jeziorek, Piotr Wzorek, Tom\'as Mu\~noz, Tomasz Kryjak, Wiktor Matykiewicz.

Figure 1

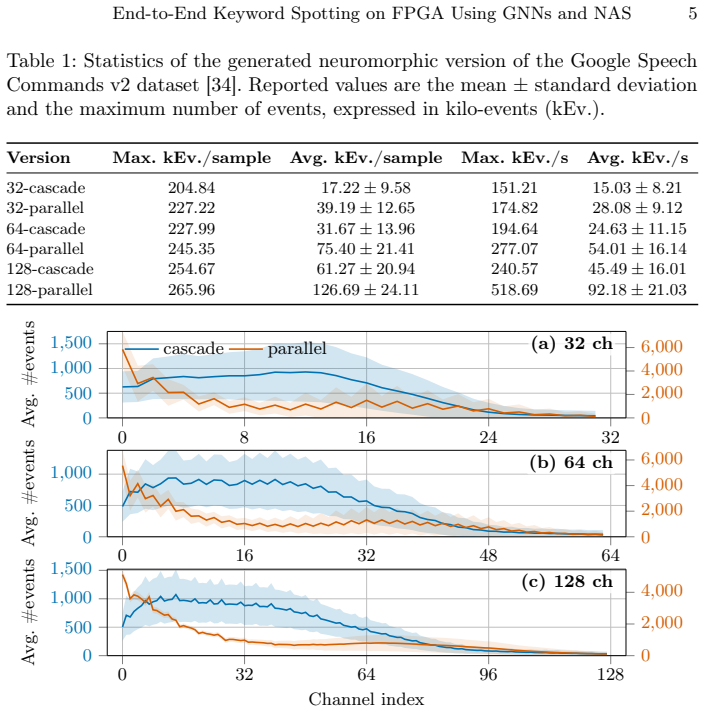

Figure 1. Figure 1: Average events per channel with standard deviation for different configu [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The proposed architecture is illustrated with the sensor and filtering mod [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Influence of the low and high time radius on the keyword-spotting metrics. [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
read the original abstract

With the rapid growth of mobile robotics and embedded intelligence, there is an increasing demand for efficient on-device data processing on edge platforms. A promising research direction is the use of neuromorphic sensors inspired by human sensory systems, which generate sparse, event-based data encoding changes in the environment. In this work, we present the first end-to-end FPGA implementation of a keyword spotting system that integrates a Neuromorphic Auditory Sensor (NAS) and a graph neural network (GNN) on a single FPGA device, enabling real-time processing of raw audio data. The proposed architecture eliminates conventional signal preprocessing and operates directly on event-based audio streams. Leveraging a compute-near-memory network architecture, the system achieves efficient inference with low latency and low power consumption. Experimental results demonstrate an accuracy of 87.43% after quantization on the Google Speech Commands v2 dataset processed through the neuromorphic sensor, with end-to-end latency below 35 us and average power consumption of 1.12 W. The processed datasets, software models, and hardware modules are available at https://github.com/vision-agh/NAS-GNN-KWS.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper presents the first end-to-end FPGA implementation of a keyword spotting system integrating a Neuromorphic Auditory Sensor (NAS) and a graph neural network (GNN) on a single device. It processes raw audio directly via sparse event streams without conventional signal preprocessing, achieving 87.43% accuracy on Google Speech Commands v2 after quantization, with end-to-end latency below 35 μs and average power of 1.12 W. The architecture employs a compute-near-memory design, and the authors release processed datasets, models, and hardware modules on GitHub.

Significance. If the results hold, the work demonstrates a practical integration of neuromorphic sensing and GNNs for low-latency, low-power edge audio processing on FPGAs. The single-device implementation and open release of code and models are strengths that support reproducibility and extension in neuromorphic hardware for ML. The significance would be higher with explicit verification that the event streams preserve discriminative information without implicit feature extraction.

major comments (2)
  1. [Abstract] Abstract: The reported post-quantization accuracy of 87.43% is presented without training details, baseline comparisons to standard KWS pipelines (e.g., MFCC + DNN), or error analysis, which are required to substantiate that the NAS event streams retain sufficient information for usable accuracy.
  2. [Experimental results] Experimental results: No ablation is provided that isolates the NAS event encoding and graph construction from conventional feature extraction on the same dataset and model family. This directly affects the central claim that the system 'eliminates conventional signal preprocessing' while achieving competitive performance.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment below and outline revisions to improve clarity and substantiation of our claims regarding the NAS-GNN integration and performance.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The reported post-quantization accuracy of 87.43% is presented without training details, baseline comparisons to standard KWS pipelines (e.g., MFCC + DNN), or error analysis, which are required to substantiate that the NAS event streams retain sufficient information for usable accuracy.

    Authors: We agree that the abstract's brevity omits key supporting details. In the revised manuscript, we will add a concise mention of training procedure (e.g., optimizer, epochs, quantization method) and error analysis summary in the abstract or prominently in Section 4. We will also include a table comparing our accuracy to representative MFCC+DNN and other KWS baselines from the literature on the same Google Speech Commands v2 dataset. This will better demonstrate that the event streams preserve discriminative information. Full re-training and FPGA porting of baselines is beyond the scope of demonstrating our end-to-end neuromorphic pipeline. revision: partial

  2. Referee: [Experimental results] Experimental results: No ablation is provided that isolates the NAS event encoding and graph construction from conventional feature extraction on the same dataset and model family. This directly affects the central claim that the system 'eliminates conventional signal preprocessing' while achieving competitive performance.

    Authors: The manuscript's core contribution is the first single-FPGA integration of NAS event streams with a GNN, which by design bypasses conventional preprocessing (e.g., no MFCC or spectrogram computation). An ablation isolating NAS encoding versus conventional features on an identical model family is not directly applicable, as our GNN operates on sparse event graphs rather than dense feature maps; a fair comparison would require redesigning the model and input pipeline. We will revise the experimental section to explicitly discuss this architectural distinction, cite prior event-based audio works showing competitive accuracy, and clarify that the 'eliminates preprocessing' claim refers to the absence of traditional signal processing steps in our deployed system rather than a performance superiority claim. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical hardware implementation with measured accuracy

full rationale

The manuscript reports an FPGA-based keyword spotting system using NAS event streams fed to a GNN, with accuracy, latency, and power measured on Google Speech Commands v2 after quantization. No equations, fitted parameters, or derivations are presented that reduce a claimed result to its own inputs by construction. The central result is an end-to-end hardware measurement rather than a prediction derived from self-referential definitions or self-citations. Self-citations, if present, are not load-bearing for the accuracy claim, which rests on direct experimental evaluation.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work rests on standard assumptions of neuromorphic sensor fidelity and FPGA synthesis tools; no new free parameters, axioms, or invented entities are introduced in the abstract.
