Long-Range Backscatter: A Bottom-Up Approach

Gilles Callebaut, Liesbet Van der Perre, Tijl Schepens

Pith reviewed 2026-05-13 05:44 UTC · model grok-4.3

classification 📡 eess.SP
keywords long-range backscatterenergy-neutral IoTchirp spread spectrumLPWANmedium access controlhardware architecturessystem topologies
0
0 comments X

The pith

Long-range backscatter communication enables energy-neutral IoT by reaching one to three orders of magnitude lower power consumption than active radios.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper surveys long-range backscatter communication through a bottom-up analysis of system topologies, hardware architectures, modulation techniques, and medium access control. It shows how these elements can be combined to support long-range links while keeping power low enough to match energy harvested from solar, RF, or capacitive sources. A sympathetic reader would care because the wireless link is currently the main barrier to fully energy-neutral IoT nodes that could operate indefinitely without batteries.

Core claim

By examining backscatter from the level of system topologies required for extended range, through hardware that modulates reflected signals at different power and complexity levels, to modulation schemes including binary switching and chirp spread spectrum plus lightweight MAC protocols for synchronization and concurrency, the survey establishes that active-radio concepts can be adapted to low-power tags and matched to specific harvested-energy budgets for feasible energy-neutral IoT applications.

What carries the argument

The bottom-up analysis framework that links topologies for longer distance, hardware for low-power modulated reflection, chirp spread spectrum and binary modulation for robustness versus simplicity, and MAC methods focused on low-complexity synchronization and feedback.

Load-bearing premise

Concepts from active radio systems such as chirp spread spectrum modulation can be integrated on low-power backscatter tags without eroding the power advantage or range performance.

What would settle it

A laboratory or field measurement of actual power consumption and achieved range for a prototype chirp-spread-spectrum backscatter tag compared against the energy budget available from a realistic harvester such as a small solar cell.

Figures

Figures reproduced from arXiv: 2605.11811 by Gilles Callebaut, Liesbet Van der Perre, Tijl Schepens.

Figure 1
Figure 1. Figure 1: The three main backscatter topologies [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Active node relaying backscatter communication to the [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Square wave modulation in digital solutions generates [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Principle schematic of a modulator using multiple [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 6

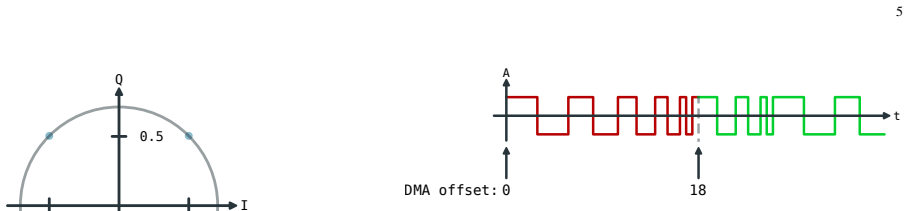

Figure 6. Figure 6: DMA outputs a waveform directly onto a GPIO to [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7

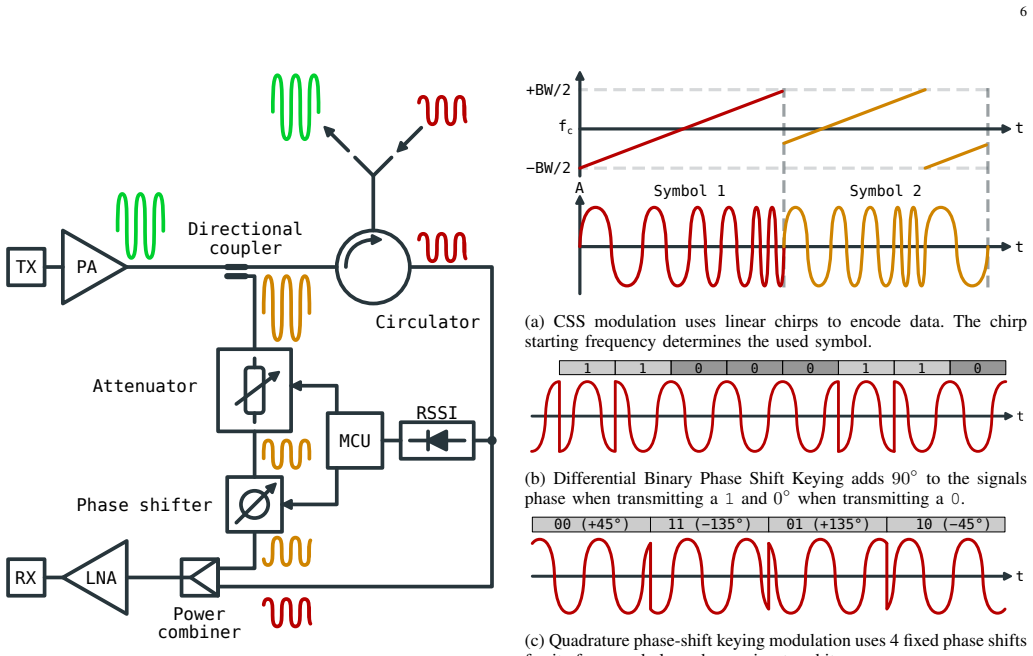

Figure 7. Figure 7: Principle schematic of a conventional carrier cancella [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: Different modulation techniques using a square wave [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Principle schematic how 2-FSK is generated on a low [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Chirp-based OOK relies on the gateway for generating [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗
Figure 13
Figure 13. Figure 13: Chirp-interval modulation backscatters ambient chirps [PITH_FULL_IMAGE:figures/full_fig_p009_13.png] view at source ↗
Figure 12
Figure 12. Figure 12: Decoding OOK modulated backscatter chirps using [PITH_FULL_IMAGE:figures/full_fig_p009_12.png] view at source ↗
Figure 14
Figure 14. Figure 14: Misalignment between the start of the chirp and the [PITH_FULL_IMAGE:figures/full_fig_p009_14.png] view at source ↗
Figure 15

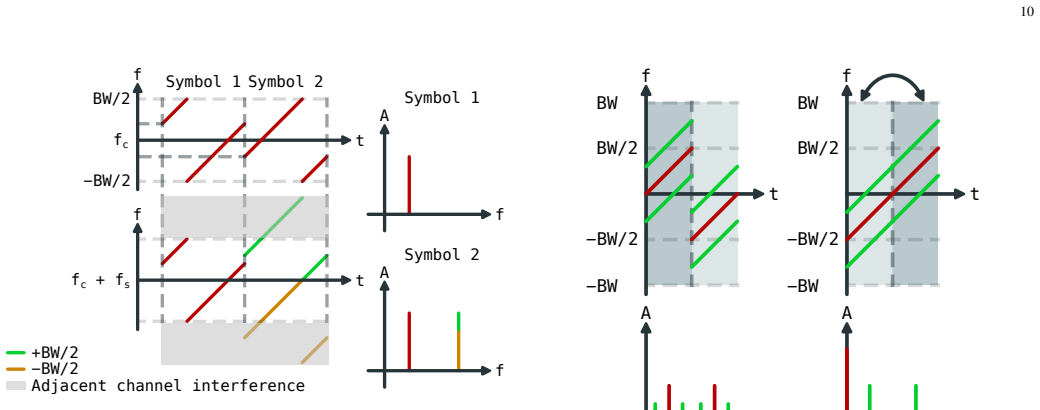

Figure 15. Figure 15: Blind chirp modulation shifts incoming chirps twice [PITH_FULL_IMAGE:figures/full_fig_p010_15.png] view at source ↗
Figure 18
Figure 18. Figure 18: Every tag shifts incoming LoRa packets with a slightly [PITH_FULL_IMAGE:figures/full_fig_p011_18.png] view at source ↗
Figure 17
Figure 17. Figure 17: Codeword translation needs to manipulate the right [PITH_FULL_IMAGE:figures/full_fig_p011_17.png] view at source ↗
Figure 19
Figure 19. Figure 19: Enable concurrent transmissions by assigning a unique [PITH_FULL_IMAGE:figures/full_fig_p012_19.png] view at source ↗
Figure 20

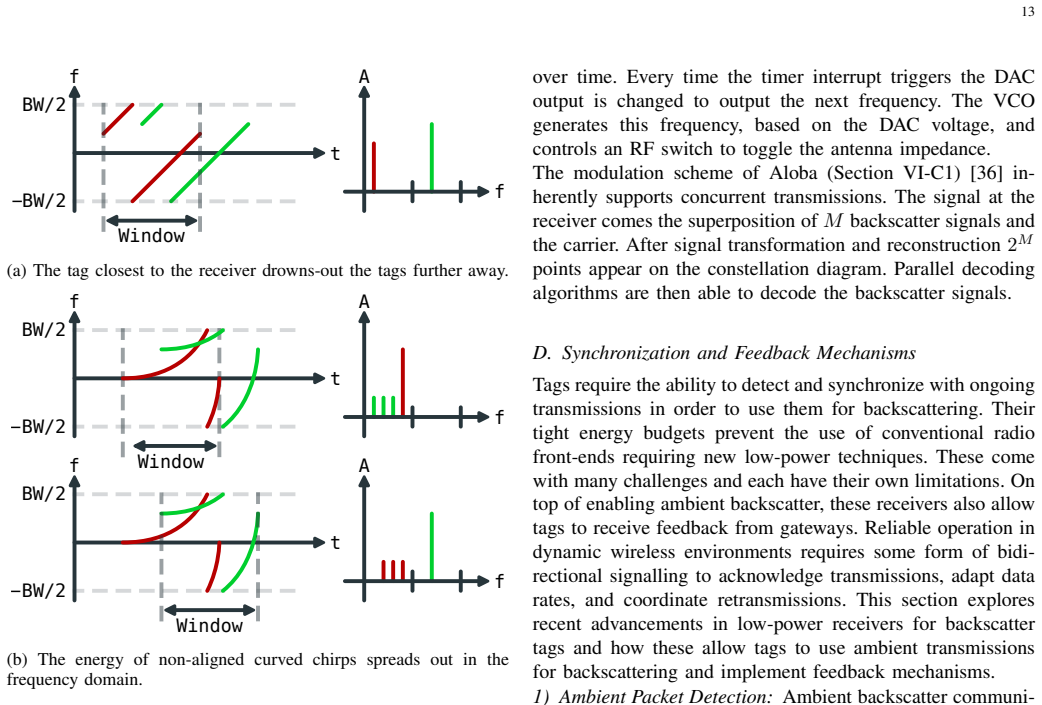

Figure 20. Figure 20: Comparison between using linear and curved LoRa [PITH_FULL_IMAGE:figures/full_fig_p013_20.png] view at source ↗
Figure 21

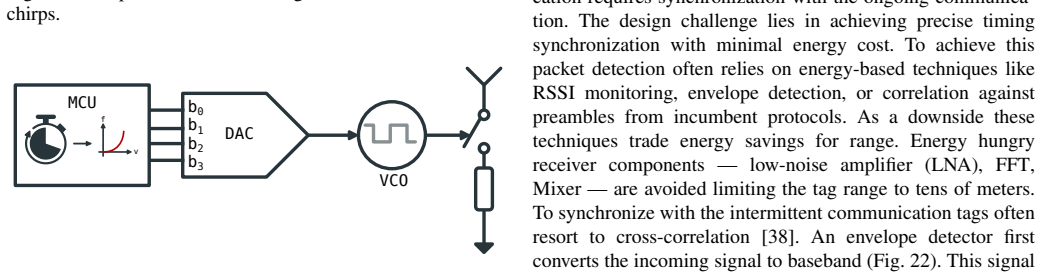

Figure 21. Figure 21: An MCU controls a DAC/VCO to generate non-linear [PITH_FULL_IMAGE:figures/full_fig_p013_21.png] view at source ↗
Figure 22

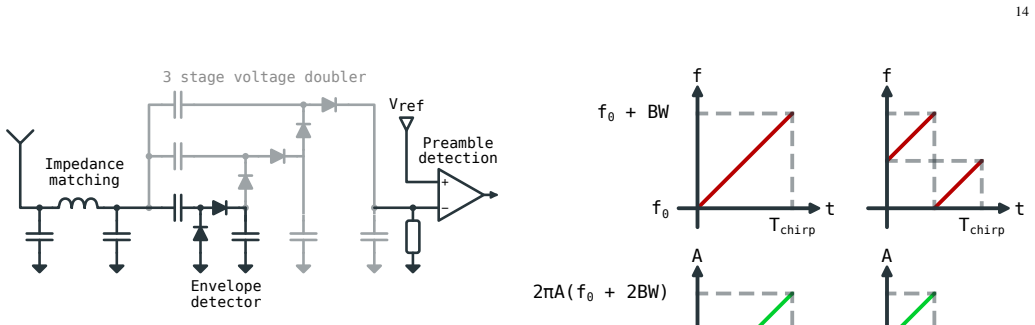

Figure 22. Figure 22: The ambient signal detection circuits used by [38]. [PITH_FULL_IMAGE:figures/full_fig_p014_22.png] view at source ↗
Figure 24
Figure 24. Figure 24: The current flows in the capacitive harvesting sys [PITH_FULL_IMAGE:figures/full_fig_p015_24.png] view at source ↗
Figure 25
Figure 25. Figure 25: Comparison of the different technologies utilizing [PITH_FULL_IMAGE:figures/full_fig_p016_25.png] view at source ↗
Figure 27

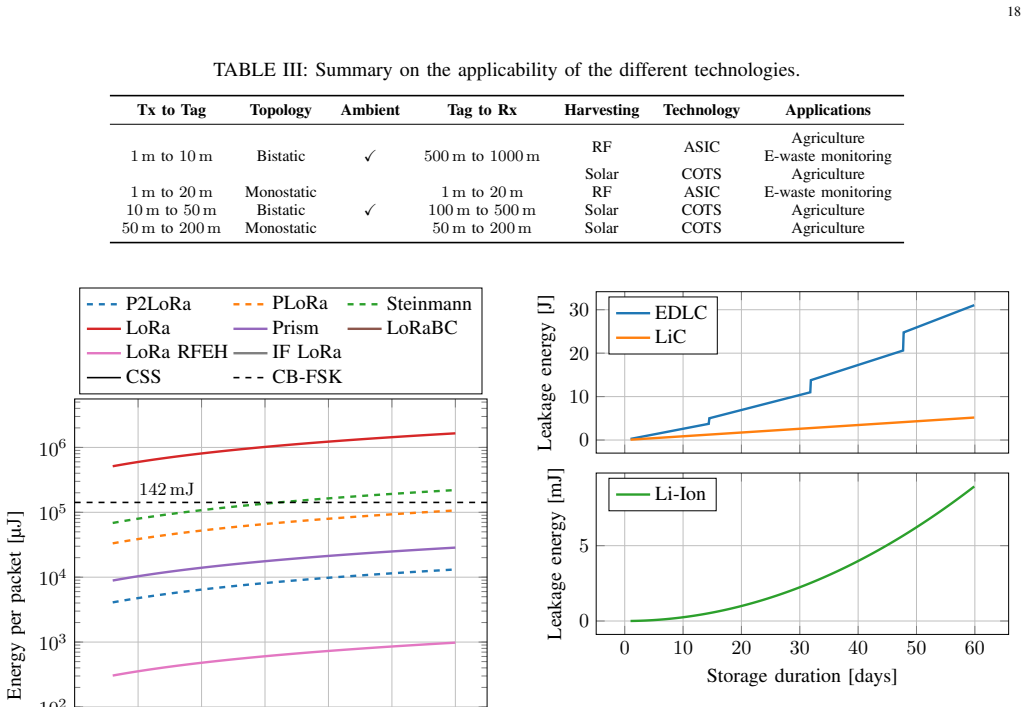

Figure 27. Figure 27: Energy needed to compensate for leakage in different [PITH_FULL_IMAGE:figures/full_fig_p018_27.png] view at source ↗
Figure 28

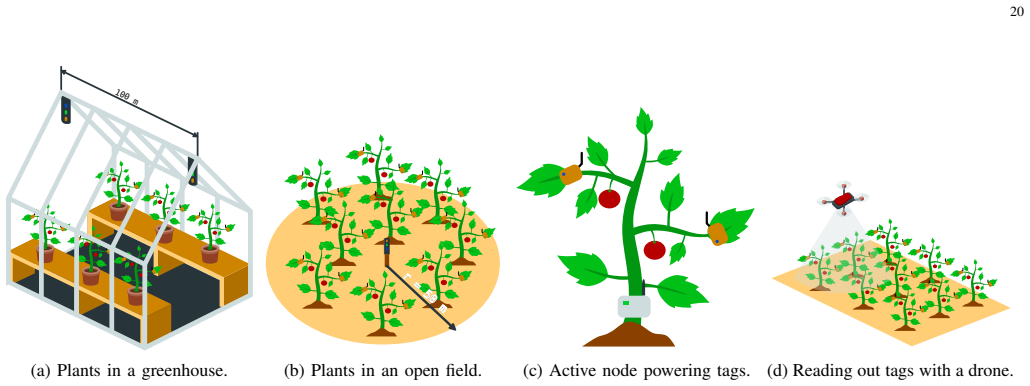

Figure 28. Figure 28: Different topologies that can be used to monitor plants. [PITH_FULL_IMAGE:figures/full_fig_p020_28.png] view at source ↗
Figure 29
Figure 29. Figure 29: Energy required daily to backscatter onto ambient [PITH_FULL_IMAGE:figures/full_fig_p020_29.png] view at source ↗
Figure 30
Figure 30. Figure 30: Tracking goods in the logistics chain has its main challenge in the environment. Tags are placed close to gateways [PITH_FULL_IMAGE:figures/full_fig_p021_30.png] view at source ↗
Figure 31
Figure 31. Figure 31: Different polynomial functions giving chirps different [PITH_FULL_IMAGE:figures/full_fig_p023_31.png] view at source ↗
read the original abstract

Continued progress towards energy-neutral Internet of Things (IoT) nodes expose the wireless communication link as the dominant energy bottleneck. While low-power wide-area network (LPWAN) technologies achieve long-range communication with multiple years of battery life, their active radios hinder reaching full energy neutrality. Long-range backscatter communication emerged as a key enabler, reaching one to three order of magnitude lower power consumption. New advancements leverage concepts from active radio systems such as chirp spread spectrum (CSS) modulation and integrate them on a low-power backscatter tag. This paper presents a comprehensive survey of long-range backscatter communication, using a bottom-up analysis spanning system topologies, hardware architecture, modulation techniques and medium access. Backscatter communication requires different topologies compared to active radios to reach longer communication distances. Different hardware architectures support backscattering a modulated signal with differing complexity, power consumption and spectral efficiency. At the physical layer binary switch-based modulation are well known and provide an easy form of modulation while chirp spread spectrum (CSS)-based modulation gain traction due to their robustness. Medium Access Control (MAC) techniques are examined with a focus on synchronization, concurrency and lightweight feedback mechanisms requiring low-power, low-complexity hardware. Building on these established solutions the paper evaluates the feasibility of long-range backscatter communication in different energy-neutral Internet of Things (IoT) applications. Starting from the available energy budget, harvested through solar, radio frequency (RF) or capacitive harvesting, feasible hardware, modulation and Medium Access Control (MAC) solutions are explored.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript is a literature survey on long-range backscatter communication for energy-neutral IoT nodes. It claims that backscatter achieves one to three orders of magnitude lower power consumption than active LPWAN radios and supports energy neutrality. Using a bottom-up structure, the paper reviews system topologies needed for extended range, hardware architectures for modulated backscattering, physical-layer techniques (binary switching and chirp spread spectrum/CSS modulation), MAC protocols emphasizing low-complexity synchronization and concurrency, and application feasibility given energy budgets from solar, RF, or capacitive harvesting.

Significance. If the survey provides balanced and comprehensive coverage of the cited literature, it could consolidate knowledge on power-efficient long-range links and help researchers evaluate the practicality of integrating active-radio concepts such as CSS into backscatter tags without losing the core power advantage.

major comments (1)
  1. The central claim that CSS modulation can be integrated on low-power backscatter tags while preserving the 1–3 order-of-magnitude power advantage (stated in the abstract and introduction) is load-bearing for the feasibility evaluation in the final section. The survey should explicitly reference or tabulate measured tag power consumption and link budgets for CSS implementations versus binary modulation to confirm that the advantage is retained under realistic range and harvesting conditions.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback and the recommendation for minor revision. We address the major comment below and will incorporate the suggested changes to strengthen the manuscript.

read point-by-point responses

  1. Referee: The central claim that CSS modulation can be integrated on low-power backscatter tags while preserving the 1–3 order-of-magnitude power advantage (stated in the abstract and introduction) is load-bearing for the feasibility evaluation in the final section. The survey should explicitly reference or tabulate measured tag power consumption and link budgets for CSS implementations versus binary modulation to confirm that the advantage is retained under realistic range and harvesting conditions.

    Authors: We agree that a dedicated comparison would better substantiate the central claim and support the feasibility analysis. In the revised manuscript we will add a new table (in Section IV on physical-layer techniques) that compiles measured tag power consumption, link budgets, and operating ranges reported in the cited literature for both CSS-based and binary-switch backscatter implementations. We will also cross-reference these values explicitly in the energy-budget feasibility evaluation (Section VI) to demonstrate that the 1–3 order-of-magnitude advantage is retained under realistic harvesting conditions. This addition draws directly from the surveyed works without introducing new claims. revision: yes

Circularity Check

0 steps flagged

No significant circularity; survey aggregates external results

full rationale

This manuscript is a literature survey presenting a bottom-up review of long-range backscatter topologies, hardware architectures, CSS modulation, and MAC protocols drawn from prior external work. No new equations, derivations, fitted parameters, or first-principles predictions are introduced that could reduce to the paper's own inputs by construction. All quantitative claims (e.g., 1–3 orders of magnitude power reduction) are explicitly attributed to cited literature rather than self-defined or self-cited results. The structure contains no self-definitional loops, renamed empirical patterns presented as novel unification, or load-bearing uniqueness theorems imported from the authors' prior work.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a survey paper with no new mathematical models, derivations, or empirical fits. No free parameters, axioms, or invented entities are introduced.
