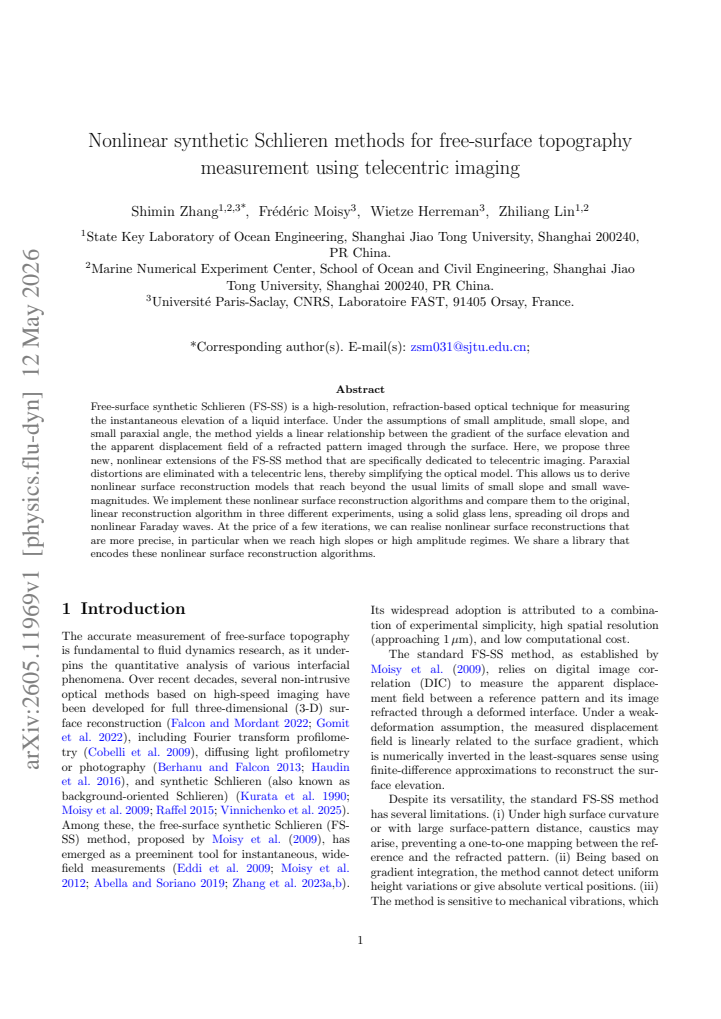

Nonlinear synthetic Schlieren methods for free-surface topography measurement using telecentric imaging

Fr\'ed\'eric Moisy, Shimin Zhang, Wietze Herreman, Zhiliang Lin

Pith reviewed 2026-05-13 04:58 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn
keywords synthetic Schlierenfree-surface measurementtelecentric imagingnonlinear reconstructionliquid interface topographyrefraction-based optical methodsurface elevation gradient
0
0 comments X

The pith

Nonlinear synthetic Schlieren extends accurate liquid surface mapping to high slopes and amplitudes via telecentric imaging

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces nonlinear extensions to free-surface synthetic Schlieren, a refraction-based method for measuring instantaneous liquid interface elevation. Conventional versions rely on linear relations that hold only under small amplitude, small slope, and small paraxial angle assumptions. Telecentric lenses remove paraxial distortions, which lets the authors derive nonlinear reconstruction models that stay valid for steeper or larger waves. Experiments on a glass lens, spreading oil drops, and nonlinear Faraday waves confirm that iterative nonlinear solutions deliver higher precision than the linear baseline precisely in the high-slope and high-amplitude regimes. The work supplies open code for these algorithms, widening the range of flows that can be studied without contact.

Core claim

Nonlinear surface reconstruction models derived for telecentric imaging yield a direct nonlinear relation between the apparent displacement field of a refracted pattern and the surface elevation gradient, solved iteratively to produce more accurate topography maps than the linear method when slopes or wave amplitudes become large.

What carries the argument

Iterative nonlinear reconstruction algorithms that invert the exact refraction geometry of telecentric optics to recover surface elevation from observed pattern displacements without small-slope approximations.

If this is right

  • High-amplitude and steep waves can be measured with lower error than linear methods allow.
  • Nonlinear Faraday waves and similar strongly deformed interfaces become accessible to quantitative optical mapping.
  • Validation on solid objects and spreading drops confirms the nonlinear models work beyond fluid surfaces.
  • Only a few iterations are needed to reach the improved accuracy, keeping computational cost modest.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same iterative framework could be adapted to other optical setups if residual lens distortions are calibrated separately.
  • Real-time implementations may become practical once the convergence rate of the nonlinear solver is further optimized.
  • Coupling these reconstructions with simultaneous velocity measurements would enable full surface-flow diagnostics in nonlinear regimes.

Load-bearing premise

The telecentric optical model accounts for all refraction effects without leftover distortions and the iterative solvers reliably reach the true physical surface in every tested regime.

What would settle it

A controlled high-slope test case in which the nonlinear reconstruction converges to the known surface shape while the linear reconstruction shows systematic deviations that grow with slope angle.

read the original abstract

Free-surface synthetic Schlieren (FS-SS) is a high-resolution, refraction-based optical technique for measuring the instantaneous elevation of a liquid interface. Under the assumptions of small amplitude, small slope, and small paraxial angle, the method yields a linear relationship between the gradient of the surface elevation and the apparent displacement field of a refracted pattern imaged through the surface. Here, we propose three new, nonlinear extensions of the FS-SS method that are specifically dedicated to telecentric imaging. Paraxial distortions are eliminated with a telecentric lens, thereby simplifying the optical model. This allows us to derive nonlinear surface reconstruction models that reach beyond the usual limits of small slope and small wave-magnitudes. We implement these nonlinear surface reconstruction algorithms and compare them to the original, linear reconstruction algorithm in three different experiments, using a solid glass lens, spreading oil drops and nonlinear Faraday waves. At the price of a few iterations, we can realise nonlinear surface reconstructions that are more precise, in particular when we reach high slopes or high amplitude regimes. We share a library that encodes these nonlinear surface reconstruction algorithms.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript introduces three nonlinear extensions to free-surface synthetic Schlieren (FS-SS) for telecentric imaging of liquid interfaces. Starting from refraction geometry simplified by the telecentric lens property, the authors derive iterative nonlinear reconstruction algorithms that relax the small-slope and small-amplitude assumptions of the standard linear FS-SS method. These are implemented and compared against the linear baseline in three experiments (solid glass lens of known geometry, spreading oil drops, and nonlinear Faraday waves), with the claim that the nonlinear versions deliver measurably higher precision at the cost of a few iterations, particularly in high-slope or high-amplitude regimes. An open-source library implementing the algorithms is provided.

Significance. If the central claim holds, the work would meaningfully extend the quantitative range of FS-SS to strongly nonlinear free-surface flows where linear approximations break down. The open library is a concrete strength that supports reproducibility and community use. The telecentric simplification is a practical modeling choice that removes one source of optical complexity.

major comments (3)
  1. [Experiments] Experiments (solid lens, oil-drop, and Faraday-wave cases): absolute error reduction is demonstrated only for the solid lens with known geometry. For the oil-drop and Faraday-wave cases the comparison is solely relative to the linear method; no independent ground-truth metrology (profilometry, interferometry, or point probe) is reported to quantify whether the nonlinear iterations reduce absolute deviation from the physical surface or merely produce a different reconstruction. This directly bears on the claim of improved precision in high-slope regimes.
  2. [Optical model / derivation] Optical model and derivation: the telecentric property is invoked to eliminate paraxial distortions and obtain the nonlinear equations, yet no error bound or sensitivity analysis is given for residual higher-order refraction terms or lens aberrations when surface slopes become large. Without such a bound it is unclear whether the reported precision gains remain within the model’s validity range.
  3. [Algorithm implementation and results] Algorithm and results: the abstract states that the nonlinear algorithms were implemented and compared, but the manuscript provides neither convergence criteria for the iterative solvers, quantitative error bars on the observed precision improvements, nor an explicit error-propagation analysis from measured displacement field to reconstructed elevation. These omissions prevent verification that the central claim survives noise amplification or solver artifacts.
minor comments (2)
  1. [Abstract] The abstract could include one or two concrete quantitative metrics (e.g., RMS error reduction percentages) from the experiments to make the claimed improvement explicit.
  2. [Methods / derivation] All derived nonlinear equations should be numbered and cross-referenced in the text; currently the transition from linear to nonlinear forms is described at a high level.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for their thorough review and constructive comments. We address each major point below and indicate planned revisions to the manuscript.

read point-by-point responses

  1. Referee: [Experiments] Experiments (solid lens, oil-drop, and Faraday-wave cases): absolute error reduction is demonstrated only for the solid lens with known geometry. For the oil-drop and Faraday-wave cases the comparison is solely relative to the linear method; no independent ground-truth metrology (profilometry, interferometry, or point probe) is reported to quantify whether the nonlinear iterations reduce absolute deviation from the physical surface or merely produce a different reconstruction. This directly bears on the claim of improved precision in high-slope regimes.

    Authors: We agree that absolute ground-truth validation is available only for the solid lens. For the oil-drop and Faraday-wave experiments, comparisons are relative to the linear method, showing reduced artifacts and improved consistency with expected physics such as volume conservation and wave steepness. We cannot supply independent absolute metrology for these cases, as it would require new experiments with additional instrumentation not performed in the original work. In revision we will explicitly qualify the precision claims for these cases as relative improvements, add discussion of the limitation, and strengthen the physical justification for expecting higher accuracy from the nonlinear models. revision: partial

  2. Referee: [Optical model / derivation] Optical model and derivation: the telecentric property is invoked to eliminate paraxial distortions and obtain the nonlinear equations, yet no error bound or sensitivity analysis is given for residual higher-order refraction terms or lens aberrations when surface slopes become large. Without such a bound it is unclear whether the reported precision gains remain within the model’s validity range.

    Authors: The referee correctly identifies the lack of quantitative bounds. We will add a dedicated section in the revised manuscript containing a sensitivity analysis for residual higher-order refraction terms and lens aberrations. This will include analytical estimates of truncation error together with numerical tests that delineate the slope range over which the telecentric model remains valid to within the reported precision, thereby clarifying applicability to the high-slope regimes examined. revision: yes

  3. Referee: [Algorithm implementation and results] Algorithm and results: the abstract states that the nonlinear algorithms were implemented and compared, but the manuscript provides neither convergence criteria for the iterative solvers, quantitative error bars on the observed precision improvements, nor an explicit error-propagation analysis from measured displacement field to reconstructed elevation. These omissions prevent verification that the central claim survives noise amplification or solver artifacts.

    Authors: We accept that these implementation details are missing. The revised manuscript will specify the convergence criteria employed (residual tolerance and maximum iteration count), report quantitative error bars derived from repeated acquisitions or synthetic noise studies, and include a first-order error-propagation analysis that maps uncertainty in the measured displacement field to uncertainty in the reconstructed elevation. These additions will enable readers to evaluate robustness against noise and solver effects. revision: yes

standing simulated objections not resolved
  • Supplying independent absolute ground-truth metrology for the oil-drop and Faraday-wave cases, which would require new experimental campaigns and instrumentation outside the scope of the submitted study.

Circularity Check

0 steps flagged

Derivation chain starts from refraction geometry and telecentric optics with no reduction to inputs by construction

full rationale

The paper derives its three nonlinear FS-SS extensions directly from the paraxial-free telecentric refraction model (abstract: 'Paraxial distortions are eliminated with a telecentric lens, thereby simplifying the optical model. This allows us to derive nonlinear surface reconstruction models'). No equations are shown to be fitted to the validation data (solid lens, oil drops, Faraday waves) and then re-used as 'predictions'; no self-citation chain supplies the central premise; the linear baseline is the standard small-slope limit rather than a renamed empirical pattern. The reported precision gains are therefore not forced by the same quantities used to test them.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard geometric optics and the assumption that telecentric imaging removes all paraxial effects. No new physical entities are introduced and no parameters are fitted to the validation data.

axioms (2)
  • domain assumption Telecentric imaging eliminates paraxial distortions and perspective effects in the recorded displacement field
    Explicitly stated as the enabling simplification for deriving the nonlinear models.
  • standard math Light refraction at the interface follows Snell's law with known refractive indices
    Implicit foundation of all synthetic Schlieren methods; not re-derived in the abstract.
