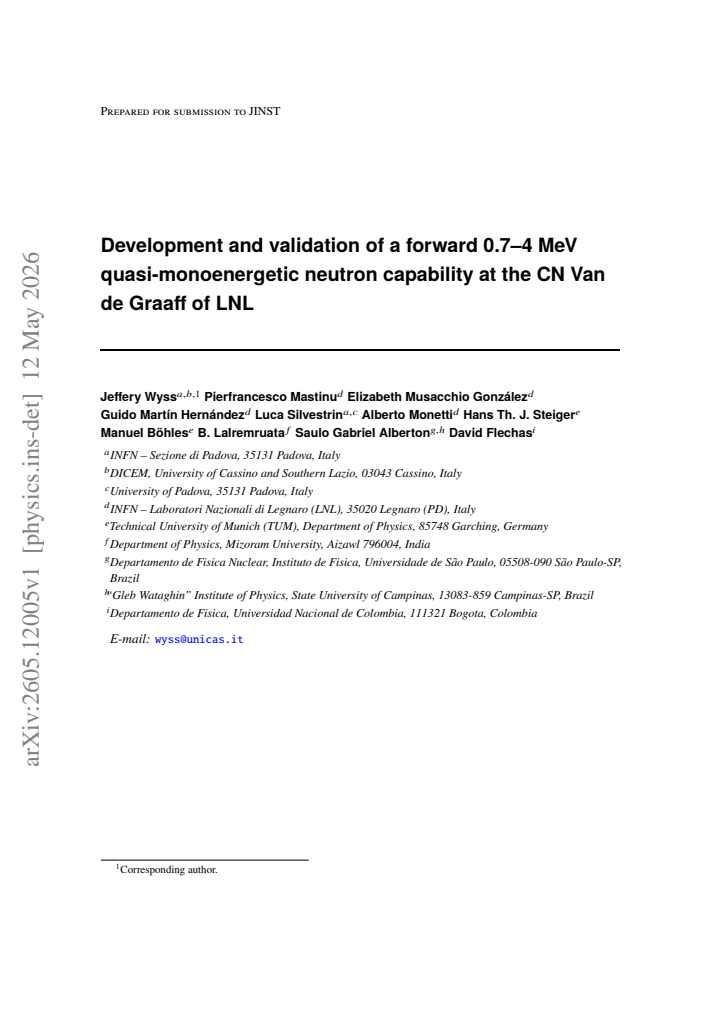

Development and validation of a forward 0.7--4 MeV quasi-monoenergetic neutron capability at the CN Van de Graaff of LNL

Alberto Monetti, B. Lalremruata, David Flechas, Elizabeth Musacchio Gonz\'alez, Guido Mart\'in Hern\'andez, Hans Th. J. Steiger, Jeffery Wyss, Luca Silvestrin, Manuel B\"ohles, Pierfrancesco Mastinu, Saulo Gabriel Alberton

Pith reviewed 2026-05-13 04:48 UTC · model grok-4.3

classification ⚛️ physics.ins-det

keywords quasi-monoenergetic neutrons7Li(p,n)7Be reactionVan de Graaff acceleratortime-of-flight measurementneutron fluencetransport code comparisonforward neutron source

0 comments

The pith

The CN Van de Graaff now delivers validated forward quasi-monoenergetic neutrons from 0.7 to 4 MeV with 9 percent fluence uncertainty.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a practical neutron source by directing protons from the CN Van de Graaff onto thin lithium targets to produce neutrons via the 7Li(p,n)7Be reaction at forward angles. Transport calculations from four independent codes are shown to agree within 5 percent for zero energy spread and serve as a reference for fluence estimates. Time-of-flight measurements confirm that the neutron arrival times match the expected kinematics of the forward beam component. Combining these calculations with measured proton currents yields neutron fluences at the sample position that carry an overall uncertainty of about 9 percent. A brief device irradiation during the same campaign shows detectable response, confirming the beam line is ready for low-MeV neutron experiments.

Core claim

Forward-angle quasi-monoenergetic neutrons in the 0.7--4 MeV interval are generated on thin metallic lithium targets using the 7Li(p,n)7Be reaction at the CN Van de Graaff; mutually consistent transport calculations from EPEN, FLUKA, MCNPX and PINO normalize the yields, time-of-flight data verify the kinematics, and the resulting fluence at the device position is known to approximately 9 percent.

What carries the argument

The 7Li(p,n)7Be reaction on thin lithium targets in forward geometry, normalized by a reference set of transport calculations and validated by sub-nanosecond time-of-flight measurements.

If this is right

Neutron fluences at the irradiation position can be quoted with 9 percent uncertainty for any future experiment that records proton current and target thickness.
The sub-nanosecond pulsing system allows direct verification of the quasi-monoenergetic component without additional calibration hardware.
Routine device irradiations are now feasible in the 0.7--4 MeV window once target-thickness monitoring is standardized.
The same reference calculation set can be reused for other thin-target lithium runs at the CN accelerator.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The source could be extended to higher energies or different angles by repeating the same ToF-plus-transport validation chain.
Detector response functions measured here could serve as an in-house calibration standard for other low-MeV neutron facilities.
If target non-uniformity proves larger than modeled, the 9 percent uncertainty budget would need an explicit additional term.

Load-bearing premise

The four transport codes accurately predict the actual neutron production and transport through the thin lithium targets without unaccounted effects from beam energy spread or target thickness variations.

What would settle it

A measured neutron time-of-flight spectrum or fluence value that deviates from the predicted forward kinematics or reference yield by more than 9 percent under the reported beam conditions.

read the original abstract

The CN Van de Graaff accelerator of INFN--LNL provides forward-angle quasi-monoenergetic neutrons in the 0.7--4 MeV range via the 7Li(p,n)7Be reaction on thin metallic lithium targets. This work describes the development and experimental validation of this forward neutron capability, combining comparisons of commonly used transport tools with time-of-flight (ToF) measurements. Neutron yields calculated with EPEN, FLUKA, MCNPX, and PINO are compared over the CN energy range in order to assess model-dependent variations relevant for fluence estimates. For zero incident-energy spread, a mutually consistent set of transport calculations agrees within 5% and is used as a practical reference for normalisation. The effect of incident-energy convolution on the predicted yields is examined. Time-of-flight measurements performed using a sub-nanosecond secondary pulsing system verify the timing structure and forward-angle kinematics of the quasi-monoenergetic neutron component at the detector position, with neutron arrival times consistent with the expected forward kinematics within the experimental resolution. Using measured proton currents and transport calculations based on this reference set, forward neutron fluences at the device position are estimated with an overall uncertainty of approximately 9%, including contributions from current integration, target thickness, and geometry. A short device irradiation, carried out in parallel with the ToF campaign, demonstrates measurable response under CN beam conditions and confirms the practical usability of the beam for low-MeV neutron studies. Together, these results establish the current operational performance of the CN 0{\deg} forward quasi-monoenergetic neutron capability in the 0.7--4 MeV range and identify the steps required toward routine calibrated operation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This sets up a usable forward neutron beam at the CN Van de Graaff with code-consistent fluences quoted at 9% uncertainty, but the absolute scale rests on transport models without an independent experimental anchor.

read the letter

The paper reports the development of 0.7–4 MeV forward quasi-monoenergetic neutrons at LNL’s CN Van de Graaff via the 7Li(p,n) reaction on thin lithium targets. They compare yields from EPEN, FLUKA, MCNPX, and PINO, find agreement within 5% at zero energy spread, adopt that set as reference, verify timing and kinematics with sub-nanosecond ToF, and quote forward fluences at the device position with an overall 9% uncertainty from current integration, target thickness, and geometry. A brief parallel irradiation shows measurable device response.

Referee Report

2 major / 2 minor

Summary. The manuscript describes the development of a forward quasi-monoenergetic neutron capability (0.7--4 MeV) at the CN Van de Graaff accelerator at INFN-LNL using the 7Li(p,n)7Be reaction on thin metallic lithium targets. It compares neutron yields calculated with EPEN, FLUKA, MCNPX, and PINO (agreeing within 5% for zero incident-energy spread), presents time-of-flight measurements verifying timing structure and forward kinematics, estimates forward neutron fluences at the device position with ~9% overall uncertainty from measured proton currents combined with the code reference set (including current integration, target thickness, and geometry contributions), and reports a parallel device irradiation demonstrating measurable response.

Significance. If the fluence estimates are reliable, the work provides a practical, quantified neutron irradiation capability for low-MeV detector and material studies at an existing accelerator facility. The mutual consistency of multiple transport codes and the ToF kinematic verification are clear strengths that support usability. The explicit identification of steps toward routine calibrated operation is also constructive.

major comments (2)

[Abstract] Abstract (fluence estimation paragraph): the ~9% uncertainty budget is constructed from measured proton currents scaled by the reference transport calculations; however, the ToF data only confirm arrival times and kinematics within resolution and do not anchor the absolute yield. The 5% code agreement therefore bounds model-to-model variation but does not exclude a common systematic bias in the underlying 7Li(p,n) cross sections or thin-target modeling for the forward geometry.
[Abstract] Abstract (validation section): the claim that the capability is 'experimentally validated' rests on code agreement plus kinematic ToF checks, yet the central fluence result remains model-dependent. A direct experimental yield measurement (e.g., via activation or a calibrated detector at the device position) would be required to convert the present estimate into a fully anchored calibration.

minor comments (2)

[Abstract] The abstract refers to 'the effect of incident-energy convolution on the predicted yields' but does not quantify the size of this correction for the CN beam conditions; a brief numerical example or table entry would clarify its contribution to the uncertainty budget.
[Abstract] The device-irradiation demonstration is mentioned only qualitatively; adding a short statement of the observed count rate or response relative to the estimated fluence would strengthen the usability claim without altering the central result.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful and constructive review. The comments correctly distinguish between kinematic verification and absolute fluence anchoring, and we address each point below. We have revised the abstract and discussion sections to clarify the scope of the experimental validation and the model-dependent nature of the fluence estimates.

read point-by-point responses

Referee: [Abstract] Abstract (fluence estimation paragraph): the ~9% uncertainty budget is constructed from measured proton currents scaled by the reference transport calculations; however, the ToF data only confirm arrival times and kinematics within resolution and do not anchor the absolute yield. The 5% code agreement therefore bounds model-to-model variation but does not exclude a common systematic bias in the underlying 7Li(p,n) cross sections or thin-target modeling for the forward geometry.

Authors: We agree that the ToF data validate timing structure and forward kinematics but do not provide an absolute yield normalization. The fluence estimates are derived from measured proton currents scaled by the reference set of transport calculations (EPEN, FLUKA, MCNPX, PINO), which agree within 5% for zero incident-energy spread. While this agreement bounds code-to-code variation and the underlying cross-section libraries are drawn from evaluated data, a common systematic bias cannot be excluded without an independent absolute measurement. We have revised the abstract to state explicitly that fluences are estimated using this reference set and to note the model dependence of the absolute scale. revision: yes
Referee: [Abstract] Abstract (validation section): the claim that the capability is 'experimentally validated' rests on code agreement plus kinematic ToF checks, yet the central fluence result remains model-dependent. A direct experimental yield measurement (e.g., via activation or a calibrated detector at the device position) would be required to convert the present estimate into a fully anchored calibration.

Authors: The referee is correct that the fluence values remain model-dependent and that a direct experimental anchor (activation or calibrated detector) would be needed for a fully experimental calibration. Our experimental contributions are the ToF verification of kinematics and timing plus the demonstration of device response under beam conditions. The manuscript already identifies steps toward routine calibrated operation. We have revised the abstract to replace the phrase 'experimentally validated' with language describing kinematic and timing validation together with code-consistent fluence estimates, thereby avoiding any implication of a fully anchored experimental calibration at this stage. revision: yes

Circularity Check

0 steps flagged

No significant circularity; fluence estimates use external codes and direct measurements

full rationale

The derivation chain relies on measured proton currents scaled by neutron yields from independent, standard transport codes (EPEN, FLUKA, MCNPX, PINO) whose mutual agreement within 5% for zero energy spread provides the reference set. ToF data validate only kinematics and timing, not absolute yield. No equations reduce a prediction to a fitted parameter by construction, no load-bearing self-citations appear, and no ansatz or uniqueness theorem is smuggled in. The 9% uncertainty budget is built from experimental inputs (current integration, target thickness, geometry) plus the external model reference, making the result self-contained against external benchmarks rather than tautological.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard nuclear reaction kinematics and the reliability of established transport codes for this setup; no new entities are introduced and no free parameters are fitted to the target data.

axioms (2)

domain assumption Standard two-body kinematics of the 7Li(p,n)7Be reaction determine neutron energy and emission angle for a given proton energy and target thickness.
Invoked to interpret time-of-flight arrival times and select the forward quasi-monoenergetic component.
domain assumption The four transport codes provide mutually consistent neutron yield predictions within 5% for zero incident-energy spread, serving as a practical reference.
Used to normalize fluence estimates from measured proton currents.
