· Lean TheoremTopological and morphological signatures of disorder in a self-assembled, soft matter sponge network
Pith reviewed 2026-05-14 18:45 UTC · model grok-4.3
The pith
Disordered sponge networks share local geometry with single-gyroid morphologies but lack their intercatenated loops.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The amorphous sponge morphology may be viewed as a disordered variant of a single-gyroidal morphology because the node valence of the minority-component network is mostly gyroidal (trivalent) with only a small fraction of diamond-like connections, local block thickness and inter-domain curvature inside mesoatoms show comparable dispersity to the ordered case, yet the loops of the minority network remain non-intercatenated unlike the intercatenated loops of the double-gyroid.
What carries the argument
The topological distinction between intercatenated loops in the ordered double-gyroid and non-intercatenated loops in the disordered sponge, reinforced by node-valence counts and mesoatom shape and size measurements.
Load-bearing premise
The node-valence distribution, mesoatom differences, and topological features seen in this one sample are representative of sponge networks in general and the imaging fully records the true packing geometry without artifacts.
What would settle it
Discovery of a disordered sponge whose minority network contains a majority of tetravalent nodes or whose loops are intercatenated would contradict the single-gyroid-variant claim.
read the original abstract

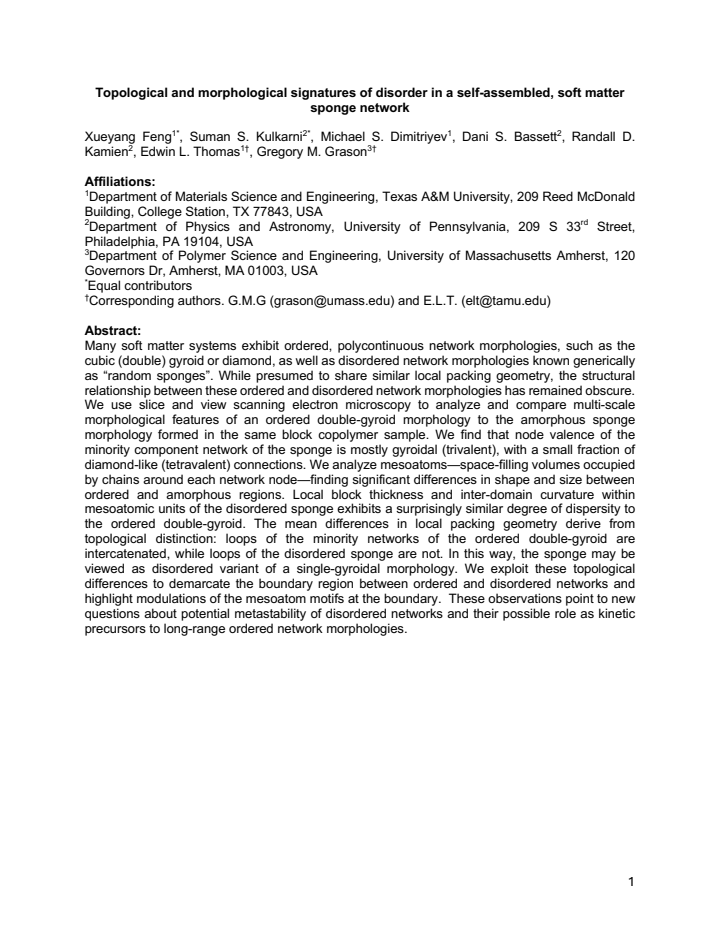

Many soft matter systems exhibit ordered, polycontinuous network morphologies, such as the cubic (double) gyroid or diamond, as well as disordered network morphologies known generically as ``random sponges". While presumed to share similar local packing geometry, the structural relationship between these ordered and disordered network morphologies has remained obscure. We use slice and view scanning electron microscopy to analyze and compare multi-scale morphological features of an ordered double-gyroid morphology to the amorphous sponge morphology formed in the same block copolymer sample. We find that node valence of the minority component network of the sponge is mostly gyroidal (trivalent), with a small fraction of diamond-like (tetravalent) connections. We analyze mesoatoms -- space-filling volumes occupied by chains around each network node -- finding significant differences in shape and size between ordered and amorphous regions. Local block thickness and inter-domain curvature within mesoatomic units of the disordered sponge exhibits a surprisingly similar degree of dispersity to the ordered double-gyroid. The mean differences in local packing geometry derive from topological distinction: loops of the minority networks of the ordered double-gyroid are intercatenated, while loops of the disordered sponge are not. In this way, the sponge may be viewed as disordered variant of a single-gyroidal morphology. We exploit these topological differences to demarcate the boundary region between ordered and disordered networks and highlight modulations of the mesoatom motifs at the boundary. These observations point to new questions about potential metastability of disordered networks and their possible role as kinetic precursors to long-range ordered network morphologies.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript uses slice-and-view SEM to reconstruct and compare the 3D minority-network morphology of an ordered double-gyroid and a disordered sponge formed in the same block-copolymer sample. It reports predominantly trivalent (gyroid-like) node valence in the sponge, differences in mesoatom shape and size between ordered and disordered regions, comparable local thickness and curvature dispersity, and—most critically—the absence of intercatenated loops in the sponge versus their presence in the double-gyroid. This topological distinction is used to interpret the sponge as a disordered single-gyroid variant, to demarcate order-disorder boundaries, and to raise questions about metastability and kinetic pathways.
Significance. If the reported topological distinction is robust, the work supplies a concrete experimental link between ordered polycontinuous networks and generic random sponges, offering a morphological route to understanding how disordered states may serve as precursors to long-range order. The same-sample comparison and multi-scale (node valence, mesoatom geometry, local curvature) analysis are strengths; the mesoatom concept, once rigorously defined, could become a useful descriptor for soft-matter network packing.
major comments (1)
- [Topological analysis] § on 3D reconstruction and topological analysis (results and methods): the claim that minority-network loops in the sponge are not intercatenated (abstract and main text) is load-bearing for the single-gyroid interpretation. Slice-and-view SEM is susceptible to residual slice misalignment and finite resolution (~5–20 nm), which can produce false negatives in loop connectivity; the manuscript provides no quantitative validation (e.g., synthetic phantom tests or repeated reconstructions) of the false-negative rate for intercatenation detection.
minor comments (2)
- [Mesoatom analysis] The algorithmic definition and segmentation protocol used to construct mesoatoms from the voxel data should be stated explicitly (methods section) so that the reported shape/size differences and dispersity comparisons can be reproduced.
- [Figures] Figure captions for the 3D renderings should specify voxel size, segmentation threshold, and any smoothing or connectivity filters applied.
Simulated Author's Rebuttal
We thank the referee for their careful and constructive review. The topological distinction between intercatenated loops in the double-gyroid and non-intercatenated loops in the sponge is indeed central to our interpretation of the sponge as a disordered single-gyroid variant. We address the major comment below and have revised the manuscript to strengthen the supporting analysis.
read point-by-point responses
-
Referee: [Topological analysis] § on 3D reconstruction and topological analysis (results and methods): the claim that minority-network loops in the sponge are not intercatenated (abstract and main text) is load-bearing for the single-gyroid interpretation. Slice-and-view SEM is susceptible to residual slice misalignment and finite resolution (~5–20 nm), which can produce false negatives in loop connectivity; the manuscript provides no quantitative validation (e.g., synthetic phantom tests or repeated reconstructions) of the false-negative rate for intercatenation detection.
Authors: We agree that quantitative validation of the false-negative rate for intercatenation detection would strengthen the topological claim. The original manuscript described the alignment procedure but did not include explicit phantom tests or repeated-reconstruction statistics. In the revised version we have added: (i) a new Methods subsection detailing the slice-alignment protocol (cross-correlation plus manual fiducial correction) and an estimate of residual misalignment (< 5 nm rms); (ii) results from three independent reconstructions of the same sponge sub-volume performed with deliberately varied alignment parameters, all of which recover the same non-intercatenated loop topology; and (iii) a brief discussion of why false negatives are unlikely given that the characteristic loop diameter (~80 nm) is well above the voxel size and that the double-gyroid control volume in the same sample shows clear intercatenation under identical imaging conditions. These additions directly address the referee’s concern while preserving the original interpretation. revision: yes
Circularity Check
No circularity: purely observational imaging study with no derivations or self-referential predictions
full rationale
The paper is an experimental analysis of 3D reconstructions from slice-and-view SEM, comparing node valence, mesoatom shapes, local curvature, and loop intercatenation between ordered double-gyroid and disordered sponge regions in the same block-copolymer sample. The claim that the sponge is a 'disordered variant of a single-gyroidal morphology' is an interpretive summary of the observed topological distinction (intercatenated loops present in double-gyroid, absent in sponge). No equations, fitted parameters, predictions, or mathematical derivations appear. No self-citations are invoked to justify uniqueness or load-bearing premises. All steps are direct data extraction and qualitative comparison, making the analysis self-contained against external benchmarks with no reduction to inputs by construction.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Block copolymers self-assemble into polycontinuous networks with characteristic node valences (trivalent for gyroid, tetravalent for diamond).
invented entities (1)
-
mesoatoms
no independent evidence
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/AlexanderDuality.leanalexander_duality_circle_linking echoes?
echoesECHOES: this paper passage has the same mathematical shape or conceptual pattern as the Recognition theorem, but is not a direct formal dependency.
loops of the minority networks of the ordered double-gyroid are intercatenated, while loops of the disordered sponge are not. In this way, the sponge may be viewed as disordered variant of a single-gyroidal morphology.
-
IndisputableMonolith/Foundation/AlexanderDuality.leanSphereAdmitsCircleLinking echoes?
echoesECHOES: this paper passage has the same mathematical shape or conceptual pattern as the Recognition theorem, but is not a direct formal dependency.
every loop of DG is catenated by loops of the other network, while no loops of the amorphous networks we analyzed are threaded or linked by another tubular PDMS domain
