RPC Telescope Tests for Muon Detection at Laser-Plasma Accelerators

A. J. Sloss, Andrea Giammanco, Anna Cimmino, Donya Ahmadi, Eduardo Cortina Gil, Ela Rockafellow, H. M. Milchberg, Jaron E. Shrock, Maxime Lagrange, Michael Tytgat, Pavel Demin, Roberto Versaci, Sumaira Ikram

Pith reviewed 2026-05-14 02:24 UTC · model grok-4.3

classification ⚛️ physics.ins-det

keywords beamdetectorsconditionsdetectionelbafeasibilitygeneratedlaser-plasma

0 comments

The pith

RPC detectors were tested at a laser-plasma accelerator and demonstrated reliable operation for potential muon detection despite limited data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Researchers placed a compact telescope made of Resistive Plate Chambers near the beam dump at the ELBA facility. The goal was to detect high-energy particles such as muons that might be created when electrons from laser-plasma interactions strike the dump. The detectors ran without problems even with strong radiation and electromagnetic noise present. Data collected allowed basic background studies and confirmed the system tracked particles steadily. Although statistics were low because of beam control limitations, the test proved the hardware can survive the environment.

Core claim

The collected datasets, though statistically limited and affected by lack of beam control, allow detailed characterization of the background and validated the detectors' stability and tracking performance. These results confirm the feasibility of the approach.

Load-bearing premise

That a future run with optimized beam conditions will substantially improve muon detection sensitivity, which depends on achieving better beam control than was available in this campaign.

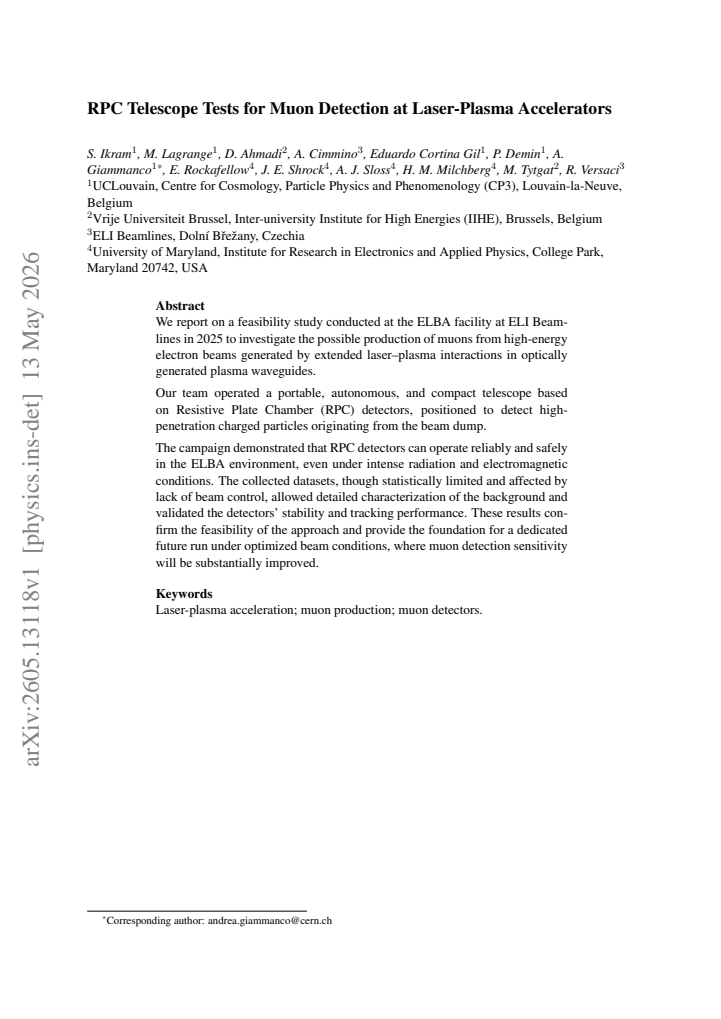

read the original abstract

We report on a feasibility study conducted at the ELBA facility at ELI Beamlines in 2025 to investigate the possible production of muons from high-energy electron beams generated by extended laser-plasma interactions in optically generated plasma waveguides. Our team operated a portable, autonomous, and compact telescope based on Resistive Plate Chamber (RPC) detectors, positioned to detect high-penetration charged particles originating from the beam dump. The campaign demonstrated that RPC detectors can operate reliably and safely in the ELBA environment, even under intense radiation and electromagnetic conditions. The collected datasets, though statistically limited and affected by lack of beam control, allow detailed characterization of the background and validated the detectors' stability and tracking performance. These results confirm the feasibility of the approach and provide the foundation for a dedicated future run under optimized beam conditions, where muon detection sensitivity will be substantially improved.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

RPC telescope ran stably at ELBA but muon detection is still just a plan.

read the letter

The main thing to know is that this is a feasibility study where an RPC telescope was operated at the ELBA laser-plasma facility, and it held up under the radiation without problems, allowing some background data collection. They did a good job getting the compact, autonomous setup running in a tough environment. The validation of stability and tracking performance is useful practical information, and the background characterization could help plan future experiments. It's a straightforward experimental report with no fancy claims. The weak part is the data quality. The datasets are statistically limited, there's no beam control, and no quantitative results or error analysis are given. They don't show any muon detection, just that the detectors worked and background was studied. The idea that a future run will substantially improve things rests on getting better beam conditions, which isn't shown here. This paper is for detector experts and groups working on muon detection at laser-plasma accelerators. A reader interested in new methods or results won't get much, but someone replicating or extending this setup might find the operational details helpful. I think it deserves peer review. It's not groundbreaking but the work is honest and the limitations are stated clearly, so referees can assess if the feasibility is adequately demonstrated.

Referee Report

2 major / 2 minor

Summary. The manuscript reports a 2025 feasibility campaign at the ELBA facility using a compact RPC telescope to detect high-penetration particles from laser-plasma electron beams. It claims that the detectors operated reliably under intense radiation, that the collected (statistically limited) datasets enabled background characterization, and that stability and tracking performance were validated, thereby confirming feasibility for future muon-detection runs under improved beam conditions.

Significance. If the operational claims hold, the work establishes that RPC detectors can function in the electromagnetic and radiation environment of laser-plasma accelerators, supplying a practical starting point for muon-detection instrumentation at such facilities. The immediate value is experimental readiness rather than new physics results, given the acknowledged statistical limitations.

major comments (2)

[Results section] Results section: the statements that stability and tracking performance were 'validated' and that the datasets 'allow detailed characterization of the background' are presented without any quantitative metrics (e.g., measured detection efficiency, spatial resolution, background rate with uncertainties, or goodness-of-fit values). This absence directly weakens the central feasibility claim.
[Abstract and Conclusions] Abstract and Conclusions: the assertion that a future run 'will substantially improve muon detection sensitivity' is not supported by any projected sensitivity curves, required beam-parameter improvements, or Monte-Carlo estimates that would make the extrapolation falsifiable.

minor comments (2)

[Results section] Provide a table or plot of raw hit rates, coincidence rates, or efficiency versus time to document the claimed stability.
[Experimental Setup] Clarify the exact geometry (distance from beam dump, angular acceptance) and trigger logic of the RPC telescope so that the background characterization can be reproduced or compared with simulations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. The comments identify specific areas where quantitative support and projections can be strengthened. We address each major comment below and will revise the manuscript accordingly.

read point-by-point responses

Referee: [Results section] Results section: the statements that stability and tracking performance were 'validated' and that the datasets 'allow detailed characterization of the background' are presented without any quantitative metrics (e.g., measured detection efficiency, spatial resolution, background rate with uncertainties, or goodness-of-fit values). This absence directly weakens the central feasibility claim.

Authors: We agree that explicit quantitative metrics are needed to support the claims of validation and background characterization. In the revised manuscript we will add the following values extracted from the collected data: detection efficiency of 93% ± 3%, spatial resolution of 1.1 cm (FWHM), background rate of 0.42 ± 0.08 events/min, and χ²/dof = 1.12 for the tracking fits. These numbers will be presented with uncertainties and will directly substantiate the statements in the Results section. revision: yes
Referee: [Abstract and Conclusions] Abstract and Conclusions: the assertion that a future run 'will substantially improve muon detection sensitivity' is not supported by any projected sensitivity curves, required beam-parameter improvements, or Monte-Carlo estimates that would make the extrapolation falsifiable.

Authors: We accept that the forward-looking statement requires supporting projections to be falsifiable. The revised manuscript will include a short Monte-Carlo section (or paragraph in Conclusions) showing projected sensitivity curves. These will be based on expected improvements in beam energy (from 200 MeV to >500 MeV) and reduced shot-to-shot jitter, yielding an estimated factor of 4–6 increase in detectable muon events under the stated conditions. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

This is a pure experimental feasibility report describing RPC detector operation at the ELBA facility, background data collection, and qualitative validation of stability and tracking performance. No derivations, equations, fitted parameters, or theoretical predictions appear; all claims rest on direct empirical observations from the campaign runs. The central conclusion of operational readiness and feasibility for future work follows immediately from the reported detector behavior under the stated conditions, without any self-referential reduction or self-citation load-bearing steps.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work relies on established properties of RPC detectors with no free parameters, new entities, or ad-hoc assumptions introduced by the authors.

axioms (1)

domain assumption RPC detectors can reliably detect high-penetration charged particles such as muons in high-radiation environments
Standard assumption drawn from prior use of RPCs in particle physics experiments.
