arxiv: 2605.13265 · v1 · submitted 2026-05-13 · 💻 cs.LG

Recognition: unknown

LightSplit: Practical Privacy-Preserving Split Learning via Orthogonal Projections

Mert Cihangiroglu , Alessandro Pegoraro , Phillip Rieger , Antonino Nocera , Ahmad-Reza Sadeghi
Authors on Pith no claims yet

Pith reviewed 2026-05-14 19:42 UTC · model grok-4.3

classification 💻 cs.LG
keywords split learningorthogonal projectionsprivacy preservationinformation bottleneckcommunication reductionreconstruction attacksdistributed machine learning
0
0 comments X

The pith

LightSplit uses a fixed orthogonal random projection at the cut layer to cut transmitted dimensionality by up to 32 times while retaining more than 95% of baseline accuracy in split learning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks to make split learning more practical by reducing both the amount of data sent between client and server and the risk of attackers reconstructing private inputs. It does this by adding a simple fixed orthogonal random projection right at the cut layer, which shrinks the activations and creates an irreversible information loss based on information theory principles. This keeps the client lightweight, requires no architecture changes on the server, and allows normal gradient flow. A reader would care because current split learning methods either use too much bandwidth or add complex privacy fixes that hurt performance or compatibility. Tests on standard benchmarks show the accuracy stays high even with big reductions in data size, for both balanced and unbalanced data distributions.

Core claim

LightSplit limits information exposure and communication overhead in split learning by applying a lightweight fixed orthogonal random projection at the cut layer. This projection acts as an information bottleneck based on Shannon's information theory, restricting instance-specific information and suppressing exploitable per-sample signals. Transmitting the low-dimensional projections allows the server to operate on lifted representations without architectural modifications. The projection is non-invertible, so part of the original representation is irreversibly discarded at the client, reducing the information available for reconstruction. The method preserves end-to-end differentiabilityvia

What carries the argument

The fixed orthogonal random projection applied at the cut layer, which functions as a non-invertible information bottleneck to reduce dimensionality and limit instance-specific information in the transmitted data.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method may enable split learning deployments on bandwidth-limited edge devices by allowing flexible reduction ratios.
  • Future work could test whether varying the projection matrix per round adds more privacy without losing the fixed lightweight property.
  • Similar projection bottlenecks might apply to other collaborative learning methods facing communication and privacy trade-offs.
  • Real-world validation on hardware with actual network constraints would show if the 32x reduction translates to practical speedups.

Load-bearing premise

A fixed orthogonal random projection alone is sufficient to restrict instance-specific information enough to prevent reconstruction attacks, without needing sparsification, noise, or other additional mechanisms.

What would settle it

A reconstruction attack succeeding in recovering a significant portion of the original activations or input data from the low-dimensional projected representations at the server.

Figures

Figures reproduced from arXiv: 2605.13265 by Ahmad-Reza Sadeghi, Alessandro Pegoraro, Antonino Nocera, Mert Cihangiroglu, Phillip Rieger.

Figure 1

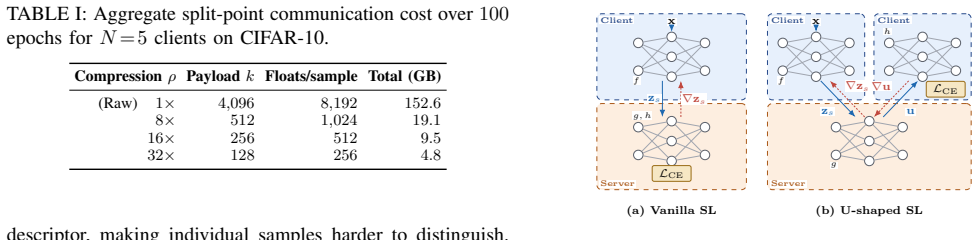

Figure 1. Figure 1: Vanilla and U-shaped split-learning topologies. II. BACKGROUND A. Split Learning In split learning (SL) [19], a DNN is partitioned at a designated cut layer between a client holding privacy-sensitive data and a server with strong computational resources. In the simplest configuration (vanilla), the client holds the first layers f, and the server holds the remainder g, including the classifier. Therefore, t… view at source ↗
Figure 2

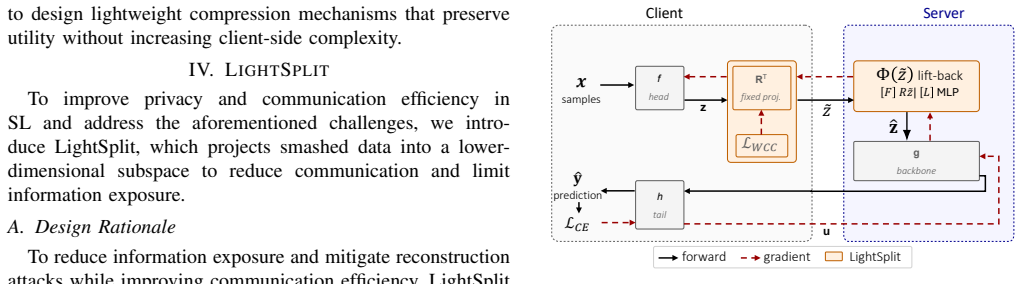

Figure 2. Figure 2: Overview of LightSplit for U-shaped SL setup with [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Relation between the cut-layer activation, its projected [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

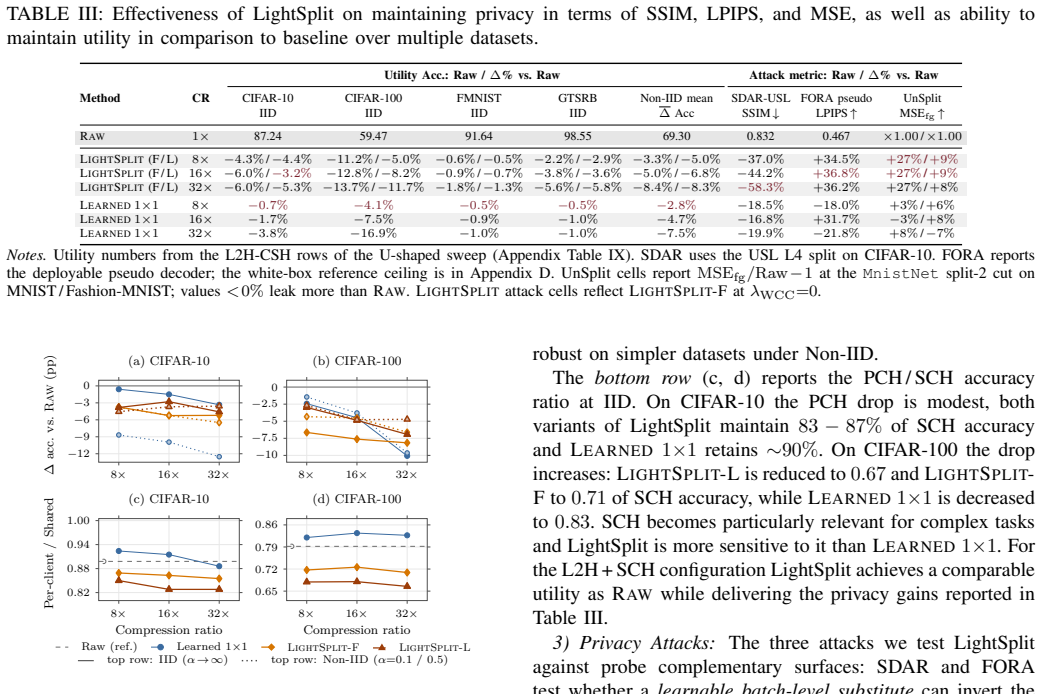

Figure 4. Figure 4: Utility behaviour of LightSplit for L2H cut scenario. [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5

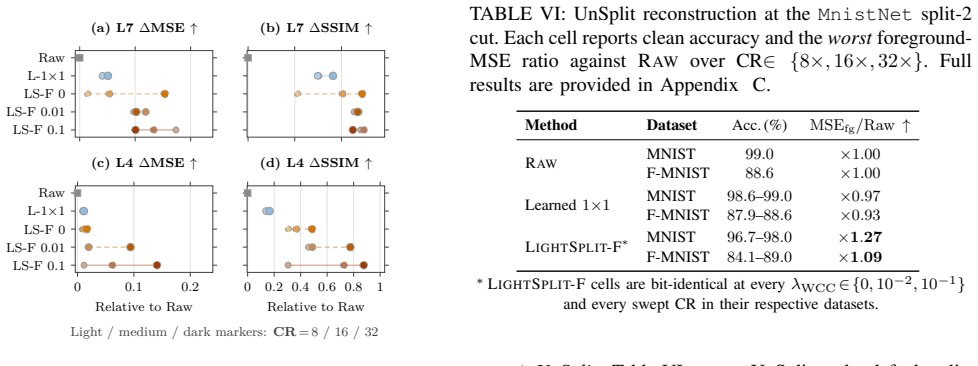

Figure 5. Figure 5: USL SDAR reconstruction degradation relative to R [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Reconstruction-attack comparison across three attacks and three datasets. Each column represent individual samples. [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Impact of MLP lift-back size on accuracy gap (L2H [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗
Figure 7
Figure 7. Figure 7: Backbone-output cosine signal cos(¯ri , r¯). Except varied parameters, the remaining parameters are set to default values. 256 512 1,024 2,048 −8 −4 0 4 8 (a) CIFAR-100 (d=4096, k=512) 256 512 1,024 2,048 −4 0 4 8 (b) CIFAR-10 (d=4096, k=512) 64 128 256 512 1,024 −1.5 0 1 2 3 MLP hidden width m (c) FashionMNIST (d=2880, k=360) 64 128 256 512 1,024 −4 −2 0 2 4 6 MLP hidden width m (d) GTSRB (d=5684, k=710) … view at source ↗
Figure 9
Figure 9. Figure 9: Server-input cosine signal cos(¯zi , z¯). Malicious-client |MAD-z-score| vs. each ablation axis; in every panel the swept parameter is varied while the rest are held at the defaults reported in [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: SDAR level-4 USL reconstructions on CIFAR-10 at [PITH_FULL_IMAGE:figures/full_fig_p018_10.png] view at source ↗
Figure 11

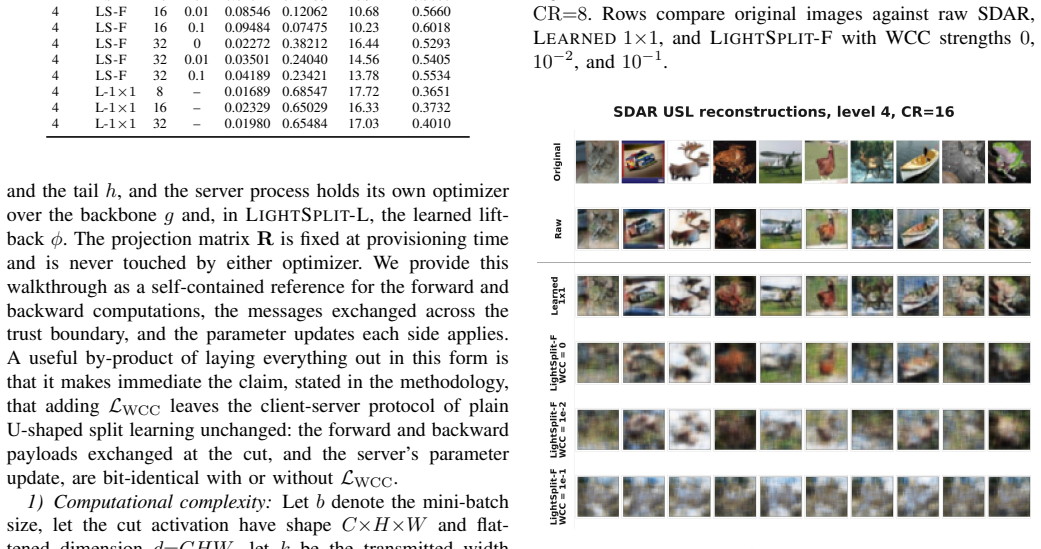

Figure 11. Figure 11: Level-4 USL, CR=16; same layout as [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Level-4 USL, CR=32; same layout as [PITH_FULL_IMAGE:figures/full_fig_p020_12.png] view at source ↗
Figure 15
Figure 15. Figure 15: Level-4 VSL, CR=32; same layout as [PITH_FULL_IMAGE:figures/full_fig_p020_15.png] view at source ↗
Figure 16

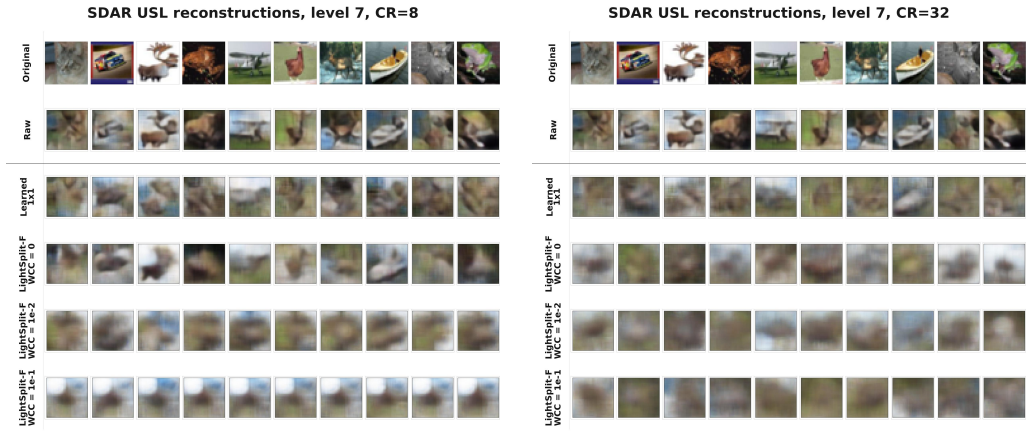

Figure 16. Figure 16: Level-7 USL, CR=8; same layout as [PITH_FULL_IMAGE:figures/full_fig_p021_16.png] view at source ↗
Figure 17

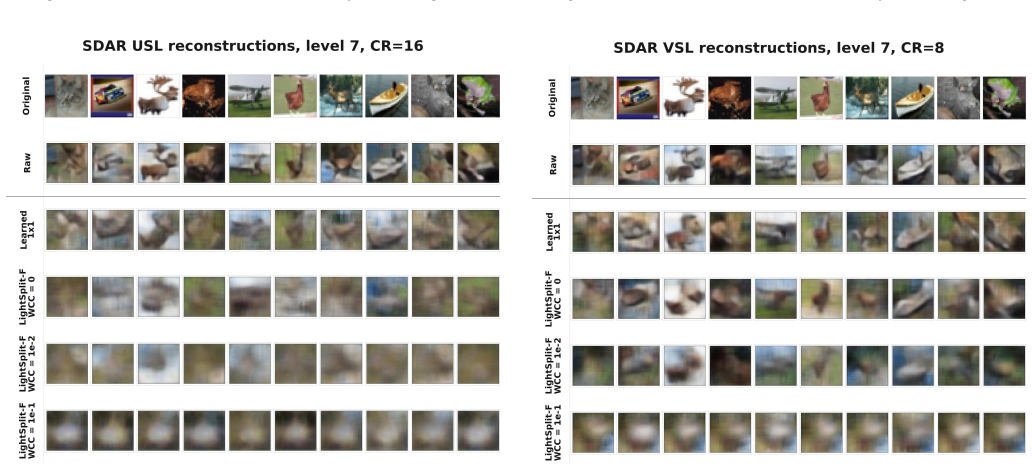

Figure 17. Figure 17: Level-7 USL, CR=16; same layout as [PITH_FULL_IMAGE:figures/full_fig_p021_17.png] view at source ↗
Figure 22
Figure 22. Figure 22: FORA white-box reference-decoder reconstructions [PITH_FULL_IMAGE:figures/full_fig_p022_22.png] view at source ↗
Figure 23
Figure 23. Figure 23: FORA white-box reference-decoder reconstructions [PITH_FULL_IMAGE:figures/full_fig_p022_23.png] view at source ↗
Figure 24
Figure 24. Figure 24: FORA white-box reference-decoder reconstructions [PITH_FULL_IMAGE:figures/full_fig_p023_24.png] view at source ↗
read the original abstract

Split learning (SL) enables collaborative training by partitioning a neural network across clients and a central server, but the cut-layer interface introduces a key challenge: high-dimensional activations incur substantial communication overhead while exposing representations vulnerable to reconstruction attacks. Existing approaches typically address efficiency or privacy in isolation, relying on additional mechanisms such as sparsification, quantization, or noise injection. We propose LightSplit, which limits information exposure and reduces communication overhead by applying a lightweight fixed orthogonal random projection at the cut layer. Based on Shannon's information theory, this projection acts as an information bottleneck that restricts instance-specific information and suppresses exploitable per-sample signals. By transmitting low-dimensional projections instead of raw activations, the server operates on lifted representations without requiring architectural modifications, ensuring compatibility with existing SL architectures. By avoiding additional trainable components on the client, the method remains lightweight and suitable for edge devices while preserving end-to-end differentiability via exact gradient propagation. As the projection is non-invertible, part of the original representation is irreversibly discarded at the client, LightSplit reduces the information available for reconstruction and limits information exposure. We extensively evaluate LightSplit on state-of-the-art benchmarks in both IID and non-IID settings across varying projection dimensions and client scales. Our results show that the method retains more than 95% of the baseline accuracy at up to 32x reduction in transmitted dimensionality while maintaining stable training dynamics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes LightSplit, a split-learning method that inserts a fixed orthogonal random projection at the cut layer. This projection is claimed to serve as a lightweight information bottleneck that simultaneously reduces transmitted dimensionality by up to 32× and limits instance-specific information leakage, while preserving end-to-end differentiability and retaining more than 95 % of baseline accuracy on standard benchmarks under both IID and non-IID partitions.

Significance. If the performance and privacy claims are substantiated, the approach would supply a parameter-free, client-lightweight defense that avoids noise, sparsification, or extra trainable modules, thereby improving the practicality of split learning on edge devices. The explicit appeal to Shannon-theoretic irreversibility and the reported stability across client scales constitute the main potential contributions.

major comments (2)
  1. [§4] §4 (Experimental Evaluation): the central claim that >95 % baseline accuracy is retained at 32× dimensionality reduction is presented without reported baselines, number of random seeds, error bars, or precise non-IID partitioning protocol, rendering the quantitative result unverifiable.
  2. [§3.2] §3.2 (Privacy Argument): the assertion that a single fixed orthogonal projection suffices to block reconstruction attacks rests solely on non-invertibility and an information-theoretic motivation; no mutual-information bounds, reconstruction-error metrics, or adversarial attack results are supplied, even though the accuracy claim implies that task-relevant features remain recoverable by the server.
minor comments (2)
  1. [Abstract] The abstract states that experiments cover 'varying projection dimensions and client scales' yet supplies no table or figure reference for these dimensions; a summary table would improve clarity.
  2. [§3.1] Notation for the projection matrix (e.g., whether it is drawn once and fixed or re-sampled per round) is introduced without an explicit equation number, complicating reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below and will revise the manuscript to improve verifiability and substantiation of the claims.

read point-by-point responses

  1. Referee: [§4] §4 (Experimental Evaluation): the central claim that >95 % baseline accuracy is retained at 32× dimensionality reduction is presented without reported baselines, number of random seeds, error bars, or precise non-IID partitioning protocol, rendering the quantitative result unverifiable.

    Authors: We agree that the experimental section should include explicit baseline accuracies, the number of random seeds, error bars, and a precise non-IID partitioning protocol to make the >95% retention claim verifiable. In the revised manuscript we will report the exact baseline accuracies, average results over at least five random seeds with standard-deviation error bars, and specify the non-IID partitioning method (e.g., Dirichlet concentration parameter). revision: yes

  2. Referee: [§3.2] §3.2 (Privacy Argument): the assertion that a single fixed orthogonal projection suffices to block reconstruction attacks rests solely on non-invertibility and an information-theoretic motivation; no mutual-information bounds, reconstruction-error metrics, or adversarial attack results are supplied, even though the accuracy claim implies that task-relevant features remain recoverable by the server.

    Authors: The core privacy argument relies on the non-invertibility of the fixed orthogonal projection, which irreversibly discards instance-specific information according to Shannon theory. We acknowledge that empirical support is currently limited. In the revision we will add reconstruction-error metrics (MSE between original and reconstructed activations) and results from reconstruction attacks to quantify leakage. Full mutual-information bounds are computationally intractable for high-dimensional activations, but we will include empirical estimates; the preservation of task-relevant features is intentional and does not contradict the reduction in instance-specific information. revision: partial

Circularity Check

0 steps flagged

No circularity; proposal is empirical with information-theoretic motivation

full rationale

The paper introduces LightSplit by applying a fixed orthogonal random projection at the cut layer, motivated by Shannon's information theory as creating an irreversible information bottleneck. No derivation chain reduces any claim to fitted parameters, self-citations, or self-definitional loops. The accuracy retention result (>95% at 32x reduction) is presented as an empirical outcome from benchmarks in IID/non-IID settings, not as a prediction forced by construction from inputs. Privacy is argued heuristically from non-invertibility without quantitative mutual-information bounds or self-referential uniqueness theorems. The method is self-contained against external benchmarks and does not rename known results or smuggle ansatzes via citations. This is a standard empirical proposal without circular structure.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim depends on the domain assumption that orthogonal projections act as effective non-invertible bottlenecks per Shannon theory, plus the free parameter of chosen projection dimension.

free parameters (1)
  • projection dimension
    Selected to achieve target reduction ratios such as 32x; directly controls transmitted size and retained accuracy.
axioms (1)
  • domain assumption A fixed orthogonal random projection at the cut layer restricts instance-specific information and suppresses per-sample signals.
    Invoked via reference to Shannon's information theory to justify the privacy benefit.
