Uniform microwave field formation for control of ensembles of negatively charged nitrogen vacancy in diamond

Oleg Rezinkin , Marina Rezinkina , Takuya Kitamura , Rajan Paul , Fedor Jelezko

Authors on Pith no claims yet

Pith reviewed 2026-05-14 18:42 UTC · model grok-4.3

classification 🪐 quant-ph

keywords microwave field homogeneityNV centersdiamondbarrel-shaped coilRabi oscillationsmagnetometryensemble spinspulsed control

0 comments

The pith

A barrel-shaped coil achieves significantly better microwave magnetic field uniformity than a planar antenna for NV center ensemble control.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper compares five microwave field-forming systems for driving large ensembles of negatively charged nitrogen-vacancy centers in diamond, a setup needed for sensitive pulsed magnetometry. Numerical simulations identify and optimize a barrel-shaped coil design that reduces field inhomogeneity across the sample volume. Experiments then measure Rabi oscillations of the NV ensemble to confirm that the barrel-shaped system produces more uniform driving than a planar antenna. Uniformity matters because variations in the microwave field cause different parts of the ensemble to rotate at different rates, degrading pulse fidelity and limiting overall sensitivity.

Core claim

Numerical simulations of planar antennas, dielectric resonators, cylindrical inductors, barrel-shaped coils, and nested barrel-shaped coils show that optimized barrel-shaped coil parameters yield substantially improved magnetic field homogeneity. Experimental Rabi oscillation measurements on an NV ensemble directly confirm lower inhomogeneity with the barrel-shaped system relative to the planar antenna.

What carries the argument

The barrel-shaped coil, whose geometry parameters are tuned through electromagnetic simulation to minimize spatial variation in the microwave magnetic field amplitude over the NV ensemble volume.

If this is right

Higher fidelity of control pulses in pulsed NV magnetometry sequences that rely on uniform driving.
Ability to address larger ensemble volumes while maintaining coherent spin control.
Reduced decoherence contributions from inhomogeneous broadening during microwave manipulation.
More reliable scaling of ensemble-based sensors without additional calibration overhead for field variation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same barrel geometry principle could be adapted for uniform driving of other spin defects or atomic ensembles at different microwave frequencies.
Integration with larger diamond samples or microfluidic setups might become feasible once field variation is no longer the dominant limit.
Combining the barrel coil with the nested variant could offer further uniformity gains for applications requiring even stricter homogeneity.

Load-bearing premise

Numerical electromagnetic simulations accurately predict the real microwave fields inside the diamond sample, and differences in observed Rabi oscillation behavior arise solely from field inhomogeneity rather than sample properties or pulse imperfections.

What would settle it

A position-resolved measurement of local Rabi frequencies across the NV ensemble that shows spatial variation larger than or inconsistent with the simulated field map for the barrel-shaped coil.

Figures

Figures reproduced from arXiv: 2605.13267 by Fedor Jelezko, Marina Rezinkina, Oleg Rezinkin, Rajan Paul, Takuya Kitamura.

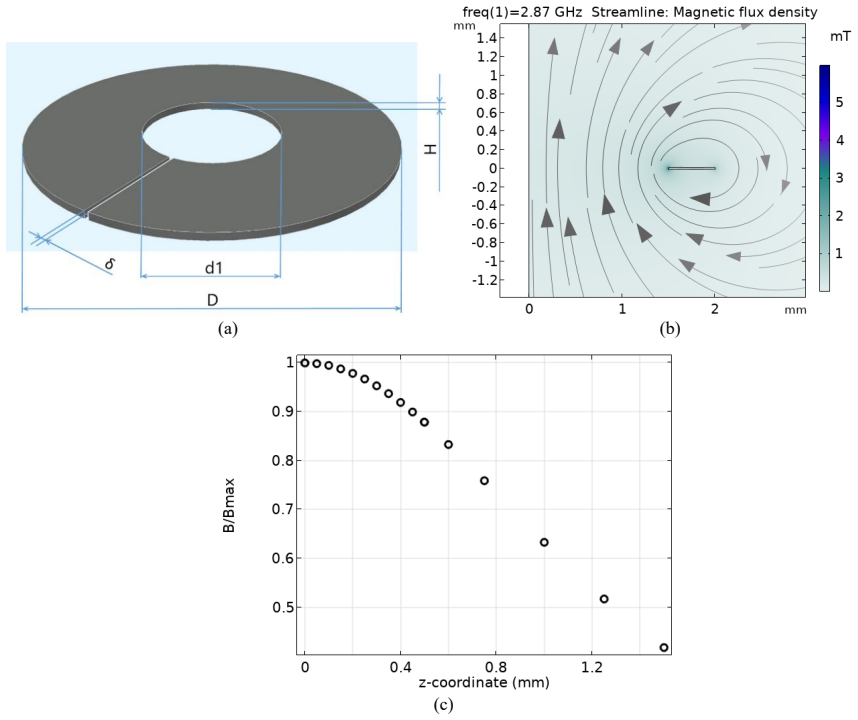

**Figure 2.** Figure 2: FIG. 2. (a) [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

**Figure 4.** Figure 4: FIG. 4. (a) [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

**Figure 5.** Figure 5: FIG. 5. (a) [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

read the original abstract

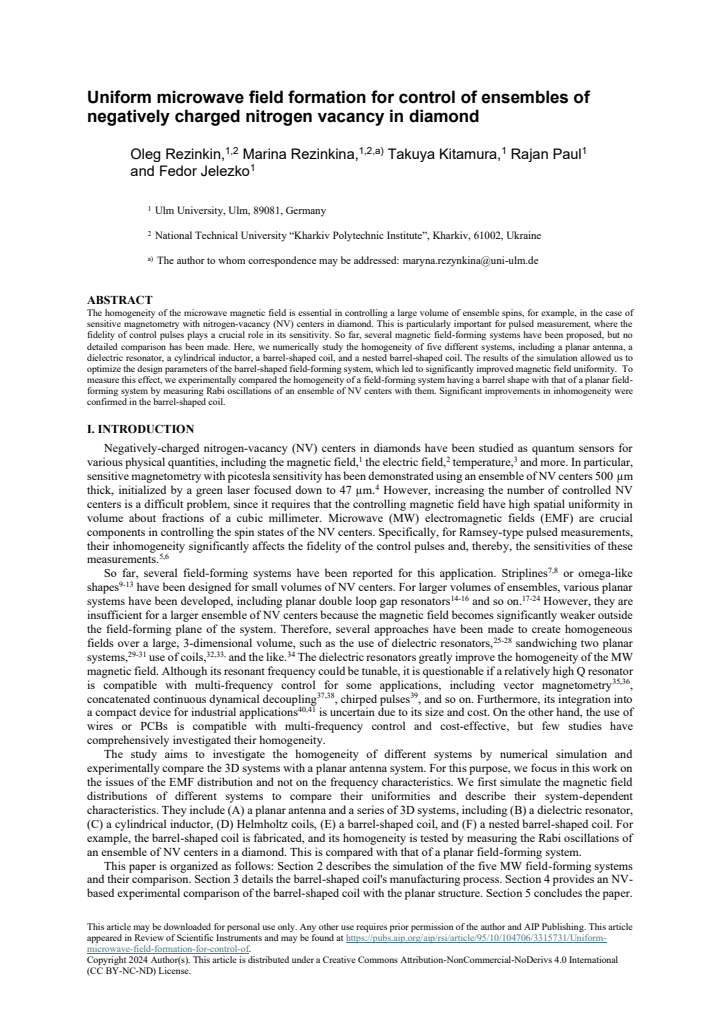

The homogeneity of the microwave magnetic field is essential in controlling a large volume of ensemble spins, for example, in the case of sensitive magnetometry with nitrogen-vacancy (NV) centers in diamond. This is particularly important for pulsed measurement, where the fidelity of control pulses plays a crucial role in its sensitivity. So far, several magnetic field-forming systems have been proposed, but no detailed comparison has been made. Here, we numerically study the homogeneity of five different systems, including a planar antenna, a dielectric resonator, a cylindrical inductor, a barrel-shaped coil, and a nested barrel-shaped coil. The results of the simulation allowed us to optimize the design parameters of the barrel-shaped field-forming system, which led to significantly improved magnetic field uniformity. To measure this effect, we experimentally compared the homogeneity of a field-forming system having a barrel shape with that of a planar field-forming system by measuring Rabi oscillations of an ensemble of NV centers with them. Significant improvements in inhomogeneity were confirmed in the barrel-shaped coil.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Barrel coil beats planar antenna on MW uniformity for NV ensembles per sims and Rabi data, but the experiment does not cleanly isolate field homogeneity from other dephasing sources.

read the letter

The paper's core result is that an optimized barrel-shaped coil produces better microwave field uniformity than a planar antenna for controlling NV ensembles, shown through numerical comparison of five designs and direct Rabi oscillation measurements on diamond samples. They optimized the barrel parameters from the simulations and then ran side-by-side experiments, reporting visibly improved homogeneity in the Rabi data for the barrel geometry. This is straightforward engineering work that fills a small gap: prior designs existed, but the direct numerical head-to-head plus experimental check on the same NV ensemble is new enough to be useful for people building larger-volume sensors. The simulations follow standard Maxwell solvers and the Rabi test is a reasonable proxy for control fidelity in pulsed magnetometry. The stress-test note is on point. Rabi damping in an NV ensemble can come from strain gradients, hyperfine effects, or residual DC fields, none of which the barrel coil necessarily fixes. The paper does not report Ramsey or Hahn-echo times under both coils, nor single-NV Rabi data, so the link between the simulated B1 improvement and the observed oscillation change remains indirect. The abstract also skips details on mesh convergence, how inhomogeneity was quantified from the Rabi curves, and error bars. These are fixable but leave the central claim a bit softer than it could be. This is the kind of incremental hardware note that people in ensemble NV magnetometry will actually read and use when choosing an antenna. It is not a fundamental advance, but the methods are standard and the comparison is honest. A serious editor should send it to peer review with a request for the missing controls and quantification details; the work is grounded enough to deserve referee time rather than a desk reject.

Referee Report

1 major / 2 minor

Summary. The manuscript numerically compares microwave magnetic field homogeneity across five designs (planar antenna, dielectric resonator, cylindrical inductor, barrel-shaped coil, and nested barrel-shaped coil) for NV- ensemble control, optimizes the barrel-shaped geometry via simulation, and experimentally validates improved uniformity by comparing Rabi oscillations from an NV ensemble under the barrel coil versus a planar antenna.

Significance. If the reported uniformity improvement holds after addressing experimental controls, the work provides a practical, optimized MW delivery solution that could enhance pulse fidelity and sensitivity in ensemble-based NV magnetometry and related quantum sensing applications.

major comments (1)

[Experimental validation] Experimental validation section: The claim that differences in Rabi oscillation damping directly confirm reduced B1 inhomogeneity is not isolated from other ensemble dephasing sources (strain, electric fields, hyperfine structure). No auxiliary data such as Ramsey or Hahn-echo times under both coils, or single-NV Rabi measurements, are reported to rule out confounding effects, weakening the mapping from simulation optimization to experimental improvement.

minor comments (2)

[Numerical methods] Numerical methods section: Mesh convergence, discretization error estimates, and quantitative metrics for inhomogeneity (e.g., standard deviation of |B1| over the NV volume) are not specified, making it difficult to assess the reliability of the reported uniformity gains.
[Abstract and results] Abstract and results: Error bars or statistical measures on the Rabi oscillation data and inhomogeneity quantification are absent, reducing the ability to judge the significance of the reported improvement.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review. We address the single major comment below by clarifying the interpretation of the experimental data and adding appropriate caveats in the revised manuscript.

read point-by-point responses

Referee: [Experimental validation] Experimental validation section: The claim that differences in Rabi oscillation damping directly confirm reduced B1 inhomogeneity is not isolated from other ensemble dephasing sources (strain, electric fields, hyperfine structure). No auxiliary data such as Ramsey or Hahn-echo times under both coils, or single-NV Rabi measurements, are reported to rule out confounding effects, weakening the mapping from simulation optimization to experimental improvement.

Authors: We agree that Rabi damping in an NV ensemble can arise from multiple sources and that our original text overstated the direct mapping to B1 homogeneity. The diamond sample, optical excitation, and bias field were identical in both measurements, so differential contributions from strain, electric fields, or hyperfine structure are expected to be minimal; the observed reduction in damping is therefore consistent with the simulated improvement in B1 uniformity. In the revised manuscript we will (i) rephrase the experimental section to state that the Rabi data provide supporting evidence rather than definitive isolation of B1 effects, (ii) explicitly list the possible confounding mechanisms, and (iii) note the absence of auxiliary Ramsey or single-NV measurements as a limitation. No new experimental data will be added, as the focus remains on the simulation-guided design validated by ensemble Rabi contrast. revision: yes

Circularity Check

0 steps flagged

No circularity: uniformity claims rest on independent Maxwell simulations and direct Rabi measurements

full rationale

The paper's core chain consists of (1) numerical solution of Maxwell's equations for five candidate coil geometries, (2) parameter optimization of the barrel-shaped design to minimize B1 inhomogeneity, and (3) experimental comparison of Rabi oscillation damping between the optimized barrel coil and a planar antenna. None of these steps reduces by construction to a fitted parameter or self-referential definition; the simulated field maps are generated from geometry and material properties, while the experimental confirmation uses an observable (Rabi envelope) that is not used to define or tune the simulation inputs. No self-citation load-bearing steps, uniqueness theorems, or ansatz smuggling appear in the reported derivation. The result is therefore self-contained against external electromagnetic benchmarks and direct measurement.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work relies on standard electromagnetic simulation methods and conventional Rabi measurement techniques without introducing new physical entities, ad-hoc axioms, or fitted parameters that define the central uniformity claim.
