FORTVSH: A Fortran Module For Vector Spherical Harmonics Computations

T0 review · 3 major / 6 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read FORTVSH computes vector spherical harmonics to machine precision in all standard forms, with batch routines stable to degree 2000.

desk verdict Dependency-free Fortran VSH library with genuine validation; the high-l stability claim needs one independent benchmark, but the package deserves serious review. read the letter →

arxiv 2608.08419 v1 pith:JYJBOE5W submitted 2026-08-09 astro-ph.SR astro-ph.IMphysics.comp-ph

Justin G. Elfritz This is my paper · ORCID
classification astro-ph.SRastro-ph.IMphysics.comp-ph PACS 95.30.Qd
keywords vectorsphericalharmonicspoloidal-toroidaldecompositionassociatedLegendrefunctionsnumericalstabilitymagnetohydrodynamicsspectralmethodsFortranlibraryClebsch-Gordancoefficients
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper presents FORTVSH, a dependency-free Fortran module for evaluating vector spherical harmonics (VSH) in the polar form used for poloidal-toroidal decomposition and in the standard angular-momentum form. The central claim is that the package computes every implemented VSH mode to double-precision rounding, preserves the analytic identities that connect the two representations, and supplies batch routines that stay stable to angular degree $\ell_{\max} = 2000$ while running about an order of magnitude faster than loops over single-mode calls. The motivation is spectral MHD: a magnetic field written as poloidal and toroidal scalar potentials can be advanced mode-by-mode only if the VSH basis, its curl identities, and its inner products are all computed reliably. If the stability claim holds, the package gives simulation codes a small numerical core that existing spherical-harmonics libraries do not provide, since those handle only curl-free scalar-potential fields or purely tangential two-dimensional flows.

What carries the argument

The load-bearing object is the normalized associated Legendre batch evaluator ASSOC_LEGENDRE_NORM_ALL, which implements the modified forward-column recurrence of Holmes and Featherstone: the $4\pi$ normalization is absorbed into the recurrence coefficients so all intermediate values stay of order $1/\sqrt{4\pi}$, extending stable degree from about 200 to about 2000. Every scalar and vector spherical harmonic batch routine calls this module once per evaluation point, so its stability is inherited. Around this core, FORTVSH assembles the three polar VSH families $Y^{(-1)}$, $Y^{(0)}$, and $Y^{(+1)}$ from the scalar harmonics via radial, gradient, and cross-product formulas, provides the Clebsch-Gordan and Wigner 6-j machinery that rotates between polar and $L^2$-eigenfunction forms, and packages the curl identities needed to propagate modes through the induction equation.

What would settle it

Evaluate ASSOC_LEGENDRE_NORM_ALL and the VSH batch routines at $\ell_{\max}=2000$ on a dense grid of colatitudes that includes points extremely close to the poles, and compare every $(\ell,m)$ component against mpmath reference values; any deviation above the roughly $10^{-15}$ double-precision floor would refute the stability claim. A second independent check is the orthogonality test $Y^{(+1)}_{JM} \cdot Y^{(0)}_{JM} = 0$ at the same grid points.

Watch

Extended reading notes

Core claim

The central discovery is that one normalized Legendre recurrence, applied in batch mode, can carry the entire VSH construction to machine precision and to $\ell_{\max} = 2000$. Specifically, FORTVSH's ASSOC_LEGENDRE_NORM_ALL folds the $4\pi$ normalization into the modified forward-column recurrence coefficients, and every scalar harmonic and VSH batch routine is built on that single module. The validation shows maximum absolute errors at or below about $10^{-15}$ relative to mpmath reference values, exact reproduction of the bilinear orthogonality $Y^{(+1)}_{JM} \cdot Y^{(0)}_{JM} = 0$, exact reconstruction of the Clebsch-Gordan rotation between polar and $L^2$-eigenfunction bases, and agreement of the Geppert-Wiebicke coupling coefficients with closed-form analytic expressions. The paper claims these results hold for $\ell$ up to 2000 for normalized routines and up to 200 for unnormalized Legendre routines, with batch evaluation outperforming single-mode loops by an order of magnitude.

Load-bearing premise

The advertised range holds only if the Holmes-Featherstone normalized Legendre recurrence stays accurate to $\ell_{\max}=2000$ for every m and every colatitude; the paper supports this with in-house error plots against mpmath rather than an independent high-degree benchmark.

Editorial extensions

If this is right

  • A magnetic field in poloidal-toroidal form can be evaluated, rotated between representations, and integrated in the same package, so the full VSH triad needed by the induction equation is available in one call.
  • Batch evaluation at $\ell_{\max}=2000$ makes high-degree spectral transforms practical on a single CPU core; the order-of-magnitude speedup over single-mode loops carries directly into time-advance loops.
  • Machine-precision preservation of orthogonality means a spectral decomposition will not leak power into spurious modes, keeping MHD mode amplitudes clean over long runs.
  • Because the package has no FFT or BLAS/LAPACK dependency, it can be embedded directly into purpose-built spherical-shell simulation codes.
  • Existing spherical-harmonics tools cannot express toroidal fields or the radial-tangential coupling of poloidal fields; FORTVSH's explicit radial-poloidal-toroidal triad fills that structural gap.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The stability claim rests on in-house comparisons at 15 colatitude points and one azimuth, so a user who needs all modes at arbitrary points should run an independent high-$\ell$ benchmark before trusting $\ell_{\max}=2000$ in production.
  • If the recurrence really is stable to 2000, the same code likely tolerates somewhat higher degrees, but with error growth the paper does not quantify; a simple extension would measure the crossover degree where errors exceed machine precision.
  • The package currently covers forward transforms only; adding an inverse transform that synthesizes fields from coefficient arrays would turn the validation examples into a full simulation-capable spectral transform library.
  • The Geppert-Wiebicke coupling coefficients implemented here are tailored to Hall-MHD two-mode interactions, so the natural next test is a small spectral Hall-cascade simulation that checks whether coefficient-based mode coupling reproduces direct evaluation of the nonlinear terms.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. FORTVSH is an open-source Fortran module that computes vector spherical harmonics in the L2-eigenfunction and polar (lambda) representations, along with scalar spherical harmonics, associated Legendre functions, Clebsch-Gordan and Wigner coefficients, and Geppert-Wiebicke coupling coefficients. The paper derives the relevant analytic identities (curl formulas, inner products, rotation relations), describes single-mode and batch routines, and presents validation against mpmath reference values and closed-form Geppert-Wiebicke test cases, together with application examples for dipole synthesis, boundary matching, and spectral decomposition. The headline claims are machine-precision evaluation of the implemented VSH forms, numerical stability of normalized Legendre batch routines to lmax=2000, order-of-magnitude speedups over single-mode loops, and suitability as a dependency-free foundation for poloidal-toroidal MHD spectral codes.

Significance. Should the claims hold, FORTVSH fills a concrete gap: SHTOOLS and SPHEREPACK do not natively provide the radial-poloidal-toroidal VSH triad used in MHD poloidal-toroidal decomposition. The manuscript's strengths are its open-source release with an archived version, validation against external mpmath references and independent closed-form analytic results, explicit statement of package limitations (forward-transform only, no inverse transforms yet), and the demonstration of batch speedups. The derivation of the analytic identities is consistent with cited references and no circularity was found. The principal weakness is that the high-ell stability claim, which is central to the advertised advantage over single-mode routines, rests on in-house comparisons over a sampled grid rather than an independent high-degree benchmark.

major comments (3)
  1. [Section 3.1 / Appendix A / Discussion] The advertised stability to lmax=2000 for the normalized associated Legendre recurrence and the Discussion's statement that this stability is 'directly inherited by every SSH and VSH routine' are not sufficiently supported. Figure 2 reports aggregate maximum absolute differences over 15 uniformly spaced interior colatitudes theta in (0,pi), with no fixed-theta scan across all m near lmax and no comparison near the poles, where the Holmes and Featherstone (2002) forward-column recurrence is most sensitive. I request either an independent high-degree benchmark (for example SHTOOLS or direct ratio-of-factorials evaluation at selected (l,m,theta) points at lmax=2000) or a documented worst-case error scan over m and theta, including theta close to 0 and pi, for ASSOC_LEGENDRE_NORM_ALL and at least one representative batch VSH routine. Without this, the load-bearing claim of machine precision over the full advertised range is an extrapolation.
  2. [Section 3.1, 'Batch consistency' paragraph and Figure 2] There is an ambiguity about what Figure 2 plots. The text says each batch_ALL subroutine is compared pointwise against its single-mode counterpart, but the Figure 2 caption says the plotted quantity is the maximum absolute difference between batch_ALL subroutines and reference values computed in mpmath. These are different validations. If Figure 2 shows the mpmath comparison, then the batch-versus-single-mode consistency check for the vector VSH routines is not displayed; if it shows the consistency check, then the independent reference validation for VSH_TOR, VSH_POL_UP, and VSH_POL_DN is missing. Please clarify the figure content and, if both tests were run, show both.
  3. [Appendix A / Section 3.1] The stable ranges of the two evaluation tiers are stated only for the Legendre routines as a group: unnormalized routines to lmax=200 and normalized routines to lmax=2000. Because single-mode VSH routines (VSH_TOR, VSH_POL_UP, VSH_POL_DN, PVSH_*) are implemented through ASSOC_LEGENDRE_AND_DERIV, which is built on the unnormalized Bonnet recurrence, they are presumably limited to the shorter range, while only the batch routines inherit the Holmes-Featherstone stability. The manuscript should state these per-routine limitations explicitly; otherwise a user calling a single-mode VSH function at l=1000 might wrongly assume the advertised lmax=2000 stability applies.
minor comments (6)
  1. [Section 2.1, Eq. (45)] Equation (45) is empty; there is no equation content between Eqs. (44) and (46). Please either provide the missing expression or renumber the equations.
  2. [Figure 5 caption] The caption says 'Dotted line at 2.22 x 10 16' but should read 2.22 x 10^-16, which is the machine epsilon for double precision.
  3. [Section 3.1, paragraph after Eq. (67)] The text says the VSH and Geppert-Wiebicke routes agree 'to within a few units in the last place of double precision', but Figure 4 axes are labeled 'relative deviation (%)'. These two metrics are incompatible; please state the reported quantity consistently.
  4. [Section 3.1, first paragraph] The sentence 'All tests were generated with suitable l max determined by stability studies' is not reproducible; please give the actual lmax values and grid sizes used in Figures 1 and 2, either in the captions or in a table.
  5. [Section 3.1, SSH orthonormality test] The scalar spherical harmonic orthonormality test is quadrature-limited: with N=10,000 midpoint-rule points, the reported residuals of about 10^-7 are consistent with O(N^-2) truncation error, as the text acknowledges. This test should be labeled as a convergence/consistency check rather than a numerical-precision validation, or supplemented by a convergence study demonstrating that the residual decreases to machine precision as N increases.
  6. [Section 3.2, Part A] The statement 'All original weights are perfectly recovered' lacks a tolerance; please report the maximum absolute deviation between the recovered and input coefficients.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: accuracy claims are anchored to independent external references (mpmath, analytic closed forms, and the Holmes/Featherstone recurrence).

full rationale

The paper's central numerical-accuracy claim is validated against independent external references: the Python mpmath library is used to produce reference associated Legendre and VSH values, and the VSH inner products are checked against closed-form analytic expressions derived from the Geppert-Wiebicke coefficients. The batch-versus-single-mode agreement and the VSH rotation-inversion reconstruction are internal consistency checks, but they are not load-bearing for the accuracy claim; the claim of machine-precision agreement is anchored to mpmath and analytic forms. The advertised stability to lmax=2000 is attributed to an explicitly cited external algorithm, Holmes and Featherstone (2002), and no fitted parameters or self-citation chains are used to force the reported results. The only mild caveat is that high-degree validation is performed in-house rather than against a second independent high-l external benchmark, but that is a robustness or completeness concern, not a circularity in the derivation. Therefore no circular step is identified.

Assumptions & free parameters 0 free parameters · 3 assumptions · 0 invented entities

No fitted parameters and no invented entities are present. The package relies on standard angular momentum algebra from Varshalovich et al. and Geppert-Wiebicke, and on the numerical stability of the Holmes-Featherstone recurrence, which is validated in-house rather than proven.

assumptions (3)
  • standard math Vector spherical harmonic identities in Eqs. (14)-(19) and coupling identities in Eqs. (20)-(54) are correct under the stated normalization.
    The paper builds the code on these identities from Varshalovich et al. and Geppert-Wiebicke without deriving them; a sign or normalization error would propagate into the routines.
  • domain assumption The Holmes-Featherstone modified forward-column recurrence remains numerically stable to ℓmax=2000 for all m and θ as implemented.
    The advertised stable range of batch routines depends on this; the paper supports it with in-house error plots rather than an independent external check.
  • domain assumption The chosen validation grids, including 15 co-latitude points and Nθ,Nφ=16,21, are sufficient to expose mode-dependent errors.
    Validation is sampled, not exhaustive; if errors occur only on un-sampled points, the machine-precision claim could fail.

how reviews work

0 comments
Cite this review

Pith. "Pith review of FORTVSH: A Fortran Module For Vector Spherical Harmonics Computations." pith.science (2026). https://pith.science/paper/JYJBOE5W

@misc{pith2026260808419,
  author       = {Pith},
  title        = {Pith review of: FORTVSH: A Fortran Module For Vector Spherical Harmonics Computations},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/JYJBOE5W}},
  note         = {Machine review of arXiv:2608.08419}
}
read the original abstract

The vector spherical harmonics (VSH) are crucial ingredients for representation of arbitrary vector fields in curvilinear coordinate systems throughout mathematical physics. Performant, efficient computations of the VSH are essential to high-performance computing applications that utilize spectral analysis, including magnetohydrodynamics (MHD) simulations for geophysics and astrophysics. The open-source FORTVSH package provides a catalog of numerical routines for evaluating various VSH forms and related mathematical functions. This manuscript establishes the theoretical basis, addresses the computational need for efficient VSH solvers, and presents a comprehensive overview of the FORTVSH routines.

Figures

Figures reproduced from arXiv: 2608.08419 by the authors.

Figure 1

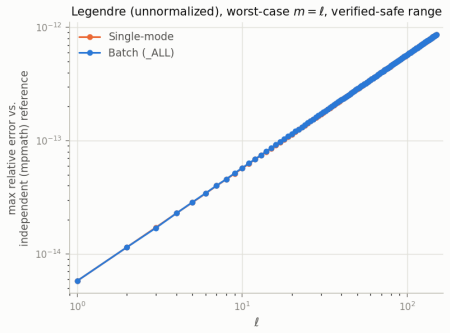

Figure 1. Maximum relative error measured separately for batch subroutines in blue (ASSOC_LEGENDRE_ALL) and single-mode functions in orange (ASSOC_LEGENDRE) for unnormalized Legendre function computations P ℓ ℓ , taken at the diagonal m = ℓ where cancellation error is the largest. Numerical error for single-mode and batch calculations determined through comparison to P m ℓ reference values computed in the Python mpmath librar… view at source ↗
Figure 2
Figure 2. Maximum absolute difference between batch _ALL subroutines and corresponding reference values computed in the Python mpmath library; (left to right) ASSOC_LEGENDRE_NORM, VSH_TOR, VSH_POL_UP, VSH_POL_DN. Errors at or below ∼10−15 reflect double-precision rounding. Mathematical identity tests: SSH orthonormality The orthonormality of the scalar spherical harmonics, Z Y m ℓ (θ,ϕ)Y m′∗ ℓ ′ (θ,ϕ)dΩ = δℓℓ′ δmm′ , (63) was… view at source ↗
Figure 3
Figure 3. Timing benchmarks for five fundamental FORTVSH routes, illustrating order-of-magnitude speedup of batch routines compared to single-mode routines. Mathematical identity tests: Poloidal-toroidal orthogonality. The bilinear dot product Y (+1) JM · Y (0) JM vanishes analytically at every (J,M,θ,ϕ) because Y (0) JM ∝ rˆ× ∇ωY M J is the image of Y (+1) JM ∝ ∇ωY M J under a 90◦ rotation in the tangent plane. The maximum o… view at source ↗
Figures from the paper (7 more)
Figure 4
Figure 4. Figure 4: Maximum relative deviation of the FORTVSH inner product calculation (blue) and the FORTVSH calculation of Geppert-Wiebicke coefficients (orange) cross-validated against closed-form analytic results. Left panel: f1 (θ,ϕ) from Eq. (66). Right panel: f2 (θ,ϕ) from Eq. (67…
Figure 5
Figure 5. Figure 5: Maximum absolute error per J1 + J2 combination based on selection rules and triangle inequality. Dotted line at 2.22 × 1016 indicates machine epsilon for double precision. The GWI function outputs are cross-validated against independent quadrature-based integra￾tion re…
Figure 6
Figure 6. Figure 6: Left: Poloidal magnetic dipole components Br (θ) and Bθ (θ) built in FORTVSH for the pure dipole synthesis analysis. Middle: Numerical error for Br (θ) and Bθ (θ) compared to analytic forms. Right: Illustration of spectral purity via calculation of component overlap wi…
Figure 7
Figure 7. Figure 7: Top row: Br(r) (left) and Bθ(r) (right) plotted in the sphere interior and exterior, highlight a continuous Br and discontinuous Bθ for the magnetostatic boundary matching analysis. Bottom row: absolute pointwise numerical error in Br(r) (left) and Bθ(r) compared to th…
Figure 8
Figure 8. Figure 8: Left: Results from Part A of the spectral decomposition analysis, showing precise calculations of supplied toroidal eigenmode amplitudes and no spectral contamination into other modes. Right: Spectral convergence results from Part B of the spectral decomposition analys…
Figure 9
Figure 9. Figure 9: 3D representation of the imposed toroidal magnetic field in Part B of the spectral decomposition analysis. Color scale corresponds to field magnitude, and pink arrows indicate local direction of the real magnetic field component. Quadrupolar structure is clearly identi…
Figure 10
Figure 10. Figure 10: 2D slices of both complex components of the total toroidal magnetic field from Part B of the spectral decomposition analysis, including the background quadrupole structure and the Gaussian bump. All angular field components vanish at the poles. tations. FORTVSH is des…
