Radio flares and X-ray hardening embedded in the long soft state of 4U 1543-475

T0 review · 3 major / 5 minor · reviewed 2026-08-16 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Two radio flares in the soft-state black hole binary 4U 1543-475 coincided with enhanced coronal X-ray emission and a roughly 3-4x drop in the reflection-to-disk flux ratio, which the authors read as a temporary outward retreat of the…

desk verdict Useful multi-wavelength study of soft-state radio flaring in 4U 1543-475; the qualitative link to coronal brightening is solid, but the reflection-fraction dip needs error bars and a model-dependence test before it can carry the inner-disk-truncation story. read the letter →

arxiv 2608.11774 v1 pith:NDL46JTR submitted 2026-08-12 astro-ph.HE

Zuobin Zhang , Rob Fender , Jiachen Jiang , Payaswini Saikia , David M. Russell , Andrew Hughes , Honghui Liu , Francesco Carotenuto
show 9 more authors
James F. Steiner Fraser J. Cowie John A. Tomsick Cosimo Bambi Yimin Huang Xian Zhang Wenfei Yu Yuexin Zhang Rittick Roy
This is my paper · ORCID
classification astro-ph.HE PACS 97.80.Jp95.85.Nv95.85.Bh
keywords 4U1543-475blackholeX-raybinaryradioflaresjetlaunchingaccretiondiskreflectionComptonizationsoftstatevariability
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper aims to show that episodic radio flares observed in the 2021 outburst of the black hole X-ray binary 4U 1543-475 were not isolated jet events but coincided with measurable changes in the inner accretion flow. During two MeerKAT 1.28 GHz flares embedded in the long, disk-dominated soft state, broad-band NuSTAR, NICER, and Insight-HXMT spectra show the Comptonized coronal flux rising sharply and the reflection-to-disk flux ratio dropping by a factor of roughly 3-4. The authors interpret the dip as a temporary outward retreat, or truncation, of the inner edge of the accretion disk, accompanied by spectral hardening and changes in X-ray variability. If this reading is correct, it provides a direct observational link between inner-disk geometry, coronal brightening, and jet launching in a soft state, a regime where jet production is still poorly understood; the paper is careful to note that the data do not establish which of these changes comes first.

What carries the argument

The argument is carried by the reflection-to-disk flux ratio $F_{\rm ref}/F_{\rm dbb}$, measured from a spectral model that combines a thermal disk component (diskbb), a Comptonized corona (nthcomp), and a relativistic reflection component (reflionx_bb plus relconv) for the broad iron line near 6.7 keV. In the returning-radiation picture, the fraction of disk thermal photons bent back onto the disk by strong gravity is tightly linked to the inner truncation radius, so a lower ratio is read as a larger inner disk radius. Because the directly fitted inner radius $R_{\rm in}$ is model-dependent (adding a corona-illuminated reflection component changes it substantially), the paper adopts the flux ratio as a more robust tracer of inner disk geometry.

What would settle it

A future outburst with daily-cadence radio and X-ray monitoring that caught a radio flare while $F_{\rm ref}/F_{\rm dbb}$ stayed flat, or that showed the flare starting several days before the ratio dipped, would break the claimed coupling. Alternatively, an independent measurement of the inner disk radius during a flare using a corona-illuminated reflection model rather than the returning-radiation model, and finding no outward movement while $F_{\rm ref}/F_{\rm dbb}$ drops, would show the geometric interpretation is not unique.

Watch

Extended reading notes

Core claim

The central discovery is that the two radio flares in 4U 1543-475, separated by roughly 22 days during the sub-Eddington disk-dominated phase, coincide with enhanced Comptonized X-ray emission and a significant decrease in the reflection-to-disk flux ratio $F_{\rm ref}/F_{\rm dbb}$ by a factor of about 3-4. Using a returning-radiation reflection model (reflionx_bb convolved with relconv), the authors interpret the lower reflection fraction as evidence that the inner disk radius moved outward during the flares, temporarily changing the geometry of the inner accretion flow. The same epochs show brief excursions toward a harder spectral state, and X-ray timing suggests a drop in fractional rms variability, although no consistent pattern is established across events. The data do not allow the causal sequence to be firmly established; the paper frames the correlated evolution as a coupled instability involving the disk, corona, and jet.

Load-bearing premise

The interpretation rests on the assumption that the reflected X-rays come mainly from the disk's own light bending back onto it, with black-hole spin and viewing angle fixed, so that a smaller reflection fraction uniquely means the inner disk edge has moved outward.

Editorial extensions

If this is right

  • If the reflection-fraction dips are read as inner-disk retreats, then jet launching in this source can happen when the disk edge moves outward by some tens of gravitational radii, even though the overall state remains soft.
  • The contemporaneous rise in Comptonized flux by up to two orders of magnitude indicates that the same inner-disk change can feed the corona, linking the two phenomena to a common trigger.
  • The optical light curves show a broad correlation with the reflection fraction at a lag of about one day, consistent with X-ray irradiation of the outer disk as the optical source.
  • The short-lived hardening excursions in the hardness-intensity diagram during the flares suggest that soft-state radio activity may be a distinct class of events, separate from canonical hard-to-soft transition ejections.
  • Future high-cadence radio monitoring (for example with AMI-LA or ATCA, as the paper suggests) is needed to determine the causal sequence connecting disk retreat, coronal brightening, and jet launch.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the $F_{\rm ref}/F_{\rm dbb}$ dip is a faithful proxy, the implied outward motion of the inner disk edge is a transient, refilling cycle on timescales of weeks; the model could be calibrated to produce a quantitative radius change for each flare.
  • The contrast with MAXI J1348-630, where the power-density-spectrum shape changes dramatically during similar flares, raises the possibility that soft-state radio flaring has at least two subtypes, one accompanied by strong timing changes and one not; a systematic survey across sources could test this.
  • A testable extension would be to search archival light curves of other disk-dominated black hole transients for similar correlated dips in reflection fraction and radio flares, predicting that the most radio-loud soft-state events show the largest $F_{\rm ref}/F_{\rm dbb}$ declines.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. This paper presents a multi-wavelength study of the black hole X-ray binary 4U 1543–475 during its 2021 outburst, combining MeerKAT radio monitoring with NICER, NuSTAR, and Insight-HXMT X-ray data. The authors identify two discrete radio flares embedded in the disk-dominated (soft) state and show, through broadband spectral fitting, that these flares coincide with enhanced Comptonized X-ray flux and with a decrease in the reflection-to-disk flux ratio F_ref/F_dbb by a factor of roughly 3–4. They interpret the ratio decrease as evidence for a transient outward retreat of the inner accretion disk and propose a coupled disk–corona–jet instability scenario, while explicitly noting that the causal sequence cannot be established. Additional results include optical photometry that broadly tracks the reflection fraction, a hardness–intensity diagram with short hardening excursions, and X-ray timing analysis showing low overall variability without dramatic power-spectrum shape changes.

Significance. If the central interpretation is robust, the paper provides one of the few well-observed examples of jet activity in a soft, disk-dominated X-ray binary state and connects it to inner-disk geometry changes. The study benefits from simultaneous high-quality X-ray coverage from three instruments, consistent behavior across independent datasets, and explicit checks of alternative spectral models (simplcutx and an additional reflionx_nth component). The authors are careful to acknowledge uncertainties in the causal sequence and in the inferred inner radius. However, the main geometric claim rests on the robustness of F_ref/F_dbb to model assumptions, and this robustness is not quantitatively demonstrated; the key figure lacks error bars and the most important epoch has parameters pegged at their allowed limits. These issues need to be addressed before the paper can fully support its central claim.

major comments (3)
  1. [Section 4.2] The claim that F_ref/F_dbb is a more robust tracer of the inner truncation radius than R_in is not supported by a quantitative comparison. The authors show that adding a corona-illuminated reflection component (reflionx_nth) changes the inferred inner radius substantially, yet they do not report how F_ref/F_dbb changes under the same two-component model. Given that the ratio is the load-bearing proxy for the paper's central claim, the authors should present the F_ref/F_dbb values (or their uncertainties) from the fits including reflionx_nth and demonstrate that the factor ~3–4 dip survives.
  2. [Figure 5 and Table A1] The key temporal plot of F_ref/F_dbb (Figure 5) is shown without error bars, and the deepest dip (Epoch 3) is obtained with several parameters fixed or pegged at their boundaries (q_in = 10 with +P, A_Fe = 10 with +P, R_br fixed at 80 Rg). This combination makes it difficult to assess whether the dip is a genuine spectral feature or an artifact of degeneracies among the disk, reflection, and coronal components. The authors should provide uncertainties on the plotted ratio (at least for the NuSTAR+NICER points) and show the fit results for Epoch 3 with the pegged parameters freed or with realistic priors.
  3. [Section 3.2] The paper states that "the reflection-fraction minima are not strictly coincident with the radio flares, and some occur after the flaring episodes." This admission is in tension with the central claim of a temporary inner-disk retreat accompanying the radio flares. The authors should quantify the offsets between the ratio dips and the radio peaks and discuss whether the temporal association is statistically significant, or soften the claim accordingly.
minor comments (5)
  1. [Section 3.1] The text says "relflionx_bb is a rest-frame disk reflection model"; the model name should likely be "reflionx_bb" (or the abbreviation should be defined consistently).
  2. [Section 4.1] The black hole mass is written as "9.4 M˙" which appears to be a typesetting error; it should be 9.4 M_sun.
  3. [Table A1] The q_out parameter for several epochs has "-P" or "+P" notations that are not explained in the table caption; please clarify what "P" refers to (pegged at lower/upper limit).
  4. [Section 4.7] There is a typo "suggetst" for "suggests".
  5. [Figure 6 caption] The shaded region overlays the reflection fraction on the optical light curves, but the scale/units of the shaded region are not defined; consider adding a brief explanation.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the key flux ratio is measured from spectral fits rather than defined by the model used to interpret it.

full rationale

The central result is an empirical spectral decomposition: diskbb, nthcomp, and relconv×reflionx_bb are jointly fitted to NICER, NuSTAR, and Insight-HXMT data, and the temporal behavior of the ratio F_ref/F_dbb is read off from the fitted component fluxes (Sec. 3.2, Fig. 5). Nothing in the paper defines F_ref/F_dbb as the inner disk radius by construction; the link is an interpretive one, explicitly grounded in a physical model ('Within the framework of the returning radiation model, the fraction of thermal photons returning to the disk by relativistic effects is tightly correlated with the inner truncation radius of the accretion disk (Dauser et al. 2022)'). The paper also tests alternative treatments, acknowledges that adding a corona-illuminated reflection component changes R_in substantially, and states that 'R_in ... is not uniquely constrained and remains dependent on the adopted spectral model,' which is why the ratio is adopted as a more robust tracer. That is a stated modeling choice, not a disguised input-output identity. Self-citations such as Zhang et al. (2026b) supply system parameters and prior ejecta measurements, but these are supported by external references (e.g., Orosz et al. 1998) and are not load-bearing for the flux-ratio measurement itself. The authors also explicitly disclaim causal certainty ('the available data do not allow us to establish a strict causal sequence'), and concerns about missing error bars in Fig. 5 or pegged parameters in Table A1 are statistical robustness issues rather than circularity. The derivation is therefore self-contained as an observational spectral analysis, with model dependence properly disclosed rather than hidden.

Assumptions & free parameters 5 free parameters · 4 assumptions · 0 invented entities

No new physical entities are introduced. The analysis rests on standard X-ray spectral models (diskbb, nthcomp, reflionx_bb, relconv) and standard data reduction. The main assumptions are the model choices for reflection geometry, fixed spin/inclination, and absorption, all drawn from prior literature but affecting the inferred reflection fraction.

free parameters (5)
  • disk blackbody temperature normalization (diskbb norm) = log F_dbb from -7.073 to -7.246 erg/cm2/s across epochs
    Fitted to the thermal disk continuum in each epoch; the central reflection ratio depends on this flux.
  • reflection flux normalization (reflionx_bb norm) = log F_ref from -7.329 to -7.96 erg/cm2/s across epochs
    Fitted to the iron line and reflection continuum; directly enters F_ref/F_dbb.
  • coronal flux normalization (nthcomp norm) = log F_nth from -8.206 to -9.98 erg/cm2/s across epochs
    Fitted to the Comptonized continuum; used to trace coronal activity.
  • inner emissivity index q_in = 3.6 to 10 (some pegged at 10) across epochs
    Fitted free parameter in relconv affecting the reflection profile shape; poorly constrained in several epochs.
  • iron abundance of reflector (reflionx_bb A_Fe) = 7.5 to 10 (pegged at 10 in some epochs)
    Fitted and often pegged at the upper limit; affects the reflection strength.
assumptions (4)
  • domain assumption The reflionx_bb returning-radiation reflection model with relconv provides a valid description of the disk reflection in this source.
    Invoked in Section 3.1 to interpret the broad iron line and to infer reflection fraction and inner radius; the paper shows in Section 4.2 that this model choice affects R_in.
  • domain assumption Spin is fixed at a*=0.998 and inclination at 20 degrees.
    Section 3.1 fixes these values to reduce degeneracy, citing prior constraints; R_in in ISCO units and the reflection model depend on these choices.
  • domain assumption The Galactic absorption column density is fixed at 0.4e22 cm^-2 for the continuum extrapolation and at 4e22 cm^-2 for some NICER/HXMT fits.
    Section 3.1 and 3.2 fix N_H following Park et al. (2004); the text inconsistently states 0.4e22 and 4e22 cm^-2, but the spectral continuum depends on this choice.
  • domain assumption The radio emission at the core position is not contaminated by the resolved ejecta E1/E2.
    Section 2.1 argues the ~5 arcsec resolution rules out significant contamination, but the first flare could be marginally extended; this underpins the core-flare identification.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Radio flares and X-ray hardening embedded in the long soft state of 4U 1543-475." pith.science (2026). https://pith.science/paper/NDL46JTR

@misc{pith2026260811774,
  author       = {Pith},
  title        = {Pith review of: Radio flares and X-ray hardening embedded in the long soft state of 4U 1543-475},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/NDL46JTR}},
  note         = {Machine review of arXiv:2608.11774}
}
read the original abstract

We present a comprehensive multi-wavelength study of the black hole X-ray binary 4U 1543-475 during its 2021 outburst, focusing on radio flaring episodes that are commonly interpreted as signatures of episodic jet production and are embedded within states when the X-ray emission was dominated by an accretion disk component. The radio monitoring reveals at least two discrete flares that coincide with periods of enhanced Comptonized X-ray emission. Broadband spectral modelling shows a significant decrease in the reflection-to-disk flux ratio (by a factor of ~3-4) during these episodes, consistent with a temporary change in the geometry of the inner accretion flow, although the data do not allow the causal sequence to be firmly established. Optical photometry exhibits variability that broadly tracks the reflection fraction, consistent with changes in the illuminating component. The accompanying spectral hardening indicates that the radio flares were associated with short-lived excursions toward a "harder" state, departing from the soft state. X-ray timing analysis suggests that the radio flares may be associated with changes in the fractional rms variability; however, no consistent or unified pattern can be firmly established across different events. These results provide a multi-wavelength observational example of radio flaring activity in a black hole binary and highlight the complex interplay between accretion flow geometry, coronal emission, and jet-related phenomena.

Figures

Figures reproduced from arXiv: 2608.11774 by the authors.

Figure 1

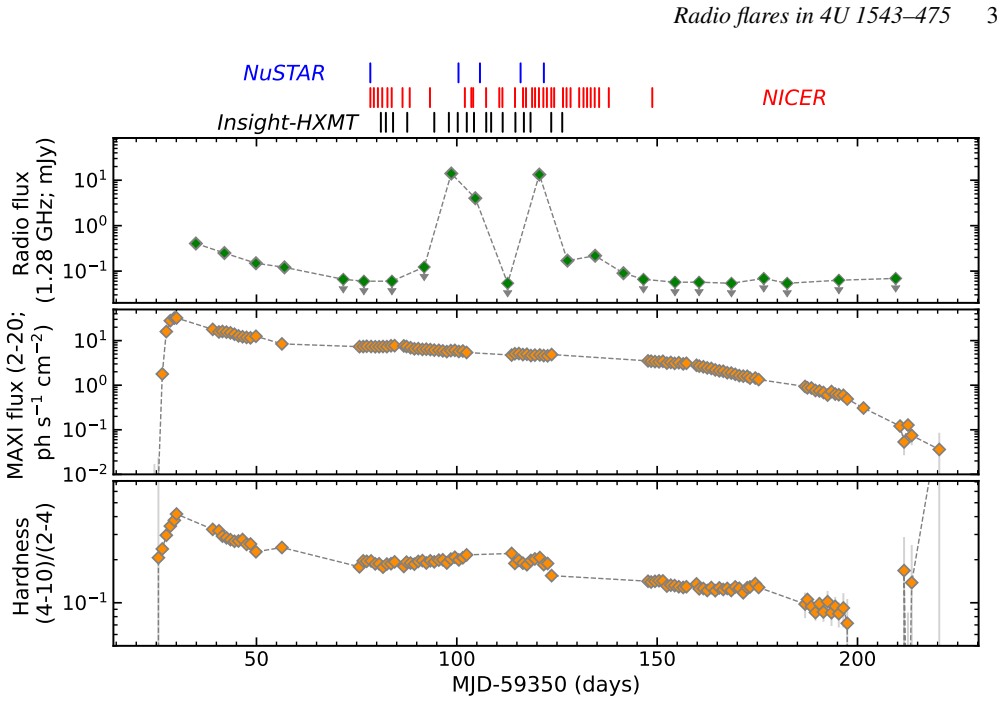

Figure 1. multi-wavelength light curves of 4U 1543–475 during the 2021–2022 outburst. Top panel: 1.28 GHz radio flux density measured with MeerKAT. Error bars represent the 1 𝜎 uncertainties, which are smaller than the symbol size and therefore not visible. Non-detections are shown as 3 𝜎 upper limits with downward arrows. Middle panel: MAXI 2–20 keV X-ray flux with 1 𝜎 confidence interval error bars. Bottom panel: MAXI hardn… view at source ↗
Figure 2
Figure 2. Residuals of the NuSTAR spectra obtained by extending the thermal + Comptonization model to the iron-line energy range. The two colors rep￾resent data from FPMA and FPMB, respectively. A broad emission feature peaking at ∼6.7 keV is evident in all epochs, showing similar profiles across observations but with noticeable differences in width and strength. These variations likely reflect structural changes in the inner… view at source ↗
Figure 3
Figure 3. Broadband X-ray spectra and best-fitting models obtained from the five simultaneous NuSTAR and NICER observations, corresponding to the vertical blue ticks in [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (4 more)
Figure 4
Figure 4. Figure 4: Evolution of the high-energy X-ray and radio fluxes. From top to bottom: Comptonized flux (log 𝐹nth; erg cm−2 s −1 ) derived from Insight￾HXMT (orange) and simultaneous NuSTAR+NICER (blue) observations, the Insight-HXMT/HE (25–80 keV) count rate, the Swift/BAT (15–50 k…
Figure 6
Figure 6. Figure 6: The B- (blue), V- (red), R- (green), and i’-band (purple) light curves obtained with LCO. The shaded orange region represents the evolution of the reflection-to-disk flux ratio derived fromNICER spectra, which traces changes in the inner disk structure. flow, although …
Figure 7
Figure 7. Figure 7: Energy-resolved cross power density spectra from the NuSTAR Epoch 3 observation, extracted in the 3–10 keV (disk-dominated; red) and 10–79 keV (corona-dominated; black) energy bands. Both spectra exhibit a flat, low-amplitude variability characteristic of the canonical…
Figure 9
Figure 9. Figure 9: Hardness–intensity diagram of the source obtained from the NICER observations. The hardness is defined as the ratio between the 6–10 keV and 0.5–6 keV count rates, while the intensity corresponds to the 0.5–10 keV count rate. Open (unfilled) diamonds correspond to obse…
