The "Moir\'e Capacitor Effect" and Stabilization of Fractional Chern Insulators in Rhombohedral Graphene Superlattices
T0 review · 3 major / 3 minor · reviewed 2026-08-16 · deepseek-v4-flash
Pith's one-line read Valence charge electrostatically imprinted by the hBN moiré lattice supplies the missing ~10 meV potential that stabilizes fractional Chern insulators in rhombohedral graphene.
desk verdict The most concrete mechanism yet for why hBN alignment stabilizes the ν=2/3 FCI in rhombohedral graphene, with a careful analytic derivation and a genuine monolayer QTM check—but the quantitative FCI claim is conditional on V_1 sitting at the high end of the experimentally inferred range and on a small-system ED result. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The central object is the 'moiré capacitor effect': a scalar potential $V_{\mathrm{val}}(r)$ imprinted on the conduction bands by the moiré-modulated charge density of the filled valence bands, which plays the role of the static hBN moiré potential that a purely single-particle treatment finds missing. Its amplitude is derived in first-order perturbation theory in the bare hBN coupling $V_1$ relative to the neutrality gap $(L-1)V$: the occupied valence projector is corrected by virtual valence-to-conduction transitions, and the induced density $\rho^{\mathrm{val}}_{-g_1,0}$ is fed through the layer-resolved Coulomb interaction onto the top layer where the conduction electrons reside. The derivation shows this Hartree term is convergent in the momentum cutoff (unlike the Fock term, which is absorbed into renormalized hoppings), and that its phase $\psi_{\mathrm{val}} \approx 4\pi/3 + 0.12$ sits close to the $C_6$-symmetric value fixed by the graphene wavefunction overlap. The paper then shows this one potential does both jobs a parent band needs: it electrostatically locks the honeycomb charge density of the $C=1$ state to the valence background, gapping the Goldstone phonons that destabilize the translation-broken crystal, and it opens splittings at the moiré Brillouin-zone corners whose size controls the effective flatness $W_{2/3}$. At the corners the band physics is captured analytically by a tripod model whose three $C_3$-irrep energies depend on $\psi_{\mathrm{val}} - \arg M$, and which shows the non-interacting lowest band has $C=0$ or $C=-1$ — never the interaction-induced $C=+1$ of the parent state.
What would settle it
Measure the moiré-periodic electrostatic potential on the conduction side of aligned pentalayer rhombohedral graphene at $\theta \approx 0.77^\circ$ with a spatially resolved local probe: the mechanism predicts an imprinted potential of ~10 meV amplitude with phase $4\pi/3 + 0.12$ on the top layer, whereas the bare hBN hybridization acting there is only ~2 meV, so imaging a top-layer modulation of a few meV or less would count against the effect. Independently, tighten $V_1$ from de Haas–van Alphen or transport fits: a value below ~10 meV puts $V_{\mathrm{val}}$ under the ~4 meV exact-diagonalization threshold and predicts that the $\nu=2/3$ FCI should not occur at the displacement fields currently used.
Extended reading notes
Core claim
The paper establishes that the ~21 meV bare moiré hybridization from an aligned hBN layer, which acts only on the bottom graphene layer, is nearly invisible to the conduction electrons because those are polarized to the opposite side of the stack. Its decisive effect arrives indirectly: the valence bands respond strongly to the bare moiré potential, and their moiré-modulated charge density generates a Hartree term (Eq. 3) that acts on the conduction bands as $V_{\mathrm{val}}(r) = 2V_{\mathrm{val}} \sum_j \cos(\mathbf{g}_j \cdot r + \psi_{\mathrm{val}})$ with $V_{\mathrm{val}} \approx 9.5$ meV and $\psi_{\mathrm{val}} \approx 4\pi/3 + 0.12$. In Hartree–Fock this potential turns the $\nu=1$ interaction-induced $C=1$ insulator into a locally stable state whose time-dependent Hartree–Fock collective modes are gapped ($\Delta_{\mathrm{TDHF}} = 6$ meV); at $V_{\mathrm{val}} = 0$ the same state has a phonon branch with complex frequencies and is unstable. Multi-band exact diagonalization at $\nu=2/3$ on 21-site systems, truncating the Hilbert space by orbital energy and particle number in the upper bands, converges to a three-fold-degenerate ground state with FCI entanglement-spectrum counting and a gap of order 0.1–0.3 meV (~1 K), while without band mixing the same parameters give a charge density wave and without the potential no converged FCI is obtained. The paper distills this into a parent-state principle: doping a $C=1$ band produces an FCI only when the parent state is locally stable ($\Delta_{\mathrm{TDHF}} \ge 0$) and its interaction-renormalized band at filling $2/3$ is flat ($W_{2/3} \lesssim 10$ meV), and the region of the phase diagram satisfying both criteria matches where the multi-band ED finds the FCI.
Load-bearing premise
The load-bearing input is the bare graphene–hBN moiré coupling $V_1$: the induced ~10 meV potential is computed in first-order perturbation theory using the two-center value $V_1 = 21$ meV, and if the true coupling sits at the lower end of the 4–9 meV range inferred from de Haas–van Alphen measurements, the induced potential falls below the ~4 meV threshold at which the exact-diagonalization FCI disappears.
Editorial extensions
If this is right
- In the $\theta = 0.77^\circ$ pentalayer device the induced potential is quantitatively required: at $V_{\mathrm{val}} = 0$ the $C=1$ state has negative or complex time-dependent Hartree–Fock eigenvalues at many momenta, while at $V_{\mathrm{val}} = 8$ meV the neutral gap is $\Delta_{\mathrm{TDHF}} = 6$ meV and the parent state is locally stable.
- The $\nu=2/3$ FCI appears only with the moiré capacitor effect: at the operating parameters, single-band (no band-mixing) exact diagonalization yields a charge density wave, multi-band ED without the potential does not converge to a gapped FCI, and the converged 21-site many-body gap is in the 0.1–0.3 meV range, corresponding to a temperature of order 1 K.
- The two generalized criteria — local stability ($\Delta_{\mathrm{TDHF}} \ge 0$) and effective flatness at filling $2/3$ ($W_{2/3} \lesssim 10$ meV, roughly half the interaction scale) — confine the FCI to a narrow window in the ($V$, $V_{\mathrm{val}}$) phase diagram, and this window shifts coherently with other parameters ($V_{tb}$, Fermi velocity, dielectric constant) in a way that tracks the ED
- The same formula extends beyond the pentalayer: it reproduces the 55–63 meV sub-moiré potential imaged in monolayer graphene/hBN and predicts a nearly triangular imprinted potential with a hexagonal top-layer charge distribution in trilayer rhombohedral graphene/hBN, consistent with STM observations there.
Reading between the lines
- A discriminating device experiment would place hBN alignment on only one side of the stack: the mechanism predicts the FCI tracks the valence-side alignment that generates the electrostatic imprint, not the conduction-side alignment that barely couples to the active electrons — a prediction the paper does not spell out but that follows directly from its logic.
- Because $W_{2/3}$ is defined at a specific filling, the same parent-state criteria predict a filling-dependent optimal displacement field; mapping the FCI dome across the Jain sequence ($\nu = 2/3, 3/5, \ldots$) would test whether the interaction-renormalized bandwidth, not the bare bandwidth, controls stability.
- The mechanism suggests a general rule for 'missing moiré potentials': when the active band is polarized away from the substrate, the substrate's moiré acts indirectly through the charge background of the inert valence bands, so the effective moiré strength seen by active electrons is a Coulomb-amplified version of the bare hybridization — a rule that, if general, transfers the effect to other mult
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes a mechanism, the 'moiré capacitor effect,' by which the moiré-modulated charge density of filled valence bands in rhombohedral graphene aligned with hBN is electrostatically imprinted onto the conduction bands. From first-order perturbation theory in the bare hBN coupling V_1, the authors derive an effective scalar potential V_val(r) with amplitude V_val ≈ 9.5 meV and phase ψ_val ≈ 4π/3 + 0.12. They show that this potential substantially splits the conduction-band degeneracies at the mBZ corners and, at ν = 1, stabilizes an interaction-induced C = 1 Chern insulator whose TDHF mode spectrum is gapped. They introduce two parent-state criteria—an effective bandwidth W_{2/3} and a non-negative TDHF gap—and use multi-band exact diagonalization on a 21-site cluster with controlled particle and orbital truncations to argue that a ν = 2/3 fractional Chern insulator appears only when V_val ≳ 4 meV. The paper further presents an analytical monolayer-graphene version of the mechanism and shows that it reproduces the 55–63 meV potential amplitude measured by quantum twisting microscopy.
Significance. If correct, the paper supplies a concrete, analytically tractable origin for the moiré potential that experiments have shown to be necessary for FCIs in rhombohedral graphene/hBN. The derivation is careful and internally consistent, and the monolayer QTM benchmark is a genuine independent falsifiable check rather than a fit to the FCI. The multi-band ED study is also technically substantial: it demonstrates that the one-band FCI picture collapses with band mixing and that the inclusion of the induced potential restores a many-body gap, with PES counting supporting the FCI interpretation. The two main risks are the sensitivity of V_val to the poorly constrained bare coupling V_1 and the absence of finite-size scaling for the central FCI claim. These risks affect the paper's strongest causal statement—that the moiré capacitor effect explains the experimentally observed ν = 2/3 FCI—so the result, while plausible, is not yet established at the level claimed.
major comments (3)

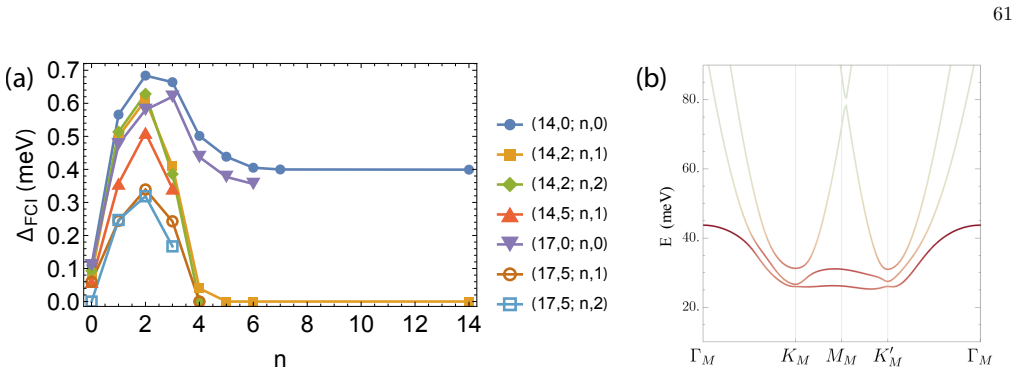

- [Eq. (5), Eq. (A54), footnote [106], Fig. 3(e), Fig. 34(a)] The central quantitative claim that V_val ≈ 9.5 meV is linear in the bare hBN coupling V_1 through Eq. (A54): V_val ≈ 9.5 meV × (V_1/21 meV). The paper's own footnote [106] cites de Haas-van Alphen fits giving V_1 ∈ (4,9) meV, which implies V_val ≈ 1.8–4.1 meV. Yet Fig. 3(e) shows multi-band ED FCIs only for V_val ≳ 4 meV, and Fig. 34(a) shows that at V_val = 4 meV the FCI collapses once the third band is populated (n_3 ≥ 1). Thus the mechanism operates in the experimental regime only if the true V_1 in relaxed R5G/hBN is closer to the two-center value 21 meV than to the lower end of the dHvA range. Because the abstract attributes the experimental ν = 2/3 FCI to this mechanism, the paper should explicitly state the V_val range implied by the quoted V_1 uncertainty, discuss why the dHvA-derived V_1 (which is for Bernal bilayer, not R5G) may be inapplicable, and either demonstrate FCI stability at V_val ≈ 2–4 meV with converged n_3 or qualify the experimental claim.

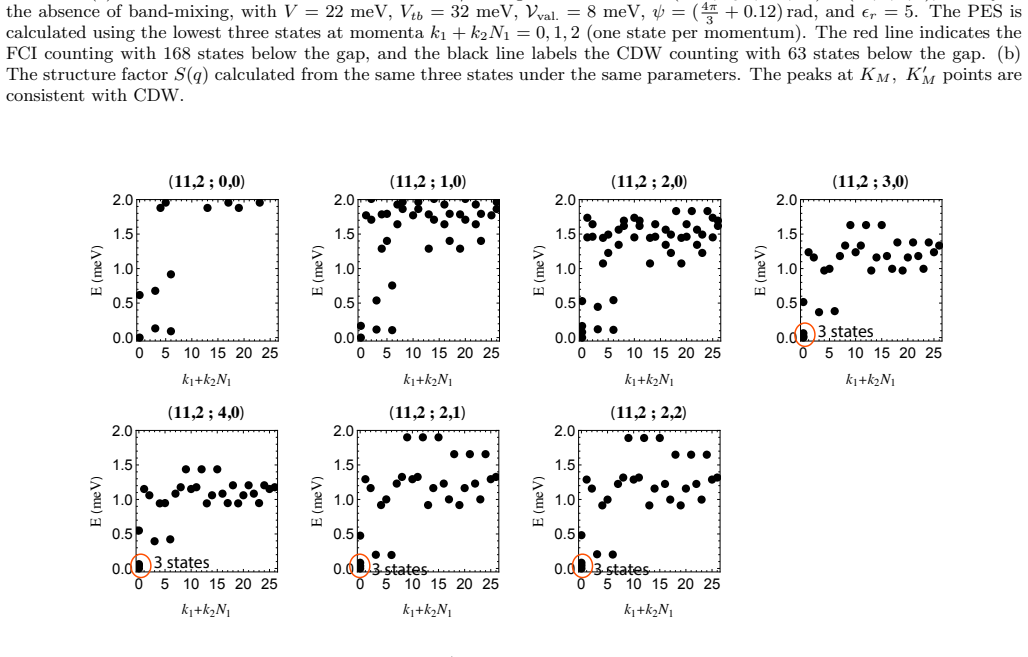

- [Fig. 4(c), App. C, Figs. 30 and 34] The FCI identification rests on exact diagonalization of a single 21-site (3×7) cluster. The convergence shown in Fig. 4(c) is in the truncation parameters (orbital cutoffs and particle numbers n_2, n_3), not in system size. The largest many-body gap is approximately 0.3 meV, which is comparable to the 0.18 meV finite-size splitting within the FCI manifold and to the ~1 K energy scale quoted in the text. The 9×3 cluster in App. C is a helpful cross-check but only admits more limited truncations. A finite-size study on additional clusters (e.g., 27 or 36 sites, or DMRG on cylinders) or a quantitative finite-size extrapolation is needed to support the claim that the multi-band FCI survives the thermodynamic limit rather than being a finite-size artifact of the 21-site geometry.
- [Eq. (B11), Fig. 17, Fig. 3(d,e)] The parent-state criteria W_{2/3} and Δ_TDHF are physically motivated and are checked against ED rather than fitted, which is a strength. However, the paper's language that these criteria 'predict where multi-band FCIs can occur' is stronger than what Fig. 3(d,e) shows: the green W_{2/3} boundary encloses substantial regions with no FCI, and the blue Δ_TDHF boundary likewise does not sharply delimit the FCI phase. The authors should present these quantities as heuristic indicators, and should state the observed false-positive rate, or otherwise demonstrate that the overlap between the criteria and the ED FCI region is statistically meaningful.
minor comments (3)
- [Eq. (8) versus Eq. (5)] The monolayer benchmark uses ϵ⊥ = 4.6 and d = 1 nm, while the R5G estimate uses ϵ⊥ = 3 and d = 0.33 nm. Please justify the different dielectric and thickness choices and state how V_val in Eq. (5) depends on these values, since they directly affect the amplitude entering the ED.

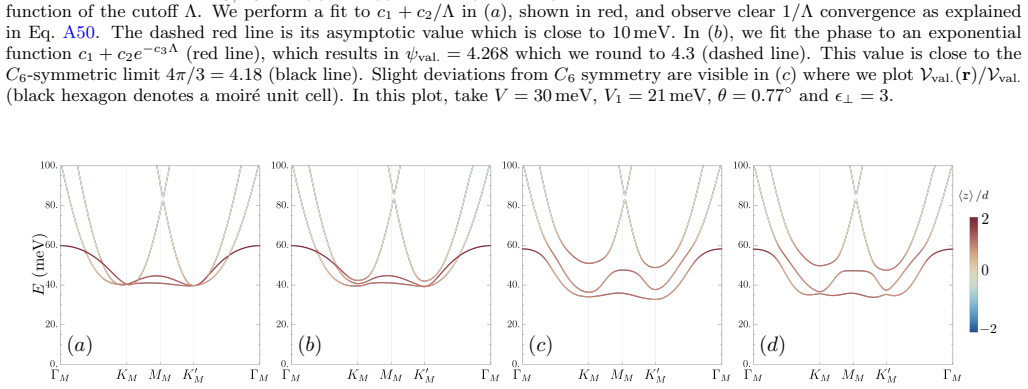

- [Fig. 1(e) and Fig. 10(c)] The main text quotes V_val ≈ 9.5 meV from Eq. (4), while Fig. 1(e) and Fig. 10(c) appear to use V_val = 12 meV, the order-of-magnitude estimate from Eq. (5). Please state explicitly which amplitude is used in each figure and in the ED calculations, to avoid ambiguity.
- [App. A.6, Eq. (A50)] The proof of convergence of ρ_val relies on the vanishing of the O(1/q) term in Eq. (A50). The parity argument is only sketched; a few lines making the angular integration explicit would make the claim easier to verify.
Circularity Check
No material circularity: the moiré capacitor potential is derived from independent inputs and benchmarked, and the FCI stabilization is tested by ED over a parameter range rather than fitted.
full rationale
The central new quantity V_val is not an adjustable parameter fitted to the FCI. It is defined by Eq. (3) as the Coulomb potential of the valence charge modulation and computed in first-order perturbation theory from the bare moiré coupling V1 and the displacement-field gap via Eqs. (4) and (A54); the quoted numbers (9.5 meV, psi_val ~ 4pi/3 + 0.12) follow from V1 = 21 meV, V = 30 meV, and epsilon_perp = 3, not from any ED ground state. The monolayer QTM benchmark Eq. (8) checks the same perturbation expression against an independent 55-63 meV measurement, so the derivation is externally anchored. In the many-body part, V_val is scanned as a control parameter (Fig. 3a-e; Figs. 15-16); the ED FCI appears only at V_val >~ 4 meV, is maximal near 7 meV, and the paper's fiducial 8 meV lies inside the independently derived range (9.5 meV at V = 30 meV; 10.2 meV at V = 20 meV). The parent-state criteria W_2/3 and Delta_TDHF are defined from the HF/TDHF data and then tested against ED rather than used to force the ED spectrum. Self-citations to Refs. [1,103] supply the multiband ED truncation method and the earlier null result without moiré; the present paper reproduces the null result at V_val = 0 (one-band ED gives CDW, and multi-band ED shows no FCI), so the load-bearing comparison is in the paper itself. The quoted experimental spread in V1 (4-9 meV from dHvA) is a parameter-uncertainty and correctness risk, not a circular reduction of the derivation.
Assumptions & free parameters
free parameters (7)
- V (effective interlayer potential) =
22 meV in main ED; 30-40 meV from screening
- V_val (moiré capacitor amplitude) =
8 meV in main ED; derived ~9.5 meV
- ψ_val (potential phase) =
4π/3 + 0.12 rad
- V_tb (uniform hBN potential) =
32 meV
- ε_r (relative permittivity) =
5
- d_sc (gate distance) =
10 nm
- V_1, ψ (bare moiré coupling) =
21 meV, 16.55°
assumptions (4)
- domain assumption Effective hoppings from transport fits (v_F=660 meV nm, etc.) capture the cutoff-dependent Fock renormalization of the valence sea.
- domain assumption The neutrality gap (L-1)V ≈ 100 meV justifies first-order perturbation theory and freezing the valence sea.
- domain assumption A 2D gate-screened interaction approximates the 3D Coulomb interaction for the top-layer-polarized active bands.
- ad hoc to paper Multi-band ED with orbital and particle truncations on 21 sites converges to the thermodynamic FCI.
Cite this review
Pith. "Pith review of The "Moir\'e Capacitor Effect" and Stabilization of Fractional Chern Insulators in Rhombohedral Graphene Superlattices." pith.science (2026). https://pith.science/paper/3RKA4FJZ
@misc{pith2026260812452,
author = {Pith},
title = {Pith review of: The "Moir\'e Capacitor Effect" and Stabilization of Fractional Chern Insulators in Rhombohedral Graphene Superlattices},
year = {2026},
howpublished = {\url{https://pith.science/paper/3RKA4FJZ}},
note = {Machine review of arXiv:2608.12452}
}
abstract
While the necessity of a moir\'e potential for fractional Chern insulators (FCIs) in rhombohedral graphene-hBN superlattices, first predicted in Ref. 1, is now grounded in experiments, a theory of its origin and importance remains at large. We present a mechanism---the moir\'e capacitor effect---that enhances the moir\'e potential by electrostatically imprinting the valence charge density onto the conduction bands. We derive the analytical form of this term and reveal its crucial role in stabilizing a parent state with Chern number $C=1$ at filling $\nu=1$. We propose a parent state theory which posits that stability of the Chern insulator and flatness of its hole excitations are necessary for obtaining FCIs upon doping. We then perform multi-band exact diagonalization calculations to confirm the emergence of FCIs at $\nu = 2/3$ in the presence of the moir\'e capacitor effect. Our FCI state is stabilized by inter-band fluctuations, unlike in the moire-free case which collapses with band-mixing. We provide the first consistent theory for this state in aligned samples and explain its absence in unaligned ones.
Figures
Figures from the paper (31 more)
Reference graph
Works this paper leans on
-
[1]
A that will be studied using HF and TDHF
Methods We first recall the interacting conduction band Hamiltonian derived in App. A that will be studied using HF and TDHF. The effective single-particle modelH eff. 0 is given by Eq. A89, which is diagonalized to obtain moir´ e band energies ˜En,η(k) and moir´ e Bloch functions ˜Uη Glσ,n(k). In this appendix, we use tildes to distinguish quantities com...
-
[2]
Results a. Discussion of criteria for candidateν= 2/3FCIs In this section, we discuss criteria for identifying promising parameter regions forν= 2/3 FCIs in RLG/hBN, based on HF and TDHF calculations. We first consider the celebrated example of theν= 2/3 fractional quantum Hall (FQH) state in spinless Landau levels. The ‘conventional wisdom’ for realizing...
-
[3]
Non-interacting bandwidth: The bandwidth of the lowest non-interacting conduction band ofH con. sp. is the simplest definition, but suffers from several severe drawbacks. First, the lowest non-interacting conduction band usually has a Chern numberC̸= 1 (see App. A 8) that disagrees with the interacting Chern numberC= 1 at ν= 1, disqualifying it from servi...
-
[4]
We first motivate the construction of W2/3
Effective bandwidthW 2/3: We introduce the effective bandwidthW 2/3, which is designed to correct for the overestimate of interaction corrections in theν= 1 HF bandstructure. We first motivate the construction of W2/3. [Again, we re-iterate that the stable FCI in multiband calculations involves finite occupation of higher HF bands, so the following discus...
-
[6]
This provides a parent Chern band for the FQH state at fractional filling
Existence of parent Chern band: The ground state at the nearest integer fillingν= 1 basically consists of fully occupying the lowest Landau level, which yields a Chern insulator withC= 1. This provides a parent Chern band for the FQH state at fractional filling. Importantly, there is no competingC= 0 state that undermines the global stability of theC= 1 p...
-
[7]
Excitation gap of parent Chern band: Excitations above the lowest Landau level are penalized by the cyclotron gapℏω c. This ensures that the filled Landau level is not prone to local instabilities, and furthermore limits the amount of band-mixing expected in theν= 2/3 FQH state. Actually, the relevant gap is the neutral collective mode gap, which is sligh...
-
[8]
Effective Hamiltonian and Single-Particle Phase Diagram We now summarize the results of our discussion in App. A 2. We have shown that the valence bands of RLG/hBN can be integrated out when the single-particle neutrality gap is larger than the interaction and moir´ e potential strength, yielding two effects: (1) the moir´ e-less Fock contribution is acco...
-
[9]
Effective flatness of parent Chern band: The lowest Landau level is exactly flat whether it is empty or fully occupied. This facilitates the stabilization of strongly-correlated FQH states (which involve appreciable occupa- tion over the entire Chern band) and staves off more conventional phases such as Fermi liquids that are favored by strong kinetic dis...
Show all 15 references
-
[10]
This would seem to preclude the possibility of an FCI given the ‘conventional wisdom’
Existence of parent Chern band: The lowest conduction band of non-interacting RLG/hBN is typically not a Chern band with the appropriate Chern number, regardless of whether the moir´ e capacitor effect is incorporated. This would seem to preclude the possibility of an FCI give...
-
[11]
45 In the HF band structure of RLG/hBN atν= 1, there is a finite HF gap ∆ HF above the parent Chern band, suggesting some level of protection against inter-band mixing effects
Excitation gap of parent Chern band: While excitations above the lowest Landau level are suppressed by the large single-particle cyclotron gap, the situation for the parent Chern band RLG/hBN is markedly different. 45 In the HF band structure of RLG/hBN atν= 1, there is a fini...
-
[12]
B 1 a, the bandwidth in an strongly-interacting system is not uniquely defined
Effective flatness of parent Chern band: As explained in App. B 1 a, the bandwidth in an strongly-interacting system is not uniquely defined. For example, the lowest non-interacting conduction band and the lowest HF band atν= 1 can have very different dispersions for RLG/hBN. ...
-
[13]
Construction and truncation of the Multi-Band ED Hilbert Space We perform three-band ED computations on the HamiltonianH con. sp. +H con. int. (see App. B) and include the lowest 3 bands in HF basis to capture the effect of band-mixing. The momentum mesh for ED is chosen as fo...
-
[14]
= 8 meV, ψval
ED Spectra at fillingν= 1 We first examine the robustness of the parent state at fillingν= 1 withV= 22 meV,V tb = 32 meV,V val. = 8 meV, ψval. = ( 4π 3 + 0.12) rad and interaction parametersϵ r = 5 andd sc = 10 nm. The HF calculation in Fig. 2 shows the lowest HF band hasC= 1 ...
-
[15]
27 at various truncation parameters
ED Spectra at fillingν= 2/3 Next we show the ED energy spectrum atν= 2/3 in the same system in Fig. 27 at various truncation parameters. First, for these parameters, then 2,n 3 = 0 truncation (1-band ED) shows 6 low-energy states with no clear gap. When n2 = 1,...,4, we see a ...
-
[16]
Phase Diagram Having established the emergence of FCI for specific parameters, we further examine the dependence of the FCI energy gap and PES gap with different parameters. In Fig. 31 and Fig. 32 we calculate the ED phase diagram in the 3×7 system atν= 2/3 with truncation (14...
