arxiv: 2605.14148 · v1 · pith:34ON52V2new · submitted 2026-05-13 · ❄️ cond-mat.mes-hall · quant-ph

Operator ordering as an emergent geometric background in Dirac systems with spatially varying mass

C. A. S. Almeida This is my paper

Pith reviewed 2026-05-15 01:47 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall quant-ph

keywords Dirac operatoroperator orderingspatially varying massHermitian Hamiltonianprobability currentspectral shiftmass inversion

0 comments

The pith

Consistent Hermitian ordering of the Dirac operator with spatially varying mass adds a logarithmic-gradient term that shifts discrete spectra in a mode-dependent way.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

In relativistic Dirac systems the requirement that the Hamiltonian remain Hermitian while conserving probability current fixes a unique operator ordering, unlike the continuous families of choices allowed in the nonrelativistic limit. This ordering produces an extra term proportional to the spatial derivative of the mass profile. The term modifies the effective kinetic operator and therefore deforms the quantization condition that determines the allowed energies. In compact geometries the deformation yields an explicit, analytic, second-order shift in each mode energy; the shift grows large when the mass profile passes through zero.

Core claim

The consistent relativistic ordering of the Dirac operator, fixed by probability-current conservation, generates an additional logarithmic-gradient term that modifies the effective kinetic operator and induces a universal deformation of the spectral quantization condition, resulting in observable mode-dependent second-order spectral shifts that become strongly enhanced near the mass-inversion threshold.

What carries the argument

The unique Hermitian ordering of the Dirac Hamiltonian with position-dependent mass, enforced by conservation of the probability current, which inserts a term proportional to the logarithmic gradient of the mass into the kinetic operator.

If this is right

Discrete spectra acquire calculable, mode-dependent corrections in any finite geometry.
The corrections are amplified when the mass changes sign inside the domain.
The effective kinetic operator receives a universal additive deformation independent of the specific mass profile shape.
Scattering and bound-state properties in inhomogeneous scalar backgrounds are altered at second order.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The ordering term may be reinterpreted as an emergent geometric connection induced by the mass inhomogeneity.
Analogous ordering effects could appear in other first-order wave equations with variable coefficients.
Condensed-matter realizations with tunable mass profiles offer a direct experimental test of the predicted shifts.

Load-bearing premise

Probability-current conservation is the only admissible requirement that uniquely fixes the operator ordering for the relativistic Dirac case.

What would settle it

An explicit calculation or measurement of the discrete spectrum in a compact Dirac system with a controlled, sign-changing mass profile that shows no mode-dependent second-order shifts.

Figures

Figures reproduced from arXiv: 2605.14148 by C. A. S. Almeida.

read the original abstract

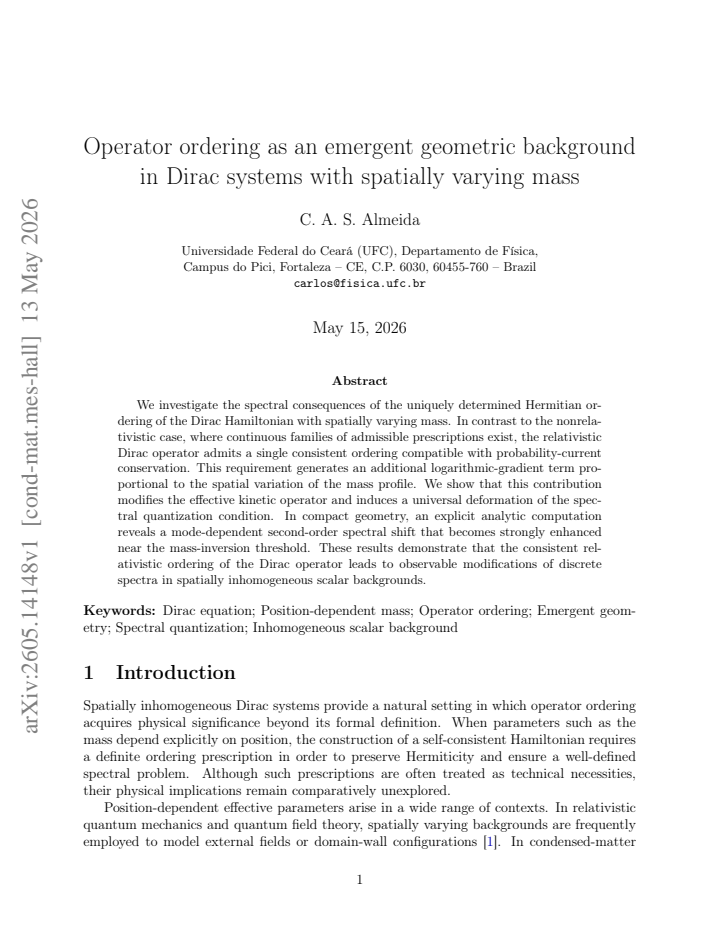

We investigate the spectral consequences of the uniquely determined Hermitian ordering of the Dirac Hamiltonian with spatially varying mass. In contrast to the nonrelativistic case, where continuous families of admissible prescriptions exist, the relativistic Dirac operator admits a single consistent ordering compatible with probability-current conservation. This requirement generates an additional logarithmic-gradient term proportional to the spatial variation of the mass profile. We show that this contribution modifies the effective kinetic operator and induces a universal deformation of the spectral quantization condition. In compact geometry, an explicit analytic computation reveals a mode-dependent second-order spectral shift that becomes strongly enhanced near the mass-inversion threshold. These results demonstrate that the consistent relativistic ordering of the Dirac operator leads to observable modifications of discrete spectra in spatially inhomogeneous scalar backgrounds.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper claims that probability-current conservation fixes a unique Hermitian ordering for the Dirac operator with varying mass, adding a log-gradient term that shifts discrete spectra in a mode-dependent way.

read the letter

The central claim is that the relativistic Dirac case is stricter than the non-relativistic one: current conservation allows only one ordering, which forces an extra term proportional to the gradient of log m(x). This term deforms the effective kinetic operator and produces a second-order spectral shift that grows near mass inversion. They demonstrate the shift with an explicit analytic calculation in compact geometry. That calculation is the concrete part worth looking at; it gives a quantifiable correction rather than a hand-wavy argument. The contrast with the continuous family of orderings in the Schrödinger case is drawn clearly and seems to be the main novelty. The derivation starts from the conservation requirement instead of fitting parameters, which keeps it from being circular. The soft spot is the uniqueness step. The abstract states that only one ordering survives, but it is not obvious from the provided summary whether every conceivable symmetric ordering has been ruled out once boundary terms or the precise domain of the current operator are considered. If the conservation condition is imposed only on normalizable states rather than as an operator identity, other prescriptions might still conserve the current while dropping or modifying the log term. That needs a tight proof in the full text. This is a niche calculation aimed at people who already work on Dirac materials with inhomogeneous mass profiles, such as certain topological-insulator or graphene setups. A reader in that subfield will find a usable correction to spectral formulas. Outside that circle the result is too specialized to matter much. I would send it to peer review. The analytic example is worth referee scrutiny even if the uniqueness argument needs tightening.

Referee Report

2 major / 2 minor

Summary. The paper claims that the Dirac Hamiltonian with spatially varying mass m(x) admits a unique Hermitian ordering fixed by probability-current conservation (unlike the non-relativistic case, where families of orderings exist). This ordering generates an additional logarithmic-gradient term that modifies the effective kinetic operator and deforms the spectral quantization condition. An explicit analytic computation in compact geometry then yields a mode-dependent second-order spectral shift that is strongly enhanced near the mass-inversion threshold, implying observable modifications to discrete spectra in inhomogeneous scalar backgrounds.

Significance. If the uniqueness argument holds and the spectral shift is correctly derived, the work establishes a direct link between relativistic operator ordering and measurable spectral features in Dirac systems, with potential relevance to condensed-matter realizations such as graphene or topological materials with position-dependent gaps. The parameter-free analytic result in compact geometry is a clear strength, offering falsifiable predictions without ad-hoc choices.

major comments (2)

[§2] §2 (derivation of the ordering): The assertion that probability-current conservation uniquely fixes a single Hermitian ordering for the Dirac operator (while continuous families remain admissible in the Schrödinger case) is stated directly but lacks an explicit demonstration that alternative symmetric orderings are excluded when the conservation condition is imposed only on the divergence for normalizable states or with different regularizations of boundary terms at mass discontinuities.
[§4] §4 (compact-geometry spectral computation): The reported mode-dependent second-order spectral shift and its enhancement near the mass-inversion threshold rest on an analytic evaluation of the deformed quantization condition; the text must supply the explicit form of this condition and confirm that the computation introduces no gaps or post-hoc parameter choices, as the abstract claims an 'explicit analytic computation' without showing the intermediate steps.

minor comments (2)

Define the logarithmic-gradient term explicitly in terms of m(x) immediately after its first appearance and ensure consistent equation numbering throughout.
[Abstract] The abstract refers to a 'universal deformation' of the quantization condition; the main text should clarify whether this universality holds for arbitrary compact geometries or is specific to the chosen manifold.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. The points raised have prompted us to strengthen the presentation of the uniqueness argument and the spectral computation. We address each major comment below and have revised the manuscript accordingly.

read point-by-point responses

Referee: [§2] §2 (derivation of the ordering): The assertion that probability-current conservation uniquely fixes a single Hermitian ordering for the Dirac operator (while continuous families remain admissible in the Schrödinger case) is stated directly but lacks an explicit demonstration that alternative symmetric orderings are excluded when the conservation condition is imposed only on the divergence for normalizable states or with different regularizations of boundary terms at mass discontinuities.

Authors: We agree that an explicit demonstration is necessary for rigor. In the revised Section 2 we now provide a detailed derivation: starting from the requirement that the probability current satisfies a continuity equation (divergence-free for normalizable states), we impose Hermiticity of the full Dirac operator and show that only one symmetric ordering survives. Alternative orderings (e.g., those admissible in the Schrödinger case) are explicitly constructed and shown to violate current conservation once the divergence condition is enforced on the domain of square-integrable functions. Boundary terms at mass discontinuities are regularized via a limiting procedure that preserves the continuity equation; this regularization excludes the remaining candidates. The contrast with the non-relativistic case is thereby made fully explicit. revision: yes
Referee: [§4] §4 (compact-geometry spectral computation): The reported mode-dependent second-order spectral shift and its enhancement near the mass-inversion threshold rest on an analytic evaluation of the deformed quantization condition; the text must supply the explicit form of this condition and confirm that the computation introduces no gaps or post-hoc parameter choices, as the abstract claims an 'explicit analytic computation' without showing the intermediate steps.

Authors: We appreciate the request for transparency. The revised Section 4 now states the deformed quantization condition in closed form, obtained by substituting the logarithmic-gradient correction into the effective kinetic term and solving the resulting Sturm–Liouville problem on the compact interval. All intermediate steps—substitution of the ordering term, integration by parts, boundary-condition matching, and perturbative expansion to second order—are written out explicitly. The calculation contains no free parameters beyond the mass profile and the mode index; the enhancement near the mass-inversion threshold follows directly from the analytic expression without additional assumptions. revision: yes

Circularity Check

0 steps flagged

No significant circularity; ordering derived from external conservation requirement

full rationale

The paper's central derivation begins from the independent physical requirement of probability-current conservation to select a unique Hermitian ordering for the Dirac operator with m(x). This constraint is external to the spectral results and does not reduce to a self-definition, fitted parameter, or self-citation chain. The claimed uniqueness and the resulting logarithmic-gradient term are presented as consequences of imposing the conservation condition on the relativistic structure, with no quoted reduction showing that the final spectral shift is equivalent to the input by construction. The derivation remains self-contained against the stated benchmark of current conservation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that current conservation plus hermiticity selects a single ordering; no free parameters are introduced and no new entities are postulated.

axioms (1)

domain assumption The Dirac Hamiltonian must be Hermitian and conserve probability current.
Invoked to fix the ordering uniquely in the relativistic case.

pith-pipeline@v0.9.0 · 5415 in / 1174 out tokens · 35841 ms · 2026-05-15T01:47:34.206947+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

Cost.FunctionalEquation washburn_uniqueness_aczel echoes

?

echoes
ECHOES: this paper passage has the same mathematical shape or conceptual pattern as the Recognition theorem, but is not a direct formal dependency.

the relativistic Dirac operator admits a single consistent ordering compatible with probability-current conservation. This requirement generates an additional logarithmic-gradient term
Foundation.AbsoluteFloorClosure absolute_floor_iff_bare_distinguishability unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

In contrast to the nonrelativistic case, where continuous families of admissible prescriptions exist

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

20 extracted references · 20 canonical work pages

[1]

Jackiw, C

R. Jackiw, C. Rebbi, Solitons with fermion number1/2,Phys. Rev. D13(1976) 3398– 3409

work page 1976
[2]

A. H. Castro Neto, F. Guinea, N. M. R. Peres, K. S. Novoselov, A. K. Geim, The electronic properties of graphene,Rev. Mod. Phys.81(2009) 109–162

work page 2009
[3]

M. A. H. Vozmediano, M. I. Katsnelson, F. Guinea, Gauge fields in graphene,Phys. Rep.496(2010) 109–148

work page 2010
[4]

K. Chen, F. Komissarenko, D. Smirnova, A. Vakulenko, S. Kiriushechkina, I. Volkovskaya, S. Guddala, V. Menon, A. Alù, A. B. Khanikaev, Photonic Dirac cavities with spatially varying mass term,Sci. Adv.9(2023) eabq4243

work page 2023
[5]

S. Kim, K. Kim, Spatial localization and diffusion of Dirac particles and waves induced by random temporal medium variations,Commun. Phys.8(2025) 32

work page 2025
[6]

Topology of 2D Dirac operators with variable mass and an application to shallow-water waves

Rossi, S., and Tarantola, A., "Topology of 2D Dirac operators with variable mass and an application to shallow-water waves", Journal of Physics A: Mathematical and Theo- retical, v. 57, n. 6, (2024) 065201

work page 2024
[7]

D. J. BenDaniel, C. B. Duke, Space-charge effects on electron tunneling,Phys. Rev.152 (1966) 683–692

work page 1966
[8]

von Roos, Position-dependent effective masses in semiconductor theory,Phys

O. von Roos, Position-dependent effective masses in semiconductor theory,Phys. Rev. B27(1983) 7547–7552

work page 1983
[9]

Bastard,Wave Mechanics Applied to Semiconductor Heterostructures, Les Editions de Physique, Les Ulis, 1988

G. Bastard,Wave Mechanics Applied to Semiconductor Heterostructures, Les Editions de Physique, Les Ulis, 1988

work page 1988
[10]

T. Li, K. J. Kuhn, Band-offset ratio dependence on the effective-mass Hamiltonian, Phys. Rev. B47(1993) 12760–12763

work page 1993
[11]

Mustafa, S

O. Mustafa, S. H. Mazharimousavi, Interaction of a nonrelativistic particle with a position-dependent mass in a generalized Morse field,Ann. Phys.322(2007) 1531–1539

work page 2007
[12]

de Souza Dutra, C

A. de Souza Dutra, C. A. S. Almeida, Exact solvability of potentials with spatially dependent effective masses,Phys. Lett. A275(2000) 25–30

work page 2000
[13]

Znojil, F

M. Znojil, F. Cannata, B. Bagchi, R. Roychoudhury, PT-symmetric Hamiltonians with variable mass,Phys. Lett. B503(2001) 216–222

work page 2001
[14]

R. M. Lima, H. R. Christiansen, The kinetic Hamiltonian with position-dependent mass, Physica E150(2023) 115688

work page 2023
[15]

F. S. A. Cavalcante, R. N. Costa Filho, J. R. Filho, C. A. S. de Almeida, V. N. Freire, Form of the quantum kinetic-energy operator with spatially varying effective mass,Phys. Rev. B55(1997) 1326–1328. 12

work page 1997
[16]

N. D. Birrell, P. C. W. Davies,Quantum Fields in Curved Space, Cambridge University Press, Cambridge, 1982

work page 1982
[17]

Barceló, S

C. Barceló, S. Liberati, M. Visser, Analogue gravity,Living Rev. Relativ.14(2011) 3

work page 2011
[18]

Guinea, M

F. Guinea, M. I. Katsnelson, A. K. Geim, Energy gaps and a zero-field quantum Hall effect in graphene by strain engineering,Nat. Phys.6(2010) 30–33

work page 2010
[19]

N. Levy, S. A. Burke, K. L. Meaker, M. Panlasigui, A. Zettl, F. Guinea, A. H. C. Neto, M.F.Crommie, Strain-inducedpseudo-magneticfieldsgreaterthan300teslaingraphene nanobubbles,Science329(2010) 544–547

work page 2010
[20]

Jackiw, S.-Y

R. Jackiw, S.-Y. Pi, Chiral gauge theory for graphene,Phys. Rev. Lett.98(2007) 266402. 13

work page 2007
