A Surrogate Model for Proton Spectrum Prediction to Map Transitions in Laser-Ion Acceleration

Chengqi-Zhang , Yang He , Mamat Ali Bake , Xilin-Wang , Bai-Song Xie This is my paper

Pith reviewed 2026-06-27 23:18 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph
keywords surrogate modelproton spectrum predictionlaser-driven ion accelerationTNSARITBOAbeta-VAEparticle-in-cell
0
0 comments X

The pith

A decoupled dual-branch surrogate predicts full proton spectra and maps TNSA to RIT-BOA transitions from laser parameters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a physics-guided surrogate that pairs a β-VAE branch for learning spectral shape features with a parallel MLP branch that enforces scalar quantities such as cutoff energy and total flux. Trained on 1D particle-in-cell data, the model reaches R² = 0.94 on cutoff energy, R² = 0.94 on particle flux, and median per-sample spectral R² = 0.985 across 2000 energy bins in log space, while supplying calibrated uncertainty estimates below 6.2 percent error. It reproduces the continuous change in spectral shape that marks the shift from sheath-dominated TNSA acceleration to the volumetric heating of RIT and BOA regimes. The resulting fast surrogate supplies a practical engine for scanning laser parameters without repeated full kinetic runs.

Core claim

Within the 1D longitudinal framework, the surrogate reproduces spectral signatures consistent with the transition from Target Normal Sheath Acceleration (TNSA) to the volumetric heating dynamics of Relativistically Induced Transparency (RIT) and Breakout Afterburner (BOA) regimes, validated against kinetic diagnostics from 1D particle-in-cell simulations, while maintaining high predictive accuracy on key spectral quantities.

What carries the argument

decoupled dual-branch surrogate model integrating a β-VAE for spectral feature extraction with a parallel multi-layer perceptron for scalar boundary enforcement

If this is right

  • The surrogate acts as a fast probabilistic diagnostic for mapping acceleration regime boundaries.
  • It supplies a computationally cheap baseline for multi-fidelity optimization loops over laser intensity, pulse duration, and target thickness.
  • Uncertainty estimates allow selective triggering of expensive simulations only where the model is least confident.
  • The same architecture can support closed-loop feedback control at high-repetition-rate facilities.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Coupling the surrogate to real experimental diagnostics could enable on-the-fly parameter tuning without waiting for post-shot analysis.
  • Extending the input space to include target material properties or pre-plasma scale length might expose previously unexplored optimum windows for maximum proton energy.
  • If the 1D spectral signatures remain dominant in 2D or 3D geometries, the same model could serve as an initial filter before full multidimensional runs.

Load-bearing premise

The 1D particle-in-cell simulations used for training and validation capture the essential physics of the TNSA-RIT-BOA transitions without missing important three-dimensional effects.

What would settle it

A new set of 1D PIC runs or laser experiments at parameters outside the training distribution that produce proton spectra whose shape or cutoff deviates from the surrogate prediction by more than the reported 6.2 percent calibration error.

Figures

Figures reproduced from arXiv: 2606.06210 by Bai-Song Xie, Chengqi-Zhang, Mamat Ali Bake, Xilin-Wang, Yang He.

Figure 1
Figure 1. Figure 1: Schematic overview of the decoupled dual-branch surrogate architecture. (Step 1) The training path, where a [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

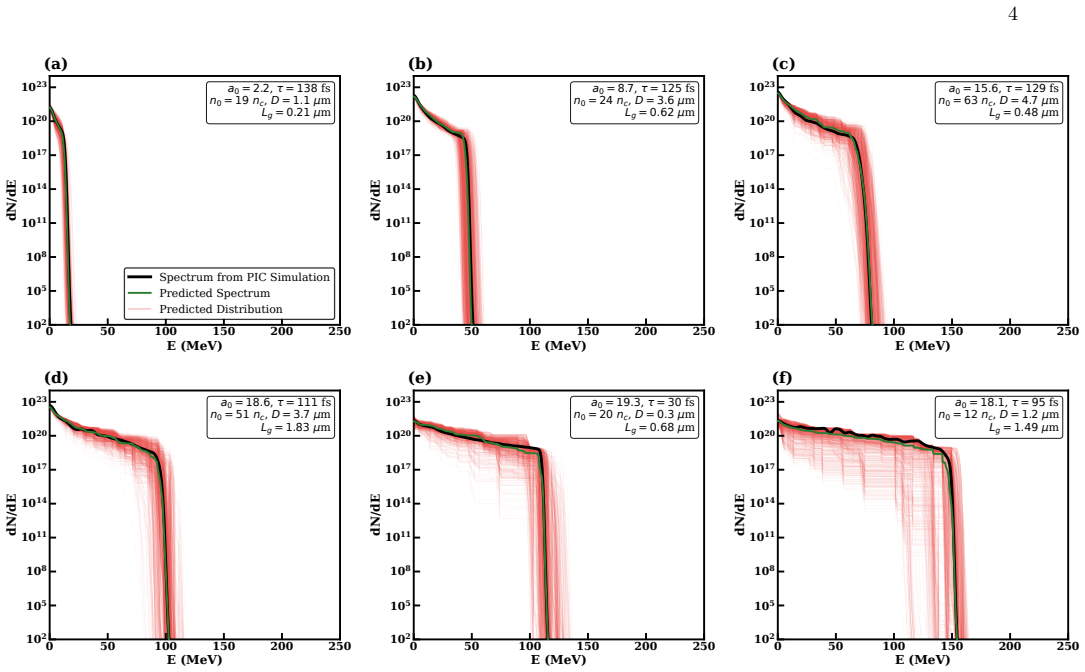

Figure 2
Figure 2. Figure 2: Representative proton energy spectra and prediction accuracy for different parameter settings. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

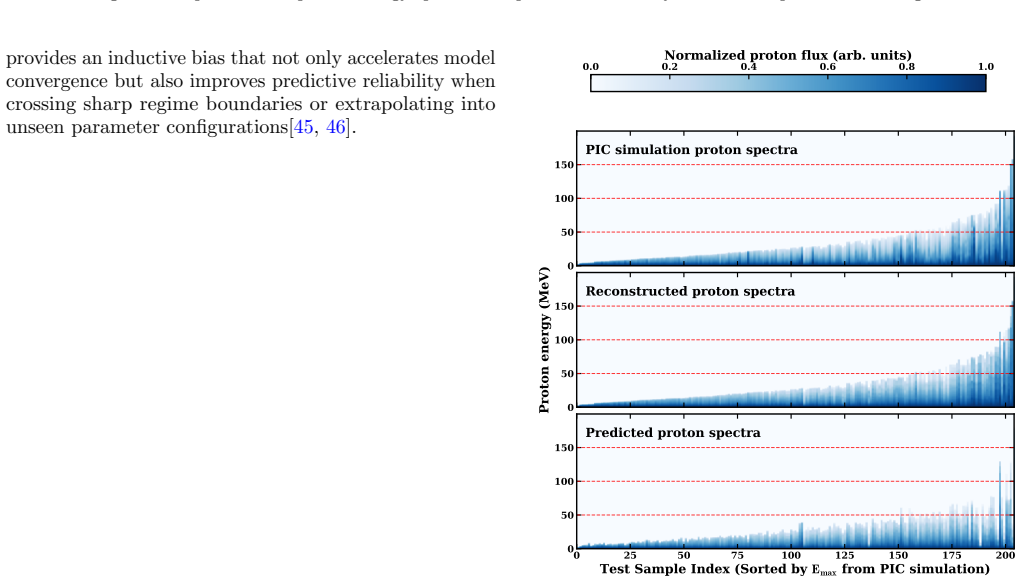

Figure 3
Figure 3. Figure 3: Global visualization and comparison of spectral [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

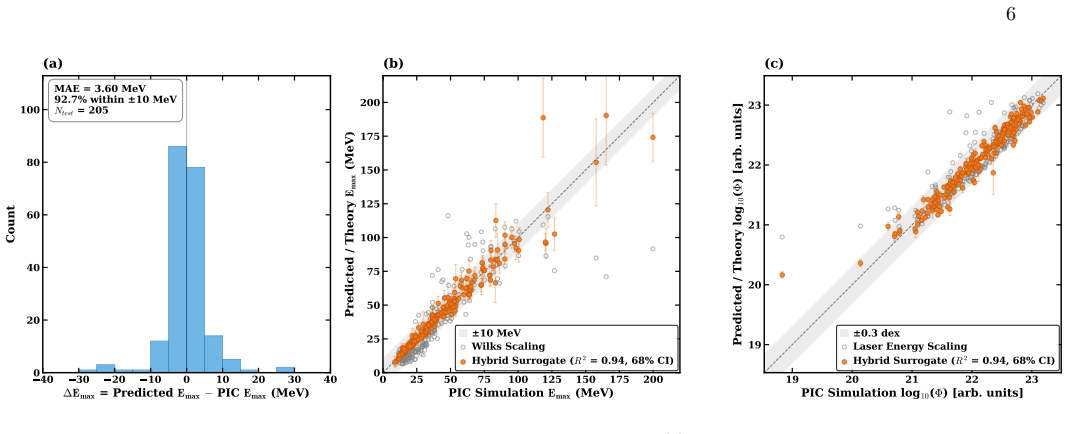

Figure 4
Figure 4. Figure 4: Quantitative evaluation of the Emax and total particle flux predictions. (a) The error distribution histogram for the predicted Emax. (b) Global comparison for the cutoff energy Emax. Grey open circles represent the analytical Wilks scaling law, and orange solid dots correspond to the hybrid surrogate predictions. The grey band indicates a ±10 MeV margin, with error bars representing the 68% confidence int… view at source ↗

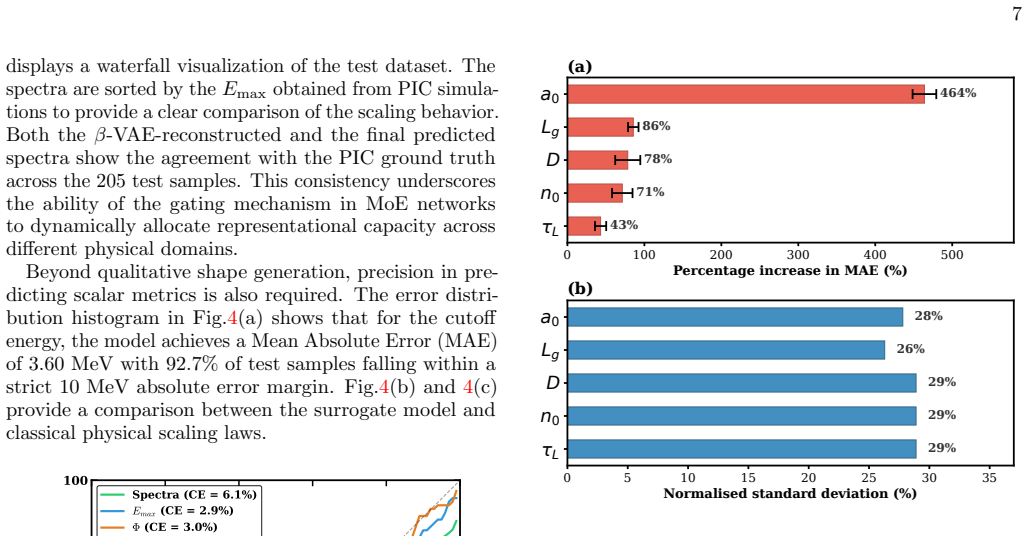

Figure 6
Figure 6. Figure 6: Influence of initial physical parameters on surrogate [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

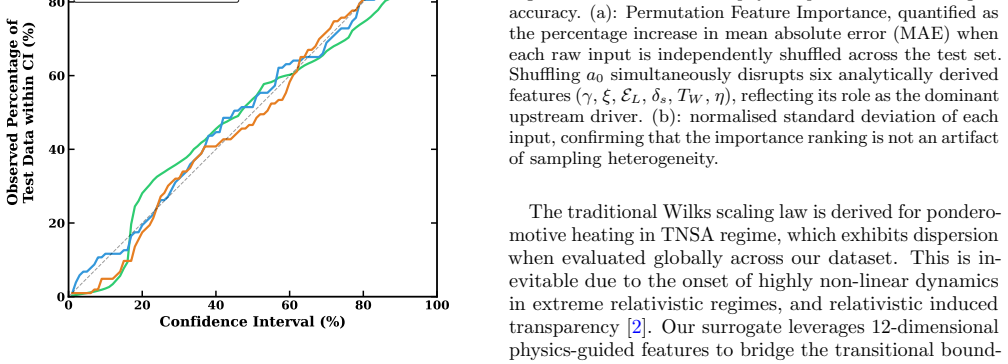

Figure 5
Figure 5. Figure 5: Reliability diagrams for the calibration of epistemic [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

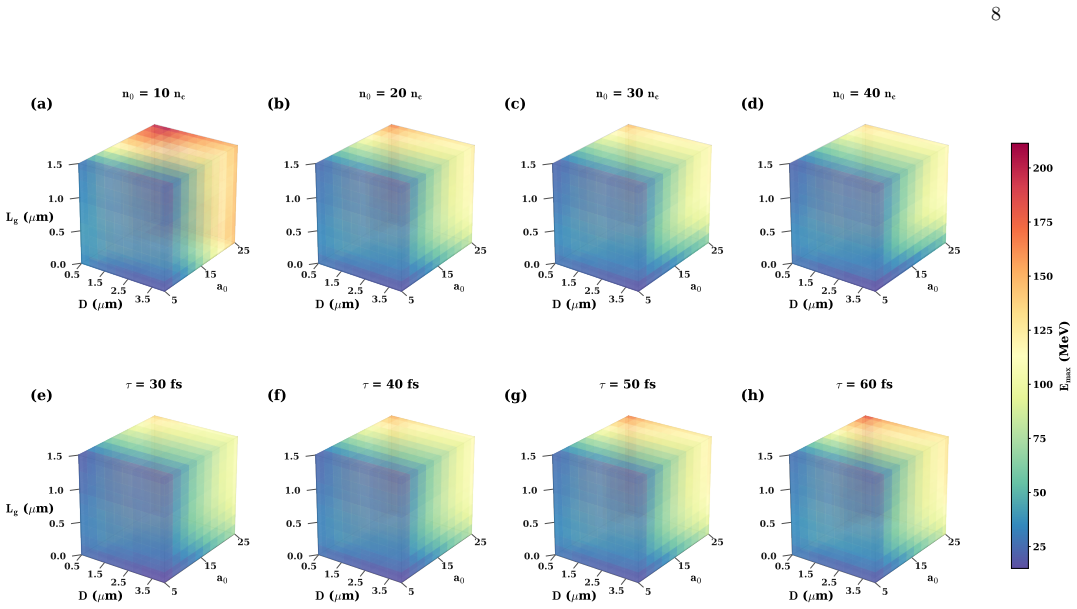

Figure 7
Figure 7. Figure 7: 3D data maps of the surrogate-predicted maximum proton energies over the ( [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗

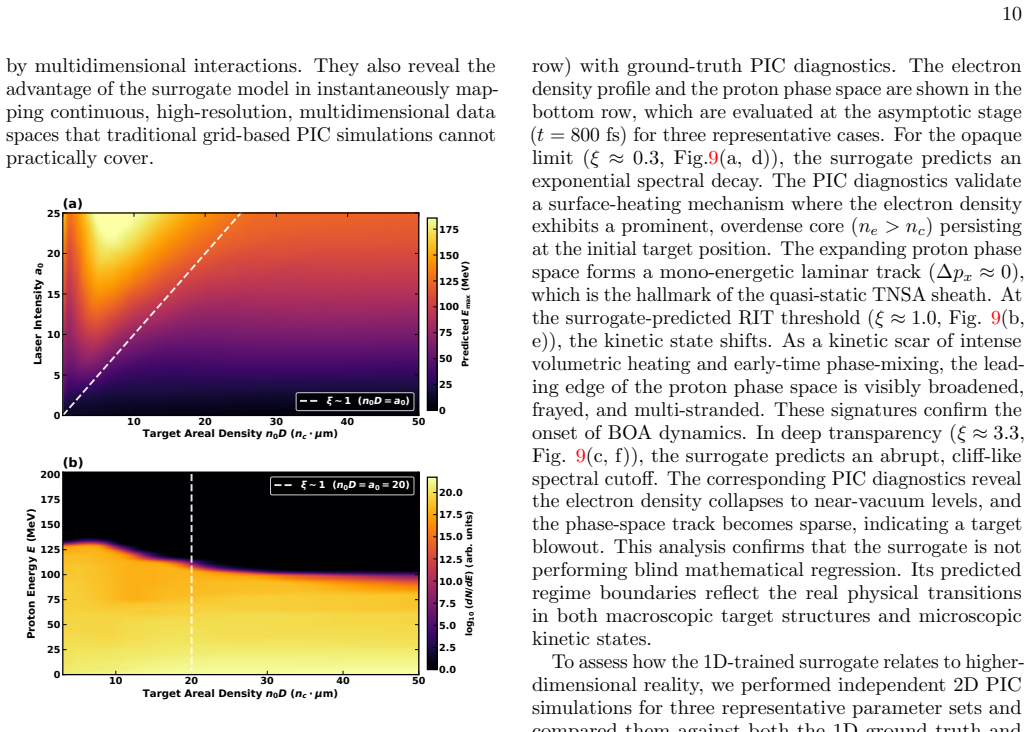

Figure 8
Figure 8. Figure 8: Surrogate-mapped acceleration phase diagram and [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Kinetic validation of the surrogate-predicted mechanism transitions. The macroscopic predicted spectra (top row, a–c) [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Cross-validation of the 1D-trained surrogate against independent 2D PIC simulations for three representative cases. [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
read the original abstract

We present a physics-guided, decoupled dual-branch surrogate model to predict continuous proton energy spectra from laser-driven ion acceleration. Integrating a $\beta$-VAE for spectral feature extraction with a parallel multi-layer perceptron for scalar boundary enforcement, the framework achieves a predictive accuracy of $R^2 = 0.94$ for the maximum cutoff energy and $R^2 = 0.94$ for the total particle flux, with a median per-sample spectral $R^2 = 0.985$ (in $\log_{10}$ space) across the full 2000-bin energy distribution. The model incorporates uncertainty quantification via deep ensembles, serving as a quantitative probabilistic diagnostic tool with calibration errors below 6.2\%. Within the 1D longitudinal framework, the surrogate reproduces spectral signatures consistent with the transition from Target Normal Sheath Acceleration (TNSA) to the volumetric heating dynamics of Relativistically Induced Transparency (RIT) and Breakout Afterburner (BOA) regimes, as validated against kinetic diagnostics from 1D particle-in-cell simulations. This approach establishes a computationally efficient baseline for future multi-fidelity optimization and provides an engine for closed-loop parameter control in high-repetition-rate laser facilities.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces a physics-guided dual-branch surrogate model (β-VAE for spectral features + parallel MLP for scalar constraints) trained on 1D PIC simulation data to predict continuous proton energy spectra in laser-ion acceleration. It reports R² = 0.94 for maximum cutoff energy, R² = 0.94 for total flux, and median per-sample spectral R² = 0.985 (log10 space) across 2000 bins, with deep-ensemble uncertainty quantification (calibration error <6.2%). The central claim is that, within the 1D longitudinal framework, the surrogate reproduces spectral signatures of the TNSA-to-RIT/BOA regime transition as validated against the same class of 1D PIC kinetic diagnostics.

Significance. If the internal 1D validation holds without data leakage and the 1D PIC data faithfully represent the targeted transitions, the surrogate offers a fast, probabilistic tool for parameter-space exploration and closed-loop control in high-repetition-rate facilities. The decoupled architecture and explicit uncertainty quantification are positive features. However, the significance is reduced by the strictly in-distribution, 1D-only validation, which does not yet demonstrate generalization to multi-dimensional physics or experimental data.

major comments (2)
  1. [Abstract / validation] Abstract and validation section: The claim that the surrogate 'reproduces spectral signatures consistent with the transition from TNSA to ... RIT and BOA regimes' rests entirely on agreement with 1D PIC diagnostics generated inside the identical 1D longitudinal framework used for training. No out-of-distribution test, multi-dimensional simulation comparison, or experimental benchmark is provided to show that the learned mapping captures the physical mechanisms (transverse filamentation, off-axis sheath fields, 3D breakout) rather than pattern-matching within the training distribution.
  2. [Methods / results] Methods / results on data handling: The reported R² values (0.94 for cutoff and flux, 0.985 median spectral) cannot be assessed for robustness without explicit confirmation of train/validation/test splits, absence of leakage, and whether hyperparameter or architecture choices were made after seeing test performance. The deep-ensemble calibration error (<6.2%) is cited but the precise calibration metric and binning are not detailed enough to verify.
minor comments (1)
  1. [Abstract] Notation: The 2000-bin energy distribution is referenced in log10 space for the spectral R²; clarify whether the per-bin loss or the reported median is computed after the log transform or on the original counts.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which help clarify the scope and reproducibility of the work. We address each major point below and will incorporate clarifications in a revised manuscript.

read point-by-point responses

  1. Referee: [Abstract / validation] Abstract and validation section: The claim that the surrogate 'reproduces spectral signatures consistent with the transition from TNSA to ... RIT and BOA regimes' rests entirely on agreement with 1D PIC diagnostics generated inside the identical 1D longitudinal framework used for training. No out-of-distribution test, multi-dimensional simulation comparison, or experimental benchmark is provided to show that the learned mapping captures the physical mechanisms (transverse filamentation, off-axis sheath fields, 3D breakout) rather than pattern-matching within the training distribution.

    Authors: The manuscript already qualifies the central claim as holding 'within the 1D longitudinal framework' and validates exclusively against 1D PIC diagnostics. The work positions the surrogate as a computationally efficient baseline for 1D parameter-space exploration and closed-loop control, not as a model of multi-dimensional physics. We will revise the abstract, introduction, and discussion sections to more explicitly state the 1D-only scope, the absence of multi-D or experimental benchmarks, and that transverse effects would require a separate multi-dimensional training set. No additional validation data are available at this stage. revision: partial

  2. Referee: [Methods / results] Methods / results on data handling: The reported R² values (0.94 for cutoff and flux, 0.985 median spectral) cannot be assessed for robustness without explicit confirmation of train/validation/test splits, absence of leakage, and whether hyperparameter or architecture choices were made after seeing test performance. The deep-ensemble calibration error (<6.2%) is cited but the precise calibration metric and binning are not detailed enough to verify.

    Authors: We agree these details are necessary for assessment. The revised methods section will state: (i) a random 70/15/15 train/validation/test split on independently sampled input parameters (no leakage possible), (ii) all architecture and hyperparameter decisions were finalized using only the validation set, and (iii) the reported calibration error is the expected calibration error (ECE) computed over 10 equally spaced probability bins on the deep-ensemble predictive distributions. revision: yes

Circularity Check

0 steps flagged

No circularity; surrogate trained and validated on PIC data as standard ML practice

full rationale

The paper presents a machine-learning surrogate (β-VAE + MLP) trained on 1D PIC simulation outputs to predict proton spectra, with reported R² metrics evaluated on held-out samples from the same simulation ensemble. This is the conventional workflow for surrogate modeling and does not reduce any claimed prediction to its inputs by construction, nor does it invoke self-definitional equations, load-bearing self-citations, or ansatzes smuggled via prior work. The reproduction of TNSA-RIT-BOA signatures follows directly from the training distribution containing those regimes; no first-principles derivation is asserted that collapses to a fit. The central claim remains an empirical interpolation result within the stated 1D framework.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on neural network training against 1D PIC data and the assumption that those simulations represent the physical regimes; many fitted parameters are introduced by the VAE and MLP architectures.

free parameters (1)
  • β-VAE and MLP network weights and hyperparameters
    Latent dimensions, beta coefficient, layer sizes, and all connection weights are fitted to match the 1D PIC simulation spectra and boundary conditions.
axioms (1)
  • domain assumption 1D particle-in-cell simulations provide accurate kinetic diagnostics for TNSA, RIT, and BOA regimes
    The validation step treats agreement with these simulations as ground truth for both accuracy metrics and regime signatures.

pith-pipeline@v0.9.1-grok · 5762 in / 1531 out tokens · 41246 ms · 2026-06-27T23:18:29.830181+00:00 · methodology
