Core-edge integrated modeling of ARC: on the effect of impurity transport and detachment conditions

Marco Muraca , Pablo Rodriguez-Fernandez , Nathaniel T. Howard , Joe Hall , Giovanni Tardini , Davide Silvagni , Thomas Body , Jon Hillesheim This is my paper

Pith reviewed 2026-06-27 14:43 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph
keywords ARCfusion powerdivertor detachmentargon seedingneon seedingH-modeimpurity transportintegrated modeling
0
0 comments X

The pith

Integrated core-edge modeling shows ARC can reach near-GW fusion power with detached divertor using argon seeding.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper conducts integrated modeling of ARC H-modes to evaluate scenarios that combine high fusion performance with divertor detachment. Self-consistent tracking of impurity radiation and density profiles demonstrates that argon seeding can sustain fusion powers approaching 1 GW while holding divertor temperatures below 2 eV. Sensitivity scans highlight a strong effect from separatrix density (750-1000 MW range) and weaker effects from enrichment factor and pedestal density. Argon consistently supports H-mode access and detachment, whereas neon yields lower power (600-850 MW) and risks core impurity buildup. Additional checks with reduced momentum transport and neoclassical impurity transport leave the main conclusions intact.

Core claim

Integrated modeling of ARC H-modes incorporating self-consistent impurity radiation and density profiles shows that fusion power levels approaching a GW can be achieved while maintaining divertor temperatures below 2 eV with Ar seeding. Sensitivity studies reveal a strong dependence of fusion power on the separatrix density, with performance spanning 750-1000 MW, and a weaker dependence on enrichment factor and pedestal density. Argon seeding allows consistent H-mode access with the highest fusion power and detached divertor operation, whereas neon seeding leads to lower performance (600-850 MW) and less robust H-mode access due to excessive core impurity accumulation. A small W impurity pea

What carries the argument

Self-consistent evolution of impurity radiation and density profiles within an integrated core-edge modeling code

Load-bearing premise

The impurity transport, radiation, and detachment models in the integrated core-edge code accurately capture real plasma behavior under the simulated ARC conditions.

What would settle it

Measurements on an ARC-relevant plasma showing that argon seeding cannot sustain divertor temperatures below 2 eV once fusion power approaches 1 GW, or that neon seeding achieves comparable power without core impurity accumulation preventing H-mode.

Figures

Figures reproduced from arXiv: 2606.09359 by Davide Silvagni, Giovanni Tardini, Joe Hall, Jon Hillesheim, Marco Muraca, Nathaniel T. Howard, Pablo Rodriguez-Fernandez, Thomas Body.

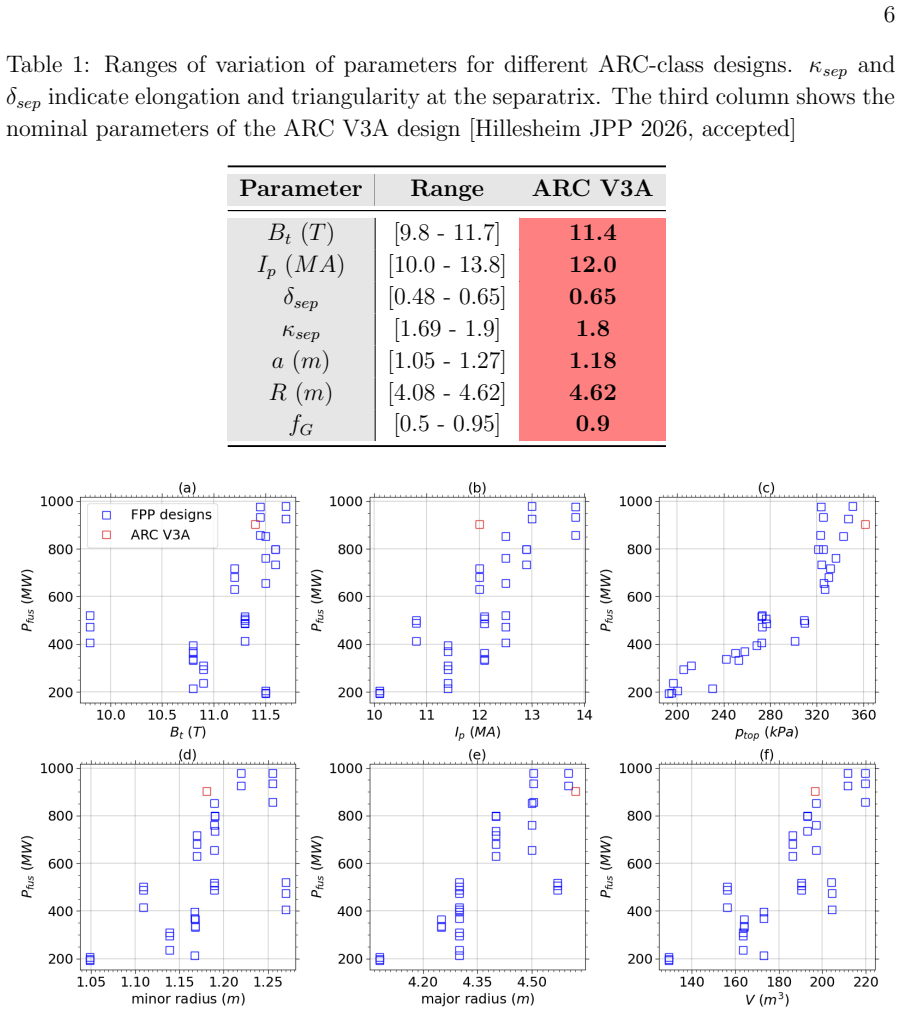

Figure 1
Figure 1. Figure 1: Fusion power vs: magnetic field (a), plasma current (b), pedestal top pressure [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗

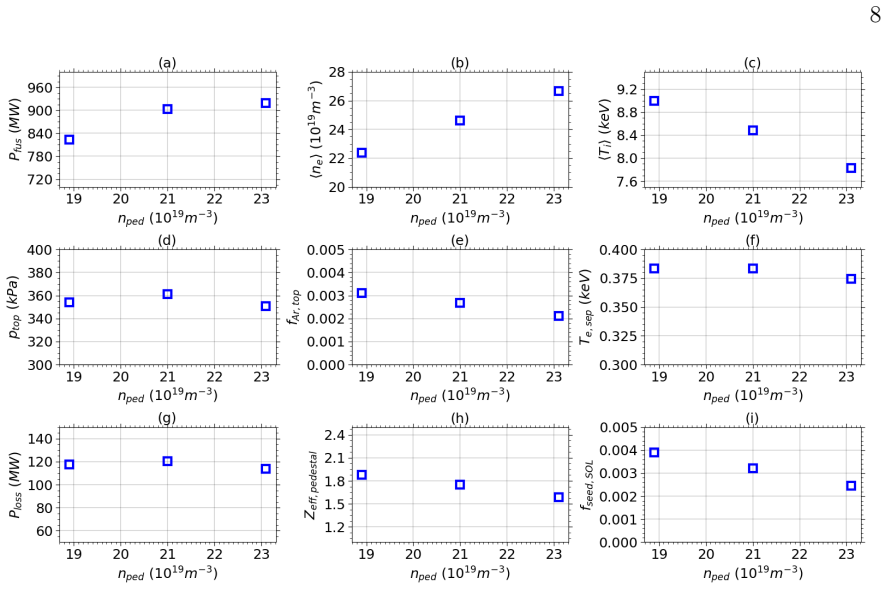

Figure 2
Figure 2. Figure 2: Global parameters for a scan of pedestal density: fusion power (a); volume [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3

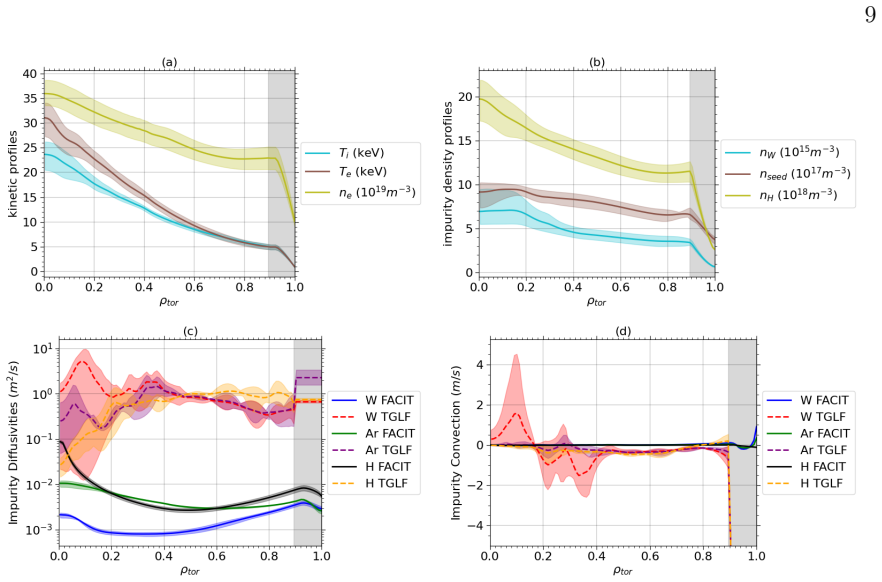

Figure 3. Figure 3: Profiles of: electron density, ion temperature and electron temperature (a); [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗

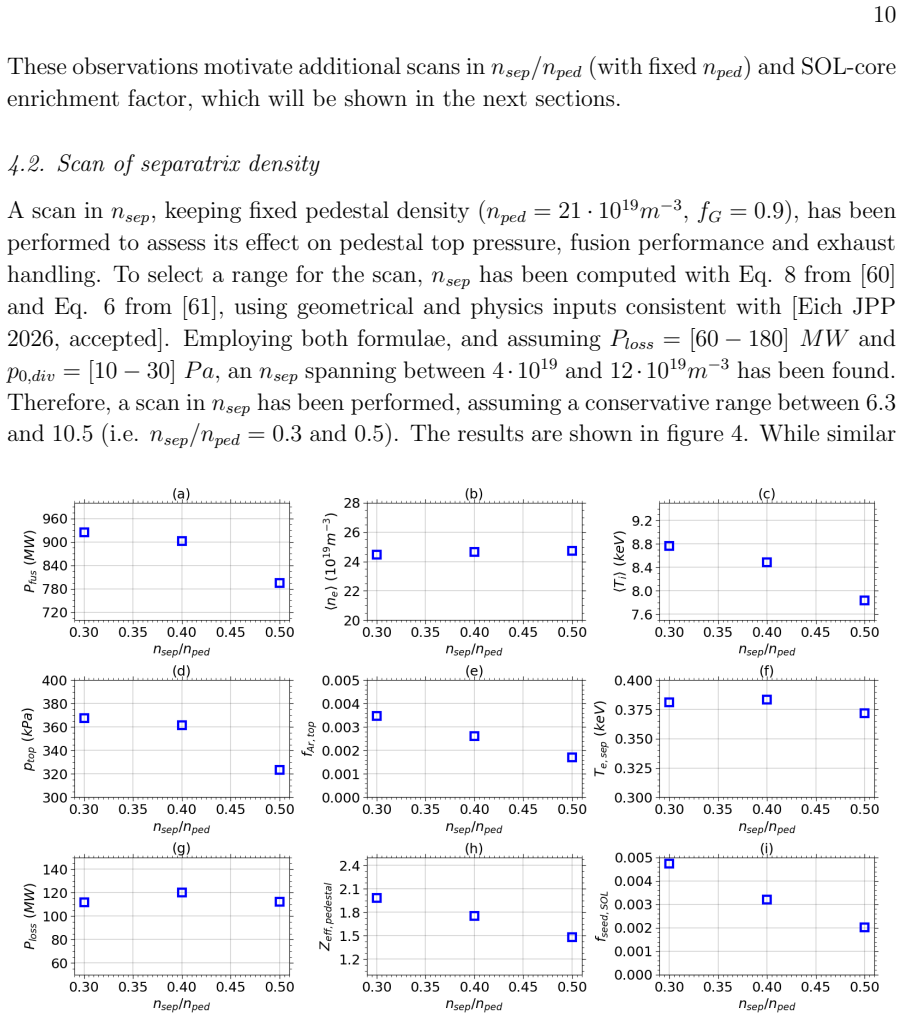

Figure 4
Figure 4. Figure 4: Global parameters for a scan of separatrix density: fusion power (a); volume [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Left: top of pedestal pressure vs pedestal density for different [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6

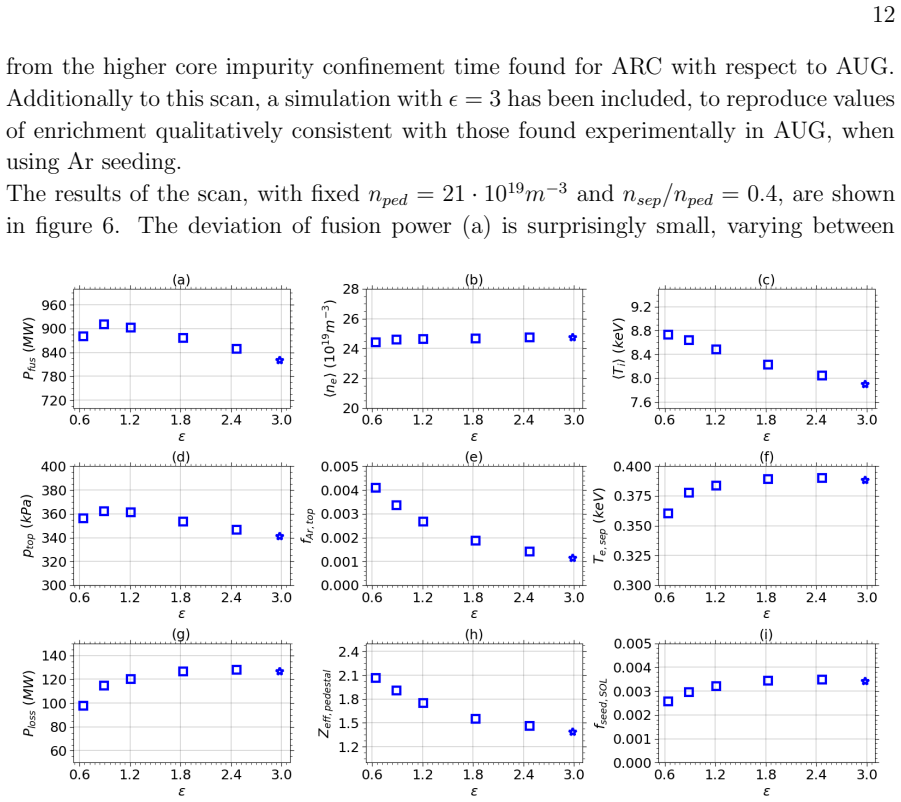

Figure 6. Figure 6: Global parameters for a scan of enrichment factor: fusion power (a); volume [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗

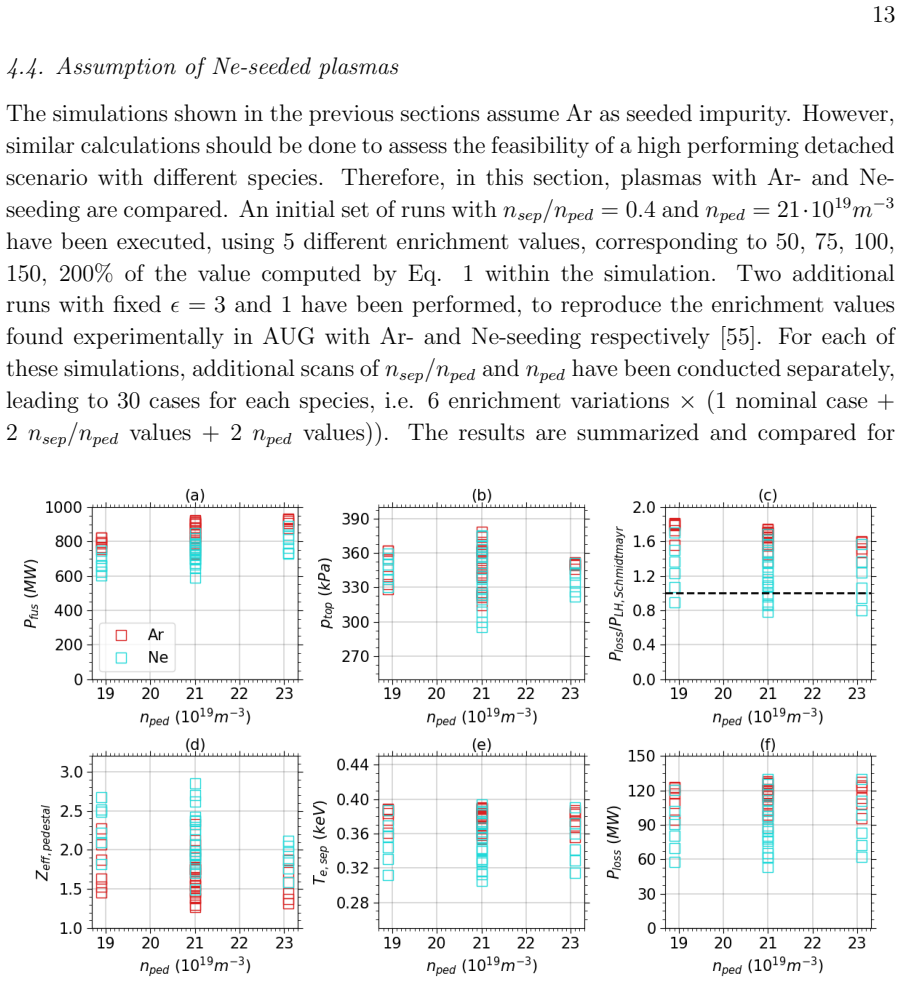

Figure 7
Figure 7. Figure 7: Fusion power (a), top of pedestal pressure (b), [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
Figure 8

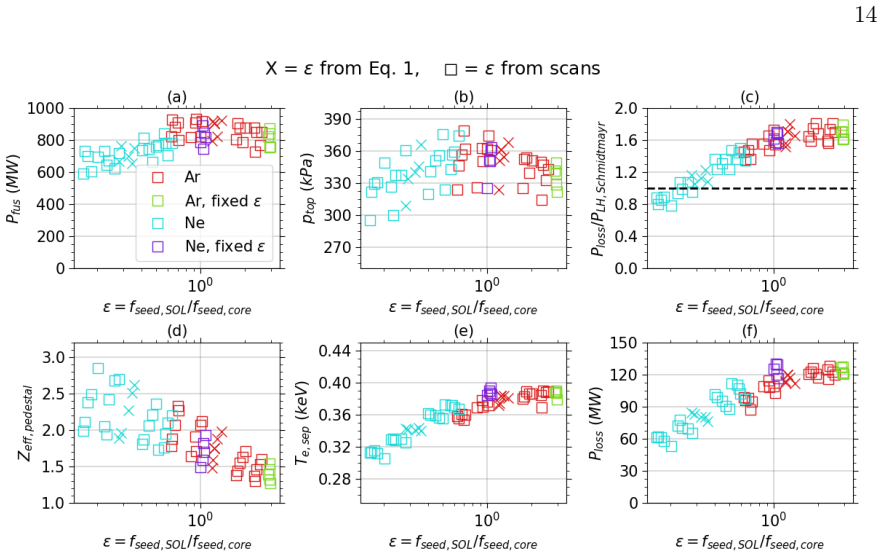

Figure 8. Figure 8: Fusion power (a), top of pedestal pressure (b), [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗

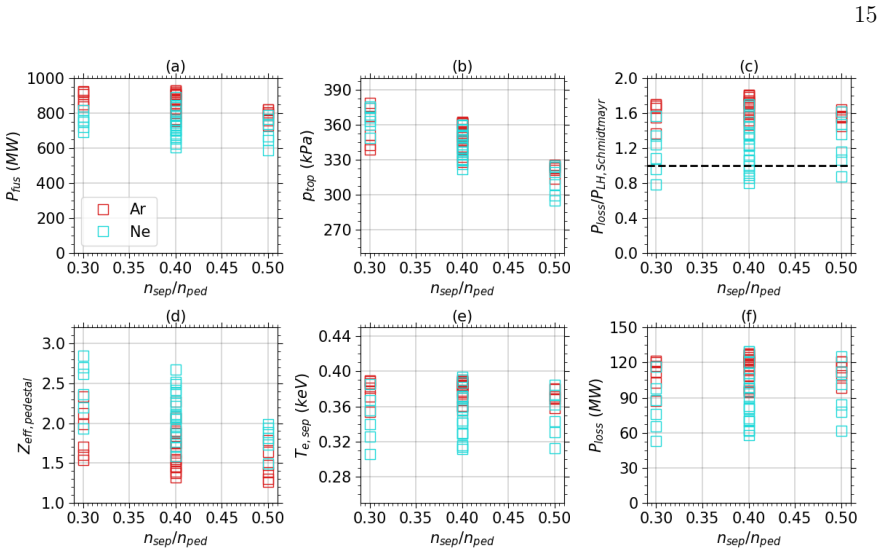

Figure 9
Figure 9. Figure 9: Fusion power (a), top of pedestal pressure (b), [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Ion temperature (a) and electron density (b) profiles across nped, nsep and ϵ scans for the Ar-seeded (red) and Ne-seeded (cyan) plasmas. The solid lines are the nominal profiles, while the shaded area indicates the maximum and minimum values. The grey colored area indicates the pedestal region. ρt is the square root of the normalized toroidal flux. averaged ne and electron density peaking (νne ) are foun… view at source ↗
Figure 11
Figure 11. Figure 11: W (a) and seeded species (b) density peaking factors, neoclassical to total [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗

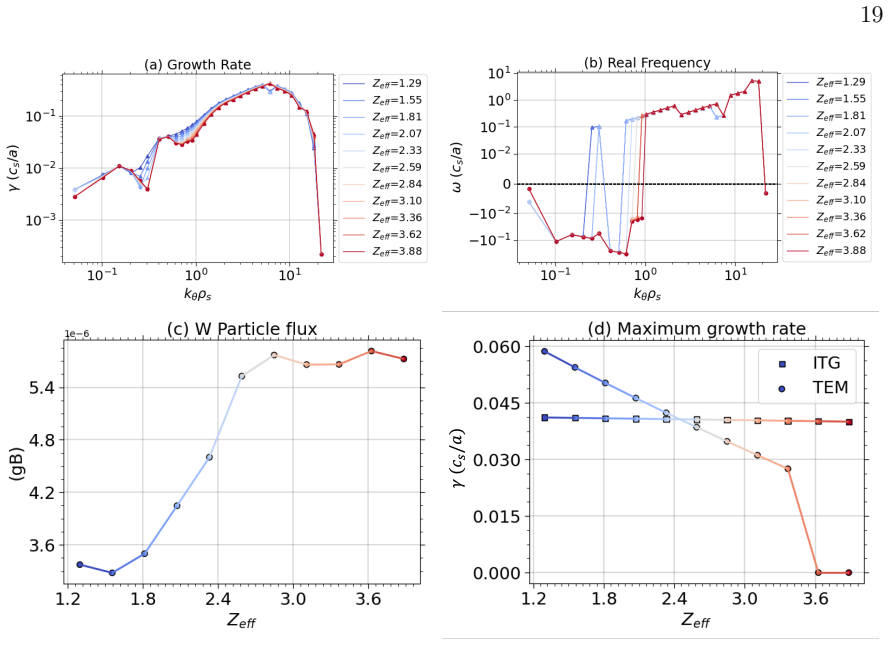

Figure 12
Figure 12. Figure 12: Results of TGLF standalone simulations, scanning [PITH_FULL_IMAGE:figures/full_fig_p019_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Left: W (blue) and H (brown) radial concentration profiles for all the scans [PITH_FULL_IMAGE:figures/full_fig_p020_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Profiles of toroidal velocity (a) and impurity diffusivity for all the species [PITH_FULL_IMAGE:figures/full_fig_p020_14.png] view at source ↗

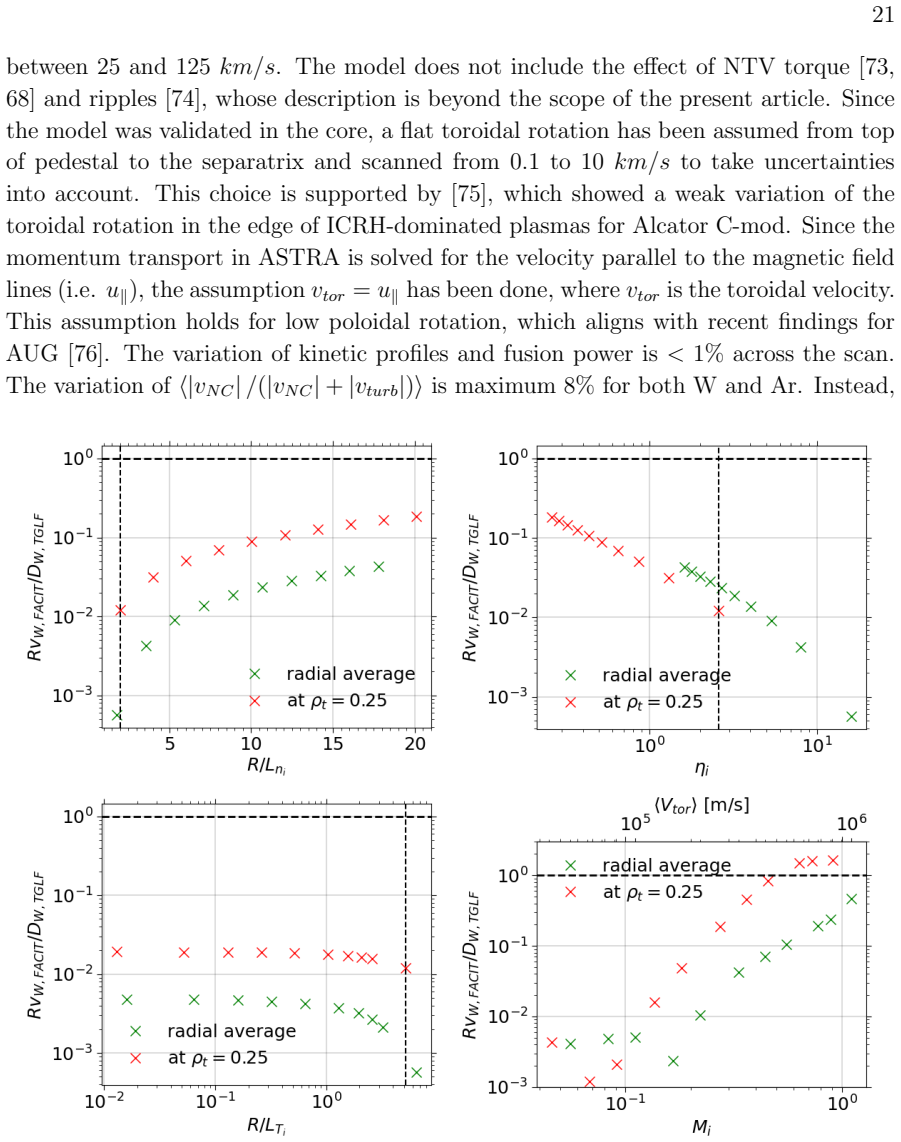

Figure 15
Figure 15. Figure 15: Ratios between (R·) W neoclassical convection and turbulent diffusivity for several scans: the top plots show a scan in ion density gradient; the bottom left plot indicates a scan in ion temperature gradient; the bottom right plot highlights a scan in rotation. The green crosses indicate average values, while the red ones are at ρt = 0.25. ηi is the ratio between normalized ion temperature and density gra… view at source ↗
read the original abstract

Integrated modeling of ARC H-modes has been conducted to assess the feasibility of high-performance scenarios compatible with divertor detachment. The analysis incorporates self-consistent evolution of impurity radiation and density profiles, demonstrating that fusion power levels approaching a GW can be achieved while maintaining divertor temperatures below 2 eV with Ar seeding. Sensitivity studies reveal a strong dependence of fusion power on the separatrix density, with performance spanning 750-1000 MW, and a weaker dependence on enrichment factor and pedestal density. Alternative seeding strategies using Neon have also been explored. Plasmas with Argon seeding consistently access H-mode, providing the highest fusion power and detached divertor operation, whereas Neon seeding leads to lower performance (600-850 MW) and less robust H-mode access, due to excessive core impurity accumulation. A small W impurity peaking has been found, with decreasing values at higher Zeff. Further analyses incorporate reduced momentum transport modeling, and sensitivity studies of neoclassical impurity transport, confirming the robustness of the results. Overall, these findings support the viability of high-performing H-mode operation in ARC, ensuring divertor protection, enabled through Argon and Neon impurity seeding.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper conducts core-edge integrated modeling of ARC H-modes incorporating self-consistent impurity radiation and density profile evolution. It claims that fusion powers approaching 1 GW are achievable while maintaining divertor temperatures below 2 eV using argon seeding, with sensitivity studies showing strong dependence on separatrix density (750-1000 MW range) and weaker dependence on enrichment factor and pedestal density. Neon seeding yields lower performance (600-850 MW) and less robust H-mode access due to core impurity accumulation. Additional analyses cover reduced momentum transport, neoclassical impurity transport sensitivities, and small tungsten peaking that decreases with higher Zeff, supporting overall viability of high-performance detached operation.

Significance. If the underlying transport and radiation models hold under ARC conditions, the work is significant for compact high-field tokamak design by identifying viable impurity seeding strategies that simultaneously enable high fusion power and divertor detachment. The self-consistent impurity evolution, parameter sensitivity scans, and Ar versus Ne comparison provide concrete guidance on operational windows, while the robustness checks against variations in separatrix density and neoclassical transport add credibility within the modeling framework.

minor comments (3)
  1. Abstract: the phrase 'fusion power levels approaching a GW' would be clearer if the maximum achieved value and the specific separatrix density at which it occurs were stated explicitly rather than giving only the 750-1000 MW span.
  2. Abstract: the description of 'reduced momentum transport modeling' lacks any quantitative detail on the reduction factor or its effect on the reported fusion powers and detachment conditions.
  3. Abstract: a brief statement on the integrated code framework employed and any benchmark or validation steps performed against existing experiments or other codes would help readers assess the reliability of the self-consistent impurity profiles.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive and accurate summary of our core-edge integrated modeling study on ARC H-modes, as well as for recommending minor revision. No major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper presents results from an integrated core-edge modeling framework with self-consistent impurity evolution, radiation, and density profiles. Sensitivity studies on separatrix density, enrichment factor, pedestal density, neoclassical transport, and seeding species (Ar vs Ne) are described as exploring the model's behavior rather than deriving predictions that reduce to fitted inputs by construction. No load-bearing self-citations, uniqueness theorems, or ansatzes smuggled via prior work are referenced in the abstract or description. The central feasibility claim for GW-level power with detachment is framed as an outcome of the modeling under stated assumptions, with no quoted equations or steps showing tautological reduction to inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract supplies no explicit list of free parameters, axioms, or invented entities; all such elements remain unidentified.
