HiPS: Hierarchical PDF Segmentation of Doctrinal Legal Books

T0 review · 3 major / 6 minor · reviewed 2026-08-05 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A benchmark of 49 open-access law books shows that a TOC-based parser wins when outline metadata is complete, while an LLM-refined pipeline improves heading precision and boundary quality when metadata is missing or noisy.

desk verdict A genuinely useful benchmark for deep textbook segmentation, but the TOC parser's headline numbers are partly circular because the ground truth was filtered using the parser's own matching logic. read the letter →

arxiv 2509.00909 v2 pith:7UFGASQT submitted 2025-08-31 cs.IR

Sabine Wehnert , Harikrishnan Changaramkulath , Ivan Habernal This is my paper · ORCID
classification cs.IR
keywords PDFsegmentationhierarchicaldocumentstructurelegaltextbookstableofcontentsextractionLLM-basedparsingOCRlayoutanalysissectionboundarydetectionbenchmarkdataset
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

HiPS targets a problem most PDF parsers do not: recovering the full, multi-level section tree of an entire book, not just page-local headings. The paper's central claim is that two complementary pipelines together handle deep legal textbooks: a TOC-Based PageParser that exploits outline metadata when it is reliable, and an LLM-Refined PageParser that uses OCR whitespace cues and XML typography to find heading candidates and then asks a language model to filter and level them. To support this, the authors contribute a gold-standard dataset of 49 open-access law books with 9,812 manually curated headings, levels, and page anchors. A careful reader would care because deep textbook structure is what downstream applications like knowledge graphs need, and current tools are tuned to three-level research papers. The experiments suggest that no single approach dominates: metadata quality, not model size, decides which pipeline is superior.

What carries the argument

The pipeline pair is carried by two mechanisms. The TOC-Based PageParser uses a shared normalization step (squeezed spaces, stripped punctuation, lowercasing) and then three complementary matchers—exact, substring, and fuzzy (partial ratio at a threshold of 80)—to align outline headings with fulltext XML nodes and reading-order lines, thereby assigning section boundaries. The LLM-Refined PageParser selects candidates by detecting lines in 300-DPI OCR that are surrounded by whitespace, enriches them with XML typographic and positional features plus a short passage of trailing text, and lets an LLM filter false positives and assign consistent hierarchy levels across the whole book.

What would settle it

Re-annotate a random subset of the 49 books with multiple independent annotators who do not see the PDF outline metadata; if the corrected hierarchy differs materially from the single-annotator outline-seeded ground truth, the ranking of the TOC-based versus LLM-refined pipelines could invert on those books.

Watch

Extended reading notes

Core claim

The central discovery claimed in the paper is a division of labour rather than a new neural architecture. When a PDF's embedded table of contents is complete, a rule-based parser that normalizes heading text and matches it in the fulltext via exact, substring, and fuzzy criteria produces the most accurate blueprint, with edit-tree distances on hierarchy reconstruction lower than every tested alternative, especially at the deepest levels. When the outline is missing or noisy, that same parser fails; here a pipeline that selects heading candidates from 300-DPI OCR by looking for whitespace-surrounded lines, adds XML font/page features and a short trailing context, and then asks an LLM to filte

Load-bearing premise

The ground truth headings and levels were built by hand-correcting the PDFs' own outline metadata and verified by a single annotator, so the evaluation assumes that this corrected outline is an unbiased target not unduly shaped by the TOC-based parser's matching logic.

Editorial extensions

If this is right

  • Existing open-source document parsers are not reliable for deep legal textbook hierarchies, so the released 49-book benchmark can serve as a much-needed evaluation ground for document-global structure recovery.
  • When outline metadata is complete, a deterministic TOC matcher should be preferred over LLM-based heading detection, because it reconstructs deep hierarchy trees more accurately.
  • When outline metadata is missing or noisy, LLM refinement over structure-aware candidates is the stronger route, improving heading precision and boundary assignment.
  • Deep-level boundaries remain the hardest part for all methods, so the next practical step is to combine the TOC matcher's strong top-level results with LLM refinement focused on levels 4 and 5.
  • The benchmark's heading and level annotations provide a reusable target for knowledge-graph construction, entity extraction, and other tasks that depend on book-level structure.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A direct extension the authors leave implicit is that the same dual-pipeline design could apply to non-legal textbooks or born-digital documents where outline metadata is systematically absent; the benchmark itself only covers law books.
  • Because publisher style appears to influence which method wins, a testable next step would be a publisher-aware calibration of fuzzy matching thresholds or LLM prompting, rather than a single global configuration.
  • If the single-annotator ground truth were re-annotated by multiple independent raters, the measured gap between the TOC-based and LLM-based pipelines could narrow or shift, making that re-annotation a worthwhile robustness check before the benchmark is used as a leaderboard.
  • The strongest LLM results came from the variant that combined OCR whitespace cues with XML features, suggesting that pure text-based models, no matter how large, will keep underperforming on layout-driven heading detection in visually formatted books.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The manuscript presents HiPS, a benchmark and two segmentation pipelines for recovering hierarchical section structure from deeply nested legal textbooks. The authors release 49 open-access law books with 9,812 manually curated headings, levels, and page anchors, and compare a Table-of-Contents-based parser with LLM-refined parsers and existing tools on three subtasks: title detection, hierarchy allocation, and boundary assignment. The headline findings are that the TOC-based pipeline is strongest when PDF outline metadata is complete, while the LLM-refined pipeline (especially XML-OCR-GPT5) improves heading precision, deep-level recovery, and boundary quality when metadata is missing or noisy.

Significance. The benchmark and code are potentially valuable: deep-book hierarchical segmentation has little public gold-standard data, and the paper includes a broad comparison with open-source tools and multiple LLMs, with code release for replication. The TOC-based parser is simple and transparent, and the LLM-refined pipeline's integration of OCR whitespace cues and XML typography is a reasonable design. If the ground truth is valid, the results would support the proposed hybrid approach. However, the paper's central comparison is threatened by the way the gold standard was constructed from PDF outline metadata and then filtered with the TOC parser's own matching logic. Because this concern is load-bearing for the reported TOC-versus-LLM ranking, the resource is promising but the evidence is currently conditional.

major comments (3)
  1. [Section 3 (Dataset)]
  2. [Section 5.4 (Threats to Validity)]
  3. [Sections 5.2 and 5.3]
minor comments (6)
  1. [Throughout] Typos and wording issues: 'Thiapproachess', 'meaningul', 'candin-dates', 'ann existing', and 'theses methods' should be corrected. The prose would benefit from a careful proofreading pass.
  2. [Section 4.2 and Algorithm 1] The matching function MatchHeading is used in Algorithm 1 but not formally defined in the pseudocode. The normalization steps and threshold of 80 appear in the text; please make them part of the algorithm or provide a precise definition in a table.
  3. [Section 5.1] The metrics P_ED and R_ED allow an edit distance of 2 for a true positive. Please specify whether the edit distance is computed on normalized strings, and whether insertions/deletions of punctuation or whitespace count toward the tolerance. This affects the comparability of the reported numbers.
  4. [Figures 6 and 7] The edit-tree-distance plots use different y-axis scales across subfigures, making visual comparison misleading. Consider using a shared scale or annotating the scale difference explicitly in the caption.
  5. [Section 3] The sampling from 259 books with outline metadata to 49 annotated files is not fully described. Please explain the random sampling procedure, the intended number of files per metadata depth, and why the final distribution has very few files at depths 1 and 2.
  6. [Section 5.3] The sentence 'The TOC-based PageParser cannot capture segments which are not part of a TOC' is important and could be made more prominent; it partially explains the method's lower boundary results at levels 4 and 5. It would help to quantify this limitation relative to the ground-truth coverage of the TOC metadata.

Circularity Check

1 steps flagged · score 6.0 of 10

Ground truth is built from TOC metadata and filtered by the TOC parser's own matching logic, making the 'TOC strongest when metadata is complete' result definitional.

  1. self definitional [Section 3, 'Dataset' bullet list (ground-truth curation); effect on Section 5.1–5.3 evaluations]
    "We took the outline metadata (=TOC) of the PDFs as a basis for the ground truth data. In case the headings were properly included in the TOC, we could directly use this information, including the page numbers and hierarchy level. ... We used the core logic from the TOC-Based PageParser (see Algorithm 1) to detect all ground truth TOC data inside the textbook’s fulltext. With that we could ensure that all ground truth headings were detectable in the fulltext, i.e., there were no unmatched headings logged."

    The gold standard for heading detection, hierarchy level, and page anchors is not independent: it is seeded from the same PDF outline metadata that the TOC-Based PageParser consumes as input. When metadata is 'complete,' the parser's input is essentially identical to the ground-truth heading set, so its strong performance is guaranteed by construction. The additional filtering step uses the parser's own Algorithm 1 matching logic (normalized exact/substring/fuzzy) to admit only headings detectable by that matcher, meaning every true positive is reachable by the TOC-based parser while visually legitimate headings that the matcher cannot handle are excluded. Thus the central comparative result favoring the TOC-based parser under complete metadata is a restatement of the dataset definition, a

full rationale

The circularity is concentrated in the construction of the benchmark rather than in the parsing code itself, but it directly affects the paper's central claim. Section 3 states that the ground truth was seeded from the PDFs' TOC metadata (the same input used by the TOC-Based PageParser) and then filtered through the parser's own matching logic to ensure every ground-truth heading is 'detectable.' Consequently, when metadata is complete, the TOC-based parser's heading list, hierarchy levels, and page anchors are nearly identical to the gold standard by construction; the reported conclusion that 'the TOC-based pipeline is strongest when metadata is complete' is therefore not an empirical discovery but a consequence of how the data were curated. The LLM-refined pipeline's results are also affected, because headings that the TOC parser's matcher cannot recognize are excluded from the gold standard, penalizing TOC-free methods that might detect them. However, the LLM-related findings about precision, boundary quality, and behavior on noisy metadata still depend on actual model outputs and are not fully forced, so this is partial circularity rather than complete equivalence. No load-bearing self-citation chain or imported uniqueness theorem was found; the single-annotator disclosure in Section 5.4 is an additional validity concern but is not itself circularity. An independent re-annotation that does not reuse TOC metadata or Algorithm 1's matching logic would be needed to support the comparative claims.

Assumptions & free parameters 4 free parameters · 4 assumptions · 0 invented entities

The benchmark construction and the TOC-based parser share the same metadata source, which is the largest burden the central evaluation carries. The LLM pipeline depends on a whitespace heuristic for headings and on pre-trained LLM judgment. No new physical or mathematical entities are introduced.

free parameters (4)
  • Fuzzy partial-ratio threshold = 80
    Hand-chosen threshold in the matching of TOC headings to full-text nodes (Section 4.2).
  • Evaluation edit-distance tolerance = 2
    Manually chosen leniency for counting a detected title as a true positive (Section 5.1).
  • XML font-frequency threshold
    Candidate selection prioritizes fonts that are less frequent but within a 'reasonable threshold'; the threshold is unspecified (Section 4.1.2).
  • OCR heading filters
    Filters remove lines with excessive word counts or punctuation patterns; thresholds are not quantified (Section 4.1.2).
assumptions (4)
  • domain assumption PDF outline/TOC metadata is a valid starting point for ground truth headings and levels.
    The ground truth is constructed by correcting the outline metadata rather than annotating pages from scratch (Section 3).
  • domain assumption Headings in legal textbooks are reliably distinguished by surrounding whitespace.
    Core premise of the OCR-based candidate selection (Section 4.1.2).
  • domain assumption A single annotator's corrections to TOC metadata yield correct hierarchy levels and boundaries.
    No inter-annotator agreement is reported (Section 5.4).
  • standard math Standard metrics and algorithms (Pk, WindowDiff, Zhang-Shasha edit distance, fuzzy string matching) are valid for this segmentation evaluation.
    Used for evaluation in Sections 5.1-5.3.

how reviews work

0 comments
Cite this review

Pith. "Pith review of HiPS: Hierarchical PDF Segmentation of Doctrinal Legal Books." pith.science (2026). https://pith.science/paper/7UFGASQT

@misc{pith2026250900909,
  author       = {Pith},
  title        = {Pith review of: HiPS: Hierarchical PDF Segmentation of Doctrinal Legal Books},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/7UFGASQT}},
  note         = {Machine review of arXiv:2509.00909}
}
read the original abstract

PDF parsers have recently improved on page-level layout understanding. However, recovering a document-global section hierarchy with reliable boundaries remains brittle for deeply structured books: many systems expose only page-local heading roles, assume shallow depth, or rely on high-quality PDF tags or Table of Contents (TOC) metadata, and public gold-standard data for deep book hierarchies is scarce. We present HiPS for hierarchical PDF segmentation of doctrinal legal books and make two main contributions. First, we release a gold-standard benchmark of 49 open-access law books with 9,812 manually curated headings, hierarchy levels, and page anchors, enabling evaluation of title detection, hierarchy reconstruction, and section boundary assignment. Second, we introduce complementary segmentation pipelines: a TOC-based parser for books with reliable outline metadata and a TOC-free LLM-refined pipeline that combines OCR whitespace cues, XML typography, and local context. Across a broad comparison against open-source parsers and multimodal/LLM baselines, the TOC-based pipeline is strongest when metadata is complete, while the LLM-refined pipeline improves heading precision, deep-level recovery, and boundary quality when metadata is missing or noisy.

Figures

Figures reproduced from arXiv: 2509.00909 by the authors.

Figure 1
Figure 1. Sampling method for dataset creation. eBooks under the category "Law" from the Open Research Library10 . This resulted in a corpus of 362 books, and thereof 259 books had outline metadata for the TOC. These 259 books formed the basis for our data sampling to create ground truth annotations [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Distribution of Annotated Headings per File in [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 4
Figure 4. Comparison between maximum hierarchy depth [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figures from the paper (4 more)
Figure 3
Figure 3. Figure 3: Outline prefix distribution within the ground truth [PITH_FULL_IMAGE:figures/full_fig_p005_3.png]
Figure 5

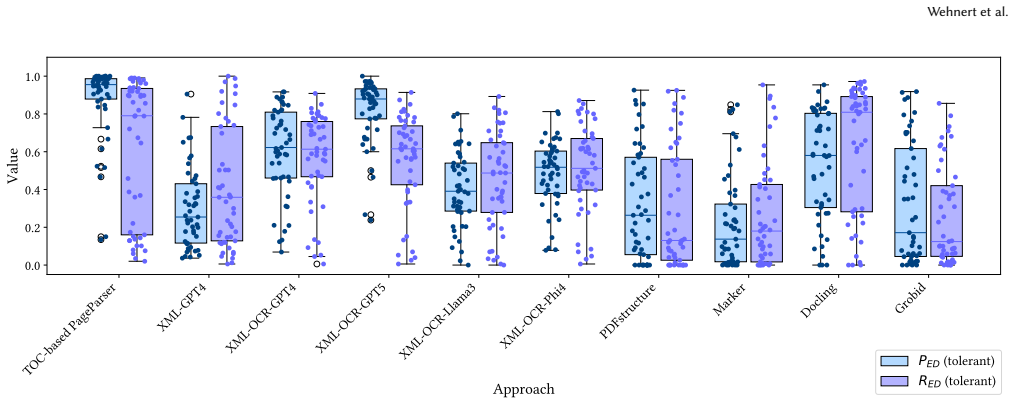

Figure 5. Figure 5: Results with Tolerant Edit Distance-Based Precision and Recall Scores. [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6
Figure 6. Figure 6: Edit Tree Distance results for the Section Title Hierarchy Allocation. [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
Figure 7
Figure 7. Figure 7: Results for Hierarchical Section Boundary Assignment. [PITH_FULL_IMAGE:figures/full_fig_p009_7.png]

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

25 extracted references · 20 canonical work pages

  1. [1]

    Gers, and Alexander Löser

    Sebastian Arnold, Rudolf Schneider, Philippe Cudré-Mauroux, Felix A. Gers, and Alexander Löser. 2019. SECTOR: A Neural Model for Coherent Topic Segmen- tation and Classification. Trans. Assoc. Comput. Linguistics 7 (2019), 169–184. doi:10.1162/TACL_A_00261

    doi:10.1162/tacl_a_00261 2019

  2. [2]

    Dennis Aumiller, Satya Almasian, Sebastian Lackner, and Michael Gertz. 2021. Structural text segmentation of legal documents. In ICAIL ’21: Eighteenth In- ternational Conference for Artificial Intelligence and Law, São Paulo Brazil, June 21 - 25, 2021 , Juliano Maranhão and Adam Zachary Wyner (Eds.). ACM, 2–11. doi:10.1145/3462757.3466085

    arXiv 2021

  3. [3]

    Mostafa Bayomi and Séamus Lawless. 2018. C-HTS: A Concept-based Hier- archical Text Segmentation approach. In Proceedings of the Eleventh Interna- tional Conference on Language Resources and Evaluation, LREC 2018, Miyazaki, Japan, May 7-12, 2018 , Nicoletta Calzolari, Khalid Choukri, Christopher Cieri, Thierry Declerck, Sara Goggi, Kôiti Hasida, Hitoshi I...

    work page 2018

  4. [4]

    Berger, and John D

    Doug Beeferman, Adam L. Berger, and John D. Lafferty. 1999. Statistical Models for Text Segmentation. Mach. Learn. 34, 1-3 (1999), 177–210

    work page 1999

  5. [5]

    Najah-Imane Bentabet et al. 2019. Table-of-Contents Generation on Contempo- rary Documents. In ICDAR 2019, Sydney, Australia, September 20-25, 2019 . IEEE, 100–107

    work page 2019

  6. [6]

    Sosnovsky

    Isaac Alpizar Chacon and Sergey A. Sosnovsky. 2021. Knowledge models from PDF textbooks. New Rev. Hypermedia Multim. 27, 1-2 (2021), 128–176

    work page 2021

  7. [7]

    Duarte, João Marques, Miguel Graça, Miguel Freire, Lei Li, and Arlindo L

    André V. Duarte, João Marques, Miguel Graça, Miguel Freire, Lei Li, and Arlindo L. Oliveira. 2024. LumberChunker: Long-Form Narrative Document Segmentation. In Findings of the Association for Computational Linguistics: EMNLP 2024, Miami, Florida, USA, November 12-16, 2024 , Yaser Al-Onaizan, Mohit Bansal, and Yun- Nung Chen (Eds.). Association for Computa...

    work page 2024

  8. [8]

    Markus Frohmann, Igor Sterner, Ivan Vulic, Benjamin Minixhofer, and Markus Schedl. 2024. Segment Any Text: A Universal Approach for Robust, Efficient and Adaptable Sentence Segmentation. In Proceedings of the 2024 Conference on Empirical Methods in Natural Language Processing, EMNLP 2024, Miami, FL, USA, November 12-16, 2024 , Yaser Al-Onaizan, Mohit Bans...

    work page 2024

Show all 25 references
  1. [9]

    Liangcai Gao et al. 2009. Analysis of book documents’ table of content based on clustering. In 2009 10th ICDAR. IEEE, 911–915

    2009

  2. [10]

    Abhijith Athreya Mysore Gopinath and Sothers. 2018. Supervised and Unsu- pervised Methods for Robust Separation of Section Titles and Prose Text in Web Documents. In Proceedings of the 2018 EMNLP, Brussels, Belgium, October 31 - November 4, 2018 , Ellen Riloff et al. (Eds.). A...

    2018

  3. [11]

    Amir Hazem et al. 2020. Hierarchical text segmentation for medieval manuscripts. In Proceedings of the 28th COLING . 6240–6251

    2020

  4. [12]

    Amir Hazem, Béatrice Daille, Dominique Stutzmann, Christopher Kermor- vant, and Louis Chevalier. 2020. Hierarchical Text Segmentation for Medieval Manuscripts. In Proceedings of the 28th International Conference on Computational Linguistics, COLING 2020, Barcelona, Spain (Onli...

    2020 doi

  5. [13]

    Stefan Klampfl and Roman Kern. 2013. An Unsupervised Machine Learning Approach to Body Text and Table of Contents Extraction from Digital Scientific Articles. In Research and Advanced Technology for Digital Libraries - TPDL 2013, Valletta, Malta, September 22-26, 2013. Proceed...

    2013

  6. [14]

    Yuta Koreeda and Christopher Manning. 2021. Capturing Logical Structure of Visually Structured Documents with Multimodal Transition Parser. In Proceed- ings of the Natural Legal Language Processing Workshop 2021 . Association for Computational Linguistics, Punta Cana, Dominica...

    2021

  7. [15]

    Xin Lai, Zhuotao Tian, Yukang Chen, Yanwei Li, Yuhui Yuan, Shu Liu, and Jiaya Jia. 2024. LISA: Reasoning Segmentation via Large Language Model. In IEEE/CVF Conference on Computer Vision and Pattern Recognition, CVPR 2024, Seattle, W A, USA, June 16-22, 2024 . IEEE, 9579–9589. ...

    2024

  8. [16]

    Zichao Li, Shaojie He, Meng Liao, Xuanang Chen, Yaojie Lu, Hongyu Lin, Yanx- iong Lu, Xianpei Han, and Le Sun. 2024. Seg2Act: Global Context-aware Ac- tion Generation for Document Logical Structuring. In Proceedings of the 2024 Conference on Empirical Methods in Natural Langua...

    2024

  9. [17]

    Caihua Liu et al. 2011. TOC Structure Extraction from OCR-ed Books. In Focused Retrieval of Content and Structure, 10th International Workshop of the Initiative for the Evaluation of XML Retrieval, INEX 2011, Saarbrücken, Germany, December 12-14, 2011 (Lecture Notes in Compute...

    2011 doi

  10. [18]

    Maizhen Ning, Qiu-Feng Wang, Kaizhu Huang, and Xiaowei Huang. 2021. A Segment-Based Layout Aware Model for Information Extraction on Document Images. In Neural Information Processing - 28th International Conference, ICONIP 2021, Sanur, Bali, Indonesia, December 8-12, 2021, Pro...

    2021 doi

  11. [19]

    Lev Pevzner and Marti A. Hearst. 2002. A Critique and Improvement of an Evaluation Metric for Text Segmentation. Comput. Linguistics 28, 1 (2002), 19– 36

    2002

  12. [20]

    Bo Wang et al. 2020. MSNet: A Multi-scale Segmentation Network for Documents Layout Analysis. In Learning Technologies and Systems - 19th ICWL 2020, and 5th SETE 2020, Ningbo, China, October 22-24, 2020, Proceedings (Lecture Notes in Computer Science, Vol. 12511), Chaoyi Pang ...

    2020

  13. [21]

    Jiawei Wang, Kai Hu, Zhuoyao Zhong, Lei Sun, and Qiang Huo. 2024. Detect- order-construct: A tree construction based approach for hierarchical document structure analysis. Pattern Recognit. 156 (2024), 110836. doi:10.1016/J.PATCOG. 2024.110836

    2024

  14. [22]

    Sabine Wehnert et al. 2018. Concept Hierarchy Extraction from Legal Literature. In Proceedings of the CIKM 2018 Workshops, Torino, Italy, October 22, 2018 (CEUR Workshop Proceedings, Vol. 2482), Alfredo Cuzzocrea et al. (Eds.). CEUR-WS.org

    2018

  15. [23]

    Maoyuan Ye, Jing Zhang, Juhua Liu, Chenyu Liu, Baocai Yin, Cong Liu, Bo Du, and Dacheng Tao. 2025. Hi-SAM: Marrying Segment Anything Model for Hierarchical Text Segmentation. IEEE Trans. Pattern Anal. Mach. Intell. 47, 3 (2025), 1431–1447. doi:10.1109/TPAMI.2024.3495831

    2025

  16. [24]

    Kaizhong Zhang and Dennis E. Shasha. 1989. Simple Fast Algorithms for the Editing Distance Between Trees and Related Problems. SIAM J. Comput. 18, 6 (1989), 1245–1262

    1989

  17. [25]

    Jihao Zhao, Zhiyuan Ji, Pengnian Qi, Simin Niu, Bo Tang, Feiyu Xiong, and Zhiyu Li. 2024. Meta-Chunking: Learning Efficient Text Segmentation via Logical Perception. CoRR abs/2410.12788 (2024). arXiv:2410.12788 doi:10.48550/ARXIV. 2410.12788 A Ethical considerations We publish...

    2024 doi arXiv
