Graph-based Document Structure Analysis

T0 review · 3 major / 6 minor · reviewed 2026-08-09 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Graph-based Document Structure Analysis (gDSA) redefines document layout tasks as the joint detection of elements and the prediction of a labeled relation graph over them, backed by GraphDoc (80K pages, 4.13M relations) and a DRGG…

desk verdict A useful large-scale document-graph resource with a legitimate new task; the rule-based annotation pipeline is transparent and the core value holds up despite soft spots in reference-relation quality. read the letter →

arxiv 2502.02501 v1 pith:AWD35S4X submitted 2025-02-04 cs.CV

Yufan Chen , Ruiping Liu , Junwei Zheng , Di Wen , Kunyu Peng , Jiaming Zhang , Rainer Stiefelhagen This is my paper · ORCID
classification cs.CV
keywords gDSAGraphDocdocumentlayoutanalysisstructurerelationreadingorderpredictionhierarchicalreference
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper argues that a document is understood only when its parts are connected: layout analysis should output not just boxes and labels but a graph of spatial and logical relations, covering reading order, section hierarchy, and references between text, tables, and figures. To make this concrete it defines the gDSA task, in which a model must detect document elements and predict eight relation types (up, down, left, right, parent, child, sequence, reference) between them. It introduces GraphDoc, an 80K-page dataset with 4.13M relation annotations built by a rule-based pipeline on top of DocLayNet, and DRGG, an end-to-end relation-head architecture that scores 57.6% mAPg@0.5 while also improving layout detection. The paper positions this as a single benchmark on which reading order, hierarchy, and cross-reference abilities can be trained and compared together.

What carries the argument

The central object is the document relation graph $G=(V,E)$, a pair of layout nodes and labeled edges, where each pair of elements can carry several relation types at once. The mechanism that produces it is DRGG's relation head: object queries from every decoder layer are pooled, upsampled, and concatenated into pairwise features, which are aggregated across layers with learned weights and classified by an MLP into $N \times N \times k$ relation predictions; an auxiliary head that only predicts whether any relation exists multiplies the final scores to suppress false positives. A second piece of machinery is the evaluation protocol, which matches predicted to ground-truth instances by class and IoU and then reports mRg and mAPg at relation-confidence thresholds, so that rare relations like reference are not cut off by top-k ranking.

What would settle it

Take a random sample of unverified GraphDoc pages (the 41.5% not manually checked), have two independent annotators label every reference relation from the raw text without seeing the rule-based labels, and measure agreement with GraphDoc and between annotators; if agreement on reference edges is near chance, the reference ground truth, and the 16.8% reference AP, is not a reliable yardstick.

Watch

Extended reading notes

Core claim

The central claim is that document structure can be represented as a labeled graph $G=(V,E)$, where $V$ are detected layout elements and $E$ carry both spatial relations (up, down, left, right) and logical relations (parent, child, sequence, reference), and that such graphs can be predicted from raw page images in one end-to-end model. The paper builds GraphDoc by enriching DocLayNet pages with roughly 4.13M relation pairs using a rule-based annotation system: OCR and PDF text extraction, nearest-neighbor spatial scanning, Recursive X-Y Cut reading order, text-marker matching for references, and hierarchical grouping, with manual verification on 58.5% of the data. On this benchmark, DRGG with an InternImage backbone and RoDLA detector reaches 57.6% mAPg@0.5 (30.7% mRg@0.5) and 81.5% mAP@50:5:95 on layout detection, with near-perfect left/right relations (99.0% AP) but only 16.8% AP on reference relations, whose textual nature makes them the hardest category.

Load-bearing premise

The 4.13M relation labels are mostly produced by rule-based heuristics (nearest-neighbor spatial scans, Recursive X-Y Cut, and text-marker matching), and only 58.5% of pages were manually verified, so if those heuristics mark the wrong pairs, especially for rare 'reference' links, the benchmark and any model trained on it inherit the errors.

Editorial extensions

If this is right

  • A single trained model can produce reading order, hierarchy, and cross-references simultaneously, because all three are edges of one predicted graph.
  • Relation accuracy is coupled to detection accuracy: gDSA metrics are computed only over instances matched by IoU and class, so better layout detection should directly raise mRg and mAPg.
  • DRGG acts as a plug-and-play relation head: adding it to the RoDLA detector lifts DLA mAP from 80.5 to 81.5 on an InternImage backbone.
  • GraphDoc's scale (80K pages, 4.13M relations, 11 element categories, 8 relation types) makes it a large training and evaluation resource for structure-aware document understanding.
  • Reference relations are the hardest category at 16.8% AP, so progress on textual cross-references, not spatial layout, is the near-term bottleneck for the task.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Inference: because reference relations are defined by textual mentions ('see Table 1', footnote markers), a multimodal variant of DRGG that fuses OCR text into the relation head should improve reference AP beyond the current 16.8% far more than better bounding boxes would.
  • Inference: the per-domain refinement rates (8-26% of labels changed) create a natural stress test: if label noise drives performance, domains with higher refinement should show lower relation AP even after matching layout difficulty.
  • Inference: switching from threshold-based mAPg to ranking-based top-k recall, as scene graph generation uses, would change which detectors win, since threshold metrics reward confident predictions and may underweight the rare reference class.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper introduces graph-based Document Structure Analysis (gDSA), a task that requires detecting document layout elements and predicting an eight-category relational graph (Up, Down, Left, Right, Parent, Child, Sequence, Reference) over them. It contributes GraphDoc, a dataset of 80,000 document page images with 1.10M layout instances and 4.13M relation annotations built by extending DocLayNet with a rule-based annotation pipeline and partial human verification. It also proposes DRGG, a plug-and-play relation head for DETR-style detectors, and reports DLA mAP of 81.5% and gDSA mAPg@0.5 of 57.6% with an InternImage backbone and RoDLA detector. The authors position these results as a strong benchmark baseline for the new task.

Significance. If the GraphDoc annotations are reliable, the paper provides a valuable large-scale resource that extends document layout analysis toward structured graph prediction, and the task definition is a natural step beyond existing reading-order and hierarchy datasets. The authors report per-domain results, per-relation-category results, ablations of the relation head, and qualitative error analysis, which are useful for the community. The plan to release dataset and code is a further strength. The significance of the contribution, however, rests on two load-bearing points: the correctness of the rule-generated relation ground truth and the precise definition of the evaluation metric. Both need to be established before the 57.6% mAPg@0.5 number can serve as a trustworthy benchmark.

major comments (3)
  1. [Section 3.1.4 and Appendix A.1] The central value of GraphDoc rests on the rule-based annotations being accurate enough to serve as ground truth. The paper reports that only 58.5% of pages were manually verified and that refinement rates range from 8% to 26%, but it does not provide per-relation verification statistics, inter-annotator agreement, or a comparison of the heuristic labels against a fully manually annotated sample. This matters particularly for Reference relations: they constitute about 0.2% of all relations and are generated by phrase matching, so errors there would be invisible in the aggregate refinement rates. The listed page counts in Appendix A.1 (4,852 + 12,000 + 6,469 + 8,000 = 31,321) also do not sum to 58.5% of 80,000 pages, introducing uncertainty about the actual verification coverage. I ask the authors to resolve this numerical inconsistency, report per-relation human-verification outcomes, and provide a concrete test (e.g., inter-annotator agreement on a random subset and per-relation precision of the heuristic labels against human labels). Without this, it is unclear whether the 57.6% mAPg@0.5 result measures human-perceived document structure or artifacts of the annotation heuristics.
  2. [Section 3.3, Algorithm 1, and Appendix B] The definition of mAPg@TR is under-specified. Algorithm 1 thresholds all relation predictions at score > TR before calling fmAP, while Appendix B describes integrating a precision-recall curve; these are not the same procedure unless the threshold is swept to obtain the curve, and the pseudocode does not specify how precision and recall are accumulated when a subject-object pair has multiple coexisting relations. The headline number 57.6% therefore cannot be reproduced from the paper alone. In addition, the IoU threshold TIoU used for instance matching is not stated in Section 4.3 or in Table 2; it appears only as an aside in Appendix B. Please specify the exact ranking/threshold protocol, state TIoU for all reported results, and release the evaluation code with the paper.
  3. [Section 4.4, Table 2, and Appendix E, Table 7] The paper's general claim that DRGG improves DLA is not supported by the ablations. Table 7 shows that adding DRGG decreases DLA mAP for ResNet+RoDLA (74.3 to 71.0) and leaves ResNeXt essentially unchanged (77.7 to 77.9), while improving InternImage from 80.5 to 81.5. Since the conclusion states that DRGG 'enhanced the effectiveness' of document structure analysis, the authors should qualify the claim and either analyze the conditions under which the relation head helps or hurts or restrict the claim to the configurations that improve. This does not invalidate the gDSA results but is necessary for accurate reporting.
minor comments (6)
  1. [Section 4.2 and Appendix F] The loss weights λ and σ in Eq. (13) are never specified; without them the training procedure is not fully reproducible.
  2. [Section 3.1.4] The sentence 'The reference relations among Table and Picture are established' is ambiguous; it should clarify whether references are between Table/Picture and text, as described in Section 3.1.3.
  3. [Figure 6i] The axis labels and numbers in Figure 6i are garbled in the current text; please provide relation counts in a table.
  4. [Section 3.3] The notation mAPg@0.5 is easily confused with IoU-based mAP@0.5; please define it explicitly as a relation-confidence threshold at first use.
  5. [Appendix D] The sentence 'We used InternImage as the backbone, RoDLA as the detector, and DRGG for relationship extraction' appears twice in succession; please remove the duplicate.
  6. [Section 4.2] The paper does not describe the train/validation split of GraphDoc; please specify the split and whether it matches DocLayNet's official split.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: GraphDoc's heuristic labels and self-cited baseline are transparent benchmark choices, not a derivation loop.

full rationale

GraphDoc is a dataset-and-baseline contribution; it does not claim a first-principles derivation of document structure. The relation annotations are generated by a transparent rule-based pipeline (Sec. 3.1.4, App. A.1), and DRGG is trained and evaluated on the resulting labels. This is a standard benchmark-construction choice: the model does not use the annotation heuristics at inference, and the validation split is held out. The heuristic origin of the labels is a data-quality and validity concern (only 58.5% of pages human-verified, with refinement rates from 8% to 26%), but it is not a circular reduction, because nothing in the paper's equations makes the predicted relations equal to the annotation rules by construction. The only self-citation, RoDLA (Chen et al. 2024), is used as a comparative detector and backbone and is not load-bearing for the central claim. No uniqueness theorem or ansatz is imported from prior work. Accordingly, no circular step is exhibited.

Assumptions & free parameters 3 free parameters · 5 assumptions · 0 invented entities

The paper introduces no new physical or conceptual entities requiring independent evidence. The graph representation, dataset, and model are task artifacts. The load-bearing assumptions are about the reliability of the source annotations, the applicability of Manhattan layout assumptions, the accuracy of OCR, the validity of Recursive X-Y Cut for reading order, and the sufficiency of partial human verification.

free parameters (3)
  • lambda (relation head loss weight)
    Eq. 13 weights the relation prediction loss; value not reported in the paper.
  • sigma (auxiliary relation head loss weight)
    Eq. 13 weights the auxiliary relation existence loss; value not reported.
  • Relation confidence threshold TR for headline metric = 0.5
    Headline mAPg@0.5 is evaluated at TR=0.5; the choice of 0.5 is conventional but arbitrary, and the metric's sensitivity to it is shown in ablations.
assumptions (5)
  • domain assumption DocLayNet bounding boxes are class-correct and mutually non-overlapping.
    Spatial relations are computed under the DocLayNet non-overlap rule; errors in the source annotations propagate to GraphDoc. Invoked in Section 3.1.4.
  • domain assumption Scientific documents are predominantly Manhattan layouts, so four spatial relations (up, down, left, right) suffice to encode spatial structure.
    Section 3.1.3 asserts Manhattan layout coverage; this limits the generality of the spatial relation definition for non-Manhattan pages.
  • domain assumption OCR and PDF text extraction correctly recover text for reference matching and hierarchy construction.
    Appendix A.1 relies on pdfplumber and Tesseract OCR to map text to boxes and find citations; OCR errors corrupt reference relation labels.
  • domain assumption Recursive X-Y Cut produces a reading order that matches human reading for this corpus.
    Used in the annotation pipeline to define sequence and parent-child relations; if the reading order is wrong, logical relations are wrong.
  • ad hoc to paper Human verification of 58.5% of pages is sufficient to guarantee the quality of the remaining algorithmically labeled pages.
    Appendix A.1 states refinement rates vary by domain; the extrapolation to unverified pages is an assumption.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Graph-based Document Structure Analysis." pith.science (2026). https://pith.science/paper/AWD35S4X

@misc{pith2026250202501,
  author       = {Pith},
  title        = {Pith review of: Graph-based Document Structure Analysis},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/AWD35S4X}},
  note         = {Machine review of arXiv:2502.02501}
}
abstract

When reading a document, glancing at the spatial layout of a document is an initial step to understand it roughly. Traditional document layout analysis (DLA) methods, however, offer only a superficial parsing of documents, focusing on basic instance detection and often failing to capture the nuanced spatial and logical relations between instances. These limitations hinder DLA-based models from achieving a gradually deeper comprehension akin to human reading. In this work, we propose a novel graph-based Document Structure Analysis (gDSA) task. This task requires that model not only detects document elements but also generates spatial and logical relations in form of a graph structure, allowing to understand documents in a holistic and intuitive manner. For this new task, we construct a relation graph-based document structure analysis dataset (GraphDoc) with 80K document images and 4.13M relation annotations, enabling training models to complete multiple tasks like reading order, hierarchical structures analysis, and complex inter-element relation inference. Furthermore, a document relation graph generator (DRGG) is proposed to address the gDSA task, which achieves performance with 57.6% at mAP$_g$@0.5 for a strong benchmark baseline on this novel task and dataset. We hope this graphical representation of document structure can mark an innovative advancement in document structure analysis and understanding. The new dataset and code will be made publicly available at https://yufanchen96.github.io/projects/GraphDoc.

Figures

Figures reproduced from arXiv: 2502.02501 by the authors.

Figure 1
Figure 1. GraphDoc Dataset Overview. Figure 1a illustrates the threefold considerations, including (i) the inclusion of spatial and logical relations, (ii) support for multiple relations between layouts pairs, (iii) and the integration of non-textual elements. Figure 1b demonstrates the state-of-the-art performance of our proposed method, showcasing mAP results for the Document Layout Analysis (DLA) task, as well as mRg and m… view at source ↗
Figure 2
Figure 2. Overview of the GraphDoc Dataset’s Task, which illustrates both DLA and gDSA tasks of GraphDoc are based on image analysis. Graph-based Document Structure Analysis (gDSA). gDSA aims to extract the relational graph among layout elements within the document, which could be formed as G = (V, E). For gDSA, nodes V correspond to the layout elements, edges E represent the relations between these layout elements, e.g., ref… view at source ↗
Figure 3
Figure 3. Logical Relationship in GraphDoc Dataset. There are 4 instinct types of relations. The relational graph effectively filters out extraneous connections that might appear in other types of diagrams, providing a clearer representation of the actual relationships. Consequently, in our GraphDoc dataset, we have defined two types of relational graphs. The first type is the spatial relational graph, which primarily categor… view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: Relation statistics on the GraphDoc dataset. The [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: Proposed Document Relation Graph Generator (DRGG) for Document Layout Anal￾ysis and Document Structure Analysis. The key of our model is illustrated in the Relation Head, which is responsible for predicting relations be￾tween layout elements. The remaining parts are th…
Figure 6

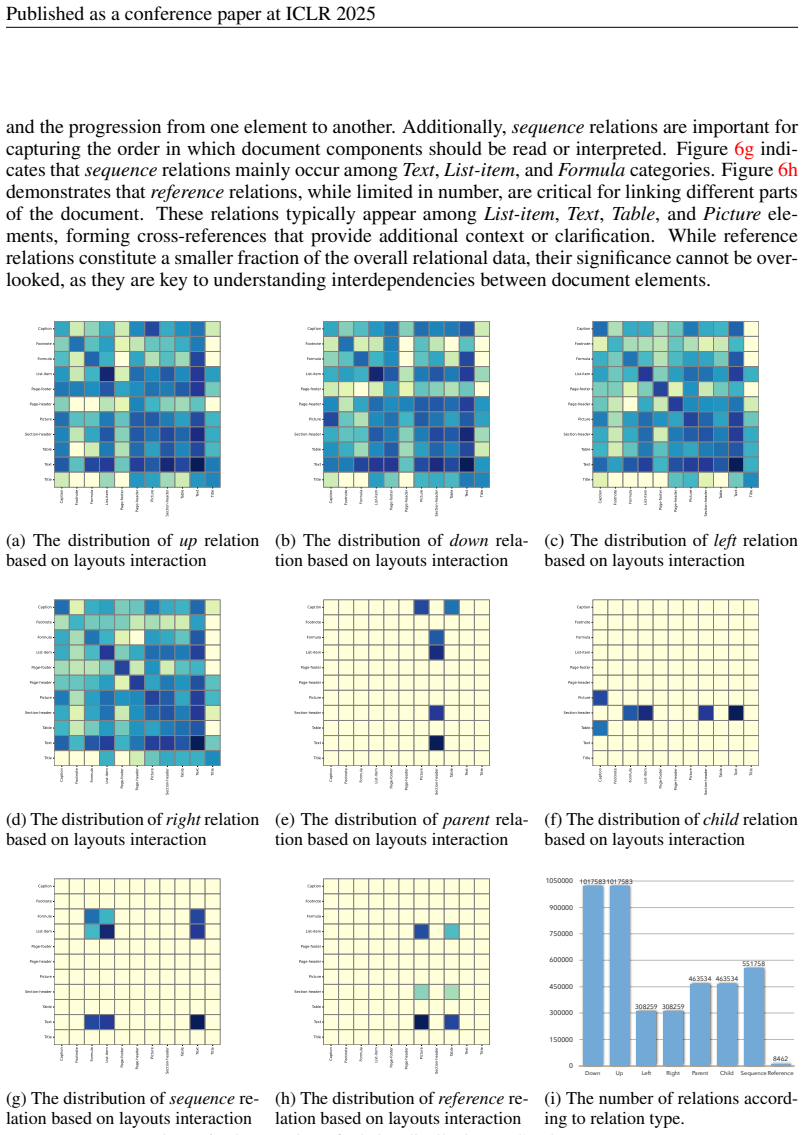

Figure 6. Figure 6: The overview of relation distribution on GraphDoc Dataset. [PITH_FULL_IMAGE:figures/full_fig_p017_6.png]
Figure 7
Figure 7. Figure 7: The overall architecture and the work flow of the proposed DRGG model. Given an image of [PITH_FULL_IMAGE:figures/full_fig_p019_7.png]
Figure 8
Figure 8. Figure 8: Qualitative Results for DRGG prediction, compared with ground truth on GraphDoc Dataset. [PITH_FULL_IMAGE:figures/full_fig_p024_8.png]
