ROSA: Reconstructing Object Shape and Appearance Textures by Adaptive Detail Transfer

T0 review · 3 major / 5 minor · reviewed 2026-08-09 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read ROSA reconstructs real objects from flashlight photos as compact adaptive meshes with arbitrarily high-resolution SVBRDF textures.

desk verdict Solid inverse rendering paper with a useful new combination of adaptive mesh refinement and tile-based texture generation; the central claim holds broadly, but the evaluation needs error bars, quantitative ablations, and a stress test on albedo-to-normal leakage. read the letter →

arxiv 2501.18595 v1 pith:B3UILJVR submitted 2025-01-30 cs.CV

Julian Kaltheuner , Patrick Stotko , Reinhard Klein This is my paper · ORCID
classification cs.CV
keywords inverserenderingSVBRDFadaptivemeshrefinementdetailtransfernormalmaptile-basedtexturesynthesiscollocatedlightdifferentiable
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

ROSA is an inverse rendering method that reconstructs a relightable 3D object from a limited set of collocated-light photographs, producing a triangle mesh and a spatially varying BRDF texture. Its central claim is that geometric detail should be allocated dynamically: details larger than roughly one pixel are transferred from the estimated normal map into the mesh itself, while the normal map keeps only the rest. The mesh is refined adaptively where texture-space curvature and mesh curvature agree, with per-vertex smoothness relaxed in those regions, so the final model stays compact without a separate simplification pass. Textures are generated tile-by-tile by a single pre-trained decoder, so their resolution is bounded by the number of tiles rather than by the network. If correct, this removes two known bottlenecks, oversized meshes and fixed low-resolution textures, in practical object capture for AR/VR and games.

What carries the argument

The load-bearing object is the pair formed by the normal loss and the adaptive control signals. The normal loss, Eq. (16), is $$L_{\text{normal}} = \|\mathbf{m} \odot ((\operatorname{sg}[\hat{\mathbf{N}}_V] + \hat{\mathbf{N}}) - \hat{\mathbf{N}}_V)\|_1,$$ where the stop-gradient on $\hat{\mathbf{N}}_V$ turns the rendered geometric normal into a fixed target derived from the texture normal, pulling vertices toward the shape implied by the normal map. The control signals are the texture-space curvature $c_n(v_i)$, a Scharr-convolution measure of normal-map variation per vertex, and the mesh curvature $c_V(v_i)$ from the Laplacian; these set per-vertex smoothness weights $\lambda_i(t)$ and edge-length thresholds $e_i(t)$ that drive local refining. This pair transfers detail from texture to geometry while keeping resolution where it is needed. The tile-based texture decoder, a pre-trained deconvolution network that maps fixed-size latent codes to 128x128 SVBRDF tiles, carries the appearance side and removes the network-resolution limit.

What would settle it

Render a flat plane with a sinusoidal normal perturbation of wavelength about two to three pixels under collocated light and run the pipeline with a known camera trajectory. If the central claim holds, the reconstructed mesh should develop corrugations matching the perturbation and the silhouette of the object should no longer be perfectly flat; if the mesh stays flat and the detail remains only in the normal texture, the transfer has failed. A quantitative version is to compare the Chamfer distance to a ground-truth mesh for this scene versus a physically flat plane with the same printed normal map.

Watch

Extended reading notes

Core claim

The paper's discovery is that the normal map can act as a hinge for geometry optimization: a stop-gradient normal loss makes the rendered geometric normal chase the rendered perturbed normal, and a curvature criterion computed from both the mesh Laplacian and the normal map decides where to subdivide. In ROSA's terms, the optimization jointly updates vertex positions and decoder weights while periodically remeshing locally (Loop subdivision with edge flips) and preconditioning smoothness non-uniformly. This transfers all visible surface detail into real 3D shape, avoiding normal-map artifacts such as wrong silhouettes and missing shadows, while texture tiles from a single pre-trained decoder allow arbitrarily high-resolution SVBRDF atlases. The paper demonstrates this on synthetic ground-truth objects and on real smartphone flashlight captures, with meshes of 30k to 71k vertices for complex objects.

Load-bearing premise

The adaptive geometry transfer assumes that the estimated texture normal is a faithful record of true geometric surface variation; if the normal map encodes illumination or albedo effects instead, as the paper concedes can happen under environment lighting, the refined mesh and relaxed smoothness will bake those artifacts into the shape.

Editorial extensions

If this is right

  • Reconstructed models are compact by construction: synthetic objects use 30k to 71k vertices, and the real-world superman capture uses 28k vertices versus 139k for USAR, with comparable or better image metrics and no post-hoc simplification.
  • Texture resolution is decoupled from the decoder's output size; total atlas resolution is controlled by the number of blended 128x128 tiles, so arbitrarily large SVBRDF textures are possible without retraining.
  • Visible geometric details (larger than one pixel in the recorded views) migrate from the normal map to the mesh, fixing silhouette and shadow errors that pure normal-map representations suffer from.
  • The method is not restricted to collocated light: replacing the rasterizer with a differentiable Monte Carlo renderer and estimating environment lighting yields results similar to existing environment-light inverse rendering methods, per the paper's experiments.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A testable corollary of the transfer criterion is that if the input normal map carries no geometric signal (for example, a flat albedo shading variation), the adaptive refinement should stop and the mesh should stay coarse; running the pipeline on such a case would isolate the normal loss's role.
  • The subdivision threshold, encoded in $e_{\min}=0.01875$ and $e_{\max}=0.375$ in normalized space, implies an explicit detail-size cutoff; one could derive a closed-form relation between that threshold, the camera footprint, and the pixel size to predict which details stay in the normal map.
  • The tile mosaic formulation suggests natural extensions to streaming or out-of-core texture generation for gigapixel atlases, since each tile is decoded independently and blended only at overlaps, a consequence the authors do not explore.
  • Because the paper concedes that environment-light estimation can bake material color into normals, a promising next step would couple the normal loss with an explicit albedo-lighting regularizer to make the detail transfer robust outside collocated setups.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper presents ROSA, an inverse rendering method that jointly reconstructs a triangle mesh and an SVBRDF texture atlas from a limited set of collocated-light images. The mesh is initialized from a visual hull and then adaptively subdivided: the subdivision criterion and the per-vertex smoothness preconditioning are driven by a combination of texture-space normal curvature and mesh curvature. The appearance is produced by fine-tuning a pre-trained decoder network on fixed-size texture tiles, which allows arbitrarily large atlas resolutions. The method is evaluated on 14 synthetic objects and two real-world captures, with quantitative image metrics and geometry metrics, and is compared against IRON and USAR.

Significance. If the technical concerns below are resolved, ROSA would be a practically valuable contribution: it produces compact, relightable meshes with SVBRDF textures, and the tile-based decoder is a sensible way to decouple texture resolution from the network output resolution. The paper also ships source code, includes quantitative comparisons on real data, and states its limitations explicitly. The central claims, however, rest on two load-bearing assumptions: that the estimated normal map is a reliable geometric signal, and that the normal loss in Eq. (16) performs the intended detail transfer. Neither assumption is currently verified to the standard the paper needs, so the recommendation is major revision.

major comments (3)
  1. [Sec. 4.4, Eq. (16)] The normal loss as written is Lnormal = || m ⊙ ( (sg[cNV] + cN) - cNV ) ||_1. If gradients are propagated to the decoder weights Θ through cN, as stated in the text, then the term +cN in the residual drives cN toward zero during gradient descent. That would suppress the texture normals instead of transferring them to geometry, which contradicts the method's core mechanism. Please clarify the intended sign or specify that gradients to Θ are stopped for this loss; if the implemented loss matches the text, provide an analysis or experiment showing that cN does not collapse.
  2. [Sec. 4.3 and Sec. 5.2, Eqs. (5), (10), (11)] The adaptive refinement pipeline treats the estimated normal map as an encoding of true surface orientation. Under collocated light the equation I = ρ (n·l) is ambiguous between albedo and normal, so a dark albedo patch can be explained by a tilted normal and then amplified by the refinement loop: high cn lowers both the edge-length target and the smoothness weight, triggering subdivision exactly where the false signal appears. The authors concede in Sec. 5.2 that under environment lighting the estimated normals 'tend to bake the colors of the object material', but the collocated-light case, which is the paper's focus, is not tested for this failure mode. Please add a controlled experiment, e.g. a flat object with high-contrast albedo, and report whether the adaptive mesh embeds the albedo pattern as geometry; alternatively, provide a quantitative ablation that isolates albedo-to-normal leakage.
  3. [Sec. 5, Table 1 and Fig. 7] The quantitative evaluation consists of point estimates without error bars or repeated-run variance, and the ablation study in Fig. 7 is purely qualitative. Since the paper's central claim is that adaptive geometry transfer improves compactness and fidelity, the ablations should be accompanied by quantitative geometry and image metrics (e.g., CD/HD and PSNR/LPIPS) for configurations with and without local remeshing and local smoothness adaptation. Reporting mean and standard deviation over the 14 synthetic objects would also make the comparison to prior work more convincing.
minor comments (5)
  1. [Sec. 5.2 / Sec. 4.2] The solver is called BICGSTAB in Sec. 4.2 but 'BIGCGSTAB' in Sec. 5.2; please make the spelling consistent.
  2. [Sec. 6] In the conclusion, 'SVBBRDF' should be 'SVBRDF'.
  3. [Table 1] The table header is confusing: 'PSNR ↑ CD ↓ HD ↓' with subcolumns 'Image κd κs σ' does not make clear which metrics are computed on rendered images and which are computed on reference appearance features. Please restructure the table so the reader can see the per-object and per-material-type breakdown at a glance.
  4. [Sec. 4.3, Eqs. (11)-(12)] The notation for the edge-length indicator is inconsistent: Eq. (12) defines e_i(t), but the text later refers to 'ev' when deciding whether to split an edge. Please unify the notation.
  5. [Sec. 4.2, Eq. (3)] The preconditioned update uses the matrix (I + ΛV L), which is stated to be non-symmetric. It would help to specify the exact linear system solved by BICGSTAB and to state the convergence tolerance, as this affects the reproducibility of the optimization.

Circularity Check

0 steps flagged · score 2.0 of 10

No circular reduction: outputs are driven by input images and intermediate normal/geometry estimates; only non-load-bearing self-citations.

full rationale

The central derivation is not circular. Geometry is optimized against input images through the masked image loss (Eq. 14) and silhouette loss (Eq. 15); the adaptive resolution is driven by normal-map curvature c_n (Eq. 5) and mesh curvature c_V (Eq. 6), which are intermediate quantities of the same inverse-rendering optimization rather than pre-existing target values. Eq. (16) is a consistency regularizer between texture normals and rendered surface normals, not a fitted input renamed as a prediction. The decoder pre-training on a material database (Sec. 4.1, refs. [14,17]) provides a prior for SVBRDF plausibility but does not determine the adaptive mesh output; the method is additionally compared against independent baselines (IRON [56], nvdiffrec [30], nvdiffrecmc [15]). The only self-citations are the authors' own material database [17] and their earlier USAR method [18] used as a baseline, and neither is load-bearing. The Sec. 5.2 admission that environment-light estimation can bake material colors into normals is a limitation of the assumed normal-as-geometry signal, not a circular reduction of prediction to input. No equation in the paper makes a claimed result equivalent to its inputs by construction.

Assumptions & free parameters 5 free parameters · 5 assumptions · 0 invented entities

The central claim rests on hand-set hyperparameters (smoothing bounds, edge bounds, curvature weights, loss weights, damping schedules) and several domain assumptions, the most load-bearing being that the estimated normal map faithfully encodes geometric surface variation. No new physical entities are introduced.

free parameters (5)
  • Smoothing bounds lambda_min, lambda_max = 16, 64
    Hand-chosen vertex smoothness bounds in Eq. (10); they control how strongly planar regions are regularized versus curved regions. No sensitivity analysis is provided.
  • Edge length bounds e_min, e_max = 0.01875, 0.375
    Hand-chosen minimum and maximum edge lengths in normalized space (Sec. 4.3) that determine when mesh edges are split. These directly affect how compact or dense the final mesh is.
  • Curvature scaling weights w_n, w_V = 3 and 1/16
    Weights in Eqs. (9) and (11) that map texture-space and geometry-space curvature into smoothness and edge-length indicators. Chosen without reported sensitivity analysis.
  • Loss weights w_img and w_normal = 0.05 and 0.01 for synthetic; 1e-3 and 1e-4 for real data
    Set in Sec. 4.4; the authors lower them for real-world data because the material model is limited and the losses are higher. This is per-domain tuning that affects the reported trade-offs.
  • Damping schedule constants = sigmoid(20(t-0.2)) and sigmoid(20(t-0.3))
    Eqs. (7)-(8) define when loss weighting and resolution control activate during optimization. The steepness and delays are hand-set and are not evaluated for sensitivity.
assumptions (5)
  • domain assumption Input images are captured with a collocated camera and point light, so shading is primarily a function of local surface orientation and reflectance.
    Section 3 defines inputs as images under collocated light; the whole decomposition into SVBRDF plus normals relies on this restricted illumination. The environment-light extension in Sec. 5.2 is acknowledged to be less stable.
  • domain assumption The Cook-Torrance microfacet model with GGX distribution and a 10-channel SVBRDF is sufficient to explain the observed appearance.
    Material model in Sec. 3. The authors lower image and normal loss weights for real data because the material model is limited, which shows the assumption is only approximately met.
  • domain assumption The normal map estimated by the pretrained decoder is a reliable proxy for true surface orientation, so normal-map curvature indicates where mesh refinement is needed.
    Used in Eqs. (5), (9)-(11) and (16). If the normal map bakes in lighting or albedo variation, the geometry transfer will embed non-geometric detail. The authors note this exact failure mode for environment-light reconstructions in Sec. 5.2.
  • ad hoc to paper Geometric details larger than one image pixel can be separated from albedo variation and represented as mesh geometry.
    Stated in Sec. 1 as the goal of detail transfer, but never proven or bounded. Separating geometry from albedo under collocated light is ill-posed, as the paper itself notes.
  • domain assumption The material database used to pretrain the decoder yields plausible SVBRDFs and stable refinement for arbitrary random latent codes.
    Sec. 4.1 relies on a cited database [14,17] and the pretrained autoencoder. Pretraining data and exact training protocol are not fully specified in this paper.

how reviews work

0 comments
Cite this review

Pith. "Pith review of ROSA: Reconstructing Object Shape and Appearance Textures by Adaptive Detail Transfer." pith.science (2026). https://pith.science/paper/B3UILJVR

@misc{pith2026250118595,
  author       = {Pith},
  title        = {Pith review of: ROSA: Reconstructing Object Shape and Appearance Textures by Adaptive Detail Transfer},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/B3UILJVR}},
  note         = {Machine review of arXiv:2501.18595}
}
read the original abstract

Reconstructing an object's shape and appearance in terms of a mesh textured by a spatially-varying bidirectional reflectance distribution function (SVBRDF) from a limited set of images captured under collocated light is an ill-posed problem. Previous state-of-the-art approaches either aim to reconstruct the appearance directly on the geometry or additionally use texture normals as part of the appearance features. However, this requires detailed but inefficiently large meshes, that would have to be simplified in a post-processing step, or suffers from well-known limitations of normal maps such as missing shadows or incorrect silhouettes. Another limiting factor is the fixed and typically low resolution of the texture estimation resulting in loss of important surface details. To overcome these problems, we present ROSA, an inverse rendering method that directly optimizes mesh geometry with spatially adaptive mesh resolution solely based on the image data. In particular, we refine the mesh and locally condition the surface smoothness based on the estimated normal texture and mesh curvature. In addition, we enable the reconstruction of fine appearance details in high-resolution textures through a pioneering tile-based method that operates on a single pre-trained decoder network but is not limited by the network output resolution.

Figures

Figures reproduced from arXiv: 2501.18595 by the authors.

Figure 1
Figure 1. Exemplary renderings in Unity emphasizing artifacts [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Overview of our inverse rendering framework, which performs decoder-based texture estimation and triangle mesh optimization [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Architecture of our decoder for texture estimation which [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (6 more)
Figure 5
Figure 5. Figure 5: Damping functions used to increase the stability of the [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 6

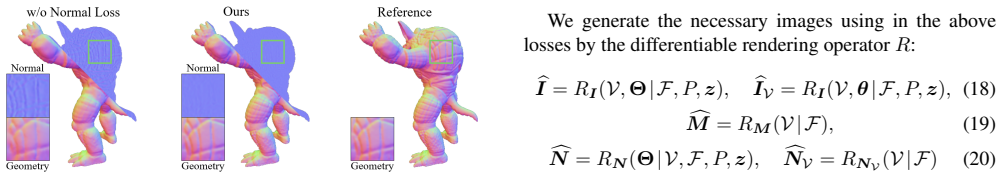

Figure 6. Figure 6: Our normal loss supports the transfer of information [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 7
Figure 7. Figure 7: Our adaptive geometry reconstruction approach, with the [PITH_FULL_IMAGE:figures/full_fig_p007_7.png]
Figure 8
Figure 8. Figure 8: Reconstructions of synthetic input data based on 50-70 [PITH_FULL_IMAGE:figures/full_fig_p007_8.png]
Figure 9
Figure 9. Figure 9: Comparison of reconstruction results on real-world objects for collocated capture scenarios based on 100 (superman) and 170 [PITH_FULL_IMAGE:figures/full_fig_p008_9.png]
Figure 10
Figure 10. Figure 10: Comparison of reconstruction results on NeRF datasets [PITH_FULL_IMAGE:figures/full_fig_p008_10.png]
