Homographic Navigation: Geometry-Driven Camera Guidance for Deterministic Planar Capture

T0 review · 2 major / 3 minor · reviewed 2026-06-26 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A model trained solely on synthetic homographic augmentations from one reference image can guide cameras to precise planar alignment via keypoint prediction and two-pass refinement.

desk verdict The paper gives a clean way to train keypoint models for planar alignment from one reference image using synthetic homographies, plus a two-pass scheme and Stable Warp trick, but real-world generalization is the weak link. read the letter →

arxiv 2606.22834 v1 pith:B4U4XUME submitted 2026-06-22 cs.CV

Dominik Kroupa , Marek Vaško , Muh Yuzril Ihza Baharuddin , Adam Herout This is my paper · ORCID
classification cs.CV
keywords homographicnavigationplanaralignmentkeypointpredictionsyntheticaugmentationtwo-passinferencecameraguidanceminimalsupervisionStableWarptraining
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper establishes homographic navigation as a framework that treats homography as the central organizing variable for learning and camera guidance toward exact planar captures. From a single annotated reference, unlimited synthetic training data is created by applying homographic transformations, allowing a single-shot model to jointly recognize and localize rectangular planar artifacts through sparse keypoint prediction. A two-pass inference process first detects globally then refines locally, paired with a Stable Warp training approach, to reach high precision even at limited input resolutions while also outputting per-keypoint and per-sample confidence scores. This setup demonstrates that accurate alignment is possible with minimal real supervision rather than large labeled datasets.

What carries the argument

Homographic navigation, the geometry-centric framework that treats homography as the unifying variable across data generation, model training, and inference for planar alignment.

What would settle it

Test the trained model on a set of real camera captures of the target planar objects under lighting, distances, or angles outside the augmentation range; if average alignment error exceeds the claimed precision threshold, the approach does not generalize as stated.

Watch

Extended reading notes

Core claim

Homographic navigation unifies learning, alignment, and evaluation by using homography as the organizing variable. Synthetic homographic augmentations generated from one reference image train a model for sparse keypoint prediction on multiple planar artifacts. The two-pass inference scheme performs global detection followed by localized refinement, and the Stable Warp training strategy boosts accuracy in the high-precision regime, with the model also estimating confidence for each keypoint and the full sample.

Load-bearing premise

Synthetic homographic changes applied to one reference image create enough variety and realism for the trained model to work on actual camera images under different conditions.

Editorial extensions

If this is right

  • Accurate planar alignment becomes feasible with only one annotated reference image instead of large real-world datasets.
  • The two-pass scheme combined with Stable Warp training delivers measurable gains in high-precision keypoint localization.
  • Per-keypoint and per-sample confidence predictions are produced alongside the alignment output.
  • The method supplies a starting point for geometry-driven camera guidance systems.
  • It opens a path to training directly from unlabeled in-the-wild video sequences.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same synthetic-augmentation idea could be tested on non-rectangular planar targets by adjusting the keypoint layout.
  • Integrating the confidence scores into an active feedback loop might let a camera app automatically adjust position until alignment confidence exceeds a threshold.
  • If the two-pass refinement step is replaced by a higher-resolution single pass, the accuracy gain from Stable Warp could be measured directly against that baseline.
  • The approach may apply to other geometry-driven tasks such as document scanning or surface inspection where exact planar registration is required.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 3 minor

Summary. The paper presents homographic navigation, a geometry-centric framework that treats homography as an organizing variable for guiding camera capture of planar regions. From a single annotated reference image, unlimited synthetic training data is generated via homographic augmentation to train a single-shot model for joint recognition and localization of rectangular planar artifacts via sparse keypoint prediction. A two-pass inference scheme (global detection followed by localized refinement) and Stable Warp training strategy are introduced to improve precision under limited input resolution, along with per-keypoint and per-sample confidence estimates. The central claim is that accurate planar alignment can be achieved from minimal supervision, providing a foundation for geometry-driven camera guidance and future in-the-wild learning.

Significance. If the generalization claim holds, the approach would be significant for enabling high-precision geometric tasks with extremely low supervision (one reference image), reducing reliance on large annotated datasets in computer vision. The unification of learning, alignment, and evaluation around homography is a conceptual strength, and the two-pass scheme plus Stable Warp strategy address a practical resolution-precision tradeoff. However, the significance is conditional on evidence that synthetic 2D projective augmentations suffice for real-world generalization.

major comments (2)
  1. [Experiments] Experiments section: all reported metrics and ablations (including improvements from Stable Warp) are confined to held-out synthetic homographic warps of the reference image; no quantitative results, baselines, or error analysis on real camera captures (varying illumination, lens distortion, partial occlusion, or non-rigid surfaces) are provided, which is load-bearing for the generalization premise stated in the abstract and §1.
  2. [§3.2 and §3.3] §3.2 (two-pass inference) and §3.3 (Stable Warp): the refinement pass operates on cropped regions from the first pass, but the training distribution remains purely synthetic; without a real-world test set or domain-adaptation experiment, the claim that this yields 'accurate planar alignment' on physical camera feeds is unsupported.
minor comments (3)
  1. [Abstract] Abstract: the phrase 'experimental results demonstrate' should be accompanied by at least one concrete metric or dataset descriptor to avoid overstatement.
  2. [§3] Notation: the per-keypoint and per-sample confidence outputs are mentioned but lack an explicit formulation or loss term; adding this in §3 would improve clarity.
  3. Figure captions: several figures showing keypoint predictions would benefit from explicit scale bars or pixel-error annotations to aid interpretation of the high-precision regime.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address each major comment below, acknowledging the synthetic scope of the current experiments and committing to revisions that clarify the claims without overstating generalization.

read point-by-point responses

  1. Referee: [Experiments] Experiments section: all reported metrics and ablations (including improvements from Stable Warp) are confined to held-out synthetic homographic warps of the reference image; no quantitative results, baselines, or error analysis on real camera captures (varying illumination, lens distortion, partial occlusion, or non-rigid surfaces) are provided, which is load-bearing for the generalization premise stated in the abstract and §1.

    Authors: We agree that all reported metrics and ablations are performed exclusively on synthetic homographic warps of the single reference image. This is intentional, as the framework's central contribution is the use of homography as an organizing variable to generate unlimited training data from minimal (one-image) supervision. The experiments rigorously validate the two-pass inference and Stable Warp strategy within this controlled synthetic regime, demonstrating precision gains. However, the abstract and §1 do imply broader applicability. We will revise the abstract, introduction, and conclusion to explicitly qualify that accurate planar alignment is shown in synthetic evaluations, and that extension to real camera captures (with factors such as illumination variation or occlusion) constitutes future work. A limitations section will be added to discuss the current synthetic-to-real gap. revision: yes

  2. Referee: [§3.2 and §3.3] §3.2 (two-pass inference) and §3.3 (Stable Warp): the refinement pass operates on cropped regions from the first pass, but the training distribution remains purely synthetic; without a real-world test set or domain-adaptation experiment, the claim that this yields 'accurate planar alignment' on physical camera feeds is unsupported.

    Authors: The training distribution is purely synthetic, as the method generates data via homographic augmentation from one annotated reference; no real images are used for training or the reported ablations. The two-pass scheme and Stable Warp are evaluated synthetically to isolate their effect on precision at limited resolution. We concur that unsupported claims about physical camera feeds should be avoided. We will revise §3.2, §3.3, the abstract, and related text to state that the components yield accurate alignment under synthetic conditions and provide a foundation for future real-world deployment, rather than asserting direct applicability to in-the-wild physical feeds. revision: yes

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity detected in derivation chain

full rationale

The paper's core pipeline—generating synthetic training data via homographic augmentation from one annotated reference image, training a single-shot keypoint model, and applying two-pass inference with Stable Warp—relies on standard geometric augmentation and supervised learning rather than any self-definitional reduction, fitted-input-as-prediction, or load-bearing self-citation. No equations or claims in the provided text equate outputs to inputs by construction; the approach is externally falsifiable via real-world capture metrics and does not invoke uniqueness theorems or prior author work to force its own results.

Assumptions & free parameters 0 free parameters · 1 assumptions · 0 invented entities

Review is based solely on the abstract; full details on parameters or assumptions are unavailable. The central approach rests on the domain assumption that homography serves as an effective organizing variable.

assumptions (1)
  • domain assumption Homography can serve as the central organizing variable unifying learning, alignment, and evaluation for planar capture.
    Stated directly in the abstract as the core of the framework.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Homographic Navigation: Geometry-Driven Camera Guidance for Deterministic Planar Capture." pith.science (2026). https://pith.science/paper/B4U4XUME

@misc{pith2026260622834,
  author       = {Pith},
  title        = {Pith review of: Homographic Navigation: Geometry-Driven Camera Guidance for Deterministic Planar Capture},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/B4U4XUME}},
  note         = {Machine review of arXiv:2606.22834}
}
read the original abstract

We present homographic navigation, a geometry-centric framework for guiding camera acquisition toward precise capture of planar regions. Rather than treating homography as an output, we use it as an organizing variable that unifies learning, alignment, and evaluation. From a single annotated reference image, we generate unlimited synthetic training data via homographic augmentation and train a single-shot model for joint recognition and localization of multiple artifacts (physical objects with a rectangular planar target) through sparse keypoint prediction. To address precision under limited model input resolution, we introduce a two-pass inference scheme with global detection followed by localized refinement, and a Stable Warp training strategy that significantly improves accuracy, particularly in the high-precision regime. The model also predicts confidence estimates per predicted keypoint and per the whole sample. Experimental results demonstrate that accurate planar alignment can be achieved from minimal supervision, providing a foundation for geometry-driven camera guidance and future learning from in-the-wild video data.

Figures

Figures reproduced from arXiv: 2606.22834 by the authors.

Figure 1
Figure 1. Homographic navigation should navigate the user to capture a planar surface even in challenging conditions – including in-the [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

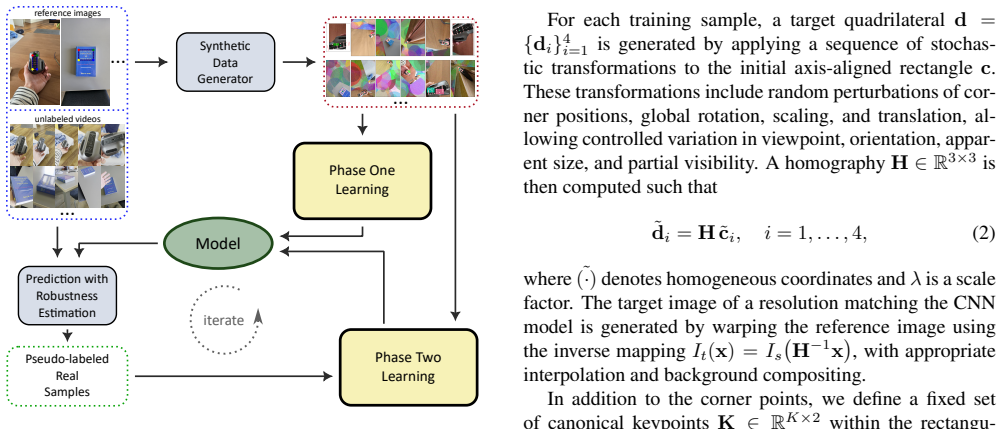

Figure 2. Overview of the homographic navigation framework. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

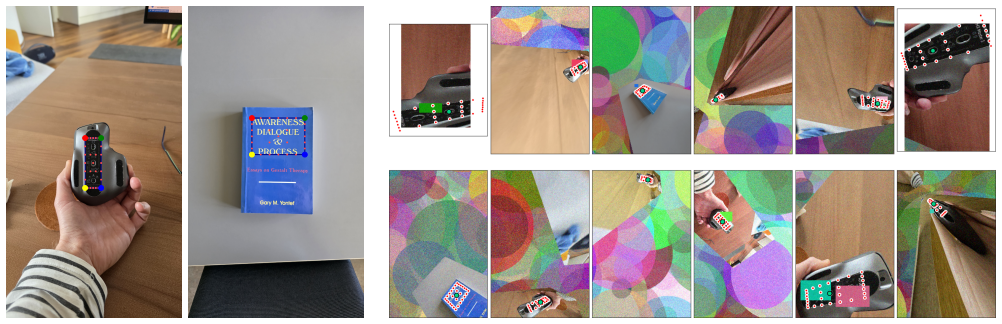

Figure 3. Two examples of artifacts and the generated training samples. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (4 more)
Figure 4
Figure 4. Figure 4: The backbone (ResNet-18) produces intermediate features at [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: Two-pass inference. Pass 1 localizes coarsely; pass 2 refines on the target region. Red/white markers denote predicted/ground [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6
Figure 6. Figure 6: Comparison of HomoNav with SIFT+RANSAC and [PITH_FULL_IMAGE:figures/full_fig_p009_6.png]
Figure 8

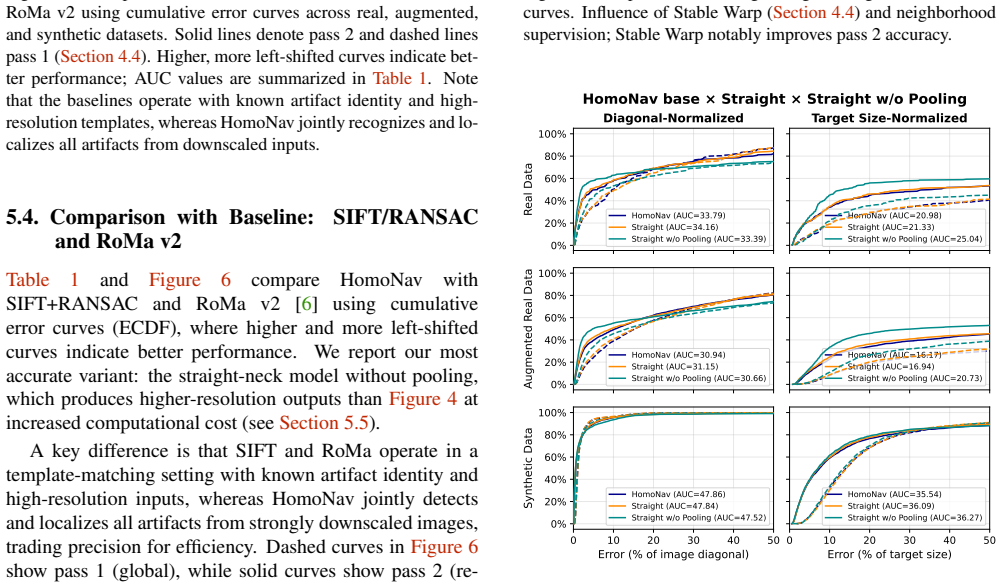

Figure 8. Figure 8: Comparison of architectural variants using cumula [PITH_FULL_IMAGE:figures/full_fig_p009_8.png]
