Constraining the Photon Intensity of Extragalactic Background Light with the HAWC Observatory for the Blazar Mrk 421

T0 review · 2 major / 2 minor · reviewed 2026-05-25 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Mrk 421 high-state spectrum shows a cutoff at 13 TeV that is intrinsic to the source rather than from EBL absorption.

desk verdict HAWC data gives a 13 TeV cutoff in Mrk 421 high states at 3.8 sigma that the authors call intrinsic and use for EBL limits, but the key comparison to EBL model predictions is not shown with numbers or uncertainties. read the letter →

arxiv 2605.23107 v1 pith:C6OVAEFW submitted 2026-05-21 astro-ph.HE

R. Alfaro , C. Alvarez , A. Andrés , E. Anita-Rangel , M. Araya , J.C. Arteaga-Velázquez , D. Avila Rojas , R. Babu
show 74 more authors
P. Bangale E. Belmont-Moreno A. Bernal T. Capistrán A. Carramiñana F. Carreón A.L. Colmenero-Cesar U. Cotti J. Cotzomi S. Coutiño de León N. Di Lalla R. Diaz Hernandez B.L. Dingus M.A. DuVernois T. Ergin C. Espinoza N. Fraija S. Fraija J.A. García-González F. Garfias J.A. González N. Ghosh A. Gonzalez Muñoz M.M. González J.A. Goodman S. Groetsch J. Gyeong S. Hernández-Cadena I. Herzog F. Hueyotl-Zahuantitla D. Huang A. Iriarte S. Kaufmann D. Kieda H. León Vargas A.L. Longinotti G. Luis-Raya K. Malone O. Martinez J. Martínez-Castro H. Martínez-Huerta P. Miranda-Romagnoli P.E. Mirón-Enriquez E. Moreno M. Mostafá M. Najafi L. Nellen M.U. Nisa R. Noriega-Papaqui M. Osorio-Archila E. Ponce Y. Pérez Araujo E.G. Pérez-Pérez A. Pratts C.D. Rho D. Rosa-González M. Roth A. Sandoval M. Shin A.J. Smith Y. Son R.W. Springer O. Tibolla I. Torres R. Torres-Escobedo E. Varela L. Villaseñor X. Wang I.J. Watson H. Wu S. Yu X. Zhang H. Zhou C. de León
This is my paper · ORCID
classification astro-ph.HE
keywords blazarsextragalacticbackgroundlightgamma-rayspectraMrk421HAWCobservatoryspectralcutoffTeVastronomy
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper examines HAWC data on the blazar Mrk 421 across 2460 transits, separating high and low emission states with an unbiased selection method. In the high states the spectrum is better fit by an exponential cutoff power law than a simple power law, at 3.8 sigma significance, with the cutoff located at 13 plus or minus 3 TeV. This observed cutoff energy does not match the position expected if gamma rays were being absorbed by the extragalactic background light, so the authors conclude the cutoff arises inside the source. The mismatch is then used to derive upper limits on the specific intensity of EBL photons.

What carries the argument

The direct numerical comparison of the fitted 13 TeV cutoff energy against the EBL-absorption cutoff predicted by prior models, performed on the high-state data selected by the All-sky Root around in an Unbiased way method.

What would settle it

A future spectral measurement during a high state of Mrk 421 that places the cutoff energy within a few TeV of the value predicted by current EBL models would remove the basis for claiming an intrinsic cutoff.

Watch

Extended reading notes

Core claim

An Exponential Cutoff Power Law is preferred over a Simple Power Law for the high-emission spectrum of Mrk 421 at the 3.8 sigma level, with the cutoff energy measured at 13 plus or minus 3 TeV. This value differs from the cutoff expected from gamma-ray interactions with EBL photons, indicating the cutoff is intrinsic to the source and permitting upper limits on EBL photon intensity.

Load-bearing premise

The expected EBL-induced cutoff energy is known accurately enough from existing models that any mismatch with the observed 13 TeV value must mean the cutoff is produced inside the source.

Editorial extensions

If this is right

  • The intrinsic cutoff implies that particle acceleration or photon production inside Mrk 421 is limited at energies around 13 TeV during bright flares.
  • Upper limits on EBL intensity follow directly once the observed cutoff is attributed to the source rather than to propagation.
  • Spectral shape differences between high and low states can be exploited for tests of the Hubble constant or EBL density.
  • The same state-selection technique can be applied to other blazars monitored by HAWC or similar arrays.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the intrinsic cutoff persists across multiple flares, it may constrain the maximum electron energy or the size of the emission region in the jet.
  • Repeated application to other variable blazars could tighten EBL limits without relying solely on distant sources.
  • The result highlights the value of long-term monitoring to catch rare high states where such cutoffs become measurable.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 2 minor

Summary. The manuscript analyzes 2460 transits of HAWC data on Mrk 421, using the All-sky Root around in an Unbiased way (ARU) method to select high- and low-emission states. It reports that an Exponential Cutoff Power Law is preferred over a Simple Power Law for the high-state spectrum at 3.8σ significance, with a fitted cutoff energy of 13±3 TeV. This cutoff is stated to differ from the energy expected from EBL pair-production absorption, leading to the conclusion that it is intrinsic to the source; the result is then used to derive upper limits on the specific intensity of EBL photons.

Significance. If the quantitative demonstration that the observed cutoff lies outside the range of EBL-predicted cutoffs (accounting for model variations and uncertainties) is provided, the work would offer useful constraints on both the intrinsic spectra of high-state blazars and the EBL photon density at near-IR wavelengths. The long-term HAWC monitoring and state-selection approach represent a strength for variability studies.

major comments (2)
  1. [Abstract] Abstract: The central claim that 'the value of the energy cutoff found in our analysis is different from the cutoff expected by the interaction of gamma-rays with EBL photons' (and the subsequent intrinsic-source conclusion plus EBL upper limits) is not supported without an explicit comparison. The manuscript must quote the EBL-induced cutoff energies (where τ(E)≈1) predicted by the specific models employed (e.g., Franceschini, Gilmore, Domínguez), together with their uncertainty bands, and demonstrate that 10–16 TeV lies outside those ranges. Model-to-model variation in EBL density at 1–10 μm directly maps into a range of possible cutoff energies for z=0.03; overlap would undermine both the intrinsic interpretation and the derived limits.
  2. [Results / spectral fitting] Spectral analysis / results section: The 3.8σ preference for the Exponential Cutoff Power Law and the quoted cutoff of 13±3 TeV require accompanying details on the fit statistic (e.g., Δχ² or likelihood ratio), degrees of freedom, systematic uncertainties (energy scale, background subtraction, effective area), and the precise procedure used to translate the cutoff into EBL intensity upper limits. Without these, the statistical significance and the EBL constraint cannot be evaluated.
minor comments (2)
  1. [Data selection] The ARU state-selection method should be described with sufficient detail (thresholds, time bins, potential correlation with spectral hardness) to allow assessment of possible bias in the high-state spectrum.
  2. [Discussion] Explicit references to the EBL models used for the expected-cutoff comparison and for the upper-limit derivation should be added.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which identify key elements needed to strengthen the manuscript's claims. We will revise the paper to incorporate explicit EBL model comparisons and detailed fit information as requested.

read point-by-point responses

  1. Referee: [Abstract] The central claim that 'the value of the energy cutoff found in our analysis is different from the cutoff expected by the interaction of gamma-rays with EBL photons' (and the subsequent intrinsic-source conclusion plus EBL upper limits) is not supported without an explicit comparison. The manuscript must quote the EBL-induced cutoff energies (where τ(E)≈1) predicted by the specific models employed (e.g., Franceschini, Gilmore, Domínguez), together with their uncertainty bands, and demonstrate that 10–16 TeV lies outside those ranges. Model-to-model variation in EBL density at 1–10 μm directly maps into a range of possible cutoff energies for z=0.03; overlap would undermine both the intrinsic interpretation and the derived limits.

    Authors: We agree that an explicit quantitative comparison is required to support the claim of an intrinsic cutoff. In the revised manuscript we will add a dedicated paragraph (and accompanying table) that computes the EBL absorption cutoff energies (τ(E)≈1) for the Franceschini, Gilmore, and Domínguez models at z=0.03, including their published uncertainty bands. We will then directly compare these ranges to the observed 13±3 TeV cutoff and state whether the observed value lies outside the EBL-predicted interval. If overlap is found we will revise the interpretation and the derived EBL limits accordingly. This material will also be referenced in the abstract. revision: yes

  2. Referee: [Results / spectral fitting] The 3.8σ preference for the Exponential Cutoff Power Law and the quoted cutoff of 13±3 TeV require accompanying details on the fit statistic (e.g., Δχ² or likelihood ratio), degrees of freedom, systematic uncertainties (energy scale, background subtraction, effective area), and the precise procedure used to translate the cutoff into EBL intensity upper limits. Without these, the statistical significance and the EBL constraint cannot be evaluated.

    Authors: We will expand the spectral-analysis subsection to supply the missing quantitative information. The 3.8σ significance will be shown to arise from a likelihood-ratio test; the exact test statistic, degrees of freedom, and p-value will be reported. Systematic uncertainties associated with the energy scale, background subtraction, and effective area will be evaluated and quoted separately from the statistical error on the cutoff energy. Finally, we will describe the step-by-step procedure that converts the observed cutoff (under the assumption it is intrinsic) into upper limits on EBL specific intensity, including the assumed intrinsic spectral shape and any propagation of uncertainties. These additions will appear in the results section of the revised manuscript. revision: yes

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: direct spectral fit to external data compared against independent EBL models

full rationale

The derivation consists of selecting high/low emission periods from HAWC transits via the All-sky Root around in an Unbiased way method, fitting an Exponential Cutoff Power Law to the high-state spectrum (preferred at 3.8σ over simple power law, cutoff 13±3 TeV), deriving EBL intensity upper limits from the observed cutoff, and noting that this cutoff differs from the pair-production cutoff predicted by external EBL models (Franceschini, Gilmore, Domínguez etc.). None of these steps reduce by construction to quantities defined by the fit itself; the EBL comparison uses prior models whose optical-depth predictions are independent of the present dataset. No self-citation chains, ansatzes smuggled via citation, or fitted parameters renamed as predictions appear in the load-bearing claims.

Assumptions & free parameters 1 free parameters · 1 assumptions · 0 invented entities

The central claim rests on standard gamma-ray spectral models and external EBL intensity models for the expected cutoff comparison; the fitted cutoff energy is the primary data-derived quantity.

free parameters (1)
  • cutoff energy = 13 TeV
    Fitted parameter in the exponential cutoff power law model to the high-state spectrum data.
assumptions (1)
  • domain assumption Existing EBL models accurately predict the gamma-ray cutoff energy expected from pair-production absorption.
    Invoked when comparing the observed cutoff to the EBL-expected value to conclude intrinsic origin.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Constraining the Photon Intensity of Extragalactic Background Light with the HAWC Observatory for the Blazar Mrk 421." pith.science (2026). https://pith.science/paper/C6OVAEFW

@misc{pith2026260523107,
  author       = {Pith},
  title        = {Pith review of: Constraining the Photon Intensity of Extragalactic Background Light with the HAWC Observatory for the Blazar Mrk 421},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/C6OVAEFW}},
  note         = {Machine review of arXiv:2605.23107}
}
abstract

The blazar Mrk 421 exhibits rapid variability over a wide range of timescales. Spectral differences have been observed during the different emission states of Mrk 421. During the high emission states, tests to constraint the Hubble constant and the photon intensity of Extragalactic Background Light (EBL) can be performed. The HAWC observatory provides an exceptionally long term monitoring of the source at TeV energies. We selected periods of high emission state and low emission state in data with total observation time of 2460 transits from the HAWC observatory using the All-sky Root around in an Unbiased way methodology. We report on evidence of a cutoff in the spectrum of Mrk 421 during high emission states. An Exponential Cutoff Power Law is preferred over a Simple Power Law at a $3.8\,\sigma$ level. In the Exponential Cutoff Power Law, the cutoff is found at $13\pm3~\text{TeV}$. Using this result, we provide upper limits on the specific intensity of EBL photons. Moreover, the value of the energy cutoff found in our analysis is different from the cutoff expected by the interaction of gamma-rays with EBL photons. This result indicates that the cutoff is intrinsic to the source.

Figures

Figures reproduced from arXiv: 2605.23107 by the authors.

Figure 1
Figure 1. Weekly ARU significance curve for Mrk 421. Significance σARU of deviation of the observed counts from the scaled long-term emission for weekly periods. Purple crosses show all the weekly periods where σARU is greater than 6 and are likely related to periods of increased activity of Mrk 421. Gray circles indicate periods with σARU smaller than 6. Assuming that the long-term gamma-ray emission observed at TeV scales i… view at source ↗

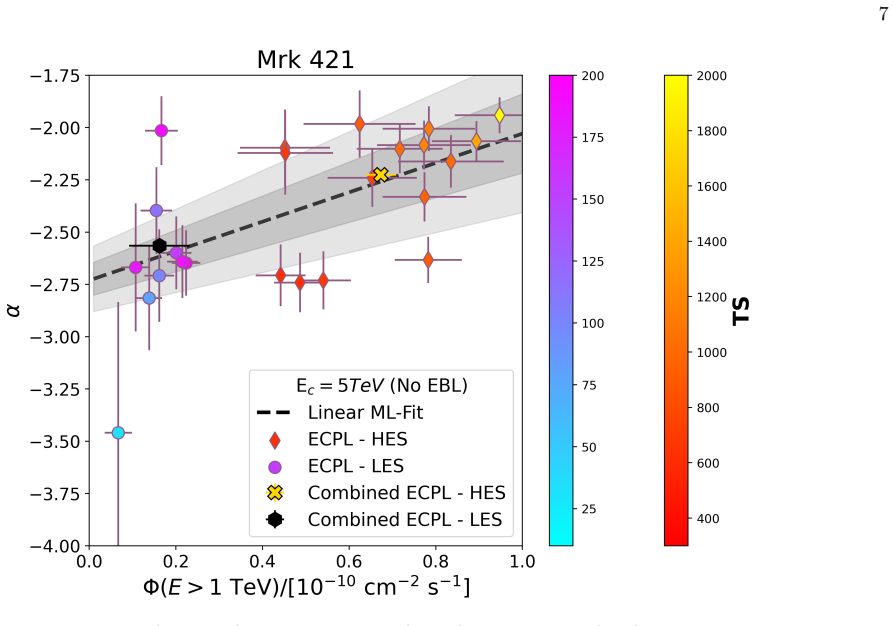

Figure 2
Figure 2. Scatter of weekly HES (diamonds) and monthly LES (circles) periods in the (α–Φ) parameter space. Parameters obtained for the observed spectrum test only. The color bars indicate the T S. The cross and the hexagon show the results for the joint fits of HES and LES datasets respectively. We also include the best ML linear fit (black dashed line) and the 1σ and 2σ uncertainties bands (shaded gray bands) around the line… view at source ↗

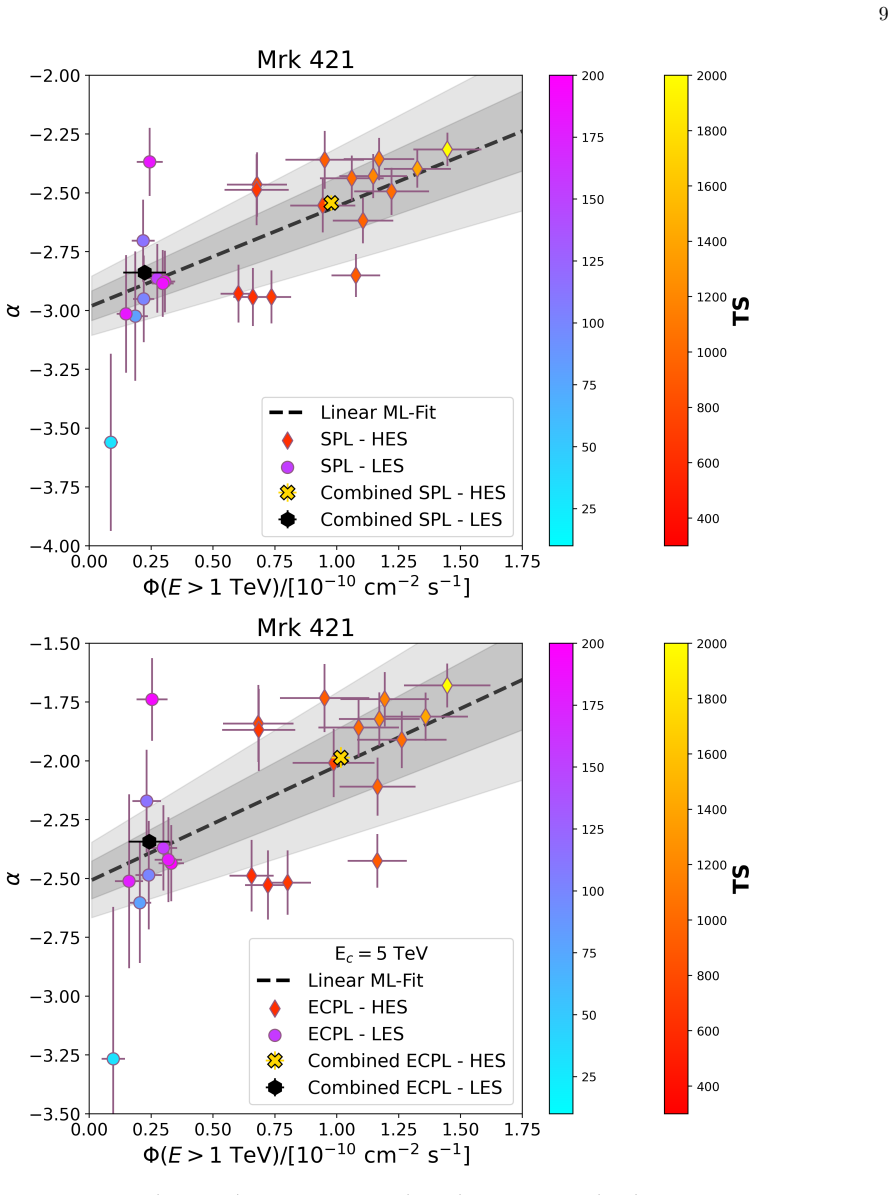

Figure 3
Figure 3. Scatter of weekly HES (diamonds) and monthly LES (circles) periods in the (α–Φ) parameter space. Parameters obtained for the intrinsic spectrum assuming a SPL model (upper panel) and ECPL model (lower panel). The color bars indicate the T S. The cross and the hexagon show the results for the joint fits of HES and LES datasets respectively. We also include the best ML linear fit (black dashed line) and the 1σ and 2σ … view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: Scatter of weekly HES (diamonds) and monthly LES (circles) periods assuming an ECPL model. The different parameter spaces are (α–Φ) (upper panel), (λ–Φ) (middle panel) and (λ–α) (lower panel). The color bars indicate the T S (left and middle panels) and photon flux Φ (…
Figure 5
Figure 5. Figure 5: Spectrum of Mrk 421 for two different emission states. Intrinsic joint spectrum obtained for HES (red circles) and LES (blue diamonds) datasets. The minimum T S value to consider a flux point is T S = 4. For the HES spectrum, the last point has a significance of √ T S …
Figure 6

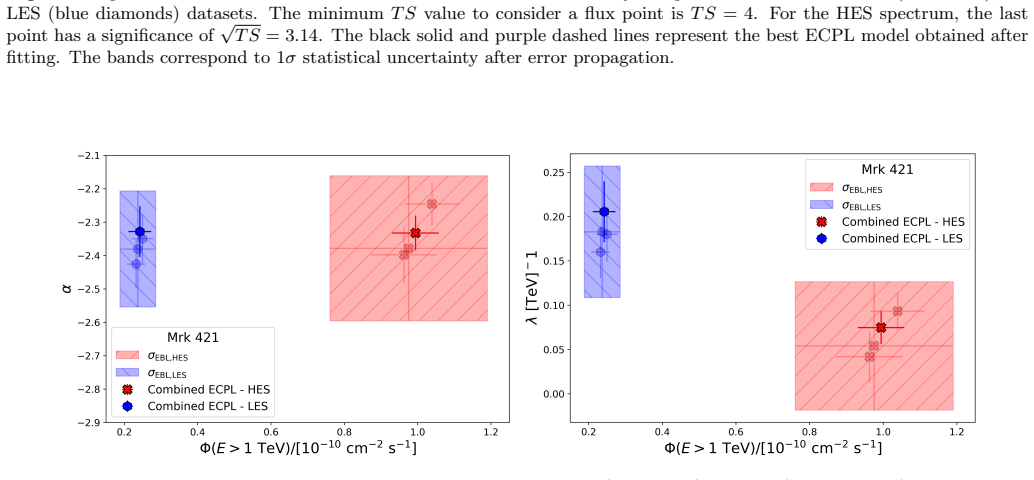

Figure 6. Figure 6: Impact of the EBL modeling on the combined spectrum of HES (red crosses) and LES (blue hexagons) datasets. Left: Spectral index versus photon flux (α–Φ) shows no variation for spectral index for different activity periods. Right: Inverse cutoff energy versus integrated…
Figure 7

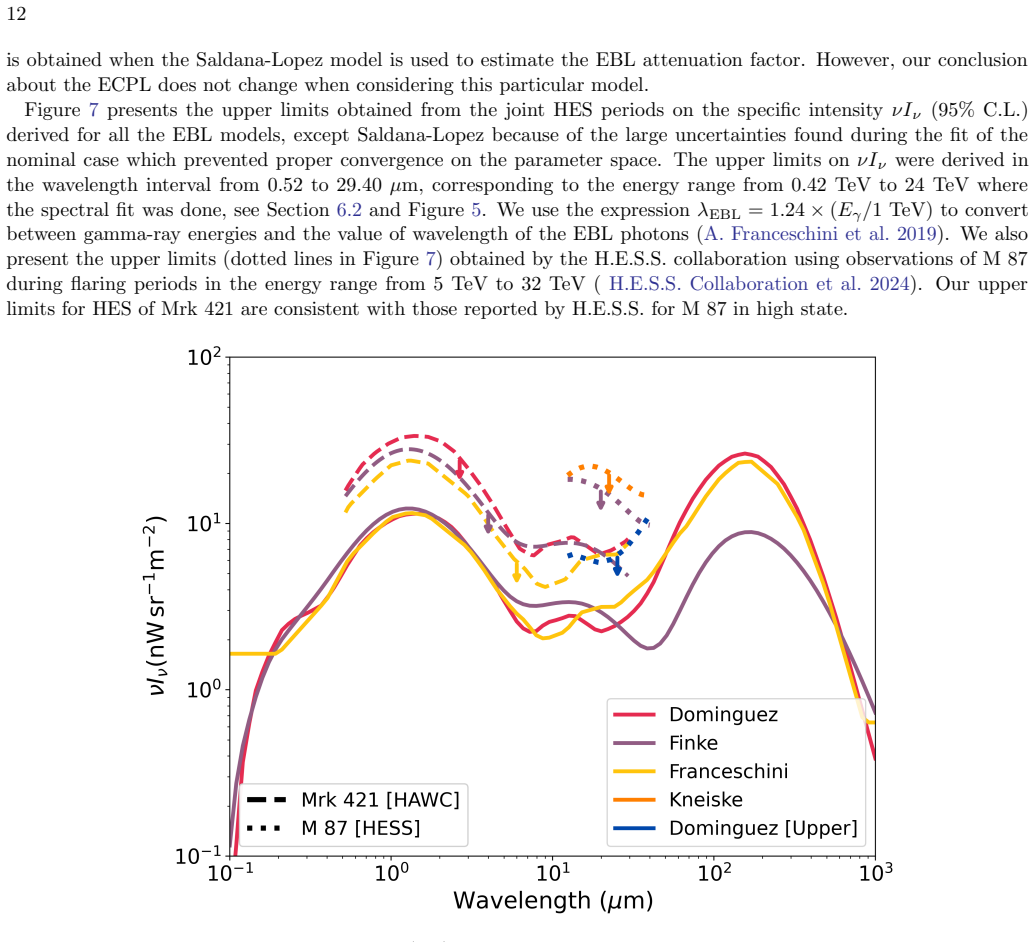

Figure 7. Figure 7: presents the upper limits obtained from the joint HES periods on the specific intensity νIν (95% C.L.) derived for all the EBL models, except Saldana-Lopez because of the large uncertainties found during the fit of the nominal case which prevented proper convergence on…
Figure 8
Figure 8. Figure 8: Comparison with results from previous observation campaigns. Upper panel. Scatter of emission states of Mrk 421 in the (α–Φ) parameter space. Lower panel. Scatter of emission states in the (λ–Φ) parameter space. Data are taken from MAGIC (J. Albert et al. 2007; J. Alek…

Discussion (0). Continue with ORCID to comment.
