DK-RRT: Deep Koopman RRT for Collision-Aware Motion Planning of Space Manipulators in Dynamic Debris Environments

T0 review · 5 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read This paper claims a deep Koopman embedding of debris motion can make RRT planning collision-aware in real time.

desk verdict The title promises RRT, but the paper never describes a planner; the central claim is unassessable. read the letter →

arxiv 2507.03878 v1 pith:CG6OABCQ submitted 2025-07-05 cs.RO

Qi Chen , Rui Liu , Kangtong Mo , Boli Zhang , Dezhi Yu This is my paper · ORCID
classification cs.RO
keywords DK-RRTKoopmanoperatorRRTmotionplanningspacemanipulatororbitaldebriscollisionavoidancedeepdynamicmodedecompositiononlinelearning
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper proposes DK-RRT, a motion planner for a space manipulator that must reach a target while debris moves unpredictably around it. The central idea is to learn a deep neural-network embedding that lifts robot and debris states into a space where their evolution is approximately linear, so a Koopman operator can predict where debris will be and the planner can avoid it proactively. The paper claims this predictive, online-updated planner is more accurate, more reliable, and more computationally efficient than classical RRT and conventional Koopman-based planning. If that is right, autonomous orbital servicing—satellite repair, assembly, debris capture—becomes safer in cluttered low-Earth orbit. The contribution is the specific integration of a learned Koopman predictor into sampling-based planning for dynamic obstacle avoidance.

What carries the argument

The load-bearing object is the finite-dimensional deep Koopman operator $K$ with its lifting map $\varphi$. For a composite state $\xi=[\xi_\rho,\xi_\omega]$, the lifting is $\varphi(\xi)=[\xi_\rho^\top,\gamma_\rho(\xi_\rho)^\top,\xi_\omega^\top,\gamma_\omega(\xi_\omega)^\top]^\top$, where $\gamma_\rho$ and $\gamma_\omega$ are learned nonlinear embeddings. The dynamics in the lifted space are $\varphi(\xi(\tau+1))\approx K\varphi(\xi(\tau))$, and the robot-state prediction used for planning is $\hat{\xi}_\rho(\tau+1)=K'(\xi_\rho(\tau),\xi_\omega(\tau))$ with $K'=\varphi^{-1}\circ K\circ\varphi$. This machinery converts a nonlinear debris-prediction problem into a linear least-squares fitting problem, which is what allows the planner to look ahead.

What would settle it

Train DK-RRT on one set of debris trajectories, then evaluate it on debris trajectories generated from a different distribution or a different random seed; if the collision rate and execution error are no better than a reactive planner that ignores predictions, the central claim fails. A simpler version: compare one-step and multi-step prediction error on held-out debris trajectories against the training trajectories.

Watch

Extended reading notes

Core claim

The central claim is that debris dynamics, although nonlinear, can be represented in a finite-dimensional linear space by a deep Koopman embedding, and that this representation is accurate enough to make RRT-style planning collision-aware in real time. The paper formalizes the state as $\xi(\tau)=[\xi_\rho(\tau)^\top,\xi_\omega(\tau)^\top]^\top$, lifts it through observables $\varphi$ into $\mathbb{R}^\lambda$, approximates the infinite-dimensional Koopman operator by a matrix $K$ fit to one-step prediction errors, and reconstructs the robot state through $K'=\varphi^{-1}\circ K\circ\varphi$. The predictor is refreshed periodically from visual observations, giving the planner a look-ahead of debris motion rather than a purely reactive response. Simulations on a 6-DoF manipulator are reported as evidence that the approach yields high task completion and low execution error in dynamic debris scenes.

Load-bearing premise

The load-bearing premise is that a deep Koopman model trained on observed debris trajectories will keep predicting unseen debris motion accurately enough to prevent collisions, so that look-ahead planning is reliable when it matters most.

Editorial extensions

If this is right

  • If DK-RRT works as described, manipulator plans can anticipate debris motion instead of reacting only after the obstacle moves.
  • The online recomputation of $K$ from visual features would let the same planner adapt when debris trajectories change mid-mission.
  • Because the lifting map is learned from data, the approach avoids hand-designing basis functions for each new debris scenario.
  • Collision-aware look-ahead should reduce the need for post-processing and replanning, lowering computation time in high-dimensional configuration spaces.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The predictive-embedding step is not specific to orbital debris: the same learned-Koopman-plus-RRT structure could be transferred to ground robots in crowds, UAVs in wind fields, or any environment where obstacles have learnable dynamics.
  • A direct test of the paper's central premise would hold out entire debris trajectories during training; if prediction error on held-out trajectories is comparable to training error, the generalization claim is supported, and if not, the planner's adaptivity reduces to memorization.
  • The paper leaves the RRT expansion rule unspecified, so a concrete next step would be to specify how the Koopman prediction biases node sampling and steering; until then, the benefit of the Koopman module versus a simpler constant-velocity predictor is untested.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. The paper proposes DK-RRT, described as a hybrid motion planner that combines deep-learning-based Koopman operator embeddings with Rapidly-exploring Random Trees (RRT) for a 6-DoF space manipulator operating amid dynamic orbital debris. The theoretical sections review Koopman operator theory and Deep Dynamic Mode Decomposition, introduce a dual-data Koopman approximation procedure, and present Algorithm 1 for learning a visual feature extractor and a Koopman operator from trajectory data. Section IV reports simulations with a 6-DoF manipulator and compares DK-RRT against four named baselines on training duration, execution error, and task success rate. The central claim is that DK-RRT achieves superior adaptability, robustness, and computational efficiency relative to traditional RRT and conventional Koopman-based planning.

Significance. If fully substantiated, a collision-aware planner that learns predictive Koopman embeddings of dynamic debris and integrates them into RRT would be a useful contribution to space robotics. The Koopman and DMD formulation in Sections II and III is standard and mathematically coherent, and the idea of separating known and unknown dynamics components in Eqs. (11)-(13) is plausible. However, the manuscript does not realize or evaluate the central contribution as an RRT hybrid: Algorithm 1 contains no tree construction or collision-checking steps, and Section IV provides no reproducible experimental protocol or defined baselines. The paper therefore does not currently demonstrate the claimed advantage; its significance is prospective rather than established.

major comments (5)
  1. [Section III, Algorithm 1] Algorithm 1, titled "DK-RRT: Visual Feature and Koopman Operator Learning," contains no RRT operations: there is no random sampling, no nearest-neighbor tree extension, no collision checking, no goal bias, and no path output. Since the abstract and introduction define DK-RRT as an integration of deep Koopman models with RRT, the central algorithm of the paper is missing and the claimed planner cannot be instantiated or checked from the manuscript.
  2. [Section IV, Figs. 3-4] The quantitative comparison is described only against "DeepCraft, MotionNet, FlexRL, and GRaspiQ" (Fig. 4 and surrounding text), none of which are defined, cited, or otherwise identified. These are also not the "traditional RRT" and "conventional Koopman-based planning" baselines promised in the abstract, so the stated comparative claims about superior adaptability, robustness, and computational efficiency are unsupported.
  3. [Section IV, Figs. 2-4] No experimental parameters are reported: the debris count, obstacle geometries, debris dynamics, sensor noise, planning horizon, replanning rate, collision margin, and success criteria are all unspecified. The bar charts in Fig. 4 lack numerical axis values, yet the text claims DK-RRT "exceeds 90%" success rate and "competitive or lower" training time; these quantitative claims cannot be verified from the presented material.
  4. [Section II, Eqs. (3) and (8); Section III, Algorithm 1] The Koopman operator K and the feature extractor f_theta are estimated by minimizing prediction residuals (Eq. (3) and Eq. (8)) on the same trajectory data D that is then used to report prediction and planning success. The paper describes no train/test split, no held-out debris trajectories, and no procedure for evaluating generalization to unseen debris dynamics, so the reported accuracy and adaptability may reflect overfitting rather than predictive capability.
  5. [Section II, Eqs. (5)-(6)] The predicted robot state in Eq. (6), \hat{\xi}_\rho(\tau+1) = K'(\xi_\rho(\tau), \xi_\omega(\tau)), uses the debris state only at the current time \tau. This provides a one-step evaluation of the learned model, not the multi-step debris trajectory predictions that a collision-aware planner would require; the manuscript does not show how the Koopman predictions are propagated forward in time or how they enter the planner's collision-checking or cost evaluation.
minor comments (5)
  1. [Section IV, Figs. 3-4] The figure-caption assignment is inconsistent: the body text says Fig. 4 presents quantitative benchmarks (training duration, execution error, success rate), but the Fig. 4 caption describes joint velocity, acceleration, and jerk profiles; the Fig. 3 caption mentions "Training, execution error, and Test results", which does not match the body text's description of Fig. 3 as a Cartesian end-effector trajectory.
  2. [Section III, Algorithm 1] The indentation and control flow of Algorithm 1 are ambiguous: the line "Optimize feature extractor f_theta by minimizing L" appears to be inside the inner loop over k, which would perform an optimization step at every timestep without a clear gradient accumulation or update schedule; this should be restructured and clarified.
  3. [Section III, Eqs. (11)-(13)] The notation K_{F}^{\Delta\tau/2} in Eqs. (11)-(13) is introduced without a precise definition of the operator or its domain, and Eq. (13) uses pseudoinverses without stating any assumptions on the rank or conditioning of the involved matrices.
  4. [References] Several references appear topically unrelated to the claims they support; for example, [2] concerns gravitational perturbations of black holes, [12] concerns orthogonal polynomials, and [10] concerns ice-core drilling, which makes it difficult for readers to trace the stated background on celestial mechanics and Koopman theory.
  5. [Abstract and Section IV] The abstract claims "real-time" planning, but Section IV reports no wall-clock planning times or inference latency; a timing comparison with baselines would be needed to support the computational-efficiency claim.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the Koopman fit is standard supervised regression; the paper's failure to instantiate RRT or define baselines is a completeness problem, not a circular derivation.

full rationale

The only fitted quantities are the deep Koopman embedding and the operator K, obtained by minimizing one-step prediction loss on trajectory data (Eq. (3) and Algorithm 1). Using a fitted predictor to produce trajectories is not circular unless the same data are presented as independent validation; the paper does not report prediction accuracy on held-out debris trajectories, so the claim of accurate, proactive planning is unsupported rather than forced by construction. No uniqueness theorem or load-bearing self-citation is invoked; references [16], [19], [23], and [24] are self-citations but merely support motivation and related work, not the central derivation. The abstract's promise of comparison with RRT and conventional Koopman planning is not fulfilled—the experiments name undefined baselines such as DeepCraft and MotionNet, and Algorithm 1 contains no tree, sampling, or collision-checking—but that is a missing-method and correctness deficiency, not a reduction of the output to the input. For these reasons the circularity score is 0; the paper's problems are evidential and structural, not definitional.

Assumptions & free parameters 3 free parameters · 3 assumptions · 0 invented entities

The central planning and prediction claims depend on several learned components (K, f_theta, gamma) and on assumptions about the debris dynamics and visual observability. None of these are independently verified or reported.

free parameters (3)
  • Koopman operator K and control input matrix Delta = not reported
    K and Delta are estimated by least-squares minimization of prediction residual in Eq. (8)-(9) on trajectory data. The learned values are not reported.
  • neural network weights for feature extractor f_theta = not reported
    The visual feature extractor is trained by minimizing trajectory loss in Algorithm 1, but no architecture, hyperparameters, or final weights are given.
  • lifting mappings gamma_rho and gamma_omega = not reported
    The nonlinear embeddings in Eq. (4) are learned as part of the deep Koopman model; their exact forms are unspecified.
assumptions (3)
  • domain assumption A finite-dimensional Koopman invariant subspace exists for the debris dynamics with sufficient accuracy.
    Invoked in Eq. (2) and throughout Section II; no proof or empirical evidence is given for the specific debris dynamics.
  • ad hoc to paper Visual observations iota contain enough information to predict debris states via f_theta.
    Algorithm 1 uses f_theta(iota) to compute object features; the paper does not define the observation model or validate this assumption.
  • domain assumption The total Koopman operator can be decomposed into known K_F and unknown H_delta_tau components.
    Used in Eq. (11)-(13); relies on a separation of known and unknown dynamics that is not demonstrated for debris motion.

how reviews work

0 comments
Cite this review

Pith. "Pith review of DK-RRT: Deep Koopman RRT for Collision-Aware Motion Planning of Space Manipulators in Dynamic Debris Environments." pith.science (2026). https://pith.science/paper/CG6OABCQ

@misc{pith2026250703878,
  author       = {Pith},
  title        = {Pith review of: DK-RRT: Deep Koopman RRT for Collision-Aware Motion Planning of Space Manipulators in Dynamic Debris Environments},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/CG6OABCQ}},
  note         = {Machine review of arXiv:2507.03878}
}
read the original abstract

Trajectory planning for robotic manipulators operating in dynamic orbital debris environments poses significant challenges due to complex obstacle movements and uncertainties. This paper presents Deep Koopman RRT (DK-RRT), an advanced collision-aware motion planning framework integrating deep learning with Koopman operator theory and Rapidly-exploring Random Trees (RRT). DK-RRT leverages deep neural networks to identify efficient nonlinear embeddings of debris dynamics, enhancing Koopman-based predictions and enabling accurate, proactive planning in real-time. By continuously refining predictive models through online sensor feedback, DK-RRT effectively navigates the manipulator through evolving obstacle fields. Simulation studies demonstrate DK-RRT's superior performance in terms of adaptability, robustness, and computational efficiency compared to traditional RRT and conventional Koopman-based planning, highlighting its potential for autonomous space manipulation tasks.

Figures

Figures reproduced from arXiv: 2507.03878 by the authors.

Figure 1
Figure 1. The robot manipulator on a maintained space module is tasked with [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

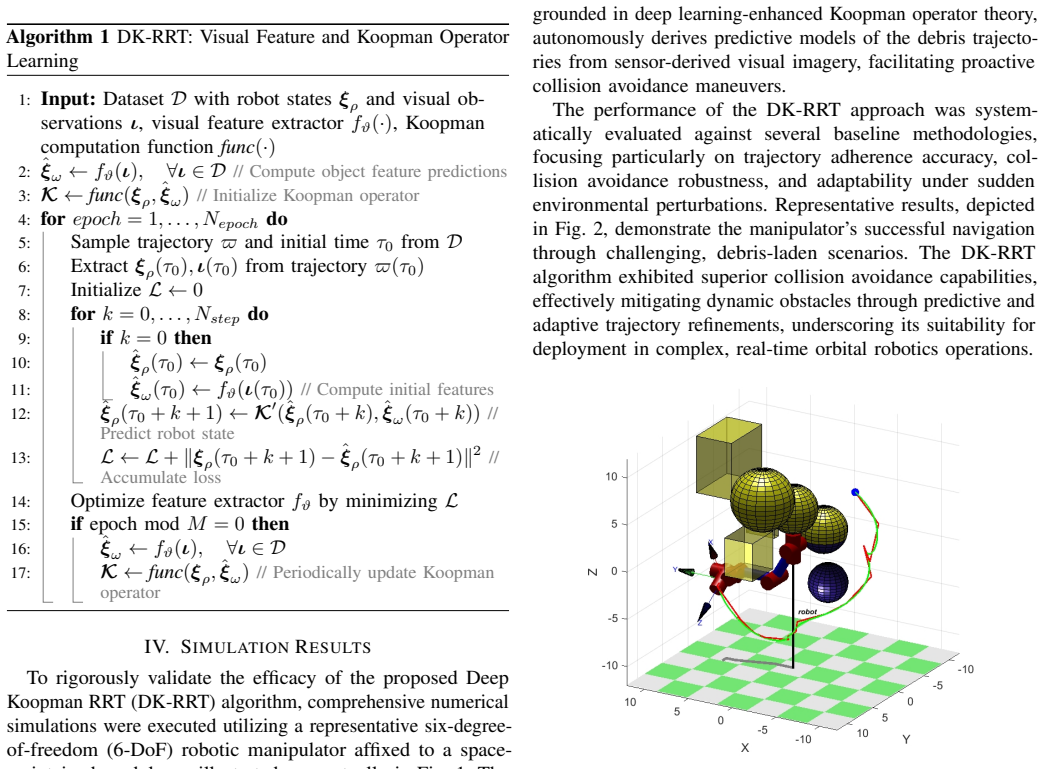

Figure 2
Figure 2. Trajectory of the End-Effector of the robot arm installed on the space [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Training, execution error, and Test results shown in different debris scenes as simulation testbed. We choose four baselines, DeepCraft, MotionNet, [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (1 more)
Figure 4
Figure 4. Figure 4: Joint velocity, acceleration, and jerk profiles of the 6-DoF space manipulator under DK-RRT-based motion planning in dynamic debris environments. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
