Injection of Deformable Capsules in a Reservoir, a Systematic Analysis

Alessandro Coclite , Alberto Gambaruto This is my paper

Pith reviewed 2026-05-25 15:50 UTC · model grok-4.3

classification ❄️ cond-mat.soft physics.flu-dyn
keywords deformable capsulescapsule ejectionimmersed boundarylattice Boltzmannfluid-particle interactionsmembrane deformabilitymicrofluidic injectionreservoir flow
0
0 comments X

The pith

Capsule interactions and deformability govern velocity fields and accelerate the leading particle during channel-to-reservoir ejection.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper performs a computational investigation of multiple deformable capsules being ejected from a narrow channel into a reservoir, tracking their motion, shape changes, and the resulting fluid flows. It establishes that capsule-to-capsule hydrodynamic interactions strongly modify the local velocity field and dictate the observed particle behaviors, with membrane flexibility further modulating those interactions. A train of three capsules produces a locally homogenized velocity field in which the front capsule outruns the two behind it. Reservoir dimensions turn out to have negligible influence, while the ratios of capsule diameter to channel diameter and to inter-capsule spacing control the dynamics. Because this particular flow configuration has not been examined before, the study maps the basic patterns of motion, deformation, and fluid response.

Core claim

In this computational study, the interactions between the capsules affect the local velocity field significantly and are responsible for the dynamics observed. Capsule membrane deformability is also seen to affect inter-capsule interaction, and we observe that the train of three particles locally homogenizes the velocity field and the leading capsule travels faster than the other two trailing capsules. On the contrary, variations in size of the reservoir do not seem to be relevant, while the ratio of capsule diameter with respect to channel diameter plays a major role as well as the ratio of capsule diameter to inter-capsule spacing.

What carries the argument

Mass-spring membrane model coupled to an Immersed Boundary Lattice Boltzmann solver that resolves capsule deformation together with the induced fluid velocity field during ejection.

If this is right

  • Capsule-to-capsule interactions dominate the flow response over changes in reservoir geometry.
  • Membrane deformability alters how particles influence one another's hydrodynamic environment.
  • Diameter-to-channel and diameter-to-spacing ratios determine whether a leading capsule accelerates ahead of trailing ones.
  • A three-capsule train produces more uniform local flows than single-particle ejection.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The identified ratio dependencies suggest that capsule spacing could be tuned to control delivery timing in microfluidic channels.
  • The homogenization effect may reduce shear-induced damage to fragile payloads carried inside the capsules.
  • Repeating the simulations with varied fluid viscosities would test whether the leading-capsule acceleration persists outside the Newtonian regime examined here.

Load-bearing premise

The mass spring membrane model coupled to the Immersed Boundary Lattice Boltzmann solver produces physically realistic capsule deformation and fluid response for the range of sizes and spacings examined.

What would settle it

High-speed experimental imaging of physical capsule trains ejected into a reservoir that measures whether the leading capsule indeed travels faster and whether the velocity field is measurably more uniform than for isolated capsules.

Figures

Figures reproduced from arXiv: 1907.00079 by Alberto Gambaruto, Alessandro Coclite.

Figure 1
Figure 1. Figure 1: Schematic of the physical problem. Top Sketch of the computational domain with characteristics dimensions and lengths, as well as boundary conditions. Bottom Non-dimensional groups used in the computations: the capillary number regulating the mechanical stiffness of the membranes, Ca; the Reynolds number regulating the flow velocity, Re; the ratio between channel diameter and reservoir height, l/d, and the… view at source ↗
Figure 2

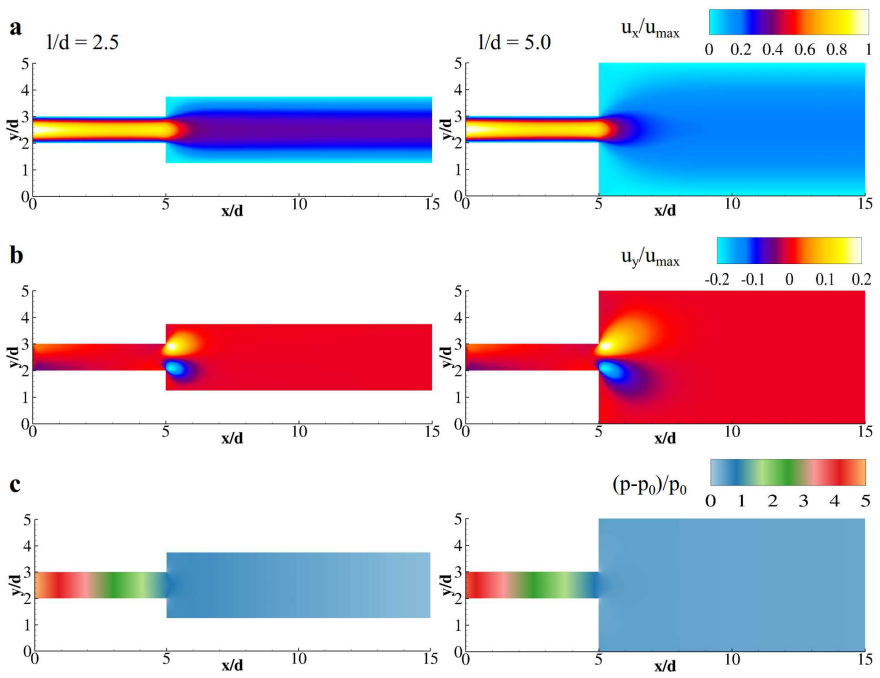

Figure 2. Figure 2: Flow patterns for different width of the reservoir. a Contour of the longitudinal component of the velocity field for l/d = 2.5 (left) and 5.0 (right). b Contour of the vertical component of the velocity field for l/d = 2.5 (left) and 5.0 (right). c Relative pressure distribution in the computational flow field (p0 is the outlet section pressure). Data for l/d = 1.0 are shown in the Appendix. The solution … view at source ↗
Figure 3
Figure 3. Figure 3: Flow patterns during the transport of a single capsule in the micro-channel. a Contour of the longitudinal velocity field for l/d = 5.0 and r/d = 0.50 taken at four different time steps, namely t umax/d = 0, 5, 10, and 20. b Contour plot of difference between the longitudinal velocity with (ux) and without (ux,NoC) the capsule immersed in at four different time steps, namely t umax/d = 0, 5, 10, and 20 [P… view at source ↗
Figure 4
Figure 4. Figure 4: Injection of a capsule in a reservoir. a Distribution of the x−coordinate of the capsule centre of mass xcm over time. b Distribution of the x−velocity of the capsule centre of mass ucm,x over time. c Distribution of the capsule stretching computed as the relative difference between the current, p, and the initial, p0, perimeter of the capsule (δ p = p−p0 p0 ). 10 [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5

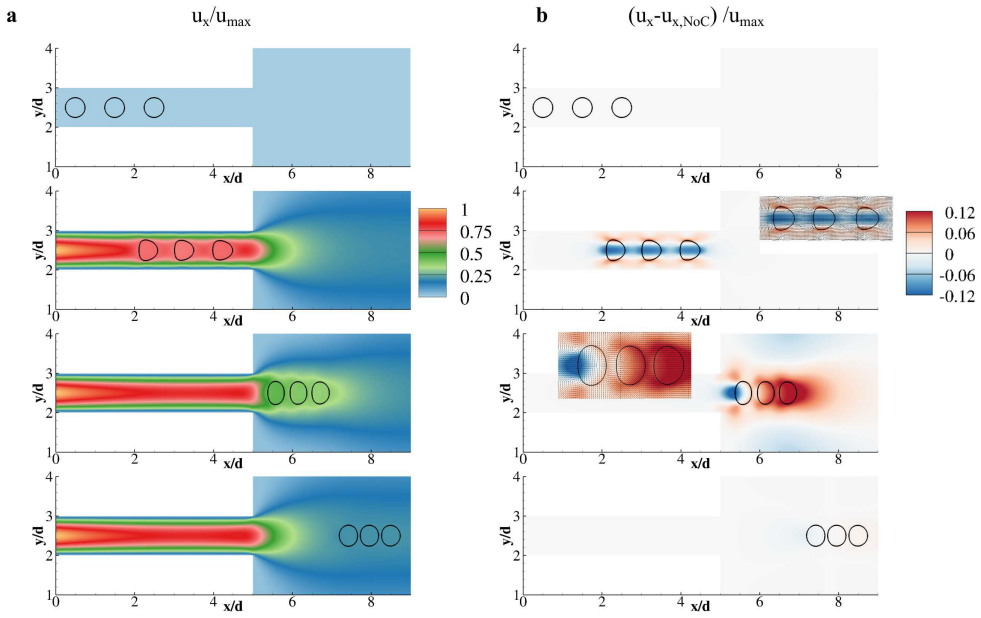

Figure 5. Figure 5: Flow patterns during the transport of three aligned capsules in the micro-channel. a Contour of the longitudinal velocity field for l/d = 5.0 and r/d = 0.50 taken at four different time steps, namely tumax/d = 0, 5, 10, and 20. b Contour plot of difference between the longitudinal velocity with (ux) and without (ux,NoC) the capsules immersed in at four different time steps, namely tumax/d = 0, 5, 10, and 2… view at source ↗
Figure 6
Figure 6. Figure 6: Transport of three aligned capsules in the micro-channel, for capsule diameter to channel ratio: left column (r/d = 0.25); middle column (r/d = 0.50); right column (r/d = 0.75). a Distribution of the x−coordinate of the capsule centre of mass xcm over time for l/d = 2.5 (top) and l/d = 5.0 (bottom). b Distribution of the x−velocity of the capsule centre of mass ucm,x over time for l/d = 2.5 (top) and l/d =… view at source ↗
Figure 7
Figure 7. Figure 7: Flow patterns in the l/d = 1 micro-channel. a Contour of the longitudinal component of the velocity field. b Contour of the vertical component of the velocity field. c Relative pressure distribution in the computational flow field (p0 is the outlet section pressure). 21 [PITH_FULL_IMAGE:figures/full_fig_p021_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Transport of three aligned capsules (l/d = 1.0) in the micro-channel. Distribution of the x−coordinate of the capsule centre of mass over time for r/d = 0.25 (a), r/d = 0.25 (b), and r/d = 0.25 (c). 22 [PITH_FULL_IMAGE:figures/full_fig_p022_8.png] view at source ↗
read the original abstract

A computational study of capsule ejection from a narrow channel into a reservoir is undertaken for a combination of varying deformable capsule sizes and channel dimensions. A mass spring membrane model is coupled to an Immersed Boundary Lattice Boltzmann model solver. The aim of the present work is the description of the capsules motion, deformation and the response of the fluid due to the complex particle dynamics. The interactions between the capsules affect the local velocity field significantly and are responsible for the dynamics observed. Capsule membrane deformability is also seen to affect inter capsule interaction, and we observe that the train of three particles locally homogenizes the velocity field and the leading capsule travels faster than the other two trailing capsules. On the contrary, variations in size of the reservoir do not seem to be relevant, while the ratio of capsule diameter with respect to channel diameter plays a major role as well as the ratio of capsule diameter to inter capsule spacing. This flow set up has not been covered in the literature, and consequently we focus on describing capsule motion, membrane deformation and fluid dynamics, as a preliminary investigation in this field.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript reports a computational study of deformable capsules ejected from a narrow channel into a reservoir, using a mass-spring membrane model coupled to an immersed-boundary lattice-Boltzmann solver. It varies capsule and channel dimensions and describes the resulting capsule motion, membrane deformation, and fluid response, with the central claims being that inter-capsule interactions dominate the local velocity field, that membrane deformability modulates those interactions, and that a three-capsule train locally homogenizes the velocity field while the leading capsule travels faster than the two trailing ones; reservoir size is reported as irrelevant while capsule-to-channel diameter ratio and inter-capsule spacing are key.

Significance. If the numerical results are reliable, the work supplies the first qualitative description of multi-capsule dynamics in a channel-to-reservoir geometry that has not been treated in the literature. The direct numerical exploration of geometric ratios is a positive feature, but the absence of quantitative metrics or validation limits the strength of the conclusions.

major comments (2)
  1. [Abstract] Abstract: the headline observations (velocity homogenization by a three-capsule train and leading-capsule speed ordering) are stated as qualitative results with no accompanying quantitative measures, error bars, or direct comparison to single- or two-capsule reference simulations, so the magnitude and robustness of the reported effects cannot be assessed.
  2. [Methods] Methods section: the mass-spring membrane model coupled to the IB-LBM solver is described without any grid-convergence study, reproduction of a known single-capsule benchmark (e.g., deformation index versus capillary number in tube flow), or validation for the multi-capsule reservoir configuration; because every dynamical claim rests on the fidelity of this solver, the lack of such tests is load-bearing.
minor comments (1)
  1. [Abstract] The abstract would be clearer if it stated the specific ranges of the diameter ratios and spacings that were varied.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments on our manuscript. We address each of the major comments below and will revise the manuscript accordingly to strengthen the quantitative presentation and validation of the numerical methods.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the headline observations (velocity homogenization by a three-capsule train and leading-capsule speed ordering) are stated as qualitative results with no accompanying quantitative measures, error bars, or direct comparison to single- or two-capsule reference simulations, so the magnitude and robustness of the reported effects cannot be assessed.

    Authors: We agree that the abstract would benefit from quantitative support. In the revised manuscript, we will include quantitative measures of the velocity homogenization (e.g., reduction in velocity variance) and the leading capsule's speed advantage, along with explicit comparisons to single- and two-capsule reference cases. These will be added both to the abstract and the results section to allow assessment of the effect magnitudes. revision: yes

  2. Referee: [Methods] Methods section: the mass-spring membrane model coupled to the IB-LBM solver is described without any grid-convergence study, reproduction of a known single-capsule benchmark (e.g., deformation index versus capillary number in tube flow), or validation for the multi-capsule reservoir configuration; because every dynamical claim rests on the fidelity of this solver, the lack of such tests is load-bearing.

    Authors: This is a valid concern. We will expand the Methods section to include a grid-convergence study confirming that the spatial and temporal resolutions used are adequate for the reported quantities. We will also present a benchmark reproduction of the single-capsule deformation index as a function of capillary number in tube flow, comparing our results to literature values. This will provide the necessary validation for the solver's application to the multi-capsule cases. revision: yes

Circularity Check

0 steps flagged

No circularity: purely numerical parametric study with no derivation or fitted predictions

full rationale

The paper describes a computational study using a mass-spring membrane model coupled to an Immersed Boundary Lattice Boltzmann solver. It varies geometric ratios (capsule size, channel dimensions, spacing) and reports observed dynamics such as velocity field homogenization and capsule speed ordering. No analytic derivations, parameter fitting to data, or predictions that reduce to inputs by construction are present. The abstract explicitly notes the configuration is absent from the literature, and the work is framed as a preliminary description rather than a derivation. No self-citations are invoked as load-bearing for any uniqueness theorem or ansatz. This matches the default case of a self-contained numerical exploration with no reduction to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The study rests on the domain assumption that the chosen numerical models faithfully represent the physics; no new entities are postulated and no parameters are fitted to data within the reported scope.

axioms (1)
  • domain assumption The mass-spring membrane model coupled to the immersed-boundary lattice-Boltzmann solver accurately captures capsule deformation and fluid-particle interaction for the examined parameter ranges.
    This premise underpins all reported observations on motion, deformation, and velocity fields.
