LRX-PINN: A Layer-Resolving XNet Physics-Informed Neural Network with Integrated Cauchy Activations for Convection-Dominated Problems

T0 review · 2 major / 5 minor · reviewed 2026-07-14 · grok-4.5

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Integrated Cauchy ridge atoms match the value–gradient–curvature structure of thin convection layers, giving thickness-uniform exponential approximation and more accurate PINNs with far fewer parameters.

desk verdict Solid representation-theory paper: integrated Cauchy ridges give derivative-stable, thickness-uniform layer approximation, and the numerics back the story without overclaiming optimizer independence. read the letter →

arxiv 2607.03682 v2 pith:GSVADMLX submitted 2026-07-04 math.AP cs.LG

Zihao Guo , Xin Li , Zhihong Xia This is my paper · ORCID
classification math.APcs.LG MSC 65N3535B2565D1568T07
keywords Physics-informedneuralnetworksConvection-dominatedconvection–diffusionequationsIntegratedCauchyactivationXNetLayer-resolvingrepresentationSingularlyperturbedproblemsRidgeneurons
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Convection-dominated diffusion problems form thin layers whose values stay order one while gradients and curvatures scale like inverse powers of the layer thickness. Standard physics-informed networks do not encode that coupled structure, so accuracy collapses as diffusion shrinks. This paper builds ridge neurons from integrated Cauchy activations: each atom is a transition at the solution level, and its first and second derivatives are localized Cauchy profiles whose physical width is d over the weight norm. For analytic stretched profiles, one set of atoms approximates the profile and its first two derivatives at a shared exponential rate; after rescaling, the constants stay independent of thickness for both O(ε) exponential and O(√ε) characteristic layers. On interior, boundary, outflow, corner, and curved-layer benchmarks the resulting LRX-PINN outperforms larger Kolmogorov–Arnold and Fourier-feature networks while using under 30 percent of their parameters, and the same basis improves published variational PINN baselines when inserted without changing losses or stabilizations.

What carries the argument

The geometric integrated Cauchy atom Ψ = A arctan((n·x−s)/ρ) + (B/2) log((n·x−s)²+ρ²), with physical width ρ=d/‖w‖. Its derivatives recover localized Cauchy kernels of amplitudes ρ⁻¹ and ρ⁻²; Theorem 1 shows one M-term sum approximates U, U′, U″ at rate σ⁻ᴹ, which Theorems 2–3 lift to thickness-uniform physical norms for both O(ε) and O(√ε) layers.

What would settle it

For a known analytic layer of thickness δ, compute best M-term integrated Cauchy error in the scaled X_δ norm; if that error grows as δ shrinks at fixed M, or fails to decay exponentially in M with δ-independent constants, the thickness-uniform claim is false.

Watch

Extended reading notes

Core claim

An integrated Cauchy ridge trial space matches the value–gradient–curvature hierarchy of convection–diffusion layers: one collection of atoms simultaneously approximates an analytic stretched profile and its first two derivatives at a common exponential rate, and after physical rescaling the approximation constants do not deteriorate as layer thickness tends to zero. This yields thickness-uniform best-approximation estimates for exponential and characteristic layers and a layer-scaled residual bound for the singularly perturbed operator, realized as LRX-PINN in strong form and as an embeddable trial space in stabilized variational PINNs.

Load-bearing premise

The exponential rates assume each stretched layer profile extends holomorphically into a fixed complex neighborhood whose size does not shrink with the physical layer thickness.

Editorial extensions

If this is right

  • Best-approximation complexity for a fixed number of separated analytic layers grows only logarithmically with target accuracy and is independent of inverse minimum layer thickness.
  • Strong-form PINNs and weak or hp-VPINN formulations can share the same layer-adapted trial space; the strong residual uses the full value–gradient–curvature hierarchy while the variational form needs only value and first derivative.
  • Matching neuron physical width to O(ε) or O(√ε) by layer type removes the need to inflate network size solely because layers become thinner.
  • On the reported benchmarks accuracy improves while trainable parameters drop below 30 percent of competing PINN architectures; embedding the basis into existing stabilized hp-VPINNs further lowers published error floors without retuning losses.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The explicit physical width ρ could be monitored during training as an automatic layer detector, linking neural representation to classical layer-adapted mesh indicators.
  • Closed-form residual expressions in the integrated Cauchy basis and its derivatives may reduce automatic-differentiation cost in higher dimensions relative to deep generic networks.
  • Extending beyond linear steady problems first requires checking whether nonlinear layer profiles retain a sufficient complex neighborhood for the Cauchy-quadrature argument.
  • Different ρ groups for coexisting exponential and characteristic layers suggest a multi-scale dictionary that could be sparsified by group selection rather than deeper stacking.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. The paper constructs an integrated Cauchy ridge trial space for convection-dominated convection–diffusion equations. Each atom is transition-type at the solution level, while its first and second derivatives recover localized Cauchy-type profiles; the parameters encode normal direction, location, and physical width ρ=d/∥w∥. For analytic stretched layer profiles, Theorem 1 proves that one M-term integrated Cauchy sum approximates U, U′, and U′′ at a common exponential rate via Cauchy-integral trapezoidal quadrature; Theorems 2–3 and Corollaries 1–2 then give thickness-uniform scaled L∞/H² estimates for both O(ε) exponential and O(√ε) characteristic layers, with residual consequences for strong and variational forms. The same basis is realized as LRX-PINN and embedded into existing hp-VPINN frameworks without changing their losses or stabilization. Numerics on interior, boundary, mixed, outflow, corner, and curved layers report higher accuracy than PIKAN and Fourier PINNs with far fewer parameters, and further gains over published hp-VPINN baselines.

Significance. If the claims hold, the work supplies a concrete, analyzable neural trial space matched to the value–gradient–curvature hierarchy of singularly perturbed layers, rather than only a new residual or training heuristic. The derivative-stable exponential approximation (Thm. 1) and thickness-uniform physical-space bounds (Thms. 2–3) are the main theoretical contribution; the numerical design (matched training, original vs integrated activation, embedding into unchanged hp-VPINN losses, seed robustness in Table 19, closed-form residual acceleration) is a genuine strength and separates representation effects from loss design. The paper is careful to separate best-approximation complexity from optimizer/conditioning costs (Remark 3, Thm. 4 discussion). This is a solid representation-oriented contribution for PINNs on convection-dominated problems.

major comments (2)
  1. The exponential rates in Lemma 1 / Theorem 1 rest on holomorphic extension of U (and of the contour parametrization) into a fixed complex neighborhood with constants independent of physical thickness δ. The manufactured benchmarks satisfy this; many practical layers (e.g., non-analytic or only C^k profiles, or layers with ε-dependent analyticity strips) may not. The paper already flags the representation–optimizer gap (Remark 3). A short discussion or one non-analytic / reduced-regularity numerical example would clarify the practical scope of the thickness-uniform residual claims without changing the theorems.
  2. Theorem 4 and Corollaries 1–2 cover coexisting O(ε) and O(√ε) layers via different atom widths, but the numerical suite does not include an explicit multi-scale manufactured solution with both exponential and characteristic layers simultaneously (Tasks 2–4 use a single scale; Tasks 5–6 are extreme but single-scale or curved). Adding one such experiment, or clearly stating that multi-scale coexistence is left to theory, would better support the multi-scale complexity claim.
minor comments (5)
  1. Section cross-references appear as Section?? in the introduction and organization paragraph; fix numbering.
  2. Abstract and title use LRX-PINN / XNet branding; the body title is “Layer-Resolving Rational Trial-Space Method…”. Align titles and keywords for consistency.
  3. Table 1 is a useful structural summary; a brief pointer from the theory section to the corresponding tasks would help readers map analysis to experiments.
  4. Initial scale d is task- and ε-dependent (Table 18, Fig. 16). State the selection protocol more explicitly in §3.3 so that the free-parameter list is transparent.
  5. Minor typesetting: missing spaces in compound words (e.g., “Physics-informedneuralnetworks”, “convection–diffusionproblems”) and occasional broken math spacing in the introduction.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: approximation rates are classical complex-analysis best-approximation results; numerics compare against external baselines under fixed losses.

full rationale

The load-bearing theoretical chain is Lemma 1 (Cauchy-integral trapezoidal quadrature for holomorphic F) applied to U′, integration to obtain GM, and Cauchy estimates for U″ (Theorem 1), then rescaling to physical thickness δ (Theorems 2–3, Corollaries 1–2). These are standard complex-analysis arguments under stated holomorphic-extension hypotheses; they do not define the approximant from the residual they later bound, nor do they fit parameters to residual data and relabel the fit as a prediction. Self-citations to XNet/CompleX PINN ([28,29,41]) motivate the Cauchy family but are not used as uniqueness theorems that force the layer-scaled rates; the integrated-Cauchy analysis is re-derived in the paper. Numerical claims compare LRX-PINN to external PIKAN, Fourier-feature PINN, and published hp-VPINN numbers, and for Tasks 5–6 the original loss functionals and stabilization are held fixed so only the trial space changes. Empirical choice of initial d is ordinary hyperparameter selection, not a fitted-input-called-prediction. Remark 3 and the discussion of Theorem 4 explicitly separate best-approximation complexity from optimizer/conditioning costs. No step reduces a claimed prediction to its inputs by construction.

Assumptions & free parameters 5 free parameters · 4 assumptions · 1 invented entities

The load-bearing math is standard complex approximation plus singular-perturbation layer scaling; the paper’s own additions are the integrated Cauchy atom geometry and the thickness-uniform transfer. Free parameters are architectural/training choices (neuron count, initial d, loss weights, iteration budgets) that affect realized accuracy but not the best-approximation theorems. No new physical particles or forces are postulated—only a neural basis.

free parameters (5)
  • N_Cauchy (hidden neurons)
    Fixed at 120 for Tasks 1–4; directly sets representation capacity and the 841-parameter count used in all efficiency claims.
  • initial activation scale d (per task/ε)
    Table 18 reports best-performing initial d decreasing with ε; chosen by ablation after 5000 Adam steps, so numerical wins partly depend on this hand-tuned scale.
  • loss weights λ_f, λ_b
    Fixed at 1 and 40 for Tasks 1–4 without adaptive balancing; boundary emphasis is a free training choice.
  • Adam/L-BFGS iteration budgets
    8000+12000 for Tasks 1–4; 50k–100k Adam for Tasks 5–6 following prior papers—optimizer effort is prescribed, not derived.
  • Fourier scale σ and KAN/Fourier widths
    Baseline hyperparameters (σ by ε; widths 20/32, etc.) are configuration choices that frame the parameter-efficiency comparison.
assumptions (4)
  • domain assumption Stretched layer profiles U are holomorphic in a fixed complex neighborhood of a compact real interval with conjugate symmetry, enabling trapezoidal Cauchy quadrature exponential rates.
    Hypothesis of Lemma 1 and Theorem 1; without a δ-independent analyticity strip the exponential σ^{-M} rate is not guaranteed.
  • domain assumption Local layer structure is essentially one-dimensional in a normal coordinate (planar patch or tubular neighborhood for curved layers).
    Section 2.1 and Remark 4; corner interactions and strong curvature corrections are treated as lower-order or multi-atom superpositions.
  • standard math Cauchy integral formula and trapezoidal-rule error bounds for 2π-periodic holomorphic functions on a strip.
    Lemma 1 proof; classical complex analysis used as black box.
  • ad hoc to paper Best-approximation complexity is separate from nonconvex optimization, conditioning, and quadrature cost as ε→0.
    Explicitly stated after Theorem 4 and Remark 3; numerical claims still rely on Adam/L-BFGS finding good atoms.
invented entities (1)
  • Integrated Cauchy ridge atom / VIC_M trial space (LRX-PINN basis) independent evidence
    purpose: Provide a single parametric family that is transition-type in value and Cauchy-localized in first/second derivatives with explicit physical width ρ=d/‖w‖.
    Mathematical construction built from known Cauchy kernels; independent mathematical content is the approximation theory, not external physical detection.

how reviews work

0 comments
Cite this review

Pith. "Pith review of LRX-PINN: A Layer-Resolving XNet Physics-Informed Neural Network with Integrated Cauchy Activations for Convection-Dominated Problems." pith.science (2026). https://pith.science/paper/GSVADMLX

@misc{pith2026260703682,
  author       = {Pith},
  title        = {Pith review of: LRX-PINN: A Layer-Resolving XNet Physics-Informed Neural Network with Integrated Cauchy Activations for Convection-Dominated Problems},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/GSVADMLX}},
  note         = {Machine review of arXiv:2607.03682}
}
abstract

Convection-dominated convection-diffusion problems often develop thin layers, where the solution has sharp transition profiles and its derivatives are highly localized. This creates a structural mismatch for standard physics-informed neural networks (PINNs), whose trial spaces are not designed to match the value--derivative structure of such layers. We propose a Layer-Resolving XNet Physics-Informed Neural Network (LRX-PINN) based on integrated Cauchy activations. The proposed basis is transition-type at the solution level, while its derivative recovers a localized Cauchy kernel. We show that this structure matches the scaling of convection-dominated layers, inherits the Cauchy approximation mechanism at the derivative-profile level, and identifies \(d/\|w\|\) as the effective physical width of a ridge neuron. For analytic layer profiles, this yields derivative-stable exponential approximation in the stretched coordinate and a layer-scaled estimate for the strong residual of the singularly perturbed operator. Numerical experiments on several convection-dominated benchmarks show that LRX-PINN achieves higher accuracy than PIKAN and Fourier-feature PINNs while using less than \(30\%\) of their trainable parameters. On more challenging benchmarks, embedding the proposed representation into hp-VPINN-based frameworks further improves the best results obtained by existing hp-VPINN-based baselines without changing their original loss functionals or stabilization strategies. These results show that neural representations aligned with layer structure provide a compact and effective approach for convection-dominated problems.

Figures

Figures reproduced from arXiv: 2607.03682 by the authors.

Figure 1

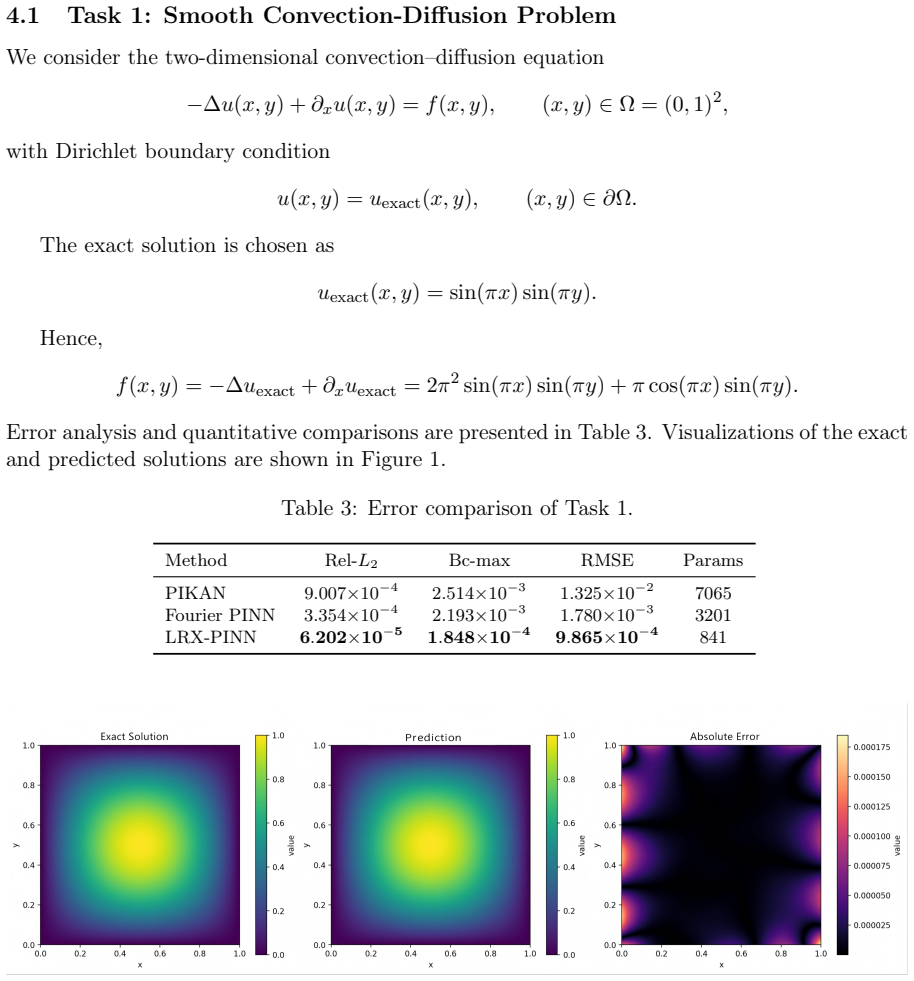

Figure 1. Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p013_1.png] view at source ↗
Figure 1
Figure 1. Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p020_1.png] view at source ↗
Figure 2
Figure 2. Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p014_2.png] view at source ↗
Figures from the paper (29 more)
Figure 2
Figure 2. Figure 2: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p021_2.png]
Figure 3
Figure 3. Figure 3: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p015_3.png]
Figure 3
Figure 3. Figure 3: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p022_3.png]
Figure 4
Figure 4. Figure 4: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p015_4.png]
Figure 4
Figure 4. Figure 4: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p022_4.png]
Figure 5
Figure 5. Figure 5: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p016_5.png]
Figure 5
Figure 5. Figure 5: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p023_5.png]
Figure 6
Figure 6. Figure 6: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p017_6.png]
Figure 6
Figure 6. Figure 6: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p024_6.png]
Figure 7
Figure 7. Figure 7: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p017_7.png]
Figure 7
Figure 7. Figure 7: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p024_7.png]
Figure 8
Figure 8. Figure 8: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p018_8.png]
Figure 8
Figure 8. Figure 8: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p025_8.png]
Figure 9
Figure 9. Figure 9: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p018_9.png]
Figure 9
Figure 9. Figure 9: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p025_9.png]

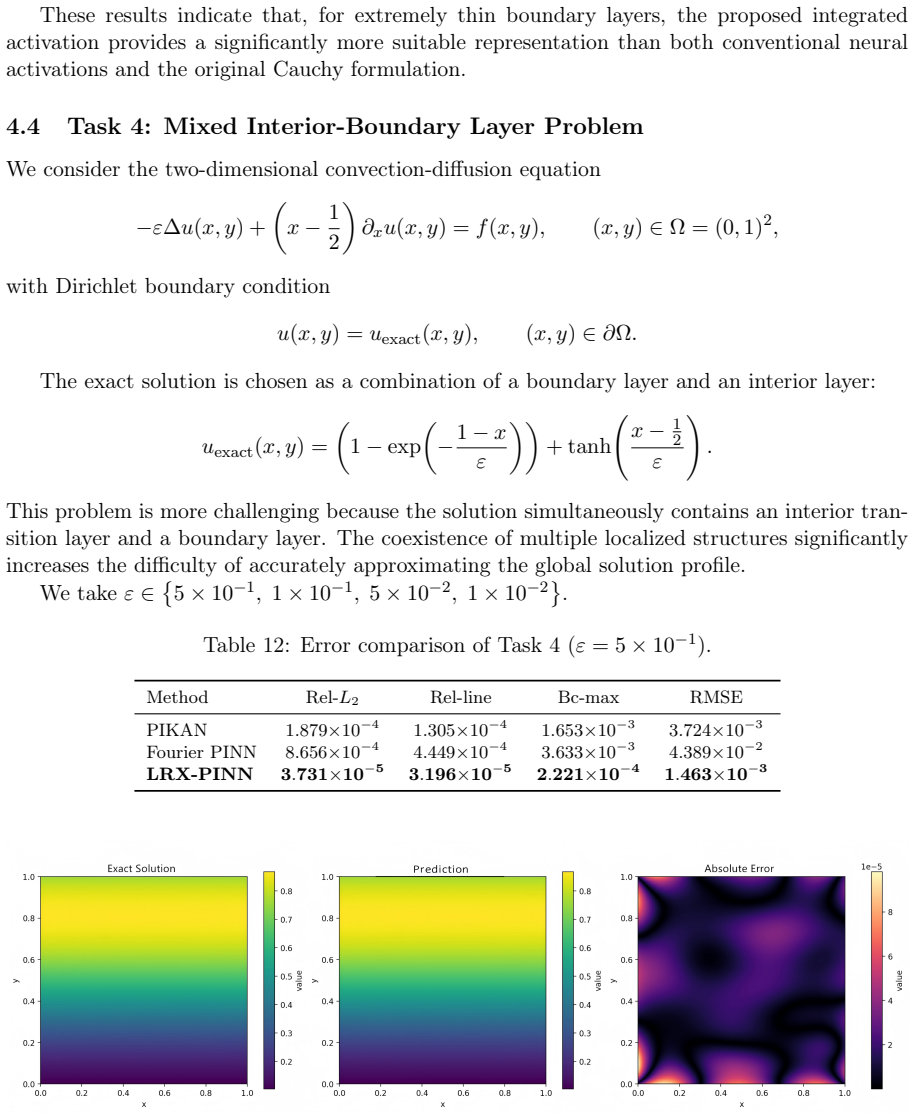

Figure 10
Figure 10. Figure 10: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p019_10.png]
Figure 10
Figure 10. Figure 10: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p026_10.png]
Figure 11
Figure 11. Figure 11: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p020_11.png]
Figure 11
Figure 11. Figure 11: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p027_11.png]
Figure 12

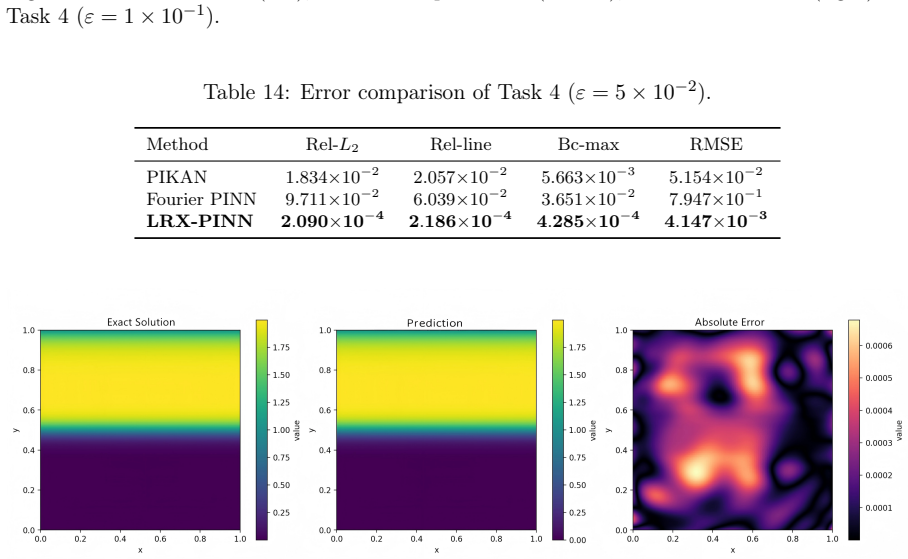

Figure 12. Figure 12: Exact solution (left), LRX-PINN prediction (middle), and absolute error (right) for [PITH_FULL_IMAGE:figures/full_fig_p020_12.png]
