REVIEW 3 major objections 5 minor 100 references
A novel compact scheme for second-order fluxes applied to the Spectral Difference method
T0 review · 3 major / 5 minor · reviewed 2026-08-11 · deepseek-v4-flash
Pith's one-line read The paper proposes a compact, fully centered reformulation of second-order fluxes for the Spectral Difference method that shrinks the viscous stencil from five to three elements and restores nominal convergence order at even approximation…
desk verdict A solid 1D compact viscous-flux construction for SD that fixes BR1's even-order convergence and adds high-wavenumber damping; the multidimensional extension is asserted, not demonstrated. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The load-bearing object is the pair of one-sided continuous flux reconstructions $H^{C,L}_e$ and $H^{C,R}_e$ (equivalently, the corrected gradient states $v^{S,L}_e$ and $v^{S,R}_e$) built from the correction vectors $\hat{c}_L$ and $\hat{c}_R$ at each element's interfaces. Unlike the standard BR1 construction, which first forms a globally continuous flux and then differentiates it, the compact construction applies each interface correction only on the side that shares that interface, so the auxiliary gradient at an interface depends only on the two adjacent elements. The interface gradient is then the average of these one-sided contributions. This is what cuts the viscous stencil from five to three elements and what the eigenanalysis shows to add dissipation in the medium- to high-wavenumber range.
What would settle it
Run a two-dimensional manufactured-solution convergence study for the compact scheme on hexahedral elements, measuring L2 error for polynomial degrees p=1, 2, 3, and 4; the central claim would be refuted if any even approximation order (p+1 even, i.e., p odd) shows a convergence rate one order below nominal.
Extended reading notes
Core claim
The central claim is that the compact, fully-centered formulation is an effective drop-in alternative to BR1 within the Spectral Difference method, achieving nominal convergence order for every polynomial degree tested and proving more robust in under-resolved and nonlinear regimes. The mechanism is the reconstruction of the auxiliary gradient from element-local one-sided continuous fluxes, with interface values obtained by averaging contributions from the two neighbors only. This preserves the centered, parameter-free character of BR1 while formally reducing the one-dimensional stencil from five to three elements and improving damping of high-wavenumber numerical modes. The paper supports this claim with a temporal eigenanalysis of the dissipation curves and with convergence studies, under-resolved diffusion tests, and implicit large-eddy simulations of the Taylor-Green vortex at Reynolds numbers 1600 and 5000.
Load-bearing premise
The multidimensional accuracy claim rests on assuming that applying the compact corrections direction by direction on tensor-product hexahedral elements preserves enough accuracy, and the paper does not include a 2D or 3D convergence test to verify this.
Editorial extensions
If this is right
- For the linear diffusion equation, the compact scheme reaches convergence rates of 2.60, 3.01, 4.19, 5.04, and 6.37 for polynomial degrees p=1 through p=5, whereas standard BR1 drops to about 1.00, 3.00, 3.00, 5.05, and 4.99, so the even-order deficit at p=1, 3, and 5 is removed.
- In under-resolved tests (Dirac delta diffusion and the porous medium equation), the compact scheme produces smaller L2 errors and markedly fewer spurious high-wavenumber oscillations than the standard flux, with the Fourier-space oscillation peaks matching the eigenanalysis predictions.

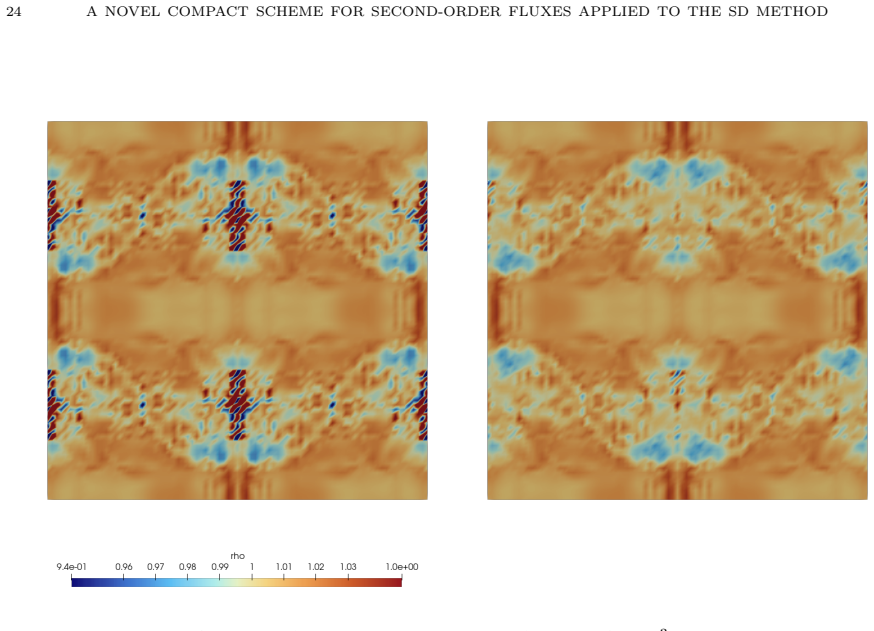

- In implicit large-eddy simulations of the Taylor-Green vortex at Re=1600 and Re=5000, the compact scheme stays stable in configurations where the standard flux diverges, such as the 16^3 p7 case at Re=1600 and the 12^3 p6 case at Re=5000, and in stable runs it yields lower spurious enstrophy.
- The reduced five-to-three-element stencil lowers the memory and data-exchange footprint of the viscous operator, which is a direct benefit for implicit time integration, adjoint-based optimization, and large-scale parallel implementations.
Reading between the lines
- The paper leaves implicit that the multidimensional accuracy gain is the main untested part of the scheme; a 2D or 3D manufactured-solution convergence study on hexahedral meshes would directly test the tensor-product extension, and none is reported.

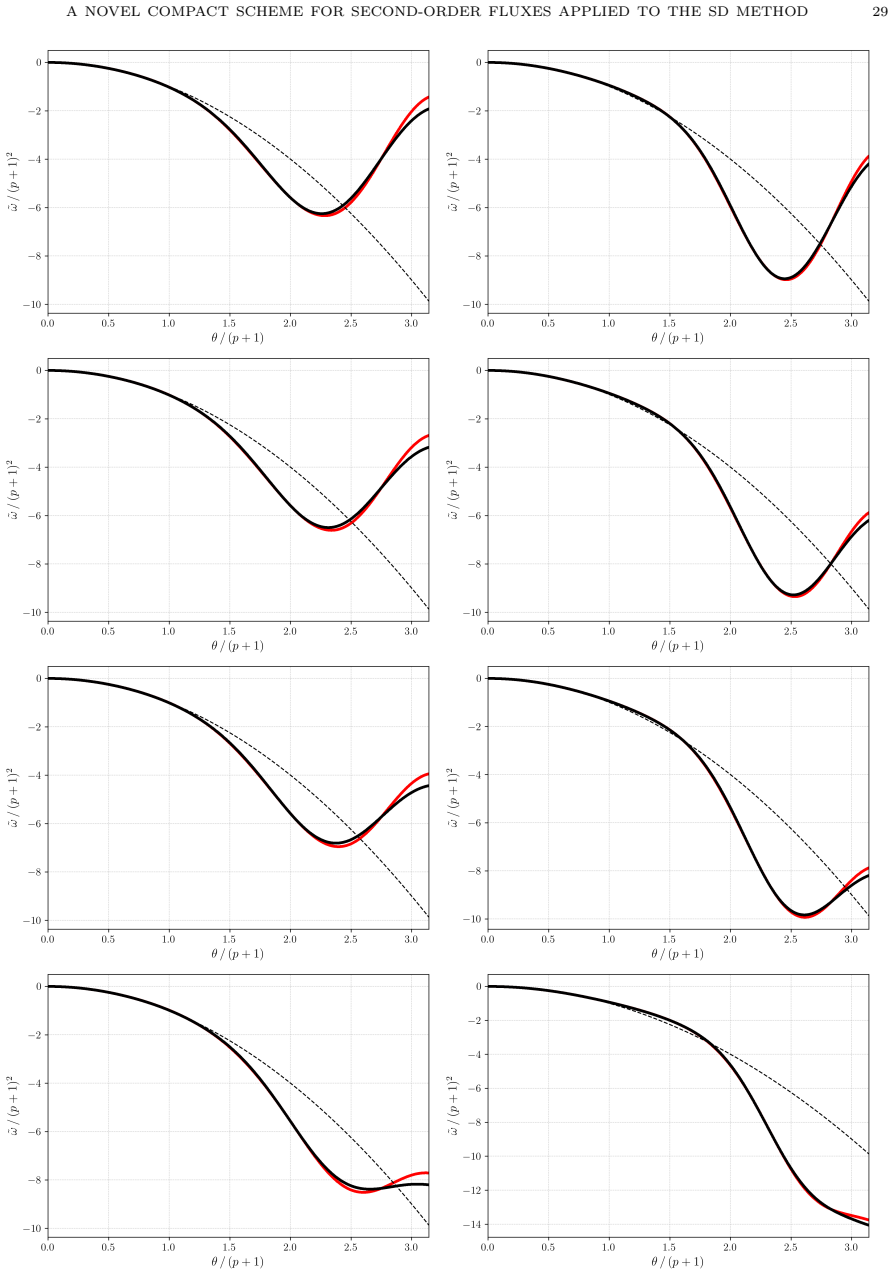

- The eigenanalysis shows that the compact flux adds dissipation mainly at medium and high wavenumbers, so one could quantify this as an effective implicit subgrid-scale viscosity by measuring spectral energy transfer in the Taylor-Green vortex, a diagnostic the paper does not compute.
- The same one-sided, interface-averaged reconstruction idea could be transferred to other discontinuous spectral element formulations that inherit BR1's wide stencil, although the paper demonstrates it only within the Spectral Difference framework.
- At higher resolution, the interior penalty term can degrade the compact scheme (as observed for the porous medium equation on 200 elements), suggesting that the compact flux may already supply enough dissipation and that penalty should be tuned lower when the two are combined.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes a compact, fully-centered viscous-flux formulation for the Spectral Difference (SD) method, inspired by Huynh's Flux Reconstruction approach. In one dimension it modifies the reconstruction of the auxiliary gradient so that the stencil shrinks from five to three elements while preserving the parameter-free, centered character of BR1. The authors give the 1D construction, a direction-by-direction extension to tensor-product hexahedral elements, a temporal eigenanalysis with and without interior penalty terms, and a series of tests: 1D Gaussian diffusion convergence, under-resolved Dirac-delta diffusion, the porous medium equation, and three-dimensional Taylor-Green vortex ILES. The 1D derivation and eigenanalysis are algebraically coherent, and the compact scheme's 1D convergence behavior is demonstrated for p=1 through p=5. The multidimensional accuracy claim, however, is asserted by analogy and is not supported by any 2D or 3D convergence test.
Significance. If the claims hold, this is a practically useful, parameter-free alternative to BR1 for the SD discretization of second-order fluxes, with particular relevance to implicit LES on hexahedral meshes. The manuscript has clear strengths: the compact scheme is parameter-free, the eigenanalysis is derived from the scheme's own operators, the 1D convergence rates are measured against exact solutions, and the TGV stability tables provide falsifiable comparisons. The current significance is limited by an internal contradiction in the parity of the suboptimal BR1 orders (the paper's own data show odd p, not even p, are suboptimal) and by the absence of any multidimensional accuracy validation, which leaves the headline 'all polynomial degrees' claim supported only in one dimension.
major comments (3)
- [§4.1, Table 2 and surrounding text] The text in §4.1 states that the standard scheme 'provides a much more degraded convergence rate' at even orders, listing p=2 and p=4 as even; however, Table 2 shows the opposite: the standard scheme's convergence rates are 0.998, 2.996, and 4.990 for p=1, p=3, and p=5 (all odd), while for p=2 and p=4 the rates are 3.001 and 5.050, which match the nominal orders. The same misstatement appears in the Abstract ('including even orders for which the standard BR1 scheme underperforms'). This is a load-bearing error in the central accuracy claim and must be corrected, and the abstract's 'even orders' must be revised to reflect the paper's own data.
- [§2.3 and Abstract] The multidimensional extension is presented by applying the one-sided compact corrections direction by direction (Eqs. (41)-(44)), but no 2D or 3D convergence study is reported anywhere in the manuscript. The Taylor-Green vortex tests demonstrate stability, not formal accuracy, and the text itself notes that in multiple dimensions the global stencil spans five elements. Consequently, the abstract's statement that the compact scheme 'restores the expected convergence order for all polynomial degrees' is only verified in one dimension. The authors should either supply multidimensional convergence evidence (e.g., a manufactured 2D or 3D diffusion problem with cross-derivative terms and non-affine metrics) or explicitly restrict the accuracy claim to the 1D case.
- [§4.1, Table 2] The convergence-rate claims are based on a single smooth test problem (well-resolved Gaussian diffusion) with no error estimates or multiple test cases. While this is not by itself a fatal flaw, it is the only evidence for the central accuracy claim; adding a second 1D problem with a known exact solution, or fitting the rates with linear-regression standard errors, would strengthen the conclusion that the compact scheme 'consistently achieves the expected order of accuracy for all polynomial degrees.'
minor comments (5)
- [§4.1] The sentence beginning 'For even orders of approximation, p=1 p=2 p=3 p=4 p=5 compact 2.599...' is a fragment and mislabels the parity of the tabulated polynomial degrees; p=1,3,5 are odd and p=2,4 are even.
- [Abstract and §2.3] The abstract's 'reducing the stencil from five to three elements' is a 1D statement; in §2.3, step 3, the text correctly notes that the global multidimensional stencil spans five elements. The abstract should qualify the stencil reduction as applying to the one-dimensional case to avoid overstatement.
- [§3] The eigenanalysis section states that both schemes satisfy Re(e\omega)=0 and then presents only dissipation curves; it would be clearer to state explicitly that the dispersion is identically zero for these centered schemes, so the imaginary part of the numerical frequency fully characterizes the scheme.
- [§4.2, Eq. (73)] The Fourier coefficient is computed using only the cosine transform; this is justified for the symmetric initial data used here, but the text should mention this restriction rather than presenting it as a general Fourier-space analysis.
- [References] Reference [7] has a formatting inconsistency: the title and subtitle are run together, and the doi is duplicated; this should be normalized.
Circularity Check
No significant circularity: the compact scheme is analyzed from its own operators and validated against exact solutions, with no fitted inputs or load-bearing self-citations.
full rationale
The paper's derivation chain is self-contained and non-circular. The compact flux is constructed explicitly in Section 2.2 through equations (21)-(26) as a modification of the standard SD/BR1 discretization, and its properties are then assessed independently. No parameter is fitted to produce the claimed convergence results: the convergence rates in Table 2 are measured against the analytic Gaussian diffusion solution, and the stencil reduction from five to three elements follows directly from the algebraic definitions of the one-sided continuous fluxes. The temporal eigenanalysis in Section 3 uses the scheme's own discrete operators to assemble the matrix B(θ) and solve the eigenvalue problem, so the dissipation curves are derived rather than imposed; the comparison with Fourier peaks in the Dirac-delta test is a consistency check, not a fit. The self-citations in the paper concern the SD solver and prior LES methodology (e.g., refs. [18], [20], [54], [57], [85], [86], [87]) and are not invoked as proof of the compact scheme's accuracy or stability. The central claims of order recovery, reduced oscillations, and improved stability are supported by in-paper numerical experiments against exact or established solutions. The multidimensional extension in Section 2.3 is presented by analogy and is not backed by 2D/3D convergence tests, but this is an evidentiary gap regarding generality, not a circular reduction of the claimed result to its inputs. No instance of self-definitional reasoning, fitted-input-as-prediction, or uniqueness-imported-from-authors appears in the paper.
Assumptions & free parameters
assumptions (4)
- standard math The standard SD interpolation and differentiation operators, based on Gauss-Legendre solution points and Gauss-Lobatto flux points, are stable and accurate as described by Kopriva and Jameson.
- domain assumption Tensor-product hexahedral elements allow the compact corrections to be applied direction by direction in multiple dimensions.
- domain assumption Temporal eigenanalysis of the one-dimensional linear diffusion equation with Bloch-periodic solutions is representative of the nonlinear three-dimensional ILES behavior.
- domain assumption Centered averaging of one-sided continuous gradients at interfaces is consistent for nonlinear diffusion fluxes such as the porous medium equation.
Cite this review
Pith. "Pith review of A novel compact scheme for second-order fluxes applied to the Spectral Difference method." pith.science (2026). https://pith.science/paper/IL4J3BDS
@misc{pith2026260809615,
author = {Pith},
title = {Pith review of: A novel compact scheme for second-order fluxes applied to the Spectral Difference method},
year = {2026},
howpublished = {\url{https://pith.science/paper/IL4J3BDS}},
note = {Machine review of arXiv:2608.09615}
}
abstract
The discretization of second-order (viscous) terms in Discontinuous Spectral Element Methods (DSEMs) typically relies on an auxiliary gradient variable, whose treatment at element interfaces affects the accuracy and stability of the scheme. The Bassi-Rebay (BR1) formulation is attractive for its simplicity and parameter-free character, but suffers from sub-optimal convergence at even polynomial orders and requires an extended five-element stencil. Inspired by Huynh's Flux Reconstruction formulation, we develop a compact, fully-centered scheme for second-order fluxes within the Spectral Difference (SD) method. The proposed approach modifies the reconstruction of the auxiliary gradient using interface-dependent, one-sided continuous fluxes, reducing the stencil from five to three elements while preserving the centered and parameter-free nature of BR1. The formulation is developed in one dimension and extended to multiple dimensions. Temporal eigenanalysis is used to characterize its dissipation and dispersion properties, including the effects of interior penalty terms. Numerical tests consider the linear diffusion equation, an under-resolved localized Dirac's delta, the nonlinear porous medium equation, and implicit large-eddy simulations of the three-dimensional Taylor-Green vortex at $\mathrm{Re}=1600$ and $5000$. The compact scheme restores the expected convergence order for all polynomial degrees, including even orders, and reduces spurious oscillations in under-resolved and nonlinear regimes. It also remains stable in turbulent cases where the standard formulation fails, owing to improved damping of high-wavenumber numerical modes. The proposed approach provides an attractive compact alternative to BR1 for second-order fluxes in the SD method.
Figures
Figures from the paper (15 more)
