arxiv: 2605.21074 · v3 · pith:J2DKJGW2new · submitted 2026-05-20 · 🧮 math-ph · gr-qc· math.MP

A Sine-Quadrature Search Channel for Off-Diagonal Lunar Tidal Residuals

Muhittin Cenk Eser , Mustafa Halilsoy This is my paper

Pith reviewed 2026-05-22 08:52 UTC · model grok-4.3

classification 🧮 math-ph gr-qcmath.MP
keywords lunar tidestidal tensoroff-diagonal residualHalilsoy waveseigenframe rotationcross-tidal channelNewtonian gravitygeneral relativity
0
0 comments X

The pith

An alpha-dependent off-diagonal residual inspired by Halilsoy waves adds a distinct 45-degree cross-tidal channel to the lunar tensor beyond its diagonal Newtonian form.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes extending the classical Newtonian quadrupolar tidal tensor for the Earth-Moon system by adding a hidden off-diagonal component drawn from the cross-polarized sector of Halilsoy's cylindrical gravitational wave solutions. This extension is controlled by a coefficient chi_H that depends on alpha, time, and distance and produces an extra angular dependence in the tidal accelerations. The addition rotates the full eigenframe without eliminating the standard 90-degree principal axes, creating a separate sin(2 beta) channel whose peaks lie at 45, 135, 225, and 315 degrees. The model treats this as a testable residual layered on top of Newtonian gravity rather than a replacement for it.

Core claim

The central claim is that a Halilsoy-inspired off-diagonal tidal component, represented by the alpha-dependent coefficient chi_H(alpha,t,rho), can be introduced as a hidden residual in the lunar tidal tensor. This component rotates the entire eigenframe while preserving the ordinary 90-degree separation of principal axes, resulting in an additional sin(2 beta) residual channel with strongest directions at 45, 135, 225, and 315 degrees. The scale of the corresponding residual acceleration is governed by chi_H, providing a distinct 45-degree-type angular signature absent from the diagonal Newtonian principal-frame tensor.

What carries the argument

The Halilsoy-inspired residual coefficient chi_H(alpha,t,rho), which supplies the off-diagonal term that rotates the tidal eigenframe and generates the extra sin(2 beta) channel.

If this is right

  • The residual acceleration carries a sin(2 beta) angular dependence whose peaks occur at the 45-degree directions.
  • The ordinary 90-degree stretching and squeezing pattern of the principal tidal axes remains intact.
  • The strength of the new channel is set by the value of the coefficient chi_H.
  • The extension supplies a concrete ansatz that can be compared directly against tidal data without replacing standard Newtonian calculations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar off-diagonal residuals could appear in other gravitational tidal systems if the cylindrical-wave analogy proves portable.
  • Precise angular mapping of tidal forces at intermediate angles might expose small deviations from purely diagonal Newtonian predictions.
  • The construction suggests a route for importing exact-solution features from general relativity as perturbative corrections in local gravitational environments.

Load-bearing premise

An off-diagonal tidal component can be added to the Earth-Moon system by direct analogy with the cross-polarized sector of cylindrical gravitational waves, without deriving it from the Einstein equations applied to lunar geometry.

What would settle it

High-precision measurements of Earth-Moon tidal accelerations that either detect or rule out an extra component varying as sin(2 beta) with amplitude maxima precisely at 45, 135, 225, and 315 degrees and scaling with the proposed chi_H parameter.

Figures

Figures reproduced from arXiv: 2605.21074 by Muhittin Cenk Eser, Mustafa Halilsoy.

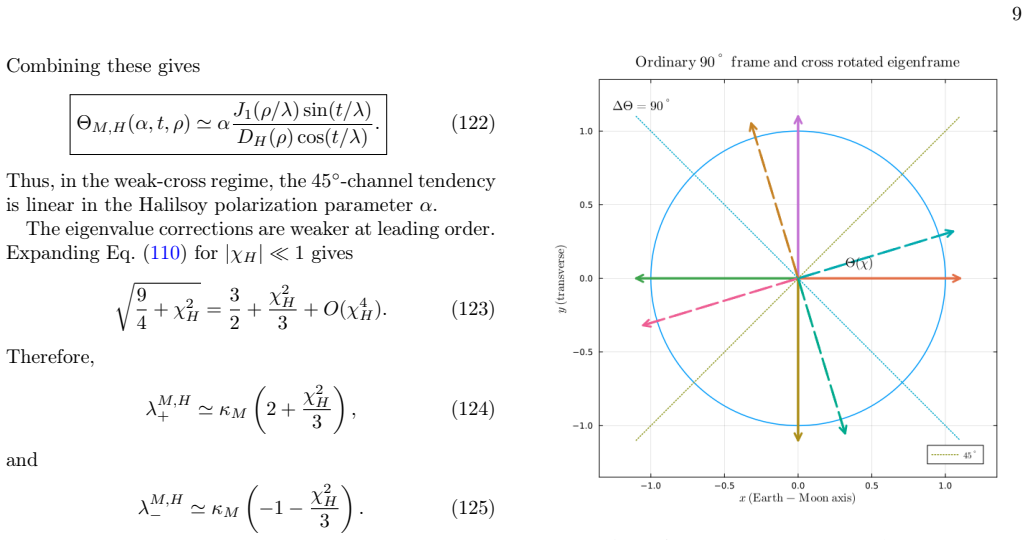

Figure 1
Figure 1. Figure 1: illustrates the distinction between principal￾axis separation and eigenframe orientation. The solid axes represent the ordinary Newtonian lunar tensor. The dashed axes represent the rotated eigenframe produced by a nonzero cross-sector. Even in the rotated case, the axes remain orthogonal [PITH_FULL_IMAGE:figures/full_fig_p009_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2: Eigenframe rotation angle [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: Projected tidal acceleration pattern [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6: Projected [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
Figure 5
Figure 5. Figure 5: isolates the proposed 45◦ -type residual. The off-diagonal sector appears as a pure sin(2β) harmonic. The amplitude of this harmonic is not arbitrary in the Halilsoy-inspired version; it is controlled by χH(α, t, ρ). Thus a residual search would naturally fit the post￾subtraction signal to a sine-quadrature component [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7: Summary of the Halilsoy-inspired [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗

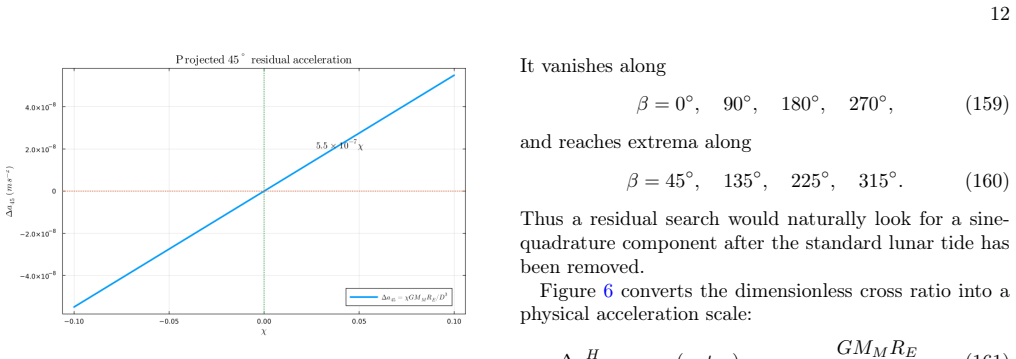

Figure 6
Figure 6. Figure 6: converts the dimensionless cross ratio into a physical acceleration scale: ∆a H 45 = a0χH(α, t, ρ), a0 = GMMRE D3 . (161) Using a0 ≃ 5.5 × 10−7 m s−2 , (162) one obtains ∆a H 45 ≃ 5.5 × 10−7χH(α, t, ρ) m s−2 . (163) This scale estimate motivates the amplitude-ratio analy￾sis in the discussion. Summary of the 90◦–45◦ structure The full conceptual structure is summarized in [PITH_FULL_IMAGE:figures/full_fig… view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7: Summary of the Halilsoy-inspired [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8: Amplitude ratio and observational scale of the proposed [PITH_FULL_IMAGE:figures/full_fig_p016_8.png] view at source ↗
read the original abstract

The Newtonian quadrupolar tidal tensor accurately describes the dominant Earth-Moon tide. In its principal frame, this tensor is diagonal and produces the familiar 90-degree stretching-squeezing pattern. A 45-degree projection of this field is possible, but it is not an independent cross-tidal residual. We formulate a Halilsoy-inspired residual extension of the local lunar tidal tensor. The key idea is that Halilsoy's cross-polarized cylindrical gravitational waves contain an off-diagonal tidal sector capable of rotating a local eigenframe. By importing this mechanism as a residual ansatz, we define an alpha-dependent coefficient, chi_H(alpha,t,rho), that measures a possible off-diagonal correction to the diagonal Newtonian principal-frame tensor. This residual does not break the 90-degree orthogonality of the principal axes. Instead, it rotates the whole eigenframe and produces a 45-degree-type signature through a sin(2 beta) acceleration channel. Its scale is Delta a_45^H = a_0 chi_H, where a_0 = G M_M R_E / D^3 is approximately 5.5 x 10^(-7) m s^(-2). The construction is not a replacement for standard tidal theory and does not model the Earth-Moon system as a Halilsoy spacetime. It provides a mathematically explicit and observationally testable residual framework: the Newtonian tensor explains the dominant lunar tide, while the Halilsoy-inspired sector identifies a possible alpha-dependent off-diagonal cross channel.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes extending the Newtonian quadrupolar lunar tidal tensor with a Halilsoy-inspired off-diagonal residual coefficient chi_H(alpha, t, rho). This term is claimed to rotate the tidal eigenframe without destroying the 90-degree principal axes and to generate an additional independent sin(2 beta) cross-tidal channel whose maxima lie at 45°, 135°, 225°, and 315°. The construction is presented as a testable ansatz that supplements rather than replaces standard tidal theory and does not equate the Earth-Moon system to a Halilsoy spacetime.

Significance. If the off-diagonal term could be derived from the Einstein equations in the weak-field lunar geometry or shown to produce falsifiable predictions with quantitative error bars, the work would supply a novel relativistic-motivated residual channel for high-precision tidal observations. The analogy to cross-polarized cylindrical waves is clearly stated and the disclaimer that the model remains an ansatz is explicit. At present the absence of any derivation, explicit tensor components, or numerical predictions limits the result to a phenomenological suggestion.

major comments (2)
  1. [Abstract and modeling section] The central claim that chi_H functions as a physically motivated, independent cross-tidal residual rests entirely on analogy to Halilsoy's off-diagonal sector; no expansion of the Einstein equations about the Newtonian Earth-Moon background, no weak-field matching, and no verification that the added term satisfies the linearized Bianchi identities are supplied. This is load-bearing for the assertion that the sin(2 beta) channel is a 'distinct' residual rather than an arbitrary modeling choice. (Abstract, paragraph 2; modeling section introducing chi_H)
  2. [Abstract, paragraph 3] The statement that the residual 'rotates the whole eigenframe' and produces a distinct 45-degree angular signature is asserted but not demonstrated by explicit diagonalization of the modified tidal tensor or by computation of the projected acceleration along beta. Without these steps the claimed 45/135/225/315-degree pattern follows tautologically from defining chi_H as the off-diagonal coefficient. (Abstract, paragraph 3)
minor comments (2)
  1. The parameter alpha is repeatedly invoked as controlling the scale of chi_H but is never defined or given a physical interpretation in the Earth-Moon context.
  2. The manuscript would benefit from a short table or figure showing the explicit form of the extended tidal tensor, its eigenvalues, and the resulting angular dependence of the residual acceleration.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. The comments correctly identify that the work presents a phenomenological ansatz rather than a derived result from the Einstein equations. We will revise the manuscript to make this status explicit, add the requested explicit calculations, and strengthen the presentation of the model as a testable supplement to Newtonian tidal theory.

read point-by-point responses

  1. Referee: [Abstract and modeling section] The central claim that chi_H functions as a physically motivated, independent cross-tidal residual rests entirely on analogy to Halilsoy's off-diagonal sector; no expansion of the Einstein equations about the Newtonian Earth-Moon background, no weak-field matching, and no verification that the added term satisfies the linearized Bianchi identities are supplied. This is load-bearing for the assertion that the sin(2 beta) channel is a 'distinct' residual rather than an arbitrary modeling choice. (Abstract, paragraph 2; modeling section introducing chi_H)

    Authors: We agree that the construction relies on analogy to the off-diagonal sector of Halilsoy's cylindrical wave solutions and is not obtained from a weak-field expansion of the Einstein equations for the Earth-Moon system. The manuscript already states that the proposal is an ansatz that supplements rather than replaces standard tidal theory and does not equate the Earth-Moon system to a Halilsoy spacetime. To address the concern, we will add a new paragraph in the modeling section explicitly labeling the term as a phenomenological extension motivated by the relativistic cross-polarized mechanism, without claiming derivation or satisfaction of the full linearized Bianchi identities. We will also note that any future matching to weak-field gravity would be a separate investigation. revision: yes

  2. Referee: [Abstract, paragraph 3] The statement that the residual 'rotates the whole eigenframe' and produces a distinct 45-degree angular signature is asserted but not demonstrated by explicit diagonalization of the modified tidal tensor or by computation of the projected acceleration along beta. Without these steps the claimed 45/135/225/315-degree pattern follows tautologically from defining chi_H as the off-diagonal coefficient. (Abstract, paragraph 3)

    Authors: The referee is correct that the current text asserts the rotation and 45-degree signature without showing the explicit steps. In the revised manuscript we will insert the explicit components of the modified tidal tensor (Newtonian diagonal terms plus the chi_H off-diagonal term), perform the diagonalization to demonstrate the rotation of the principal axes, and compute the projected acceleration as a function of beta to confirm the additional sin(2 beta) channel with maxima at 45°, 135°, 225°, and 315°. These calculations will be placed in a new subsection of the modeling section. revision: yes

Circularity Check

2 steps flagged

45° sin(2β) channel and eigenframe rotation are algebraic consequences of defining χ_H as off-diagonal residual

specific steps
  1. self definitional [Abstract]
    "we introduce an alpha-dependent residual coefficient, chi_H(alpha,t,rho), representing a possible hidden off-diagonal tidal component beyond the diagonal Newtonian principal-frame tensor. The proposed residual does not destroy the ordinary 90-degree separation of the principal tidal axes. Instead, it rotates the whole eigenframe and produces a distinct 45-degree-type angular signature. This signature appears as an additional sin(2 beta) residual channel whose strongest directions are 45, 135, 225, and 315 degrees. The corresponding residual acceleration scale is controlled by chi_H."

    The 45-degree directions and sin(2β) form are the direct mathematical outcome of adding an off-diagonal term to a diagonal tidal tensor; the eigenframe rotation to 45/135/etc. follows at once from the eigenvectors of the modified matrix, making the reported signature equivalent to the definition of χ_H rather than an independent result.

  2. ansatz smuggled in via citation [Abstract]
    "we propose a Halilsoy-inspired residual extension of the lunar tidal tensor. The motivation comes from Halilsoy's cross-polarized cylindrical gravitational waves, where an off-diagonal tidal sector naturally rotates the local tidal eigenframe."

    The specific off-diagonal form and its 45° consequence are adopted by direct analogy to the co-author's prior cylindrical-wave metric without deriving χ_H from the Einstein equations applied to the Earth-Moon geometry or verifying it satisfies the linearized constraints; the ansatz is imported via the Halilsoy reference.

full rationale

The paper introduces χ_H(α,t,ρ) explicitly as an off-diagonal tidal component by Halilsoy analogy and then states that this produces a distinct 45°-type sin(2β) residual channel whose maxima lie at 45/135/225/315°. This angular signature follows immediately from the linear algebra of a diagonal Newtonian tensor plus off-diagonal term; the claimed 'prediction' therefore reduces to the modeling choice itself. No derivation from the Einstein equations on lunar geometry, no weak-field matching, and no independent benchmark are supplied, leaving the result forced by the ansatz.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 1 invented entities

The claim rests on two free parameters and an ad-hoc analogy without independent evidence or derivation from the lunar system's field equations.

free parameters (2)
  • alpha
    Parameter that controls the strength and form of the residual cross-tidal coefficient chi_H.
  • chi_H(alpha,t,rho)
    Coefficient introduced to represent the hidden off-diagonal tidal component.
axioms (2)
  • domain assumption Newtonian gravity explains the dominant lunar tide
    Explicitly stated: the model does not replace standard lunar tidal theory.
  • ad hoc to paper Halilsoy's cross-polarized cylindrical waves supply a valid guide for extending the tidal tensor
    The motivation is taken directly from Halilsoy's work as an analogy for the off-diagonal sector.
invented entities (1)
  • chi_H(alpha,t,rho) no independent evidence
    purpose: To encode a possible hidden off-diagonal tidal residual
    New coefficient postulated without a falsifiable prediction independent of the ansatz itself.
