Mechanical response of quasi-two-dimensional colloidal clusters under uniaxial tension

Yanhui Yang , Jiawei Kang , Yao Li , Xiaoguang Ma This is my paper

Pith reviewed 2026-06-25 19:27 UTC · model grok-4.3

classification ❄️ cond-mat.soft cond-mat.stat-mech
keywords colloidal clustersmechanical responseuniaxial tensionspring-mass modeldepletion attractionstress-strain curvesquasi-two-dimensional
0
0 comments X

The pith

A reduced 7-degree-of-freedom spring-mass model reproduces the tensile response of a colloidal cluster.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper studies the tensile behavior of a ribbon-shaped cluster of 16 colloidal beads held by depletion attraction. Using optical tweezers, they pull the cluster along its length and track stress, strain, and particle positions. They observe elastic, plastic, and soft-mode regimes before fracture at about 10 percent strain. A full spring-mass simulation with 32 degrees of freedom and a simplified version with only 7 degrees of freedom both match the experimental stress-strain curves. The simplified model also matches configuration distributions in the elastic and soft-mode regimes.

Core claim

Both the simulations and the theoretical calculations accurately reproduce the experimental stress--strain curves. Moreover, the configuration distributions predicted by the simplified model agree well with both experiment and simulation in the elastic and soft-mode regimes, with only minor discrepancies in the plastic regime. This demonstrates that the simplified spring-mass model captures the essential physics governing the rich tensile response behavior of the colloidal cluster.

What carries the argument

The spring-mass frame model with breakable elastic bonds, reduced to a 7-degree-of-freedom version for statistical calculations.

If this is right

  • The full 32-DOF Monte Carlo simulations match experimental stress-strain curves.
  • The 7-DOF model predicts configuration distributions that agree with experiment in elastic and soft-mode regimes.
  • Fracture occurs at a strain near 10 percent.
  • The model explains diverse mechanical behaviors including elastic, plastic, and soft-mode deformation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Such reduced models could be applied to predict mechanical properties of larger colloidal assemblies without full computation.
  • Testing the model on clusters with different numbers of beads would check if the reduction remains valid.
  • The approach might extend to three-dimensional clusters or other interaction potentials.

Load-bearing premise

The depletion attraction between beads can be represented by breakable elastic bonds in a spring-mass model whose fixed parameters let the reduced 7-DOF version capture the essential physics without missing important many-body effects.

What would settle it

A significant mismatch between the 7-DOF model's predicted stress-strain curve and the experimental data in the elastic regime would falsify the claim that the simplified model captures the essential physics.

Figures

Figures reproduced from arXiv: 2606.25604 by Jiawei Kang, Xiaoguang Ma, Yanhui Yang, Yao Li.

Figure 1

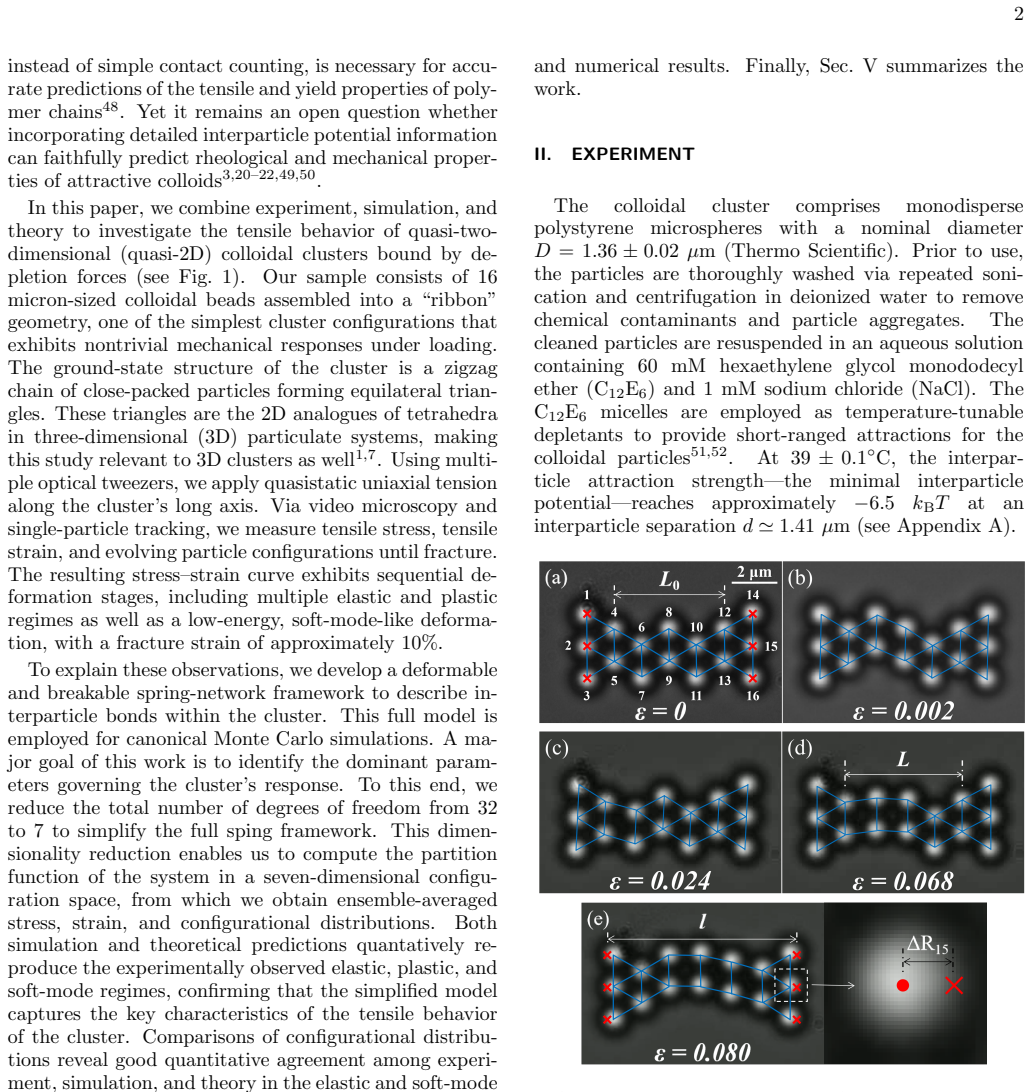

Figure 1. Figure 1: FIG. 1. Experimental snapshots of the colloidal cluster [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

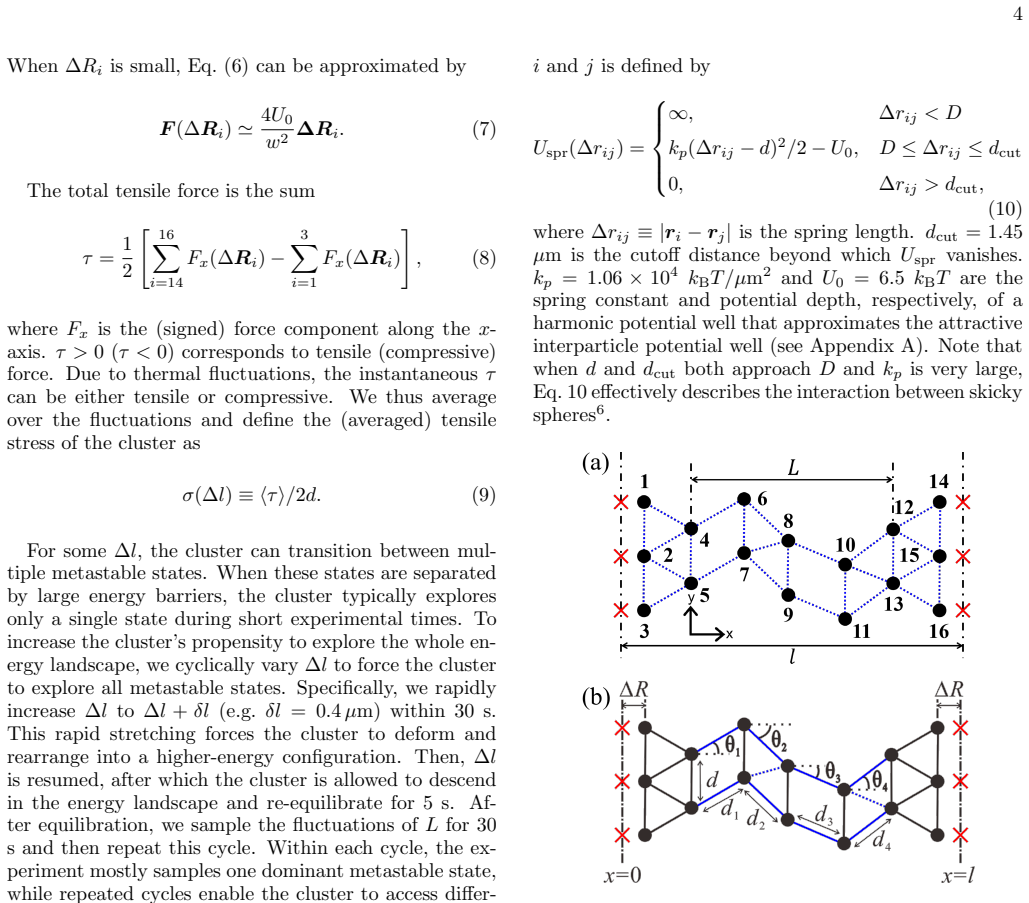

Figure 2. Figure 2: FIG. 2. (a) The spring-mass framework with breakable [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

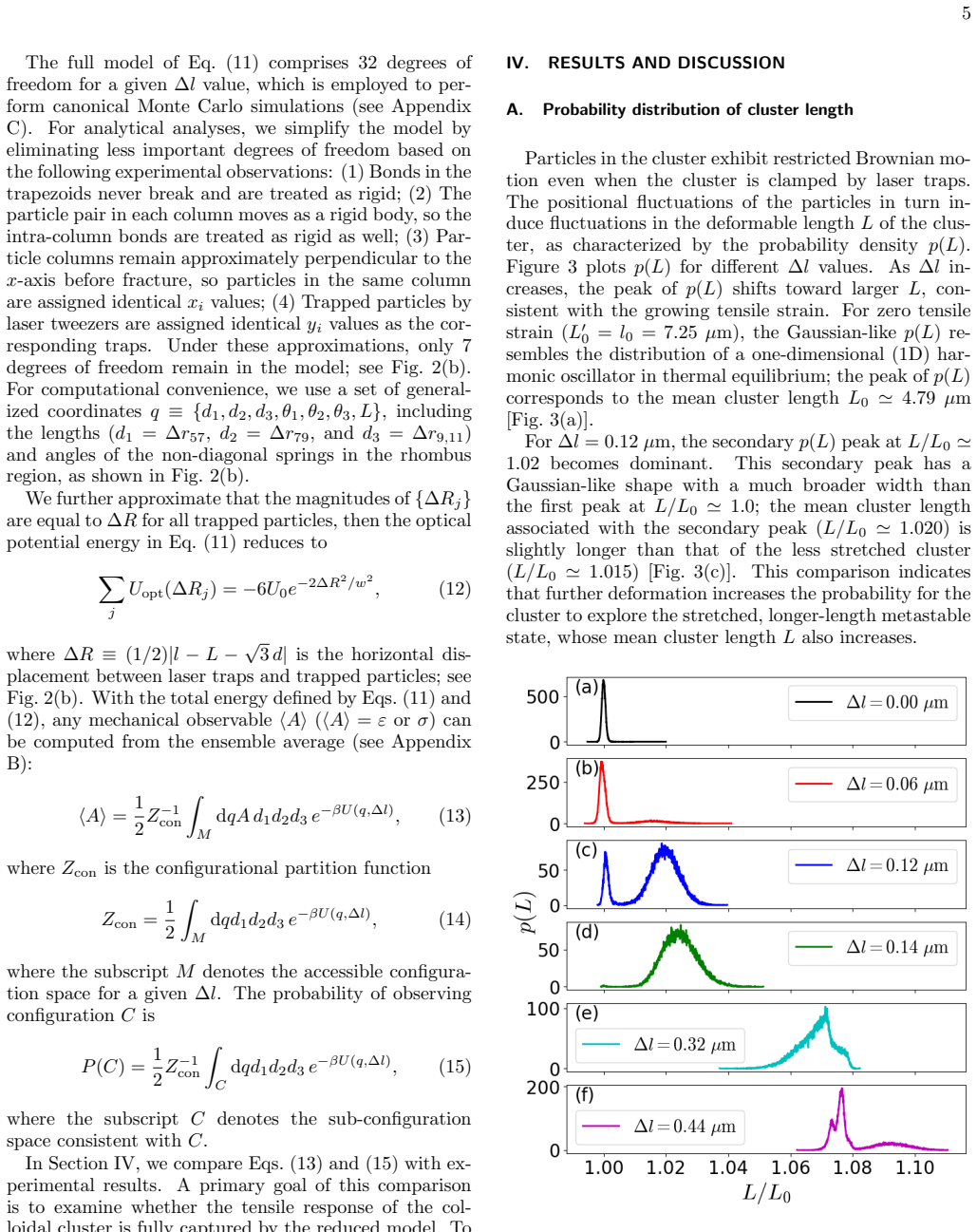

Figure 3. Figure 3: plots p(L) for different ∆l values. As ∆l in￾creases, the peak of p(L) shifts toward larger L, con￾sistent with the growing tensile strain. For zero tensile strain (L ′ 0 = l0 = 7.25 µm), the Gaussian-like p(L) re￾sembles the distribution of a one-dimensional (1D) har￾monic oscillator in thermal equilibrium; the peak of p(L) corresponds to the mean cluster length L0 ≃ 4.79 µm [ [PITH_FULL_IMAGE:figures/fu… view at source ↗
Figure 4

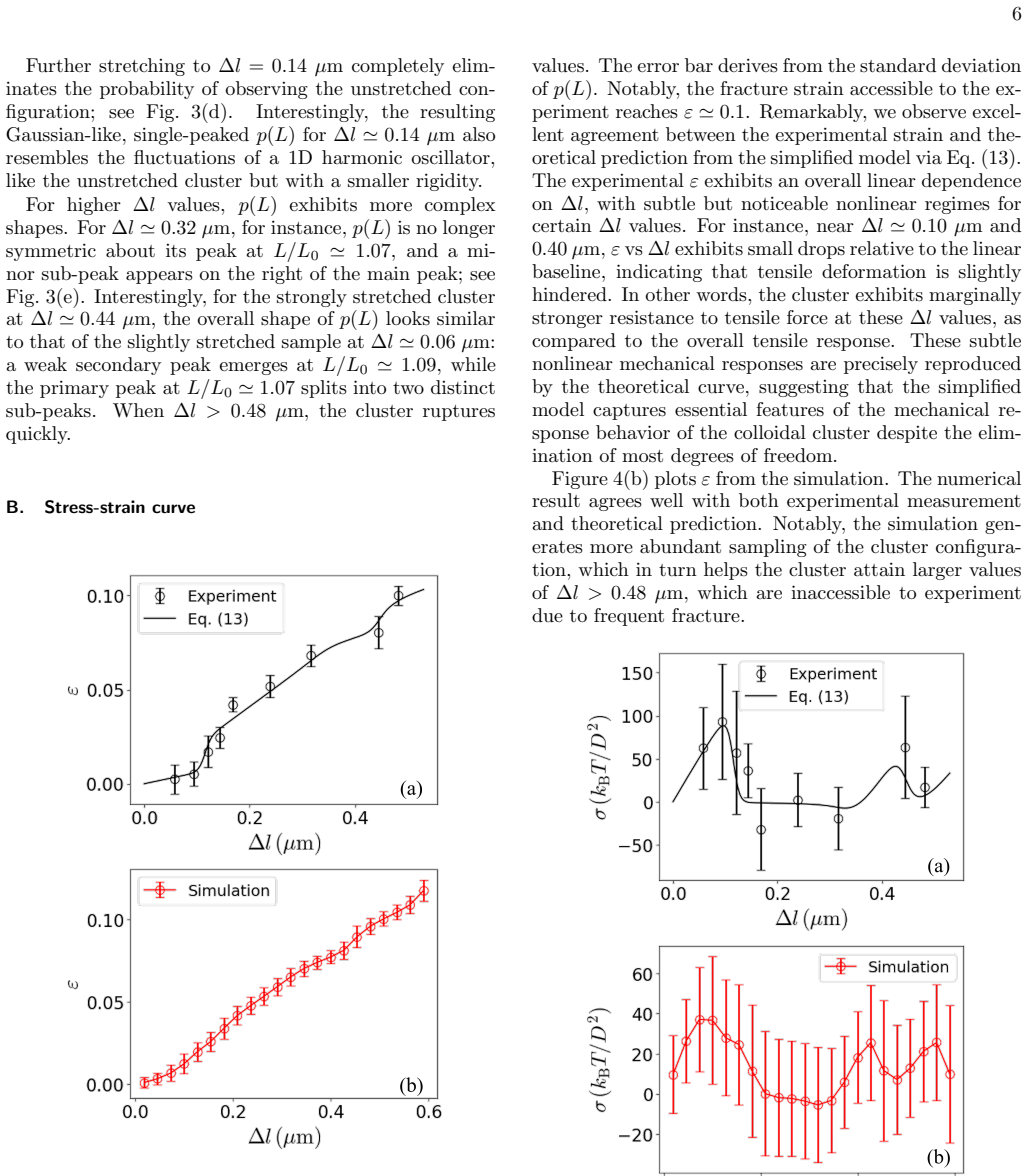

Figure 4. Figure 4: (b) plots ε from the simulation. The numerical result agrees well with both experimental measurement and theoretical prediction. Notably, the simulation gen￾erates more abundant sampling of the cluster configura￾tion, which in turn helps the cluster attain larger values of ∆l > 0.48 µm, which are inaccessible to experiment due to frequent fracture. FIG. 5. (a) Measured stress σ vs displacement ∆l from the … view at source ↗
Figure 6

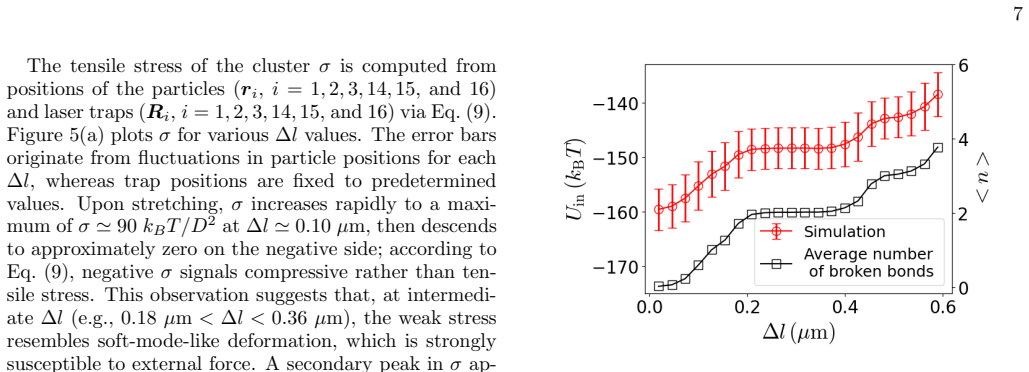

Figure 6. Figure 6: FIG. 6. Measured internal energy [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

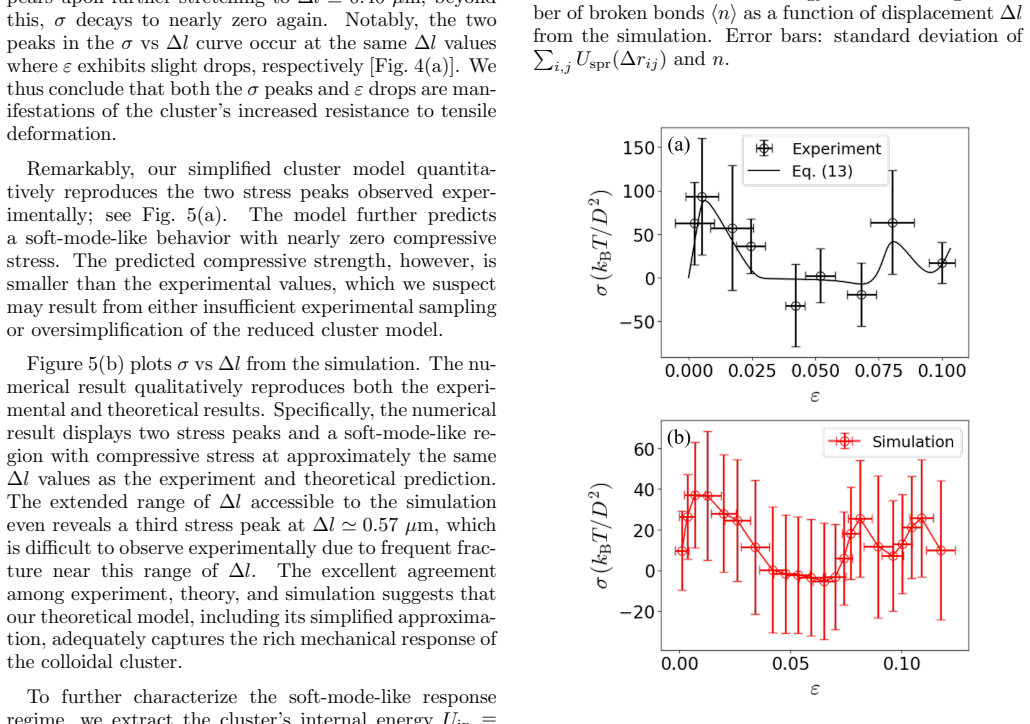

Figure 7. Figure 7: FIG. 7. (a) Measured [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8

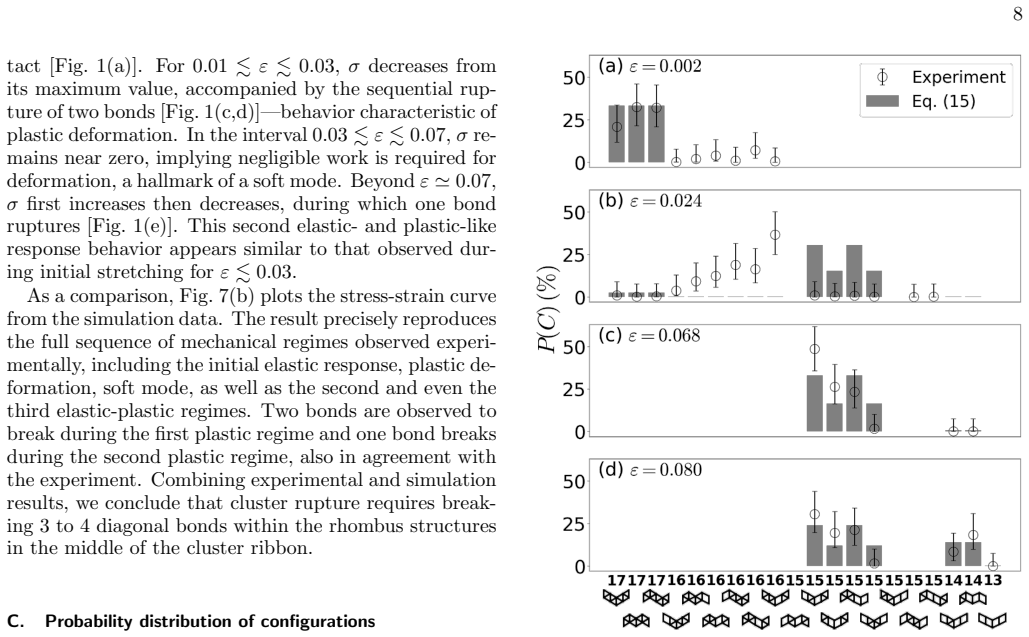

Figure 8. Figure 8: FIG. 8. Probability density of distinct cluster [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

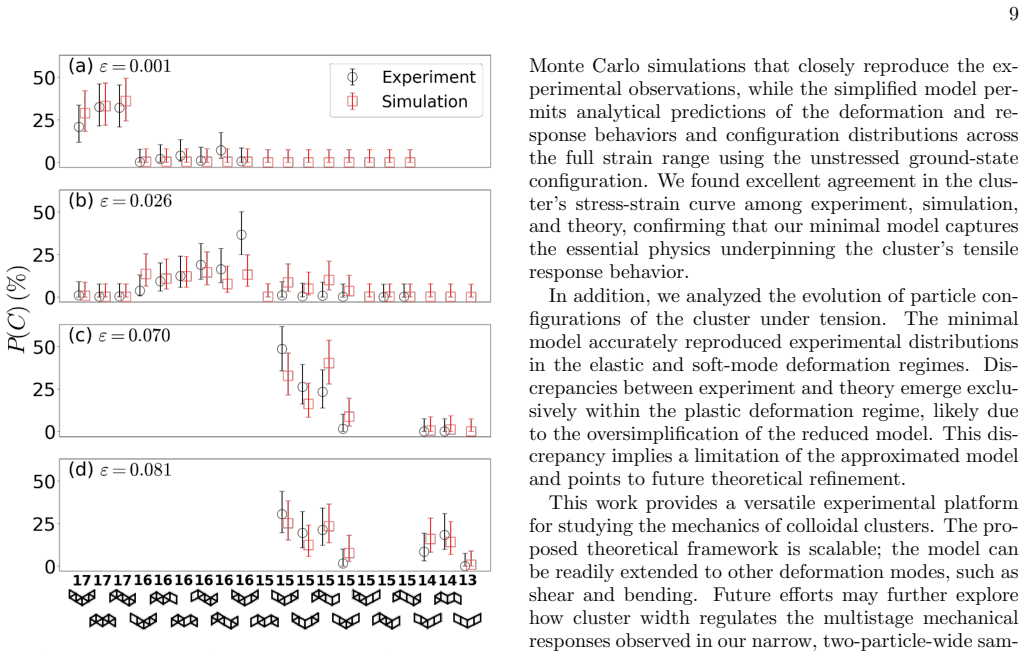

Figure 9
Figure 9. Figure 9: FIG. 9. Probability of distinct cluster configurations [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
read the original abstract

Despite extensive studies of equilibrium conformations of colloidal clusters, little is known about their mechanical response. Here, we investigate the tensile behavior of a quasi-two-dimensional colloidal cluster subjected to uniaxial tension up to fracture. The sample is a ribbon-shaped assembly of 16 colloidal beads bound by short-range depletion attraction. Using multiple optical tweezers, we clamp the cluster at both ends and perform a tensile test along its long axis. Combining video microscopy with particle tracking, we measure the tensile stress, strain, and particle configurations during deformation. We observe diverse mechanical response behaviors, including elastic, plastic, and soft-mode deformation, with fracture occurring at a strain near 10\%. To explain these behaviors, we construct a spring-mass frame model with breakable elastic bonds. We perform canonical Monte Carlo simulations on the full model with 32 degrees of freedom and compute the statistical distributions of mechanical observables using a simplified model with only 7 degrees of freedom. Both the simulations and the theoretical calculations accurately reproduce the experimental stress--strain curves. Moreover, the configuration distributions predicted by the simplified model agree well with both experiment and simulation in the elastic and soft-mode regimes, with only minor discrepancies in the plastic regime. This work demonstrates that the simplified spring-mass model captures the essential physics governing the rich tensile response behavior of the colloidal cluster.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper investigates the tensile response of a quasi-2D colloidal cluster of 16 beads bound by depletion attraction, using optical tweezers for uniaxial tension up to fracture. Experiments measure stress-strain curves and configurations, revealing elastic, plastic, and soft-mode regimes with fracture near 10% strain. A spring-mass model with breakable bonds is introduced; full 32-DOF Monte Carlo simulations and a reduced 7-DOF model are shown to reproduce the experimental stress-strain curves, with the simplified model also matching configuration distributions well in elastic and soft-mode regimes (minor discrepancies in plastic regime).

Significance. If the bond parameters are not overfitted and the reduction preserves essential physics, the work provides a concrete example of how a low-dimensional spring-mass model can capture the mechanical response of colloidal assemblies, linking experiment, simulation, and theory in soft matter. The explicit comparison across full and reduced models is a positive feature.

major comments (2)
  1. [Abstract] Abstract: the statement that 'spring constants and breaking thresholds are introduced to reproduce the experimental stress-strain data' requires clarification on the fitting procedure. It is unclear whether these parameters (free_parameters in the model) are fixed from independent pair-potential measurements or adjusted to the tensile data itself; if the latter, the agreement of both the 32-DOF and 7-DOF models with experiment is not an independent test and weakens the claim that the reduced model captures the essential physics.
  2. [Model description] The weakest assumption is that depletion attractions are faithfully represented by breakable elastic bonds whose parameters, once chosen, allow the 7-DOF reduction to omit important many-body effects. The manuscript should quantify how sensitive the stress-strain curves and configuration statistics are to variations in these parameters (e.g., via a sensitivity analysis or cross-validation on held-out strain ranges).
minor comments (2)
  1. Add error bars or uncertainty estimates to the experimental stress-strain curves and configuration histograms to allow quantitative assessment of model agreement.
  2. Ensure the 7-DOF reduction is derived step-by-step with explicit justification for which coordinates are retained or averaged, including any assumptions about symmetry or constraints.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment and constructive comments on our manuscript. Below we address each major comment in detail.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the statement that 'spring constants and breaking thresholds are introduced to reproduce the experimental stress-strain data' requires clarification on the fitting procedure. It is unclear whether these parameters (free_parameters in the model) are fixed from independent pair-potential measurements or adjusted to the tensile data itself; if the latter, the agreement of both the 32-DOF and 7-DOF models with experiment is not an independent test and weakens the claim that the reduced model captures the essential physics.

    Authors: The parameters were adjusted to match the experimental stress-strain data, consistent with the abstract's wording. Independent pair-potential measurements in this quasi-2D setup with optical tweezers are challenging and not available, so fitting to the tensile response is the practical approach. Importantly, the configuration statistics were not used in the fitting process, and the good agreement of the 7-DOF model with these distributions (in elastic and soft-mode regimes) serves as an a posteriori validation that the reduced model captures the essential physics. We will clarify this in a revised abstract and add a sentence in the model section explaining the fitting procedure. revision: yes

  2. Referee: [Model description] The weakest assumption is that depletion attractions are faithfully represented by breakable elastic bonds whose parameters, once chosen, allow the 7-DOF reduction to omit important many-body effects. The manuscript should quantify how sensitive the stress-strain curves and configuration statistics are to variations in these parameters (e.g., via a sensitivity analysis or cross-validation on held-out strain ranges).

    Authors: We acknowledge that quantifying the sensitivity to parameter variations would be valuable. In the revised manuscript, we will include a sensitivity analysis by varying the spring constant and breaking threshold by ±10% around the fitted values and showing the resulting changes in stress-strain curves and configuration distributions. Additionally, we will perform a cross-validation by fitting parameters to the elastic regime data and testing predictions on the plastic and soft-mode regimes. revision: yes

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper constructs a phenomenological spring-mass model with breakable bonds as an approximation to explain observed tensile behaviors in the colloidal cluster. It then performs canonical Monte Carlo simulations on the full 32-DOF model and derives statistical distributions from a reduced 7-DOF model, reporting that both reproduce experimental stress-strain curves and configuration statistics (with minor discrepancies noted in the plastic regime). No load-bearing step in the provided text reduces a claimed result to its inputs by construction, via self-citation, or by renaming a fitted quantity as a prediction; the model assumptions are explicitly framed as testable against external experimental benchmarks rather than internally forced.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the modeling assumption that depletion forces act as short-range breakable springs whose collective statistics can be captured by a low-dimensional effective model; no independent evidence for the specific spring parameters is supplied beyond agreement with the present experiment.

free parameters (1)
  • spring constants and bond-breaking thresholds
    These parameters are chosen so that the spring-mass model reproduces the measured stress-strain response; their values are not derived from first principles or external data.
axioms (1)
  • domain assumption Depletion attraction between colloidal beads can be represented by short-range breakable elastic bonds
    Invoked when constructing the spring-mass frame model from the experimental system.
