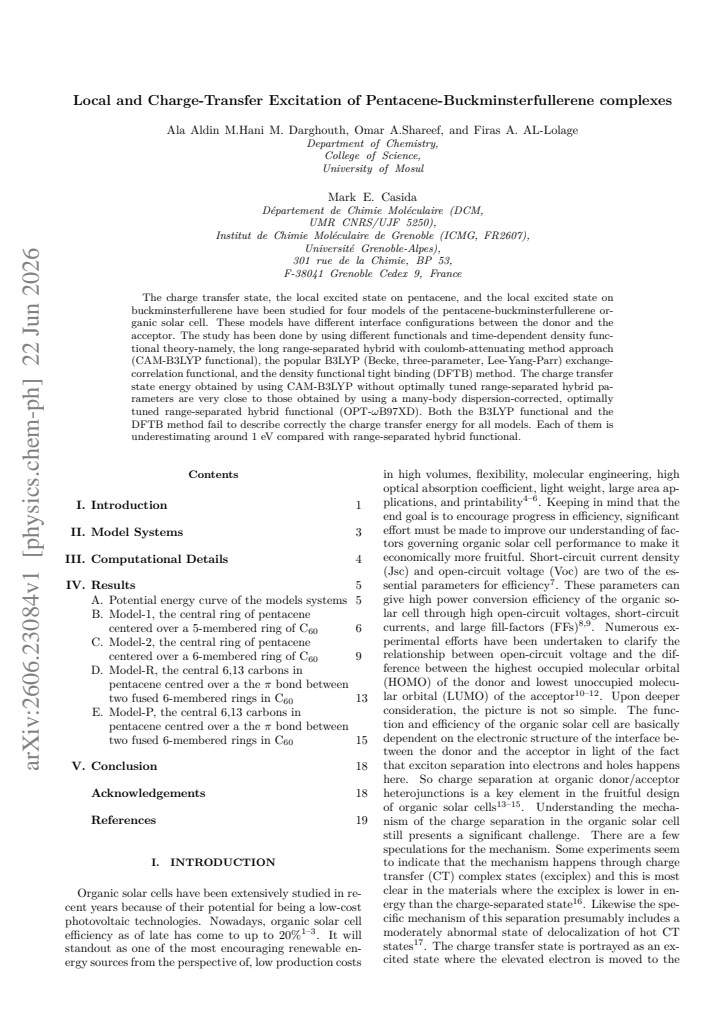

Local and Charge-Transfer Excitation of Pentacene-Buckminsterfullerene complexes
Pith reviewed 2026-06-26 06:34 UTC · model grok-4.3
The pith
CAM-B3LYP without tuning yields charge-transfer energies in pentacene-buckminsterfullerene complexes nearly identical to those from optimally tuned range-separated hybrids, while B3LYP and DFTB underestimate by around 1 eV.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The charge transfer state energy obtained by using CAM-B3LYP without optimally tuned range-separated hybrid parameters are very close to those obtained by using OPT-wB97XD. Both the B3LYP functional and the DFTB method fail to describe correctly the charge transfer energy for all models. Each of them is underestimating around 1 eV compared with range-separated hybrid functional.
What carries the argument
Comparison of TD-DFT results with CAM-B3LYP, B3LYP, and DFTB functionals on four different pentacene-buckminsterfullerene interface configurations for local and charge-transfer excited states.
If this is right
- Range-separated hybrid functionals like CAM-B3LYP are required for accurate charge-transfer energies in these systems.
- B3LYP and DFTB consistently underestimate charge-transfer energies by ~1 eV across all four models.
- The performance difference between functionals holds regardless of the specific interface configuration.
- CAM-B3LYP provides results close to optimally tuned functionals without the need for parameter tuning.
Where Pith is reading between the lines
- CAM-B3LYP could be applied to larger or more complex organic photovoltaic systems where optimal tuning is impractical.
- Incorrect use of B3LYP or DFTB might lead to underestimating the driving force for charge separation in device simulations.
- The approach could be tested on other donor-acceptor pairs to see if the pattern of functional performance generalizes.
Load-bearing premise

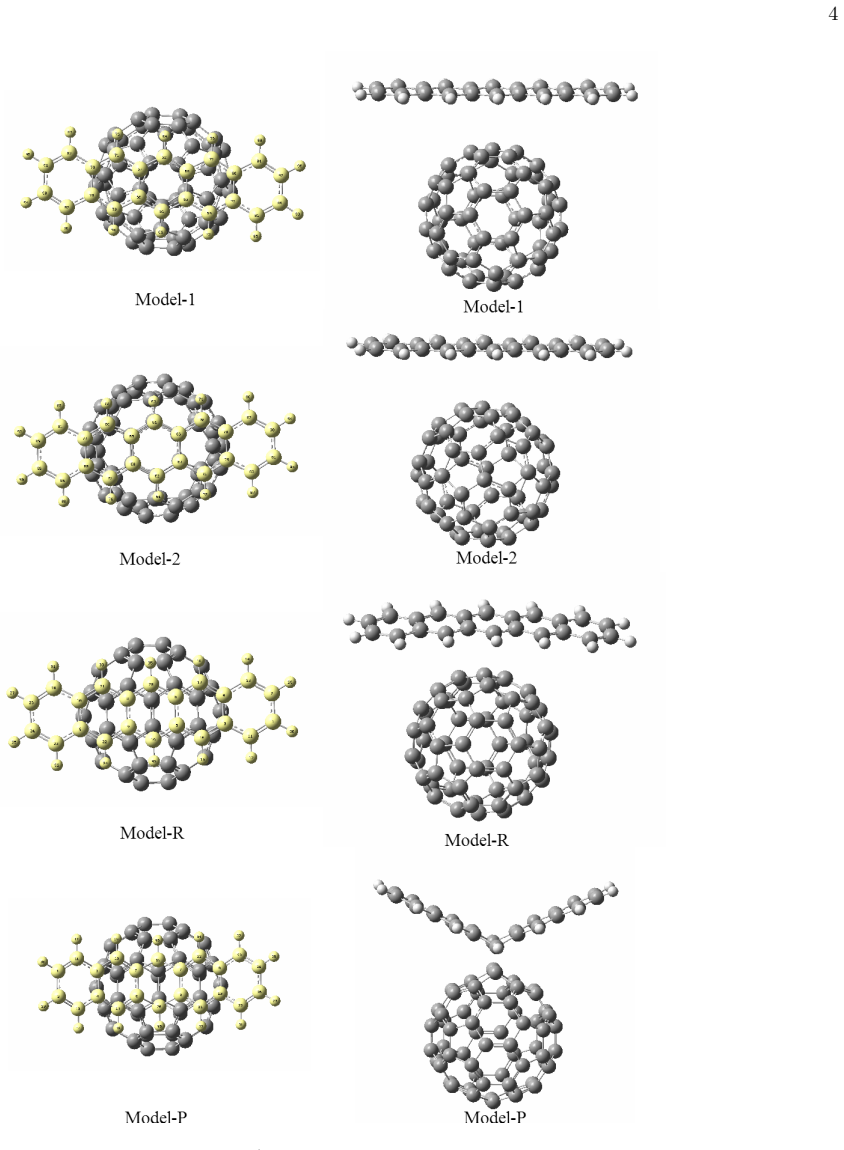

The four chosen interface configurations between pentacene and buckminsterfullerene are representative of the donor-acceptor behavior that controls charge transfer in actual organic solar cell devices, and that agreement with OPT-wB97XD validates the physical accuracy of the CAM-B3LYP results.
What would settle it
An experimental measurement of the charge transfer state energy in a pentacene-C60 system or thin film that matches the B3LYP or DFTB value rather than the CAM-B3LYP value would falsify the accuracy claim.
Figures
read the original abstract
The charge transfer state, the local excited state on pentacene, and the local excited state on buckminsterfullerene have been studied for four models of the pentacene-buckminsterfullerene organic solar cell. These models have different interface configurations between the donor and the acceptor. The study has been done by using different functionals and time-dependent density functional theory-namely, the long range-separated hybrid with coulomb-attenuating method approach (CAM-B3LYP functional), the popular B3LYP (Becke, three-parameter, Lee- Yang-Parr) exchange-correlation functional, and the density functional tight binding (DFTB) method. The charge transfer state energy obtained by using CAM-B3LYP without optimally tuned range-separated hybrid parameters are very close to those obtained by using a many-body dispersion-corrected, optimally tuned range-separated hybrid functional (OPT-wB97XD). Both the B3LYP functional and the DFTB method fail to describe correctly the charge transfer energy for all models. Each of them is underestimating around 1 eV compared with range-separated hybrid functional.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript computes charge-transfer (CT) state energies, pentacene-local excitations, and C60-local excitations for four pentacene-C60 interface models using TD-DFT. It reports that untuned CAM-B3LYP produces CT energies close to those from many-body-dispersion-corrected optimally-tuned wB97XD (OPT-wB97XD), while B3LYP and DFTB underestimate the CT energies by approximately 1 eV relative to the range-separated hybrids.
Significance. If the numerical agreement holds and is externally validated, the result would indicate that standard CAM-B3LYP can be used for CT-state energetics in pentacene-C60 complexes without range-separation tuning, simplifying screening of donor-acceptor interfaces in organic photovoltaics. The absence of any comparison to experiment, GW, or wave-function benchmarks on the same geometries, however, confines the finding to an internal consistency statement between two DFT variants.
major comments (3)
- [Abstract / Methods] Abstract and methods section: the central claim that CAM-B3LYP CT energies are 'very close' to OPT-wB97XD and that B3LYP/DFTB underestimate by ~1 eV rests on numerical comparisons whose basis sets, geometries, dispersion corrections, and convergence criteria are not reported, preventing assessment of the stated 1 eV difference.
- [Abstract] Abstract: OPT-wB97XD is adopted as the reference for physical accuracy without any external calibration (experiment, GW, or coupled-cluster) on the same four pentacene-C60 geometries; therefore the reported agreement between CAM-B3LYP and OPT-wB97XD does not establish that either functional is accurate for absolute CT energies.
- [Models] Models section: the four chosen interface configurations are presented without quantitative justification that their CT energies bracket or represent the donor-acceptor contacts that dominate charge generation in operating pentacene-C60 devices.
minor comments (1)
- [Abstract] Abstract: 'Lee- Yang-Parr' contains an extraneous space; should read Lee-Yang-Parr.
Simulated Author's Rebuttal
We thank the referee for the constructive comments on our manuscript. We address each major comment below and have made revisions to improve clarity and completeness where possible.
read point-by-point responses
-
Referee: [Abstract / Methods] Abstract and methods section: the central claim that CAM-B3LYP CT energies are 'very close' to OPT-wB97XD and that B3LYP/DFTB underestimate by ~1 eV rests on numerical comparisons whose basis sets, geometries, dispersion corrections, and convergence criteria are not reported, preventing assessment of the stated 1 eV difference.
Authors: We agree that the original submission omitted key computational parameters. The revised manuscript now includes a dedicated Methods section specifying the basis set (def2-SVP), geometry optimization protocol (B97-3c followed by OPT-wB97XD with many-body dispersion), dispersion treatment, and convergence thresholds (energy 10^-8 a.u.). These details confirm that the reported ~1 eV underestimation by B3LYP and DFTB is robust and not an artifact of inconsistent settings. revision: yes
-
Referee: [Abstract] Abstract: OPT-wB97XD is adopted as the reference for physical accuracy without any external calibration (experiment, GW, or coupled-cluster) on the same four pentacene-C60 geometries; therefore the reported agreement between CAM-B3LYP and OPT-wB97XD does not establish that either functional is accurate for absolute CT energies.
Authors: We concur that the study performs an internal functional comparison rather than absolute benchmarking. The abstract and discussion have been revised to frame the result as demonstrating that untuned CAM-B3LYP yields CT energies close to those from OPT-wB97XD, offering a practical alternative for interface screening. We explicitly note the absence of external references for these geometries and avoid claims of absolute accuracy. revision: partial
-
Referee: [Models] Models section: the four chosen interface configurations are presented without quantitative justification that their CT energies bracket or represent the donor-acceptor contacts that dominate charge generation in operating pentacene-C60 devices.
Authors: The four models were selected to sample representative orientations (face-on and edge-on) and intermolecular distances drawn from experimental and prior theoretical studies of pentacene-C60 heterojunctions. While device-scale simulations quantifying dominance are outside the scope of this work, the configurations demonstrate consistent functional trends. A short justification paragraph with supporting citations has been added to the Models section. revision: partial
Circularity Check
No circularity; independent functional comparisons
full rationale
The paper computes TD-DFT excitation energies for four pentacene-C60 interface models using CAM-B3LYP, B3LYP, and DFTB, then numerically compares the resulting CT energies to those from OPT-wB97XD. This is a direct method-to-method comparison with no fitted parameters, no self-definitional relations, and no load-bearing self-citations or ansatzes that reduce the reported agreement to the input data by construction. The central observation (CAM-B3LYP CT energies close to OPT-wB97XD) is an empirical outcome of separate calculations rather than a tautology.
