REVIEW 3 major objections 5 minor 1 cited by
On the Resilience of Underwater Semantic Wireless Communications
T0 review · 3 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash
Pith's one-line read SAGE keeps image content recognizable when up to 20% of transmitted text is corrupted.
desk verdict A modest, honest resilience study whose headline threshold rests on an unvalidated random-error simulator; should be sent to review with conditions. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The load-bearing mechanism is the text-level error simulator placed between the BLIP image-to-text encoder and the Stable Diffusion text-to-image decoder. It injects one of three independent error types at a configurable ratio and feeds the corrupted caption to the generative decoder, with CLIPScore as the semantic similarity metric. CLIPScore, computed between the original and reconstructed images, is the instrument that reveals the resilience threshold; PSNR and SSIM serve as counterexamples that show why literal pixel comparison misses semantic preservation.
What would settle it
Replay recorded underwater acoustic modem bit-error patterns through the SAGE text decoder, or run SAGE over a real acoustic link, and compare CLIPScore against the paper's random-corruption curve; if semantic scores collapse at error rates the simulator calls tolerable, the resilience result is an artifact of the error model.
Extended reading notes
Core claim
On its own terms, the paper establishes an empirical resilience boundary for SAGE: semantic image reconstruction remains viable up to moderate error ratios, with CLIPScore falling only from roughly 60% to 50% at around 15% character substitutions or 20% character deletions, and a similar degradation appearing only near 50% word deletion. It also shows that pixel-level metrics (PSNR and SSIM) are essentially insensitive to this kind of degradation, so they cannot be used to judge semantic communication quality. Character-level corruption hurts more than word-level deletion, which the paper attributes to non-essential words carrying little meaning, while partial corruption of many words degrades the whole prompt.
Load-bearing premise
The simulated random substitutions, deletions, and word deletions represent the mismatches a real underwater acoustic channel produces.
Editorial extensions
If this is right
- A SAGE-like link can skip heavy error correction for every character and still deliver useful images under acoustic noise, as long as the character error ratio stays below about 20%.
- Underwater image transmission can be compressed to SMS-scale payloads without sacrificing semantic robustness.
- Channel coding effort is better spent protecting characters than preserving every word, since whole-word deletion is tolerated far better than character corruption.

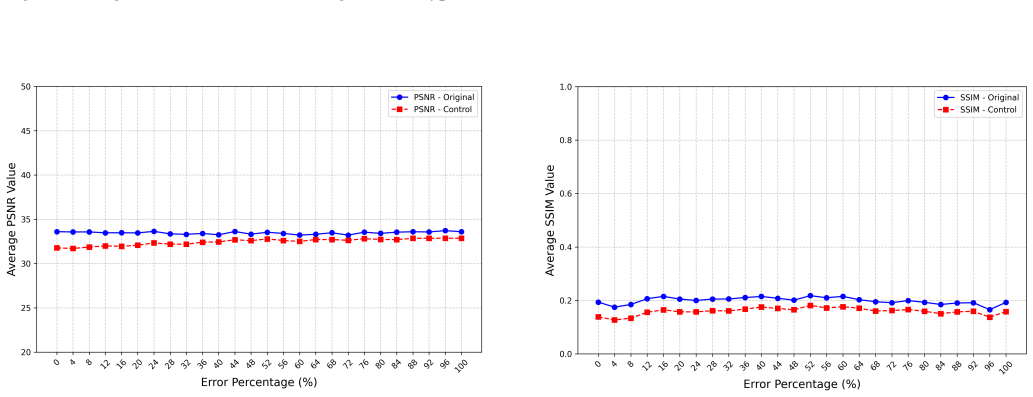

- Evaluation of semantic systems should rely on semantic metrics like CLIPScore; PSNR and SSIM will wrongly indicate failure when images are semantically faithful but pixel-different.
Reading between the lines
- If real underwater acoustic errors are bursty or correlated rather than random, these thresholds would likely move; a natural next step is replaying measured modem error traces through the simulator.
- The CLIPScore numbers are relative to a particular control image, so the exact 50% floor is setup-dependent; the robust qualitative ordering (word deletion easier than character corruption) is the transferable result.
- The resilience boundary is coupled to the captioning model's vocabulary; a future image-to-text model that uses rarer, more information-dense words may have a different tolerance curve.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. This paper evaluates the resilience of SAGE, an image-to-text/text-to-image semantic communication framework, under simulated text-level transmission errors. The authors use BLIP to caption 30 underwater images, inject random character substitutions, character deletions, and word deletions via a custom simulator, feed the corrupted captions to Stable Diffusion for image reconstruction, and compare original and reconstructed images with PSNR, SSIM, and CLIPScore. The central claim is that SAGE maintains semantically meaningful reconstruction up to moderate error ratios, specifically 15–20% character error ratio, with word deletion appearing less harmful than character-level corruption (Section III-D).
Significance. If the result holds, this is a useful initial demonstration that a generative semantic communication pipeline can tolerate textual corruption, with potential bandwidth and robustness benefits for underwater acoustic links. The study has notable strengths: it builds on externally pretrained models (BLIP, Stable Diffusion, and CLIP), uses no fitted parameters, averages 10 Stable Diffusion runs per condition, and includes a control image as a semantic-similarity reference. However, the quantitative resilience threshold is tied to a synthetic independent-error model that is not validated against any physical acoustic channel, and the statistical evidence is limited by a 30-image dataset and the absence of variance or confidence-interval reporting. These issues currently limit the strength of the central claim.
major comments (3)
- [Section III-A and III-D] The paper's central resilience threshold is derived entirely from a simulator that injects character substitutions, character deletions, and word deletions as independent random events. The abstract states that these are "character errors observed in underwater acoustic channels," and Section III-A relates CER to BER via the bound BER ∈ [CER/8, CER], but no comparison is made to measured acoustic channel traces, standard acoustic channel models (e.g., Bellhop), or bit-level modem outputs. Real underwater acoustic channels exhibit bursty, temporally correlated errors due to multipath, Doppler, and impulsive noise; under the same average CER, a burst corrupting several adjacent characters or an entire word can be substantially more destructive than scattered single-character errors, which a language model can often repair. At minimum, the authors should validate the simulator against a standard channel error model or real modem error traces, or restrict the claims to independent text errors and remove the "observed in underwater acoustic channels" wording. This is load-bearing because the 15–20% CER threshold in Section III-D and the comparison of error types in Section III-C are statements about resilience in acoustic environments.
- [Section III methodology and Figs. 12–14] The authors state that each Stable Diffusion image was generated 10 times "to account for randomness," but the reported figures show only average CLIPScore, PSNR, and SSIM curves, with no error bars, confidence intervals, or significance tests. Text-to-image diffusion models are highly stochastic, and with only 30 captions per condition, the reported 10-point CLIPScore drop (e.g., from 60% to 50% around 15–20% CER) may be comparable to run-to-run variance. The authors should report per-condition standard deviations or confidence intervals and test whether the observed degradation at 15–20% CER is statistically significant. Without this, the central "viable up to 15–20% CER" claim is not quantitatively supported.
- [Section III-A and III-C] The simulator defines the error ratio for types 1 and 2 as the percentage of affected characters, but for type 3 as the percentage of affected words; Section III-C then refers to "CER" for all three types and concludes that character-level corruption is more harmful than word deletion. Comparing "15–20% CER" with "50% CER" across different units (characters versus words) is not an equivalent comparison of information loss, because a word contains multiple characters and word deletion also removes contextual structure. The authors should use a common corruption measure (e.g., expected characters removed or message-level edit distance) or explicitly compare semantic degradation per unit of textual information affected.
minor comments (5)
- [Section II] There is a typo in Section II: "sign-inficantly" should be "significantly."
- [Section III-B] The statement that PSNR "may range between 20 and 80 dB" is not generally correct; PSNR values depend on the data range and bit depth and are not confined to that interval. Please rephrase as an indicative range for the images used.
- [References] Reference [23] is an informal Medium blog post about CLIP similarity. For CLIPScore, the authors should cite a more standard source, such as Hessel et al., "CLIPScore: A Reference-free Evaluation Metric for Image Captioning," 2021.
- [Section III] The claim that repeated BLIP runs "consistently yielded nearly identical captions" is asserted without quantitative evidence; please report the observed caption similarity or specify the decoding settings that made the output deterministic.
- [Section III] The evaluation uses only 30 underwater images and a single BLIP caption per image, with no per-image breakdown. Reporting per-image CLIPScore distributions would clarify how representative the average behavior is and how sensitive the conclusions are to individual images.
Circularity Check
No significant circularity: SAGE resilience is measured against external pretrained models with an open-loop error sweep, and the only self-citation introduces the framework rather than supplying the result.
full rationale
The paper's derivation chain is an empirical evaluation, not a derivation from assumptions that already contain the conclusion. SAGE is taken from the authors' prior work [12], but the resilience claim is tested independently: BLIP generates captions, the custom simulator injects controlled text errors, Stable Diffusion reconstructs images, and similarity is scored with PSNR, SSIM, and CLIPScore against the original images and a control image. No parameter is fitted to the data whose behavior is then 'predicted'; the error ratio is an input variable swept across values, and CLIPScore is an external pretrained metric. The BER bounds in Section III-A are a definitional mapping from CER to BER and are presented only as context, not as a predicted result. The single self-citation [12] defines SAGE itself and does not carry the burden of the resilience conclusion. The main weakness, that the simulator uses random independent character-level errors rather than validated bursty acoustic channel traces, is a threat to external validity and not a circularity, because the simulator's assumptions do not logically force the measured CLIPScore outcomes. The paper is self-contained against external benchmarks for what it claims to measure, so no circular step is present.
Assumptions & free parameters
assumptions (2)
- domain assumption Text-level random character substitutions, deletions, and word deletions are a sufficient proxy for underwater acoustic transmission errors.
- domain assumption A moderate decline in CLIPScore, e.g., from 60% to 50%, constitutes retaining semantically meaningful image content.
Cite this review
Pith. "Pith review of On the Resilience of Underwater Semantic Wireless Communications." pith.science (2026). https://pith.science/paper/JUJV4LHQ
@misc{pith2026250623350,
author = {Pith},
title = {Pith review of: On the Resilience of Underwater Semantic Wireless Communications},
year = {2026},
howpublished = {\url{https://pith.science/paper/JUJV4LHQ}},
note = {Machine review of arXiv:2506.23350}
}
read the original abstract
Underwater wireless communications face significant challenges due to propagation constraints, limiting the effectiveness of traditional radio and optical technologies. Long-range acoustic communications support distances up to a few kilometers, but suffer from low bandwidth, high error ratios, and multipath interference. Semantic communications, which focus on transmitting extracted semantic features rather than raw data, present a promising solution by significantly reducing the volume of data transmitted over the wireless link. This paper evaluates the resilience of SAGE, a semantic-oriented communications framework that combines semantic processing with Generative Artificial Intelligence (GenAI) to compress and transmit image data as textual descriptions over acoustic links. To assess robustness, we use a custom-tailored simulator that introduces character errors observed in underwater acoustic channels. Evaluation results show that SAGE can successfully reconstruct meaningful image content even under varying error conditions, highlighting its potential for robust and efficient underwater wireless communication in harsh environments.
