The pith

Melting in a hypoeutectic Al-Cu alloy begins centrally and spreads outward along grain boundaries via copper enrichment, with the Al2Cu phase melting first and liquid copper redistributing over 258 micrometers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

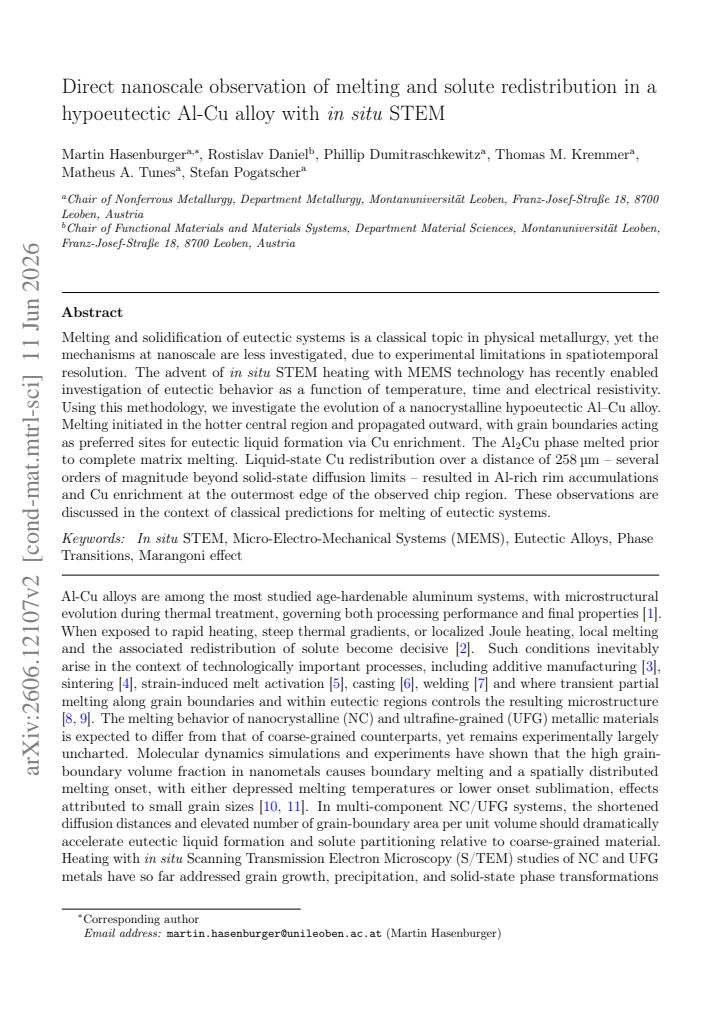

This paper reports real-time nanoscale imaging of melting inside a nanocrystalline hypoeutectic Al-Cu alloy using in situ STEM heating. Melting starts in the hotter central zone of the sample and moves outward, with grain boundaries serving as the initial locations where eutectic liquid forms because copper concentrates there. The Al2Cu phase melts before the aluminum matrix is fully liquid. Once liquid appears, copper travels through it across 258 micrometers, producing aluminum-rich rims and copper buildup at the sample edge. These direct observations are compared to classical expectations for eutectic melting behavior.

Core claim

Melting initiated in the hotter central region and propagated outward, with grain boundaries acting as preferred sites for eutectic liquid formation via Cu enrichment. The Al2Cu phase melted prior to complete matrix melting. Liquid-state Cu redistribution over a distance of 258 μm resulted in Al-rich rim accumulations and Cu enrichment at the outermost edge of the observed chip region.

What carries the argument

In situ STEM contrast changes during MEMS-based heating that track copper enrichment and liquid formation at grain boundaries.

If this is right

  • Grain boundaries are the first sites to form eutectic liquid through local copper enrichment.
  • The Al2Cu phase melts completely before the surrounding aluminum matrix does.
  • Copper moves through the liquid phase over distances of 258 micrometers, orders of magnitude beyond solid-state limits.
  • This produces aluminum-rich material near the edges and copper accumulation at the outermost boundary.
  • The sequence aligns with classical eutectic melting predictions but adds nanoscale detail on initiation and transport.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The observed liquid-state transport could alter predictions for microstructure evolution during rapid heating of Al-Cu components.
  • The same imaging approach may reveal comparable grain-boundary-driven melting sequences in other eutectic alloy systems.
  • Edge accumulation effects might influence solute segregation in thin-film or MEMS-scale devices subjected to thermal gradients.
  • Uniform heating experiments could test whether the central-to-edge propagation depends on the imposed temperature gradient.
  • keywords:[

Load-bearing premise

The STEM image contrast changes are caused by local copper concentration variations rather than by thickness changes or other imaging effects.

What would settle it

Independent spectroscopy confirming that copper levels match the observed contrast patterns even when sample thickness is measured and held constant throughout the heating cycle.

Figures

Figures reproduced from arXiv: 2606.12107 by Martin Hasenburger, Matheus A. Tunes, Phillip Dumitraschkewitz, Rostislav Daniel, Stefan Pogatscher, Thomas M. Kremmer.

Figure 1
Figure 1. Figure 1: Overview of the phase transformation and transition sequence via heating. Cyan (cold) to violet (hot) [PITH_FULL_IMAGE:figures/full_fig_p009_1.png] view at source ↗
Figure 2

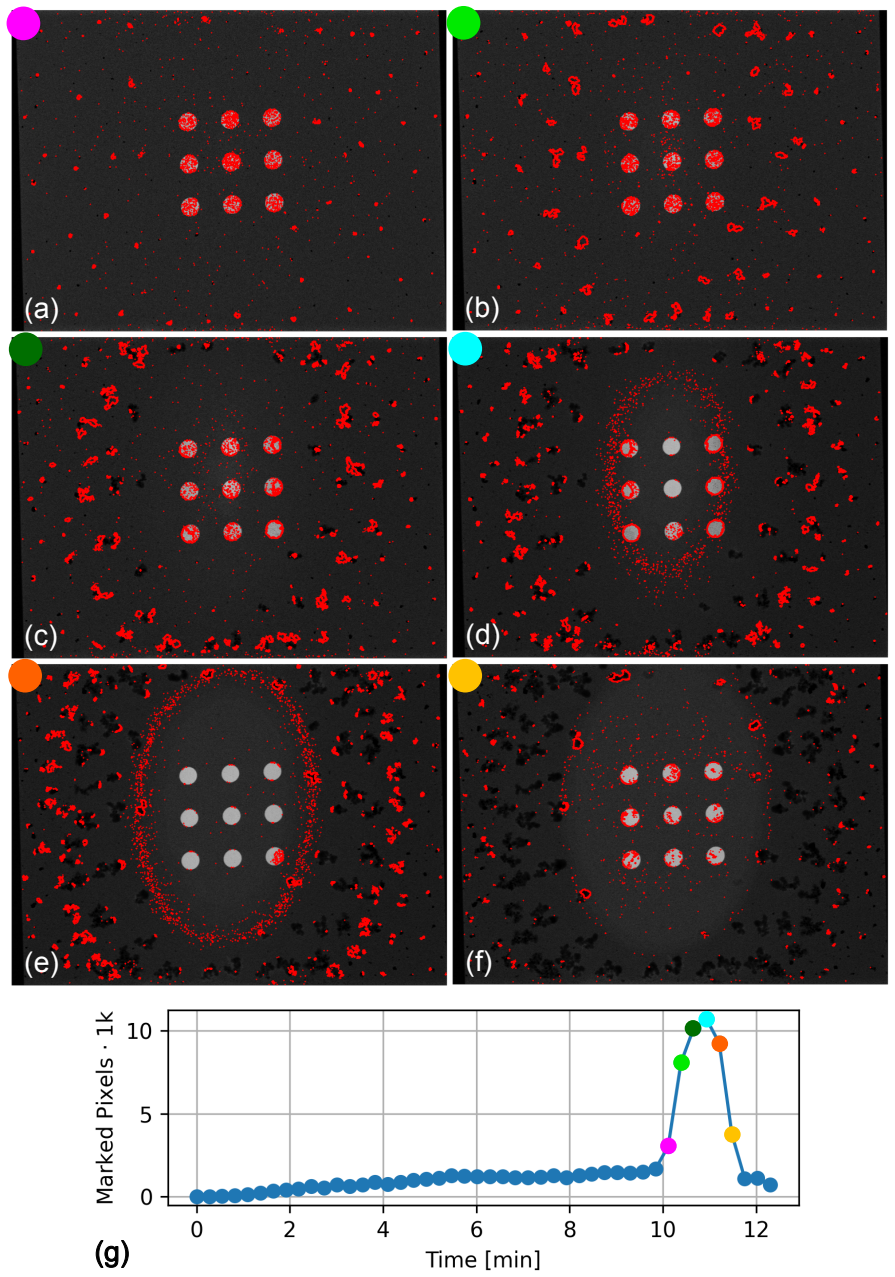

Figure 2. Figure 2: Low-magnification STEM overview of the melting process from Fig. [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
