The Gains, Effective Areas and Equivalent Areas of a Multiport Antenna Array

T0 review · 0 major / 2 minor · reviewed 2026-06-28 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Multiport antenna arrays have 22 parameters with values invariant under excitation changes and lossless port embeddings.

desk verdict This paper reviews 22 multiport antenna parameters and derives two invariances that follow from linearity and passivity, with concrete examples on simple dipole arrays. read the letter →

arxiv 2606.03324 v1 pith:LIV7YHM5 submitted 2026-06-02 physics.class-ph

Frédéric Broydé , Evelyne Clavelier This is my paper · ORCID
classification physics.class-ph
keywords multiportantennaarraygainseffectiveareasequivalentexcitationinvariancelosslesslinearembeddingdipolearraysemissionandreceptionparameters
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper reviews definitions of 22 parameters for a multiport antenna array in a specified direction, grouping them as 4 excitation-dependent emission parameters, 10 excitation-independent emission parameters, and 8 reception parameters. It sets out their main properties and computes them explicitly for two simple 6-port arrays of parallel dipoles. By studying a change of variable for the excitation during emission, the authors identify an invariance under a change of excitation variable. They further examine passive linear embeddings of the ports to establish an invariance under an invertible lossless linear embedding. These invariances allow some parameters to be compared directly with those used by other authors.

What carries the argument

Invariance under a change of excitation variable together with invariance under an invertible lossless linear embedding of the MAA ports.

What would settle it

Explicit computation of the 22 parameters for a third multiport array with a different geometry or port count where the reported invariances fail to appear.

Watch

Extended reading notes

Core claim

The central claim is that certain gains, effective areas and equivalent areas of a multiport antenna array remain unchanged when the excitation variable is altered or when the array ports are subjected to an invertible lossless linear embedding, so that 14 of the emission parameters and all 8 reception parameters become independent of the specific choice of excitation description or port connection.

Load-bearing premise

The 22 parameters can be separated into excitation-dependent and excitation-independent groups and the two 6-port parallel-dipole arrays are representative of general multiport arrays.

Editorial extensions

If this is right

  • The 10 excitation-independent emission parameters and 8 reception parameters can be used for consistent comparisons across different excitation conventions.
  • Passive linear embeddings do not alter the values of the invariant parameters, so equivalent-area definitions remain the same after lossless port transformations.
  • The four excitation-dependent parameters change in a controlled way under the variable change, allowing direct translation between different authors' formulations.
  • For the two 6-port dipole examples the computed numerical values satisfy both invariances exactly.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same invariance structure might apply to active embeddings or to arrays with mutual coupling beyond the dipole cases examined.
  • Design procedures could focus only on the 18 invariant parameters when comparing alternative feed networks.
  • The separation into dependent and independent parameters may link to properties of the scattering matrix or the impedance matrix of the array.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

0 major / 2 minor

Summary. The manuscript reviews the definitions of 22 parameters of a multiport antenna array (MAA) in a specified direction—4 excitation-dependent parameters for emission, 10 excitation-independent parameters for emission, and 8 parameters for reception—concisely stating their properties. It computes and discusses the parameters for two simple 6-port parallel-dipole arrays, derives an invariance under a change of excitation variable (allowing comparison with parameters used by other authors), and identifies an invariance under an invertible lossless linear embedding of the MAA ports.

Significance. If the derivations hold, the work supplies a unified review of gain, effective-area, and equivalent-area parameters for multiport arrays together with two explicit invariances obtained from change-of-variable and embedding arguments. The concrete computations on the dipole arrays provide verifiable illustrations, and the separation into excitation-dependent and independent categories follows directly from standard linearity and passivity assumptions. This framework may reduce ambiguity when different authors adopt different excitation normalizations or port transformations.

minor comments (2)
  1. The abstract states that the parameters are computed for the two 6-port arrays but supplies no numerical values, tables, or equations; adding at least one representative result (e.g., a table of the 22 quantities for one array) would make the central claims immediately verifiable.
  2. [Examples] The claim that the two 6-port dipole arrays serve only as illustrations is stated, yet the text should explicitly note whether any invariance result depends on the specific geometry or holds for arbitrary passive linear embeddings.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary, significance assessment, and recommendation of minor revision. No specific major comments were listed in the report.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity identified

full rationale

The paper reviews definitions of 22 standard antenna parameters (4 excitation-dependent, 10 independent for emission, 8 for reception) drawn from established electromagnetic theory, then derives two invariances directly from the effect of a change of excitation variable and from passive linear embeddings of ports. These steps follow from the reviewed definitions plus linearity and passivity assumptions; the two 6-port dipole arrays serve only as concrete numerical illustrations, not as fitted data. No parameters are obtained by fitting and then relabeled as predictions, no self-definitional loops appear in the equations, and comparisons are made with parameters used by other authors rather than load-bearing self-citations. The derivation chain is therefore self-contained against external benchmarks and does not reduce to its inputs by construction.

Assumptions & free parameters 0 free parameters · 0 assumptions · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities are stated. The work relies on standard electromagnetic definitions and linear algebra for embeddings, but details are absent.

how reviews work

0 comments
Cite this review

Pith. "Pith review of The Gains, Effective Areas and Equivalent Areas of a Multiport Antenna Array." pith.science (2026). https://pith.science/paper/LIV7YHM5

@misc{pith2026260603324,
  author       = {Pith},
  title        = {Pith review of: The Gains, Effective Areas and Equivalent Areas of a Multiport Antenna Array},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/LIV7YHM5}},
  note         = {Machine review of arXiv:2606.03324}
}
read the original abstract

We review the definitions of 22 parameters of a multiport antenna array operating in a specified direction: 4 excitation-dependent parameters for emission, 10 excitation-independent parameters for emission, and 8 parameters for reception. We concisely set forth their main properties. As examples, we compute and discuss these parameters in the cases of two simple 6-port antenna arrays made of parallel dipole antennas. We investigate the effect of a change of variable describing the excitation during emission. This allows us to find an ``invariance under a change of excitation variable'', and to compare some of the parameters with the ones used by other authors. We study passive linear embeddings of the MAA ports, to reveal an ``invariance under an invertible lossless linear embedding''.

Figures

Figures reproduced from arXiv: 2606.03324 by the authors.

Figure 1
Figure 1. The total length of each antenna is ℓ = 0.94 λ/2. All antennas have the same wire diameter ℓ/50. Between adjacent antennas, the spacing is sx in the x direction and sy in the y direction. We consider two MAAs: in the first one, sx = λ/4 and sy = λ/2; and in the second one, sx = sy = λ/4. Copyright © 2025 by Excem 5 [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. FIGURE 2 [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. FIGURE 3 [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: , the same excitation has been used for all values of ϕ and θ, and this excitation is such that Ga = Ga MAX in the direction θ = 90° and ϕ = 90°. We see that each curve representing Ga MAX for a given value of θ as a function of ϕ in [PITH_FULL_IMAGE:figures/full_fig_…
Figure 8
Figure 8. Figure 8: FIGURE 8 [PITH_FULL_IMAGE:figures/full_fig_p007_8.png]
Figure 9
Figure 9. Figure 9: FIGURE 9 [PITH_FULL_IMAGE:figures/full_fig_p007_9.png]
Figure 10
Figure 10. Figure 10: FIGURE 10 [PITH_FULL_IMAGE:figures/full_fig_p007_10.png]

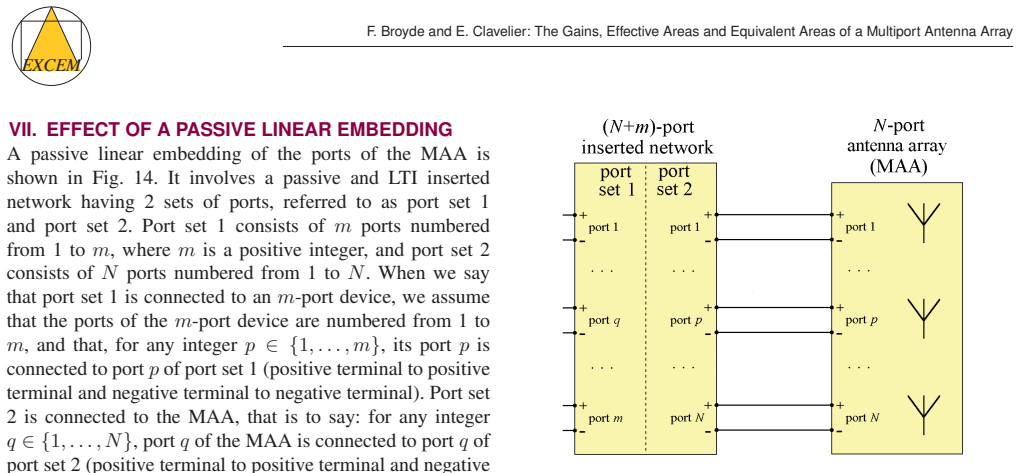

Figure 14
Figure 14. Figure 14: FIGURE 14 [PITH_FULL_IMAGE:figures/full_fig_p010_14.png]

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

29 extracted references · 8 canonical work pages

  1. [1]

    Embedded element patterns and mutual impedance matrices in the terminated phased array environment,

    D.F. Kelley, “Embedded element patterns and mutual impedance matrices in the terminated phased array environment,” Proc. 2005 IEEE Antennas and Propagation Society Int. Symp. , vol. 3, pp. 659–662, Jul. 2005

    2005

  2. [2]

    About the Gains and the Effective Areas of a Multiport Antenna Array,

    F. Broydé and E. Clavelier, “About the Gains and the Effective Areas of a Multiport Antenna Array,” Excem Research Papers in Electronics and Electromagnetics, no. 10, doi: 10.5281/zenodo.14584381, Jan. 2025

    work page doi:10.5281/zenodo.14584381 2025

  3. [3]

    Genève, Switzerland: IEC, 1992

    IEC 60050-712, First Edition (1992-04), International Electrotechnical V ocabulary (IEV) - Part 712: Antennas . Genève, Switzerland: IEC, 1992

    1992

  4. [4]

    Genève, Switzerland: IEC, 2021

    IEC 60050-712, Amendment 1 (2021-04), International Electrotechnical V ocabulary (IEV) - Part 712: Antennas . Genève, Switzerland: IEC, 2021

    2021

  5. [5]

    About the Power Ratios Relevant to a Passive Linear Time-Invariant 2-Port,

    F. Broydé and E. Clavelier, “About the Power Ratios Relevant to a Passive Linear Time-Invariant 2-Port,” Excem Research Papers in Electronics and Electromagnetics, no. 5, doi: 10.5281/zenodo.6555682, May 2022

    work page doi:10.5281/zenodo.6555682 2022

  6. [6]

    Some Results on Power in Passive Linear Time-Invariant Multiports, Part 3,

    F. Broydé and E. Clavelier, “Some Results on Power in Passive Linear Time-Invariant Multiports, Part 3,” Excem Research Papers in Electronics and Electromagnetics, no. 7, doi: 10.5281/zenodo.8124511, Jul. 2023

    work page doi:10.5281/zenodo.8124511 2023

  7. [7]

    The Radiation and Transducer Efficiencies of a Multiport Antenna Array,

    F. Broydé and E. Clavelier, “The Radiation and Transducer Efficiencies of a Multiport Antenna Array,” Excem Research Papers in Electronics and Electromagnetics, no. 4, doi: 10.5281/zenodo.5816837, Jan. 2022

    work page doi:10.5281/zenodo.5816837 2022

  8. [8]

    Kobayashi, Code for publication in Zenodo, 10.5281/zen- odo.21216656 (2026)
