Doubly charmed baryon-light meson scattering in chiral effective theory with lattice constraints

Peng-Qi Wang , Zhi-Hui Guo This is my paper

Pith reviewed 2026-06-30 05:25 UTC · model grok-4.3

classification ✦ hep-ph hep-lat
keywords doubly charmed baryonschiral effective theorylattice QCDunitarized amplitudesscattering lengthsresonancesbound stateschiral extrapolation
0
0 comments X

The pith

Chiral effective theory fitted to lattice data predicts resonance, virtual, and bound doubly charmed baryon states after extrapolation to physical quark masses.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper studies scattering of the ground-state doubly charmed baryons with light pseudoscalar mesons in chiral effective theory up to next-to-leading order. It unitarizes the S-wave amplitudes and fixes the unknown low-energy constants by fitting recent lattice data on elastic processes. After chiral extrapolation to physical quark masses, the amplitudes are used to identify excited states. The work also reports scattering lengths, effective ranges, phase shifts, and inelasticities at the physical point.

Core claim

Following the determination of next-to-leading order low energy constants through fits to lattice data on elastic scattering and subsequent chiral extrapolation to physical quark masses, the unitarized amplitudes predict the appearance of resonance, virtual, and bound doubly-charmed-baryon states in the scattering of Ξcc++, Ξcc+, and Ωc c+ with π, K, and η.

What carries the argument

Unitarization of next-to-leading order S-wave scattering amplitudes in chiral effective theory, with low energy constants constrained by lattice QCD data.

If this is right

  • The unitarized amplitudes yield concrete predictions for resonance, virtual, and bound states in both single- and coupled-channel processes.
  • Scattering lengths, effective ranges, phase shifts, and inelasticities are obtained at physical quark masses for the considered channels.
  • The calculated observables supply quantitative targets for future experimental searches and lattice simulations of doubly charmed systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Confirmation of the predicted bound states would add new members to the family of exotic hadrons containing two heavy quarks.
  • The same fitting and extrapolation procedure could be applied to other heavy-baryon–meson channels to map a broader spectrum of states.
  • Disagreement with future physical-mass lattice results would point to the size of higher-order corrections in the effective theory.

Load-bearing premise

The next-to-leading order low energy constants fitted to lattice data at unphysical quark masses remain reliable when extrapolated to physical quark masses.

What would settle it

A lattice simulation at physical quark masses that finds no evidence for the predicted resonance, virtual, or bound states in the relevant channels would falsify the extrapolation.

Figures

Figures reproduced from arXiv: 2606.30211 by Peng-Qi Wang, Zhi-Hui Guo.

Figure 1

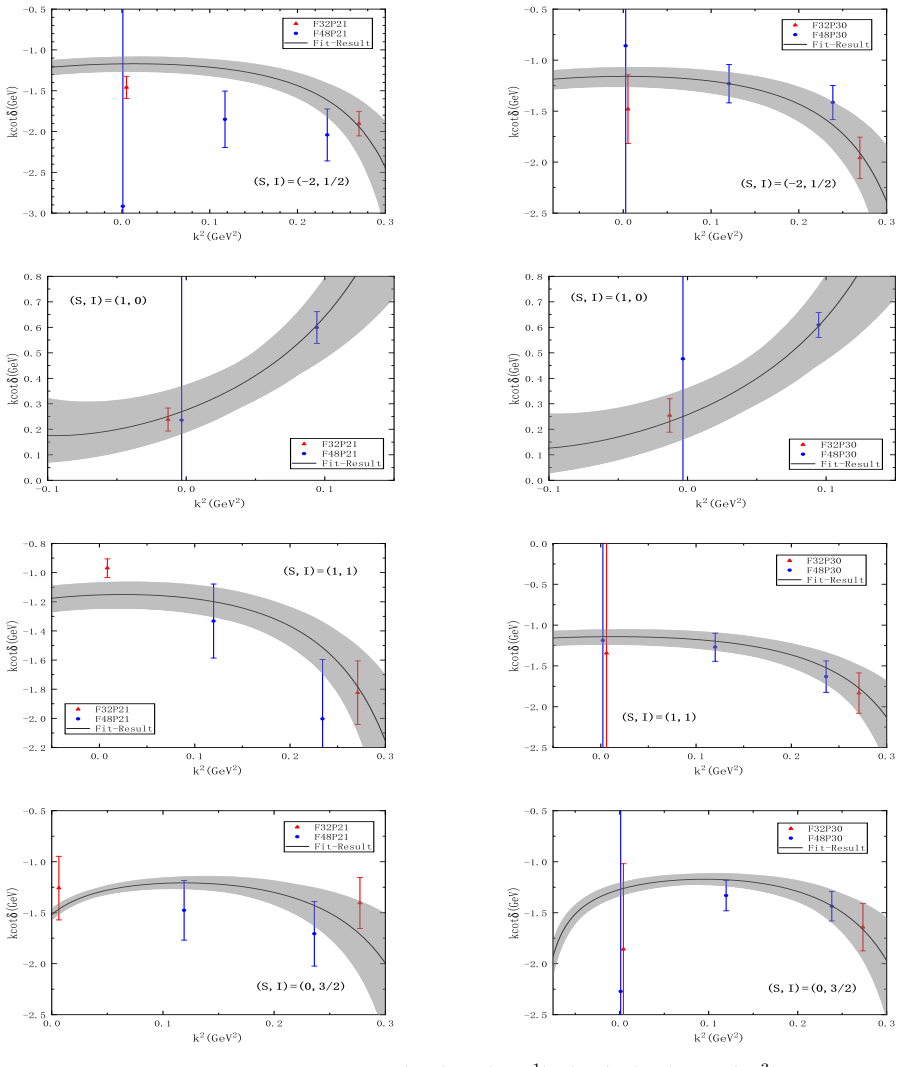

Figure 1. Figure 1: Fitted results of k cotδ for the (S, I) = (−2, 1 2 ), (1, 0), (1, 1) and (0, 3 2 ) channels at pion masses mπ ∼ 210 MeV and 300 MeV. The black solid curves show the best-fit results, and the gray shaded bands indicate the corresponding uncertainties. The data points are obtained from lattice QCD calculations [32]. 11 [PITH_FULL_IMAGE:figures/full_fig_p011_1.png] view at source ↗
Figure 2

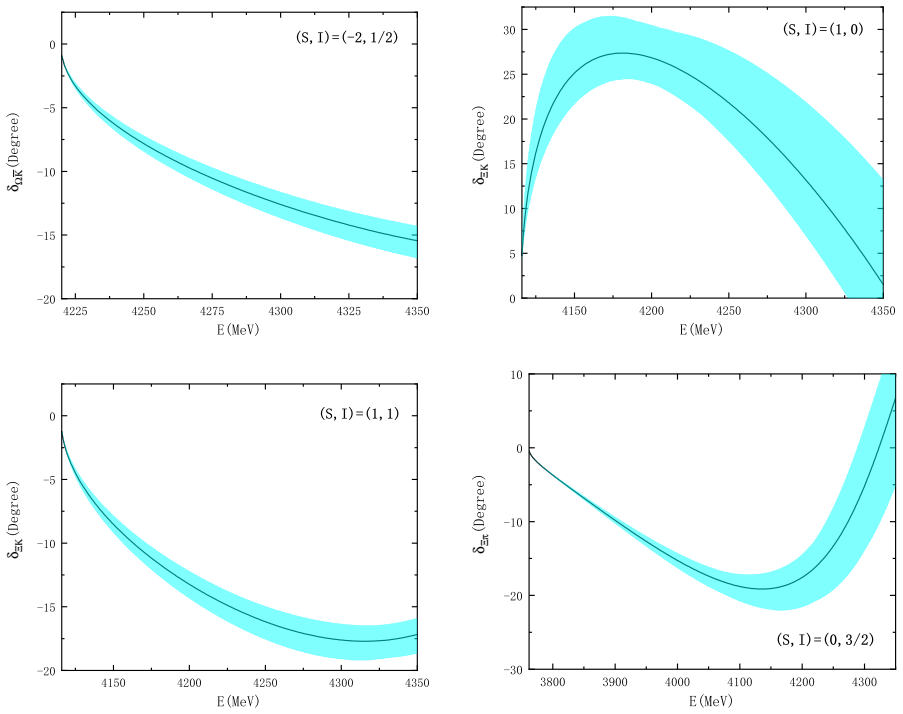

Figure 2. Figure 2: S-wave phase shifts for the elastic scattering cases. The black solid curves represent the phase shifts from the best fit in Eq. (53), and the blue shaded bands indicate the uncer￾tainties. 14 [PITH_FULL_IMAGE:figures/full_fig_p014_2.png] view at source ↗
Figure 3

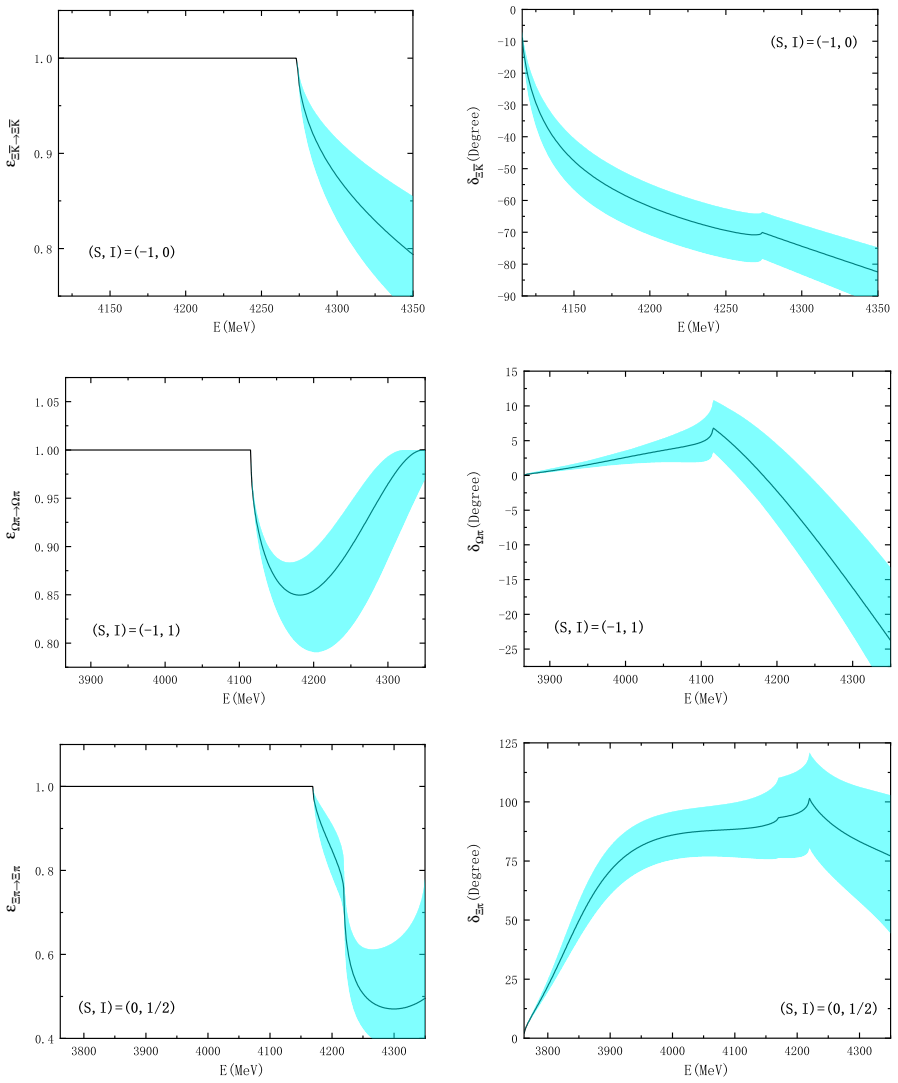

Figure 3. Figure 3: S-wave inelasticity parameters and phase shifts for the coupled-channel scattering cases. The black solid curves represent the phase shifts from the best fit, and the blue shaded bands indicate the uncertainties. 15 [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
Figure 4

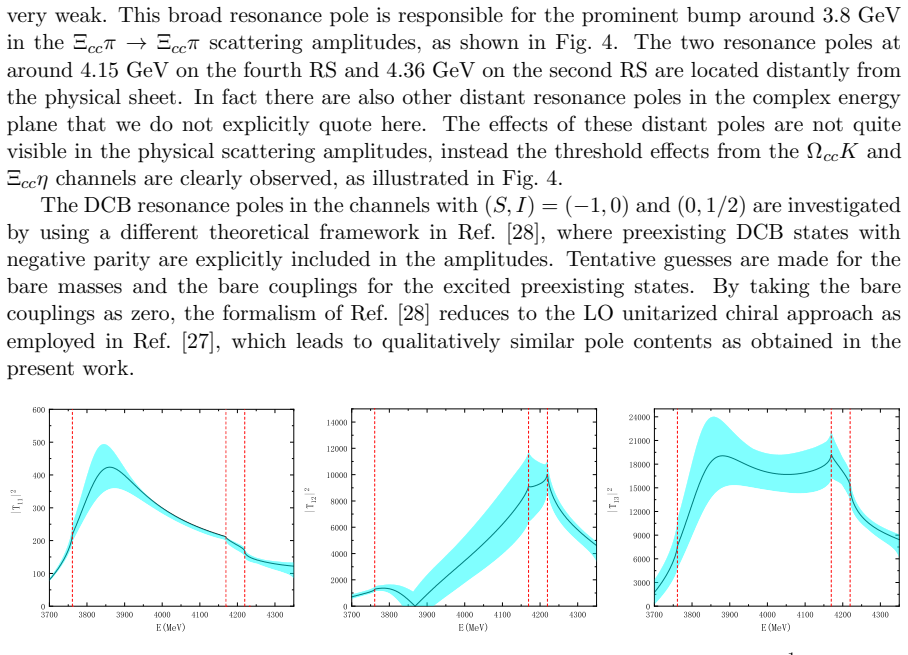

Figure 4. Figure 4: The magnitude squared of the scattering amplitudes with ( [PITH_FULL_IMAGE:figures/full_fig_p017_4.png] view at source ↗

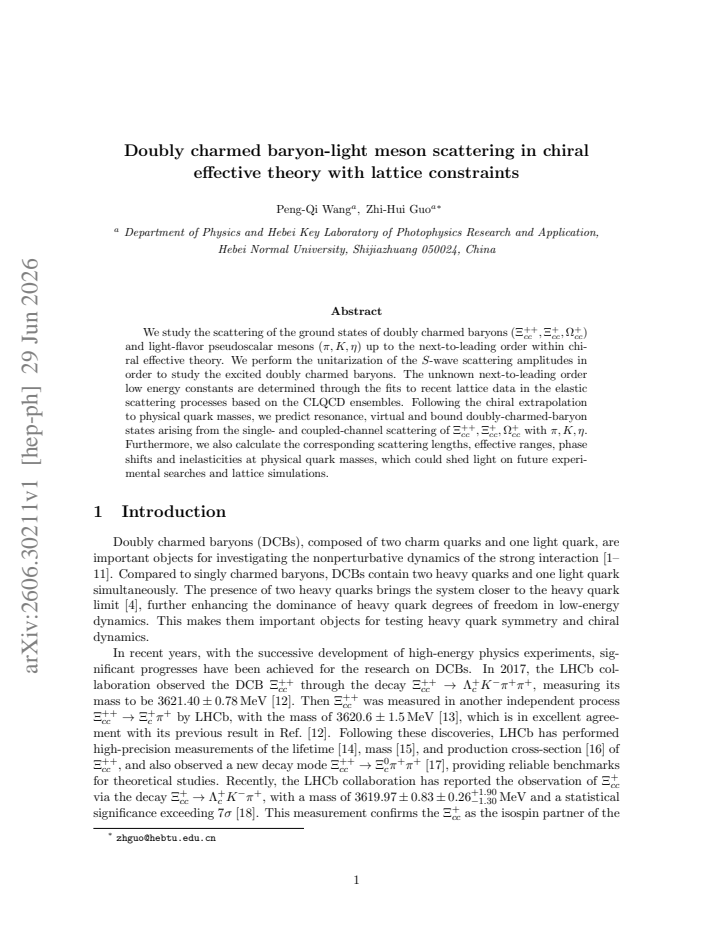

read the original abstract

We study the scattering of the ground states of doubly charmed baryons ($\Xi_{cc}^{++},\Xi_{cc}^{+},\Omega_{cc}^{+}$) and light-flavor pseudoscalar mesons ($\pi,K,\eta$) up to the next-to-leading order within chiral effective theory. We perform the unitarization of the $S$-wave scattering amplitudes in order to study the excited doubly charmed baryons. The unknown next-to-leading order low energy constants are determined through the fits to recent lattice data in the elastic scattering processes based on the CLQCD ensembles. Following the chiral extrapolation to physical quark masses, we predict resonance, virtual and bound doubly-charmed-baryon states arising from the single- and coupled-channel scattering of $\Xi_{cc}^{++},\Xi_{cc}^{+},\Omega_{cc}^{+}$ with $\pi,K,\eta$. Furthermore, we also calculate the corresponding scattering lengths, effective ranges, phase shifts and inelasticities at physical quark masses, which could shed light on future experimental searches and lattice simulations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper develops an NLO chiral effective theory for S-wave scattering of the ground-state doubly charmed baryons (Ξcc++, Ξcc+, Ωc c+) with the light pseudoscalars (π, K, η). The amplitudes are unitarized, the unknown NLO low-energy constants are fitted to CLQCD lattice data on elastic channels, and the resulting amplitudes are extrapolated to physical quark masses to predict resonance, virtual, and bound states in both single- and coupled-channel processes; scattering lengths, effective ranges, phase shifts, and inelasticities at the physical point are also reported.

Significance. If the central extrapolation is reliable, the work supplies falsifiable predictions for exotic doubly charmed baryon states that can guide LHCb searches and future lattice simulations. The explicit use of lattice ensembles to constrain the NLO LECs is a methodological strength that partially anchors the effective theory in non-perturbative QCD input.

major comments (2)
  1. [Abstract and lattice-fit section] Abstract and the section describing the lattice fits: no numerical fit results (χ²/dof, covariance matrices, or parameter values with uncertainties) are presented for the NLO LECs determined from the CLQCD elastic data. Because the pole predictions rest entirely on these unshown fits, the quality of the LEC determination and the subsequent extrapolation cannot be assessed.
  2. [Chiral extrapolation and results] The chiral-extrapolation step (physical-mass predictions): the NLO LECs are fixed exclusively by elastic lattice data at unphysical (heavier) quark masses and then inserted into the unitarized amplitudes at the physical point. No estimate of NNLO truncation error, no sensitivity test to omitted higher-order terms, and no comparison with alternative extrapolations are supplied; this assumption is load-bearing for the claimed resonance, virtual, and bound states.
minor comments (2)
  1. [Effective Lagrangian section] Clarify the precise definition and numerical values of the NLO LECs (including any scale dependence) when they are first introduced.
  2. [Lattice data section] Add a table or figure summarizing the lattice ensemble parameters (quark masses, volumes) used in the fits for direct comparison with the physical point.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments. We address each major comment below. We agree that the fit results must be presented explicitly and will revise the manuscript to include them. For the extrapolation uncertainties, we will add a sensitivity analysis while noting the inherent limitations of an NLO calculation.

read point-by-point responses

  1. Referee: [Abstract and lattice-fit section] Abstract and the section describing the lattice fits: no numerical fit results (χ²/dof, covariance matrices, or parameter values with uncertainties) are presented for the NLO LECs determined from the CLQCD elastic data. Because the pole predictions rest entirely on these unshown fits, the quality of the LEC determination and the subsequent extrapolation cannot be assessed.

    Authors: We agree that the numerical fit results are essential for assessing the quality of the LEC determination. The fits to the CLQCD elastic data were performed, but the specific parameter values, uncertainties, χ²/dof, and covariance matrix were omitted from the text. In the revised manuscript we will add a table listing the best-fit NLO LECs with uncertainties, the χ²/dof for each fitted channel, and the covariance matrix. This will allow readers to evaluate the fit quality directly. revision: yes

  2. Referee: [Chiral extrapolation and results] The chiral-extrapolation step (physical-mass predictions): the NLO LECs are fixed exclusively by elastic lattice data at unphysical (heavier) quark masses and then inserted into the unitarized amplitudes at the physical point. No estimate of NNLO truncation error, no sensitivity test to omitted higher-order terms, and no comparison with alternative extrapolations are supplied; this assumption is load-bearing for the claimed resonance, virtual, and bound states.

    Authors: We acknowledge that a quantitative estimate of NNLO truncation error would strengthen the extrapolation. Performing a full NNLO analysis lies outside the scope of the present NLO study. In the revision we will add a sensitivity study in which the NLO LECs are varied within their fitted uncertainties to test the stability of the predicted poles, together with a brief discussion of the expected size of higher-order corrections inferred from the convergence pattern seen on the lattice ensembles. This provides a practical assessment of theoretical uncertainty at the current order. revision: partial

Circularity Check

0 steps flagged

No significant circularity; LECs fitted to external lattice data with extrapolation to physical point

full rationale

The derivation fits NLO low-energy constants to independent CLQCD lattice ensembles at unphysical masses, then performs chiral extrapolation and unitarization to predict poles and observables at the physical point. This uses external benchmark data as input rather than reducing any claimed prediction to a fit or self-citation by construction. No self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations appear in the abstract or described chain. The procedure is self-contained against the external lattice constraints.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

Central claim depends on several NLO low-energy constants fitted to lattice data and on the assumption that chiral extrapolation from unphysical to physical quark masses is accurate.

free parameters (1)
  • NLO low energy constants
    Unknown constants in the chiral Lagrangian determined by fits to lattice data on elastic scattering channels.
axioms (2)
  • domain assumption Chiral symmetry of QCD at low energies
    Foundation of the effective theory used to construct the amplitudes.
  • domain assumption Unitarization of S-wave amplitudes captures resonance physics
    Procedure invoked to locate poles corresponding to excited states.
