AirfoilGen: A valid-by-construction and performance-aware latent diffusion model for airfoil generation

Zhijie Yang , Min Tang , Peng Du , Qiang Zou This is my paper

Pith reviewed 2026-05-21 07:25 UTC · model grok-4.3

classification 💻 cs.LG
keywords airfoil generationlatent diffusiongeometric validityaerodynamic performance controlcircle sweeping representationdeep generative modelsaerospace design
0
0 comments X

The pith

AirfoilGen generates geometrically valid airfoils directly conditioned on target lift and drag via a latent diffusion process.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper addresses the problem that prior deep generative models for airfoils often output invalid shapes and provide little control over aerodynamic performance. It introduces a circle sweeping representation that forces every generated shape to satisfy essential airfoil geometry by construction. A transformer then maps these shapes to latent vectors, and a conditional diffusion model samples from noise in that space while respecting user-specified lift and drag values. Trained on a newly collected dataset of more than 200,000 airfoils, the resulting model achieves an average performance-conditioning accuracy of 98.41 percent in experiments.

Core claim

AirfoilGen is a valid-by-construction and performance-aware latent diffusion model that first constrains airfoil shapes via circle sweeping representation and then uses a conditional diffusion process in latent space to control aerodynamic performance such as lift and drag coefficients.

What carries the argument

Circle sweeping representation that parameterizes airfoils to satisfy geometric constraints by construction, paired with a transformer encoder and a conditional denoising diffusion model operating on the resulting latent embeddings.

Load-bearing premise

The circle sweeping representation is assumed to constrain the generative process sufficiently to respect essential airfoil characteristics without unduly restricting the reachable design space.

What would settle it

Generate thousands of shapes with specified lift and drag targets, then measure the fraction that fail basic geometric checks or whose simulated lift and drag deviate from the targets by more than a few percent.

Figures

Figures reproduced from arXiv: 2605.20303 by Min Tang, Peng Du, Qiang Zou, Zhijie Yang.

Figure 1
Figure 1. Figure 1: Examples of invalid airfoil shapes generated by B [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

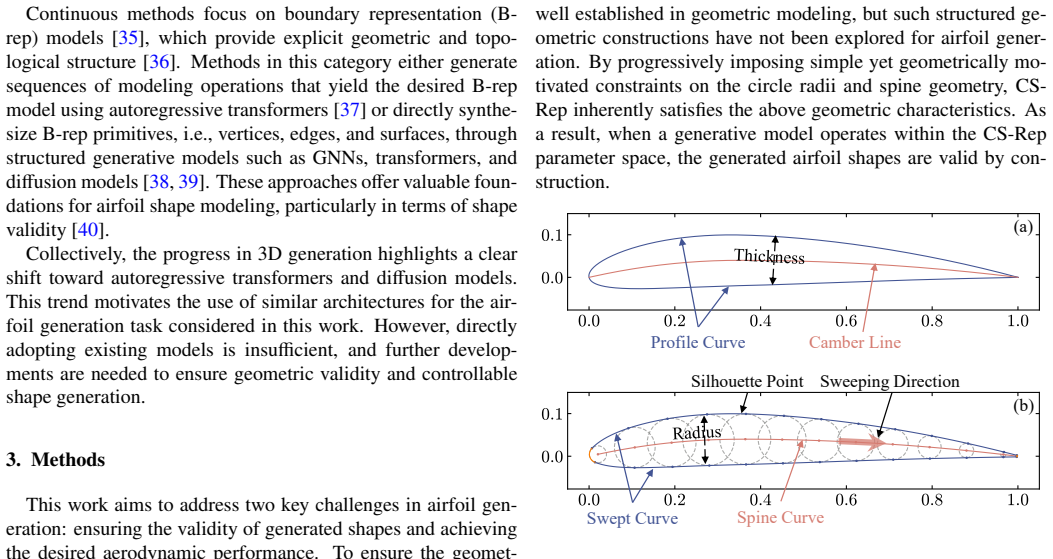

Figure 2. Figure 2: Illustration of CS-Rep: (a) airfoil profiles, and (b) the sweeping pro [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

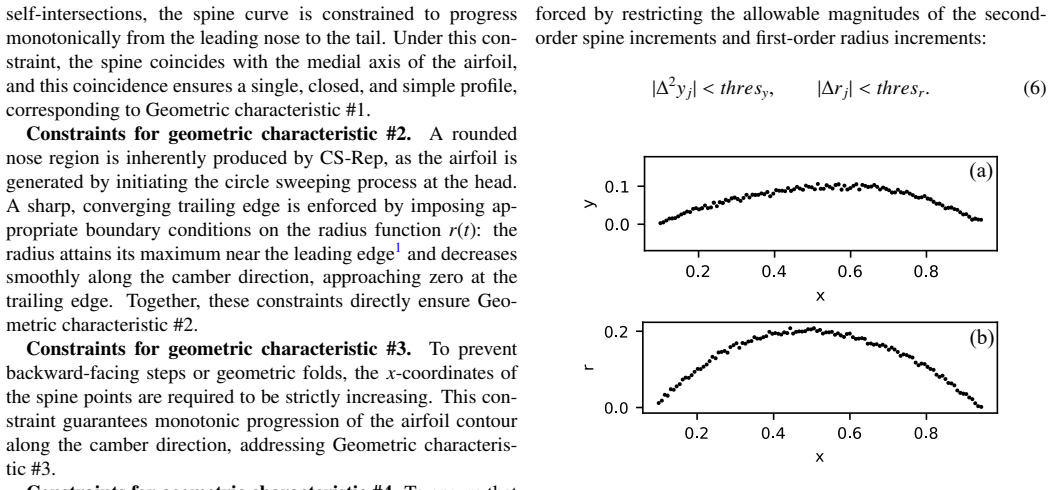

Figure 3. Figure 3: Example of jagged CS-Rep sequences by direct generation: (a) spine [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: The network for encoding airfoil profiles into shape embeddings. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: The network for decoding airfoil shape embeddings into airfoils in the CS-Rep format. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The overall airfoil generation network architecture. [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Reconstruction examples of diverse airfoil shapes. The blue and red curves indicate the reconstructed airfoils and the ground truths, respectively. [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Typical examples of large reconstruction deviations. The blue and red curves indicate the reconstructed airfoils and the ground truths, respectively. [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Unconditional generation results of AirfoilGen. CL and CD denote the lift and drag coe [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Conditional generation results of AirfoilGen for all performance classes. CL and CD denote the lift and drag coe [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Aerodynamic performance distribution of airfoils generated by AirfoilGen. Each point represents one generated airfoil positioned according to its lift [PITH_FULL_IMAGE:figures/full_fig_p012_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Comparisons of generated airfoil shapes between AirfoilGen and existing methods. [PITH_FULL_IMAGE:figures/full_fig_p012_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Comparisons of aerodynamic performance distributions between AirfoilGen and existing methods. Circled regions indicate samples that violate the [PITH_FULL_IMAGE:figures/full_fig_p013_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Comparison of aerodynamic performance for airfoils generated by AirfoilGen and existing methods. [PITH_FULL_IMAGE:figures/full_fig_p013_14.png] view at source ↗
read the original abstract

Airfoil shape design is a fundamental task in aerospace engineering, with a direct impact on flight stability and fuel consumption. Deep learning has recently emerged as a promising tool for this task, but existing deep generative approaches remain limited in both geometric validity and physical controllability. They offer little control over the generated shapes, yielding invalid geometries, and they typically do not condition effectively on aerodynamic performance. To address these issues, this paper proposes AirfoilGen, a valid-by-construction and performance-aware latent diffusion model for airfoil. It first introduces a novel airfoil representation scheme, the circle sweeping representation, to constrain the generative process so that output shapes respect essential airfoil characteristics. It then enables explicit control over aerodynamic performance (e.g., lift and drag coefficients) by operating in a learned latent space: a transformer model encodes airfoil shapes into vector embeddings, and a conditional diffusion model denoises Gaussian noise into these latent embeddings while incorporating target aerodynamic performance. In addition, this paper presents a new dataset of over 200,000 airfoils, which is substantially larger than the widely used UIUC airfoil dataset (1,650 airfoils) and more suitable for training modern deep generative models. Experiments demonstrate that AirfoilGen enables airfoil generation with far greater geometric validity and aerodynamic performance controllability than previously achievable, with an average performance-conditioning accuracy of 98.41%.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces AirfoilGen, a latent diffusion model for airfoil generation that enforces geometric validity by construction via a novel circle-sweeping representation and achieves performance controllability by conditioning a transformer-encoded latent diffusion process on target lift and drag coefficients. It also contributes a new dataset exceeding 200,000 airfoils. Experiments are reported to show substantially higher geometric validity and an average performance-conditioning accuracy of 98.41% relative to prior generative approaches.

Significance. If the central claims hold after verification of coverage and controls, the work would provide a practical advance in controllable generative design for aerodynamics, with the large dataset serving as a reusable resource for the community. The combination of validity-by-construction and explicit performance conditioning addresses two persistent limitations in existing deep generative airfoil methods.

major comments (2)
  1. [Abstract and Section 3 (representation scheme)] The central claim of 'far greater geometric validity and aerodynamic performance controllability' rests on the circle-sweeping representation constraining outputs to essential airfoil characteristics while still spanning the design space needed for meaningful performance conditioning. No quantification is provided of the fraction of UIUC airfoils or known high-performance optima that lie within the representable set, nor of any excluded classes (e.g., sharp leading-edge or highly cambered shapes). This leaves open whether the reported 98.41% conditioning accuracy is achieved inside a narrower subspace than prior methods.
  2. [Section 5 (experiments)] The experimental section reports an average performance-conditioning accuracy of 98.41% but does not detail the baseline models, the exact definition of accuracy (e.g., relative error threshold on Cl and Cd), the test-set distribution, or statistical controls for multiple comparisons. Without these, it is difficult to assess whether the improvement is load-bearing or partly an artifact of the restricted representation.
minor comments (2)
  1. [Section 4] Notation for the latent embedding and conditioning vectors should be introduced once and used consistently; the current description mixes 'vector embeddings' and 'latent embeddings' without a clear mapping.
  2. [Section 2.2] The dataset description would benefit from a table comparing key statistics (e.g., range of Cl, Cd, thickness, camber) against the UIUC set to substantiate the claim of suitability for modern generative models.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive feedback on our paper. We address each of the major comments below and have revised the manuscript accordingly to strengthen the presentation of our results.

read point-by-point responses

  1. Referee: [Abstract and Section 3 (representation scheme)] The central claim of 'far greater geometric validity and aerodynamic performance controllability' rests on the circle-sweeping representation constraining outputs to essential airfoil characteristics while still spanning the design space needed for meaningful performance conditioning. No quantification is provided of the fraction of UIUC airfoils or known high-performance optima that lie within the representable set, nor of any excluded classes (e.g., sharp leading-edge or highly cambered shapes). This leaves open whether the reported 98.41% conditioning accuracy is achieved inside a narrower subspace than prior methods.

    Authors: We thank the referee for pointing out this potential limitation. The circle-sweeping representation is intended to capture the essential geometric properties of airfoils by constructing shapes through the sweeping of circles, ensuring closure and smoothness. To address the query on coverage, we will include in the revised Section 3 a quantitative evaluation of the fraction of UIUC airfoils that can be represented, as well as examples of excluded classes such as those with sharp leading edges or extreme camber. We believe this will confirm that the subspace is broad enough to support meaningful performance conditioning, consistent with the high accuracy reported. revision: yes

  2. Referee: [Section 5 (experiments)] The experimental section reports an average performance-conditioning accuracy of 98.41% but does not detail the baseline models, the exact definition of accuracy (e.g., relative error threshold on Cl and Cd), the test-set distribution, or statistical controls for multiple comparisons. Without these, it is difficult to assess whether the improvement is load-bearing or partly an artifact of the restricted representation.

    Authors: We agree with the referee that more details on the experimental setup would be beneficial. We have revised Section 5 to include descriptions of the baseline models, the precise definition of accuracy, the test-set distribution, and statistical controls for the comparisons. This will allow readers to better evaluate the results and confirm that the reported improvements are due to the proposed approach. revision: yes

Circularity Check

0 steps flagged

No circularity: validity by explicit representation design and empirical conditioning accuracy

full rationale

The paper introduces the circle sweeping representation as a deliberate scheme to enforce geometric validity by construction, which is an architectural choice rather than a derived claim that loops back to its own outputs. The performance-aware aspect operates via a separate transformer encoder producing latent embeddings and a conditional diffusion process that incorporates target coefficients as conditioning; the 98.41% accuracy is presented as an experimental measurement on a newly collected dataset of 200k airfoils. No quoted step equates a prediction or result to its inputs by definition, no fitted parameter is relabeled as a prediction, and no load-bearing self-citation chain is invoked to justify uniqueness or the central claims. The derivation therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the untested premise that the circle-sweeping representation is both sufficiently expressive and strictly validity-preserving; no free parameters or invented physical entities are mentioned in the abstract.

axioms (1)
  • domain assumption The circle sweeping representation constrains generated shapes to respect essential airfoil characteristics.
    Invoked when the paper states that the representation is introduced 'to constrain the generative process so that output shapes respect essential airfoil characteristics'.
