arxiv: 2606.30207 · v1 · pith:MDEAFUQEnew · submitted 2026-06-29 · 🌌 astro-ph.IM

Operational capabilities and on-sky performance of SAMOS at the completion of science commissioning

Massimo Robberto , Stephen A. Smee , Robert H. Barkhouser , Stephen C. Hope , John J. Piotrowski , Dana Koeppe , Mario Gennaro , Zoran Ninkov
show 4 more authors
Megan E. Donahue Andrei Tokovinin Randolph P. Hammond Albert J. Harding
This is my paper

Pith reviewed 2026-06-30 03:44 UTC · model grok-4.3

classification 🌌 astro-ph.IM
keywords multi-object spectroscopyadaptive opticsdigital micromirror devicespectrographSOAR telescopecommissioningcrowded fieldstransient follow-up
0
0 comments X

The pith

SAMOS achieves 0.3 Å wavelength calibration and rapid programmable slit-mask operation behind adaptive optics.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports on-sky results from the completed science commissioning of SAMOS, a DMD-based multi-object spectrograph mounted on the SOAR Adaptive Module. It shows that the instrument supports low-resolution spectroscopy from 4000 to 10000 Å at R~2500 plus high-resolution modes in two bands, with masks that can be created and swapped in seconds. Commissioning data confirm accurate target acquisition, multiplexed observations in crowded fields, and combined imaging-spectroscopy calibration. These capabilities position SAMOS for surveys and transient work that exploit the 3 by 3 arcmin AO-corrected field.

Core claim

SAMOS delivers adaptive-optics-assisted imaging together with programmable multi-object spectroscopy by routing the full corrected field through a large-format DMD, where each micromirror independently directs light into either the spectroscopic or parallel imaging channel, yielding wavelength calibration accurate to about 0.3 Å and reliable end-to-end spectrophotometry as demonstrated on sky.

What carries the argument

The Digital Micromirror Device (DMD) that forms programmable, seconds-reconfigurable slit masks by directing individual micromirrors to spectroscopic or imaging paths.

If this is right

  • Multiplexed spectroscopy of crowded stellar populations is now possible with AO correction over the full 3x3 arcmin field.
  • Transient follow-up can use slit masks generated and changed in seconds without mechanical mask exchange.
  • Simultaneous imaging and spectroscopy enables direct spectrophotometric calibration from the same data set.
  • Efficient spectroscopic surveys become feasible by avoiding repeated pointings through rapid mask reconfiguration.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The DMD architecture could be scaled to other AO-equipped telescopes to increase survey speed for similar science cases.
  • The parallel imaging channel may support real-time monitoring of variable sources during spectroscopic exposures.
  • Routine operations could test whether the demonstrated calibration holds across a wider range of airmass and lunar phase than sampled in commissioning.

Load-bearing premise

The science-verification observations performed during commissioning are representative of routine operational conditions and free from significant selection effects in target choice or data quality.

What would settle it

Routine observations under typical seeing that repeatedly exceed 0.3 Å wavelength error or fail to produce valid DMD masks within seconds would falsify the claimed performance.

Figures

Figures reproduced from arXiv: 2606.30207 by Albert J. Harding, Andrei Tokovinin, Dana Koeppe, John J. Piotrowski, Mario Gennaro, Massimo Robberto, Megan E. Donahue, Randolph P. Hammond, Robert H. Barkhouser, Stephen A. Smee, Stephen C. Hope, Zoran Ninkov.

Figure 1

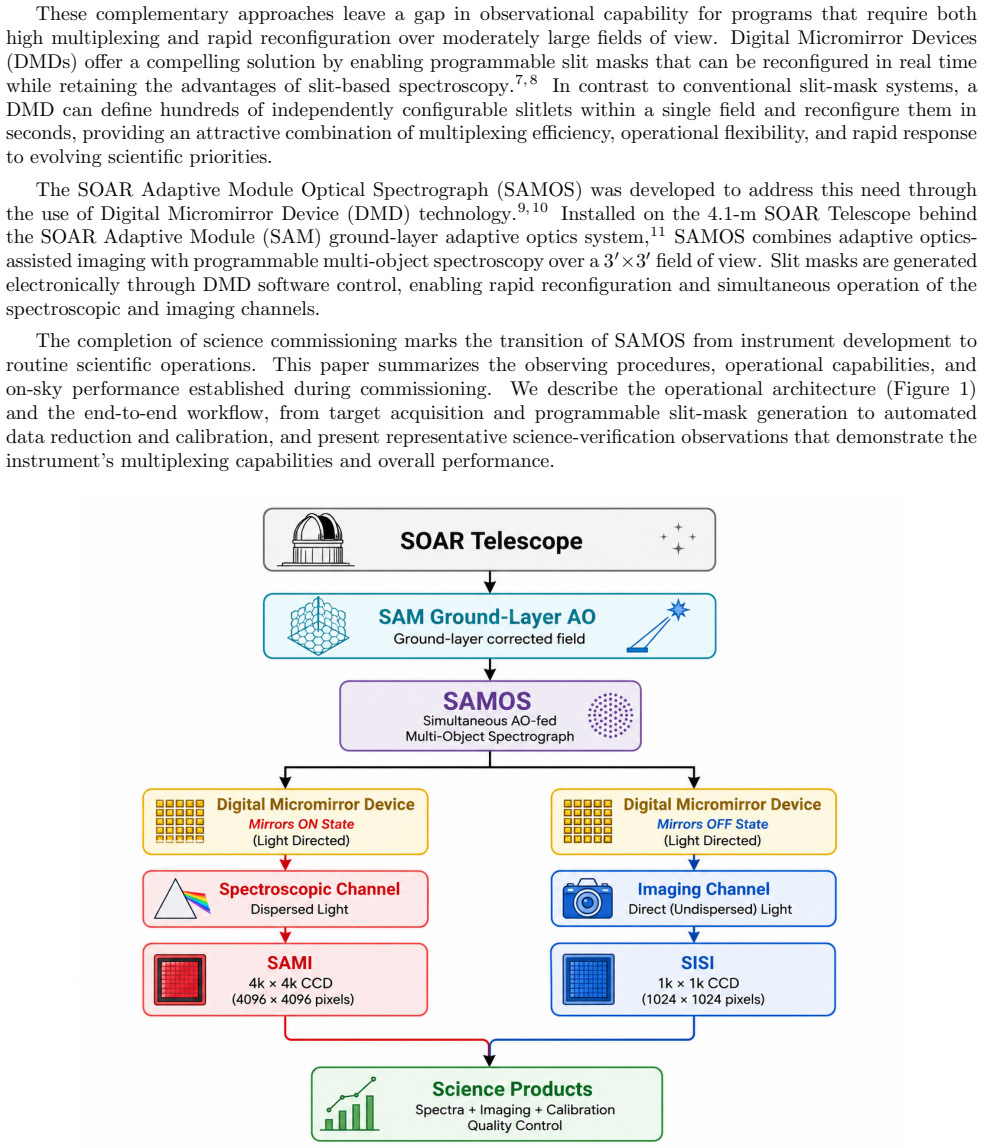

Figure 1. Figure 1: Simplified operational architecture of SAMOS. The AO-corrected field delivered by the SOAR Adaptive Module is [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

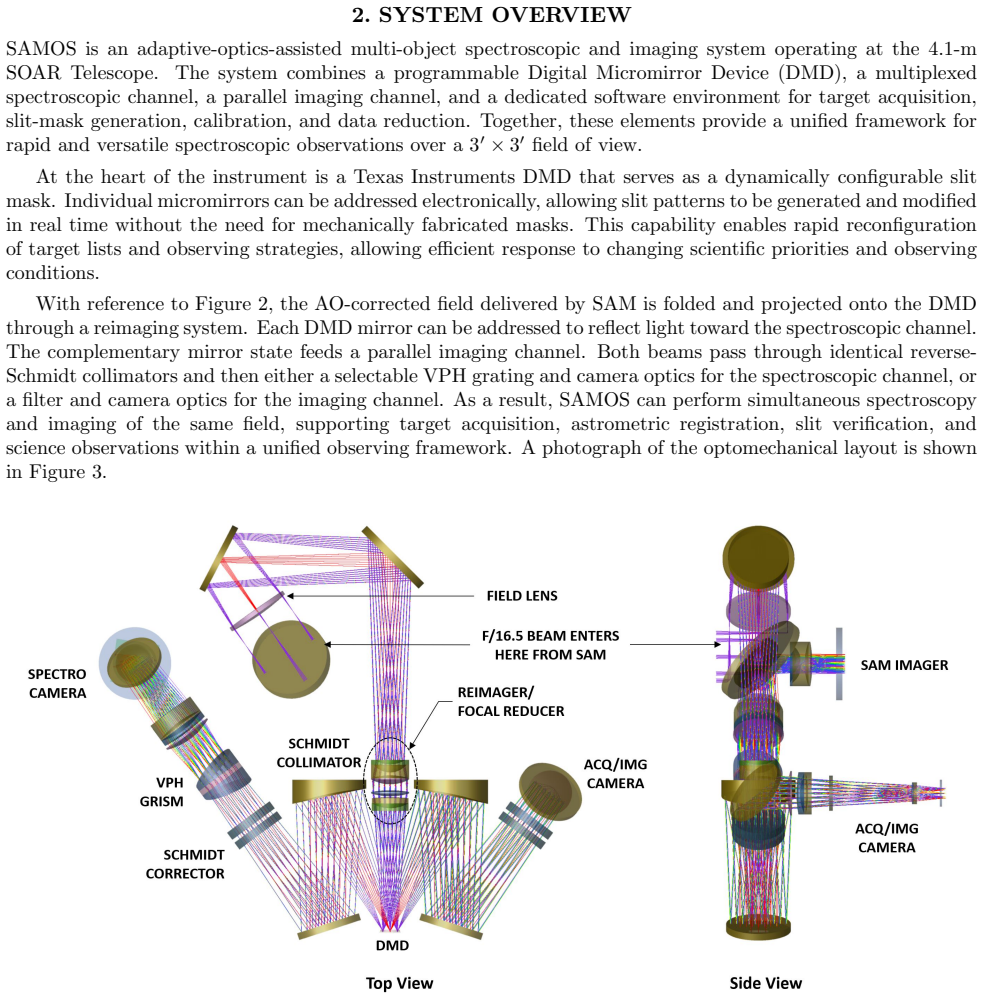

Figure 2. Figure 2: SAMOS optical layout, top and side view. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

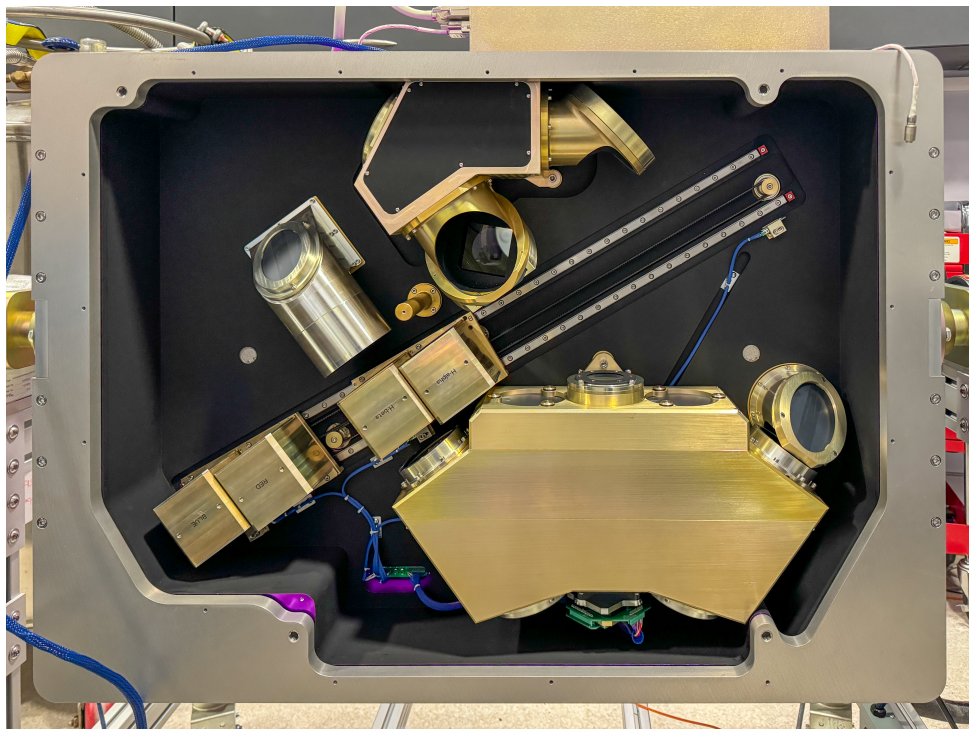

Figure 3. Figure 3: SAMOS mechanical layout as built, oriented to match the figure to the left. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

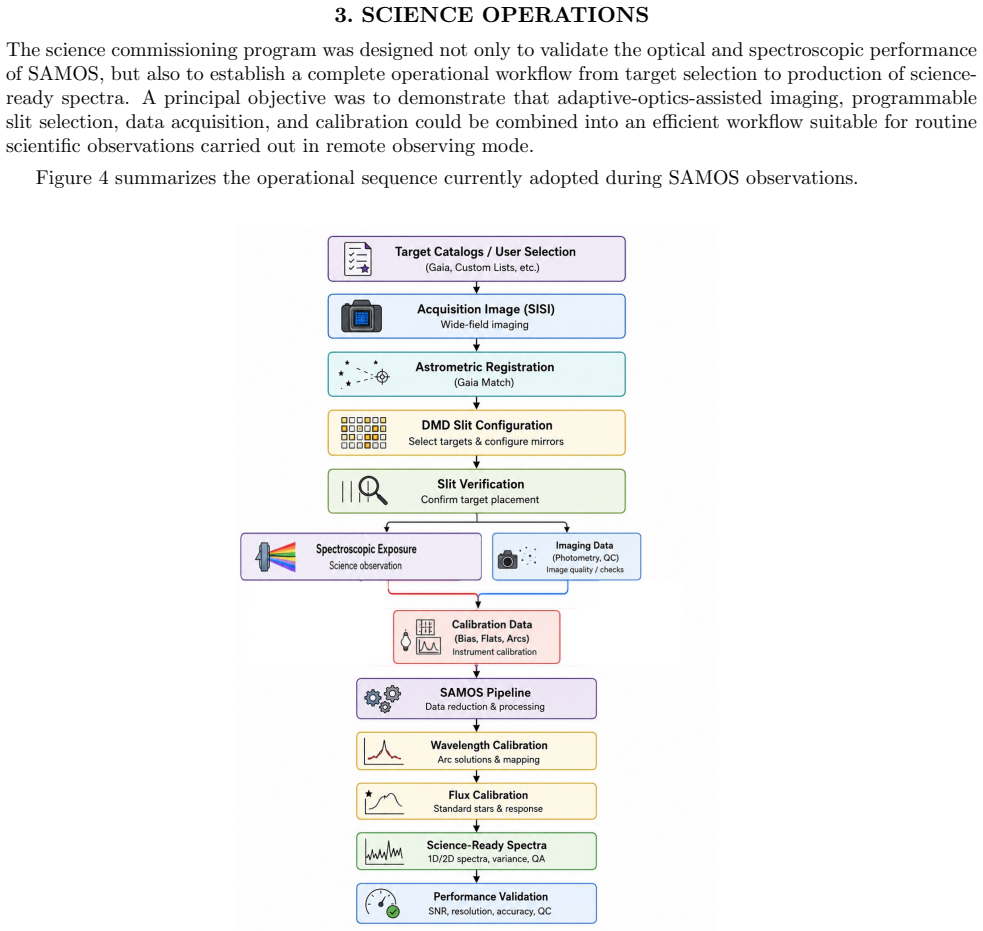

Figure 4. Figure 4: Operational workflow developed during SAMOS science commissioning. Acquisition images are used for astro [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Left: target field in the Dolidze 25 region from the Pan-STARRS DR1 survey. Center: target-acquisition image [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

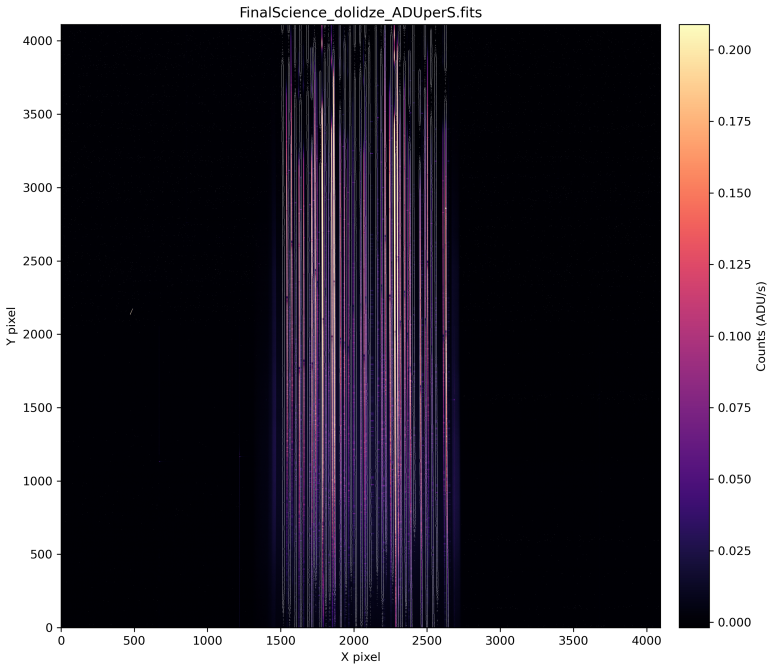

Figure 6. Figure 6: Multiplexed spectra obtained with SAMOS in the Dolidze 25 field using the low-resolution red grating (600– [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7

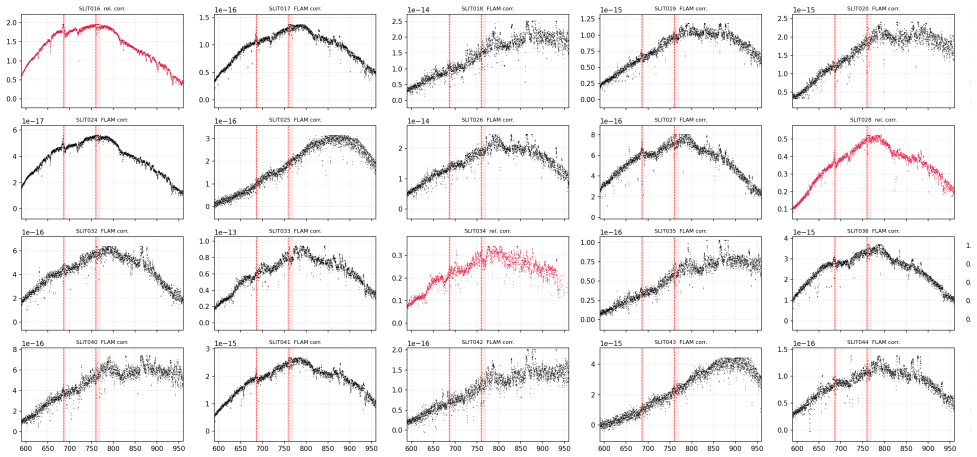

Figure 7. Figure 7: Mosaic of spectra extracted from a single SAMOS observation of the Dolidze 25 field. Each panel corresponds [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 8

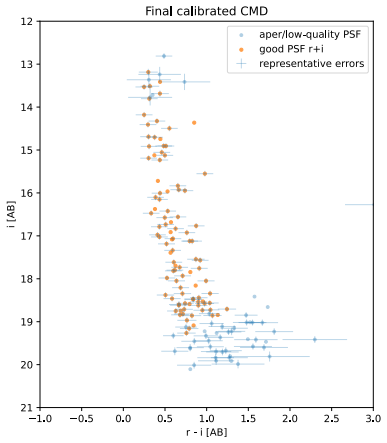

Figure 8. Figure 8: Calibrated color–magnitude diagram of the Dolidze 25 commissioning field derived from SISI imaging obser [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗
Figure 9

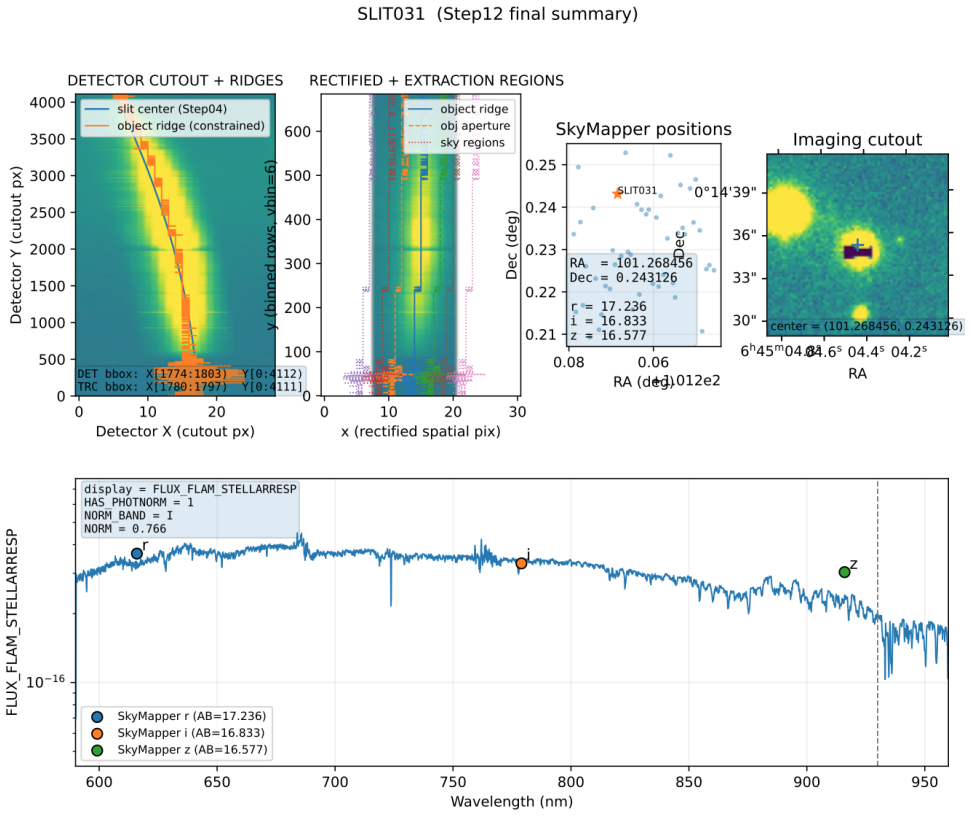

Figure 9. Figure 9: End-to-end processing summary for a representative target observed during the Dolidze 25 commissioning [PITH_FULL_IMAGE:figures/full_fig_p013_9.png] view at source ↗
read the original abstract

We present the operational capabilities and on-sky performance of the SOAR Adaptive Module Optical Spectrograph (SAMOS) at the completion of its science commissioning phase. SAMOS is a Digital Micromirror Device (DMD)-based multi-object spectrograph and imager installed behind the SOAR Adaptive Module (SAM) ground-layer adaptive optics system. The instrument relays the full 3 x 3 arcmin AO-corrected field onto a large-format DMD, where each micromirror can direct light to either a spectroscopic or a parallel imaging channel. This architecture enables programmable slit-mask patterns that can be generated and reconfigured within seconds. SAMOS provides low-resolution spectroscopy over the 4000-10000 A wavelength range at resolving power R ~ 2500 and high-resolution spectroscopy (R ~ 10,000) in the 4500-5150 A and 6 000-7000 A bands. We summarize the operational workflow established during commissioning, including target acquisition, astrometric registration, DMD slit-mask generation, simultaneous imaging and spectroscopy, and automated data reduction. Science-verification observations demonstrate accurate target acquisition, reliable programmable slit-mask operation, multiplexed spectroscopy of crowded stellar fields, wavelength-calibration accuracy of about 0.3 A, and end-to-end spectrophotometric calibration through the combination of imaging and spectroscopic data. These results establish SAMOS as a unique facility instrument that combines adaptive-optics-assisted imaging, programmable multi-object spectroscopy, and rapid slit-mask reconfiguration for efficient spectroscopic surveys, transient follow-up, and studies of crowded stellar populations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper reports the operational capabilities and on-sky performance of SAMOS, a DMD-based multi-object spectrograph and imager installed behind the SOAR Adaptive Module ground-layer AO system. It describes the instrument architecture enabling programmable slit masks reconfigurable in seconds, low- and high-resolution spectroscopy (R~2500 over 4000-10000 Å; R~10000 in selected bands), the commissioning workflow for acquisition, astrometric registration, mask generation, simultaneous imaging/spectroscopy, and automated reduction. Science-verification observations are cited to demonstrate accurate target acquisition, reliable DMD operation, multiplexed spectroscopy in crowded fields, ~0.3 Å wavelength calibration accuracy, and end-to-end spectrophotometric calibration.

Significance. If the quoted performance metrics prove representative of routine operations, the instrument would offer a distinctive combination of AO-assisted imaging, programmable multi-object spectroscopy, and rapid mask reconfiguration that is not available at other facilities. The use of empirical on-sky measurements against external wavelength standards is a positive aspect of the work.

major comments (1)
  1. [Abstract] Abstract: the central claim that the results 'establish SAMOS as a unique facility instrument' for surveys, transient follow-up, and crowded-field studies rests on the science-verification observations being representative. The manuscript provides no quantitative comparison of achieved metrics (Strehl, throughput, mask reconfiguration time, spectrophotometric residuals) against a statistically meaningful sample of later routine observations, nor does it report target-selection criteria or data-quality cuts applied to the verification set.
minor comments (1)
  1. [Abstract] Abstract: the wavelength-calibration accuracy is stated as 'about 0.3 Å'; the text should specify the exact measured value, the number of lines or standards used, and the method of error estimation.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive review and recommendation. We address the single major comment below, agreeing that the abstract language requires clarification given the commissioning focus of the work.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that the results 'establish SAMOS as a unique facility instrument' for surveys, transient follow-up, and crowded-field studies rests on the science-verification observations being representative. The manuscript provides no quantitative comparison of achieved metrics (Strehl, throughput, mask reconfiguration time, spectrophotometric residuals) against a statistically meaningful sample of later routine observations, nor does it report target-selection criteria or data-quality cuts applied to the verification set.

    Authors: We agree that the abstract phrasing overstates the implications of the commissioning data. The science-verification observations were selected specifically to exercise target acquisition, DMD mask reconfiguration, multiplexed spectroscopy, and calibration procedures; they are not presented as a statistical sample of routine operations. No post-commissioning routine dataset exists for the quantitative comparisons requested. We will revise the abstract to read that the results 'demonstrate the operational capabilities of SAMOS as a facility instrument combining...' rather than 'establish SAMOS as a unique facility instrument', and we will add a short paragraph in Section 4 describing the verification target fields, selection rationale, and any quality cuts applied to the presented data. These changes will align the claims with the commissioning scope of the paper. revision: yes

Circularity Check

0 steps flagged

Empirical instrument performance report with no derivations

full rationale

The manuscript reports direct on-sky measurements (target acquisition accuracy, wavelength calibration to ~0.3 Å against standards, spectrophotometric residuals, DMD reconfiguration times) obtained during commissioning. No equations, fitted parameters, or model derivations appear in the provided text; performance metrics are compared to external references rather than to prior fitted values from the same dataset. The central claim that SAMOS is a 'unique facility instrument' is a qualitative summary of observed capabilities, not a result derived from self-referential steps. No self-citation load-bearing arguments, ansatzes, or renamings of known results are present.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an empirical instrumentation commissioning report containing no mathematical derivations, free parameters, or new physical models.
