Designing bistable nanostructures for target behavior

Andreas Ehrmann , Marija Krsti\'c , Sahar Samadzadeh , Carl P. Goodrich This is my paper

Pith reviewed 2026-07-01 03:01 UTC · model grok-4.3

classification ❄️ cond-mat.soft
keywords bistable nanostructuresinverse designenergy profileconformational transitionhinge-arm paradigmbinding-site separationdesignability hierarchynanomachines
0
0 comments X

The pith

A hinge-arm design lets energy barriers and metastable binding-site separations be programmed in bistable nanostructures, while full energy-profile control needs extra freedom.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a modular inverse-design framework for bistable nanostructures that draws on rigid domains linked by flexible hinges. A small bistable hinge sets the energy landscape of a conformational change, and rigid arms translate that change into a specific separation between external binding sites. The central finding is that barriers between the two states and the separations at those states are straightforward to achieve, but the position of the transition state or the entire shape of the energy curve along the reaction coordinate demands more design variables. This hierarchy matters because it shows which target dynamical behaviors can be built into synthetic nanomachines with current modular constraints and which ones cannot.

Core claim

Using the hinge-arm paradigm, energy barriers and the binding-site separations in the two metastable states can be readily designed, while controlling the location of the transition state or the full shape of the energy profile requires additional design freedom. A differentiable optimization framework produces solutions that sometimes deviate numerically from the target profile yet still produce the intended functional behavior, underscoring the value of function-based rather than purely numerical evaluation.

What carries the argument

The hinge-arm paradigm: a small bistable hinge controls the energetics of the conformational transition while rigid arms map that transition onto the separation between external binding sites.

If this is right

  • Energy barriers between the two metastable states become a controllable design parameter.
  • Binding-site separations at each metastable state can be set independently of the barrier height.
  • Some numerically inexact solutions still produce the target functional behavior.
  • A practical hierarchy of designability emerges: certain profile features are easy, others require added degrees of freedom.
  • The framework supplies a concrete route to synthetic nanomachines that link conformational change to prescribed binding or mechanical output.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same modular split between local hinge energetics and global arm geometry could be tested on multi-state or cyclic machines.
  • Function-based acceptance criteria might relax exact matching requirements in other inverse-design problems where small numerical errors do not affect use.
  • If the hierarchy holds under fabrication noise, it would guide which biological-machine behaviors are easiest to copy in DNA or protein nanostructures.

Load-bearing premise

The hinge-arm model, with its small hinge controlling energy and rigid arms setting geometry, accurately captures the actual conformational energetics of the nanostructures.

What would settle it

Fabricate a hinge-arm nanostructure whose designed barrier height or metastable separation deviates measurably from the value predicted by the model when the arms are held rigid.

Figures

Figures reproduced from arXiv: 2606.31620 by Andreas Ehrmann, Carl P. Goodrich, Marija Krsti\'c, Sahar Samadzadeh.

Figure 1
Figure 1. Figure 1: Designing bistable nanostructures for target behav [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

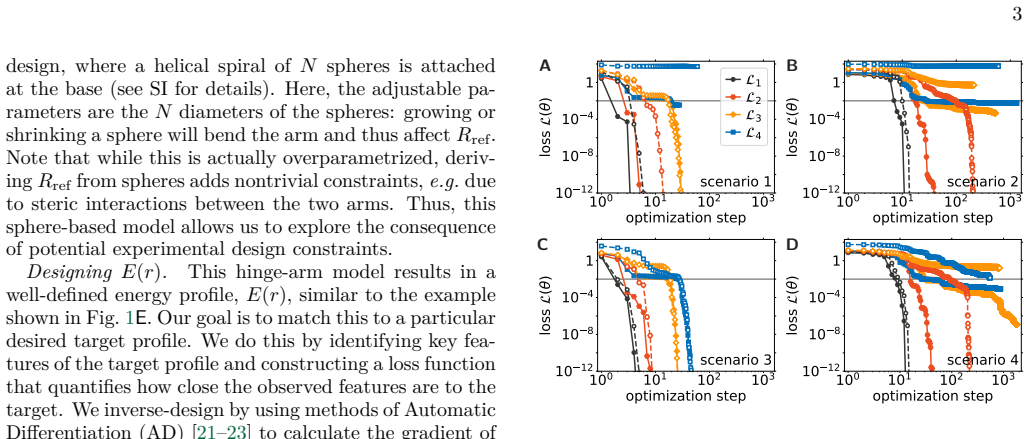

Figure 2. Figure 2: Hierarchical designability optimization outcomes [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Design freedom in the location of the transition [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Matching target energy profiles in different design [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

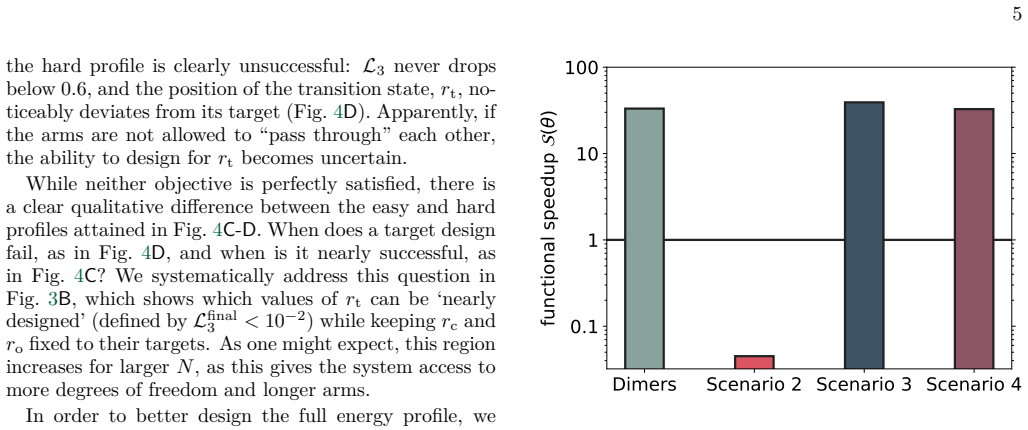

Figure 5. Figure 5: Functional speedup of the energy-delivery mecha [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 7

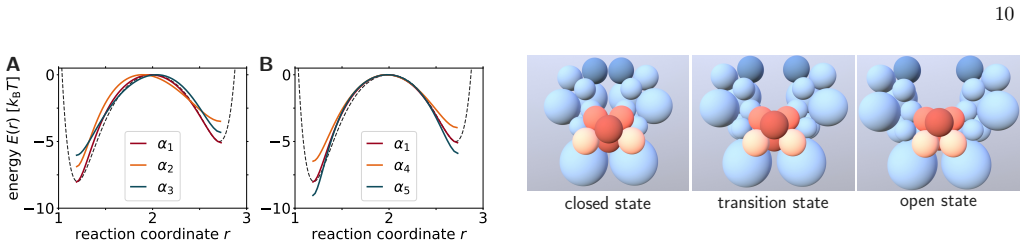

Figure 7. Figure 7: Bistable nanostructure transitioning from the poly [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: Design freedom in the location of the transition [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Energy profiles corresponding to the initial param [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
Figure 12
Figure 12. Figure 12: Source nanostructure with unconstrained arms [PITH_FULL_IMAGE:figures/full_fig_p012_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Optimization of the simpler loss function [PITH_FULL_IMAGE:figures/full_fig_p013_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Bistable nanostructure consisting of a fully poly [PITH_FULL_IMAGE:figures/full_fig_p013_14.png] view at source ↗
Figure 16
Figure 16. Figure 16: Analysis of the coupled energy-delivery reaction between a Machine and a Source nanostructure. [PITH_FULL_IMAGE:figures/full_fig_p014_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Functional speedup as function of the interaction [PITH_FULL_IMAGE:figures/full_fig_p015_17.png] view at source ↗
read the original abstract

Many biological machines function through controlled conformational transitions, yet designing synthetic nanostructures with prescribed dynamical behavior remains a major challenge. Here, we develop a modular inverse-design framework for bistable nanostructures whose function is controlled by an energy profile along a geometric reaction coordinate. Inspired by proteins with rigid domains connected by flexible hinges, we introduce a hinge-arm paradigm in which a small bistable hinge controls the energetics of a conformational transition, while rigid arms map this transition onto the separation between external binding sites. Specifically, we ask which features of a target energy profile can be programmed under different design constraints. We find that the energy barriers and the binding-site separations in the two metastable states can be readily designed, while controlling the location of the transition state or the full shape of the energy profile requires additional design freedom. Using a differentiable design framework, we find that some optimized solutions are numerically inexact but still display the functional behavior for which the target profile was selected, emphasizing the importance of function-based evaluation criteria. These results establish a practical hierarchy of designability for bistable nanostructures and provide a route toward synthetic nanomachines that couple conformational transitions to target behavior.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript develops a modular inverse-design framework for bistable nanostructures based on the hinge-arm paradigm, in which a small bistable hinge controls the energetics of a conformational transition while rigid arms map the transition onto binding-site separation. The central claim is a hierarchy of designability obtained via differentiable optimization: energy barriers and the binding-site separations in the two metastable states can be readily programmed, whereas the location of the transition state and the full shape of the energy profile require additional design freedom. The authors note that some numerically inexact solutions remain functionally adequate and emphasize function-based evaluation criteria.

Significance. If the reported hierarchy holds under the stated computational model, the work supplies a concrete, practical guide for programming conformational dynamics in synthetic nanostructures. The modular separation of hinge energetics from arm geometry and the explicit distinction between exact numerical match and functional behavior are useful contributions that could accelerate design of nanomachines coupling geometry to target dynamics.

minor comments (2)
  1. [Abstract] Abstract: the statement that 'some optimized solutions are numerically inexact but still display the functional behavior' would be strengthened by a concrete metric or example (e.g., a tolerance on barrier height or a functional test) that defines 'functionally adequate.'
  2. [Abstract] Abstract: the phrase 'additional design freedom' is used without quantifying the extra degrees of freedom or parameters involved; a brief clarification would improve readability.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the careful reading, positive assessment of the significance of the modular inverse-design framework, and recommendation for minor revision. No major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper develops a modular inverse-design framework and reports empirical optimization results within a hinge-arm computational model. The hierarchy of designability (barriers and site separations programmable; TS location and full profile requiring extra freedom) is obtained directly from the model's numerical experiments rather than from any self-definitional mapping, fitted-input prediction, or load-bearing self-citation chain. No equations or claims reduce to their inputs by construction, and the work is self-contained against external benchmarks as an observation inside the stated framework.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 1 invented entities

Review based on abstract only; no explicit free parameters, axioms, or invented entities beyond the high-level hinge-arm concept can be extracted.

invented entities (1)
  • hinge-arm paradigm no independent evidence
    purpose: small bistable hinge controls energetics while rigid arms map transition to binding-site separation
    Introduced as the core modeling choice inspired by proteins

pith-pipeline@v0.9.1-grok · 5734 in / 1132 out tokens · 41795 ms · 2026-07-01T03:01:38.252012+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

33 extracted references · 3 canonical work pages · 1 internal anchor

  1. [1]

    Phillips, J

    R. Phillips, J. Kondev, J. Theriot, and H. Garcia,Phys- ical Biology of the Cell(Garland Science, 2012)

    2012

  2. [2]

    Nelson,Biological Physics: Energy, Information, Life (W

    P. Nelson,Biological Physics: Energy, Information, Life (W. H. Freeman and Company, 2013)

    2013

  3. [3]

    Zardecki, S

    C. Zardecki, S. Dutta, D. S. Goodsell, R. Lowe, M. Voigt, and S. K. Burley, Protein Science31, 129 (2022)

    2022

  4. [4]

    M. F. Perutz, Scientific American239, 92 (1978)

    1978

  5. [5]

    Fischer, K

    S. Fischer, K. W. Olsen, K. Nam, and M. Karplus, Pro- ceedings of the National Academy of Sciences108, 5608 (2011)

    2011

  6. [6]

    Zhang and H

    Y. Zhang and H. Hess, ACS Central Science5, 939 (2019)

    2019

  7. [7]

    Y. Lin, J. Ren, and X. Qu, Accounts of Chemical Re- search47, 1097 (2014). 9

    2014

  8. [8]

    Praetorius, P

    F. Praetorius, P. J. Y. Leung, M. H. Tessmer, A. Broer- man, C. Demakis, A. F. Dishman, A. Pillai, A. Idris, D. Juergens, J. Dauparas, X. Li, P. M. Levine, M. Lamb, R. K. Ballard, S. R. Gerben, H. Nguyen, A. Kang, B. Sankaran, A. K. Bera, B. F. Volkman, J. Nivala, S. Stoll, and D. Baker, Science381, 754 (2023)

    2023

  9. [9]

    W. B. Rogers, W. M. Shih,and V. N. Manoharan,Nature Reviews Materials1, 16008 (2016)

    2016

  10. [10]

    E. M. King, C. X. Du, Q.-Z. Zhu, S. S. Schoenholz, and M. P. Brenner, Proceedings of the National Academy of Sciences121, e2311891121 (2024)

    2024

  11. [11]

    Q.-Z. Zhu, C. X. Du, E. M. King, and M. P. Brenner, Physical Review Research6, L042057 (2024)

    2024

  12. [12]

    Koehler, P

    L. Koehler, P. Ronceray, and M. Lenz, Physical Review X14, 041061 (2024)

    2024

  13. [13]

    M. C. Hübl, T. E. Videbæk, D. Hayakawa, W. B. Rogers, and C. P. Goodrich, Nature Physics22, 294 (2026)

    2026

  14. [14]

    Controlling energy delivery with bistable nanostructures

    A. Ehrmann and C. P. Goodrich, arXiv:2506.14266 [cond-mat.soft] (2025)

    work page internal anchor Pith review Pith/arXiv arXiv 2025

  15. [15]

    Holmes-Cerfon, S

    M. Holmes-Cerfon, S. J. Gortler, and M. P. Brenner, Proceedings of the National Academy of Sciences110, 10.1073/pnas.1211720110 (2013)

    work page doi:10.1073/pnas.1211720110 2013

  16. [16]

    C. P. Goodrich, E. M. King, S. S. Schoenholz, E. D. Cubuk, and M. P. Brenner, Proceedings of the National Academy of Sciences118, e2024083118 (2021)

    2021

  17. [17]

    S. A. Trygubenko and D. J. Wales, The Journal of Chem- ical Physics120, 2082 (2004)

    2082

  18. [18]

    C. J. Cerjan and W. H. Miller, The Journal of Chemical Physics75, 2800 (1981)

    1981

  19. [19]

    Wales,Energy Landscapes: Applications to Clusters, Biomolecules and Glasses, Cambridge Molecular Science (Cambridge University Press, 2004)

    D. Wales,Energy Landscapes: Applications to Clusters, Biomolecules and Glasses, Cambridge Molecular Science (Cambridge University Press, 2004)

    2004

  20. [20]

    J. C. Mauro, R. J. Loucks, and J. Balakrishnan, The Journal of Physical Chemistry A109, 9578 (2005)

    2005

  21. [21]

    A. G. Baydin, B. A. Pearlmutter, A. A. Radul, and J. M. Siskind, Journal of Machine Learning Research18, 1 (2018)

    2018

  22. [22]

    D. E. Rumelhart, G. E. Hinton, and R. J. Williams, Na- ture323, 533 (1986)

    1986

  23. [23]

    R. E. Wengert, Communications of the ACM7, 463 (1964)

    1964

  24. [24]

    Blondel, Q

    M. Blondel, Q. Berthet, M. Cuturi, R. Frostig, S. Hoyer, F. Llinares-López, F. Pedregosa, and J.-P. Vert, arXiv 10.48550/arXiv.2105.15183 (2022), 2105.15183 [cs]

    work page doi:10.48550/arxiv.2105.15183 2022

  25. [25]

    Melio, M

    J. Melio, M. Van Hecke, S. E. Henkes, and D. J. Kraft, Nature651, 632 (2026)

    2026

  26. [26]

    Bradbury, R

    J. Bradbury, R. Frostig, P. Hawkins, M. J. Johnson, C. Leary, D. Maclaurin, G. Necula, A. Paszke, J. Van- derPlas, S. Wanderman-Milne, and Q. Zhang, JAX: com- posable transformations of Python+NumPy programs (2023)

    2023

  27. [27]

    S. S. Schoenholz and E. D. Cubuk, Journal of Statis- tical Mechanics: Theory and Experiment2021, 124016 (2021)

    2021

  28. [28]

    Sadoc and N

    J. Sadoc and N. Rivier, The European Physical Journal B12, 309 (1999). Appendix A: Model details

    1999

  29. [29]

    hinge”regiontransitioningbetweentwocon- figurations and rigid “arms

    Designing bistable nanostructures The bistable nanostructures used in this work consist ofacentral“hinge”regiontransitioningbetweentwocon- figurations and rigid “arms” that are symmetrically at- tached to the hinge. The hinge is modeled by six spher- ical particles with diameter of 1, which can be arranged in a “closed” polyhedral conformation or an “open...

  30. [30]

    easy”) and Source (“hard

    Target energy profiles We model the target energy profiles of Machine (“easy”) and Source (“hard”) nanostructures through double-well potentials, allowing us to independently tune the positions of the closed, open, and transition states, all barrier heights, and the steepness of the barriers. Each 10 1 2 3 reaction coordinate r 10 5 0 energy E(r) [kBT] 1 ...

  31. [31]

    This stacking of regular tetrahedra is known as the Boerdijk–Coxeter helix [28]

    Designing colloidal nanostructures with sphere-based arms We construct a sphere-based arm as a helical structure by mirroring one point of a tetrahedron with respect to the plane formed by the outermost three points, which is repeated until a desired numberNof colloids in the arm is reached. This stacking of regular tetrahedra is known as the Boerdijk–Cox...

  32. [32]

    passthrough

    Design freedom in the location of the transition state We know from previous work that arbitrary energy barriers can be designed with the hinge [16], but can any combination ofr c,r o, andr t be achieved just by chang- ing the arm design? We test the design freedom in the location of the transition state for a fixed location of the closed state atrc = 1.2...

  33. [33]

    Comparing the mean first-passage time of the coupled re- actionstotheMachineonitsownresultsinthefunctional speedup presented in the manuscript

    Figure 16Bdemonstrates that the energy barriers along the coupled reaction, Mc·Sc→Mo·So, (purple curve) are significantly smaller compared to the energy barriers of the Machine nanostructure transitioning on its own, Mc→Mo, and the Source on its own, Sc→So. Comparing the mean first-passage time of the coupled re- actionstotheMachineonitsownresultsinthefun...
