Relaxation of Incommensurate Structures via Quantum Models

Mengfan Tu , Huajie Chen , Daniel Massatt This is my paper

Pith reviewed 2026-07-01 03:14 UTC · model grok-4.3

classification ⚛️ physics.comp-ph
keywords incommensurate systemsstructural relaxationvariational quantum frameworkSchrödinger modelsthermodynamic limitsscattering-channel approximationdomain wallselectronic spectrum
0
0 comments X

The pith

A variational quantum framework places displacement fields on configuration space and the Hamiltonian in reciprocal space to define relaxed energy, local density of states, and forces for incommensurate Schrödinger models through thermodyna

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a variational quantum framework for structural relaxation in incommensurate systems that lack global translational symmetry. Displacement fields are formulated on the configuration space while the electronic Hamiltonian is represented in reciprocal space. This construction produces well-defined relaxed energy, local density of states, and forces via thermodynamic limits. An anisotropic scattering-channel approximation is introduced together with a proof of its exponential convergence. Numerical experiments illustrate that the resulting model captures domain-wall formation and the associated changes in the electronic spectrum.

Core claim

We develop a variational quantum framework for structural relaxation in incommensurate Schrödinger models, where displacement fields are formulated on the configuration space and the electronic Hamiltonian is represented in reciprocal space. This yields well-defined relaxed energy, local density of states, and forces through thermodynamic limits. We propose an anisotropic scattering-channel approximation, and prove exponential convergence of the approximate equilibria. Numerical experiments are performed to support the analysis and show that the model captures domain-wall formation and its impact on the electronic spectrum.

What carries the argument

The variational quantum framework that formulates displacement fields on configuration space and represents the electronic Hamiltonian in reciprocal space, allowing thermodynamic limits to produce well-defined relaxed quantities.

If this is right

  • Relaxed energy, local density of states, and forces become well-defined objects for incommensurate systems via thermodynamic limits.
  • The anisotropic scattering-channel approximation produces equilibria that converge exponentially to the exact relaxed states.
  • Domain-wall formation appears naturally and alters the electronic spectrum in the computed equilibria.
  • Numerical experiments confirm both the convergence analysis and the appearance of domain walls.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same configuration-space formulation could be tested on other incommensurate models whose thermodynamic limits are already known to exist.
  • Forces obtained this way might be inserted into larger-scale molecular-dynamics simulations of aperiodic materials without requiring artificial periodic supercells.
  • If the exponential convergence rate holds uniformly, the approximation could be used to reach system sizes inaccessible to direct diagonalization.

Load-bearing premise

The thermodynamic limit exists and produces well-defined relaxed quantities for incommensurate systems that lack global translational symmetry.

What would settle it

A concrete incommensurate Schrödinger model for which the thermodynamic limit of the relaxed energy or forces fails to converge would falsify the claim that the framework yields well-defined quantities.

Figures

Figures reproduced from arXiv: 2606.31104 by Daniel Massatt, Huajie Chen, Mengfan Tu.

Figure 2.1

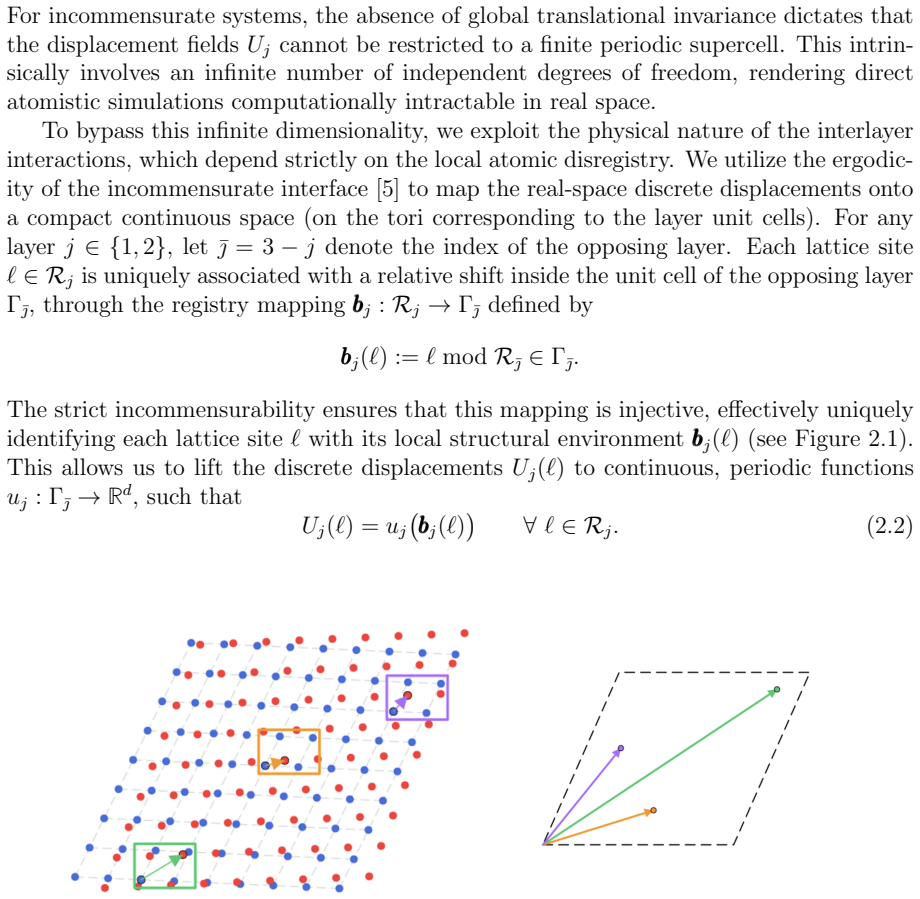

Figure 2.1. Figure 2.1: Left: A real-space twisted bilayer lattice, where isolated dots and dashed grids [PITH_FULL_IMAGE:figures/full_fig_p004_2_1.png] view at source ↗
Figure 3.2
Figure 3.2. Figure 3.2: The domain DW,L in the reciprocal space. Restricting Hˆ[u](ξ) to this finite index set gives the finite matrix Hˆ[u](ξ) DW,L = [PITH_FULL_IMAGE:figures/full_fig_p010_3_2.png] view at source ↗
Figure 4.3
Figure 4.3. Figure 4.3: Displacements uj (j = 1, 2) of equilibrium under different d (by using scattering-channel cutoffs L = 40, W = 10 and Uc = 200). The first and third rows dis￾play the displacements in configuration space, while the second and fourth rows present their corresponding Fourier coefficients. closely related to the regularity of the relaxed displacement field than to the high-energy decay of gβ,µ. The numerical… view at source ↗
Figure 4.4

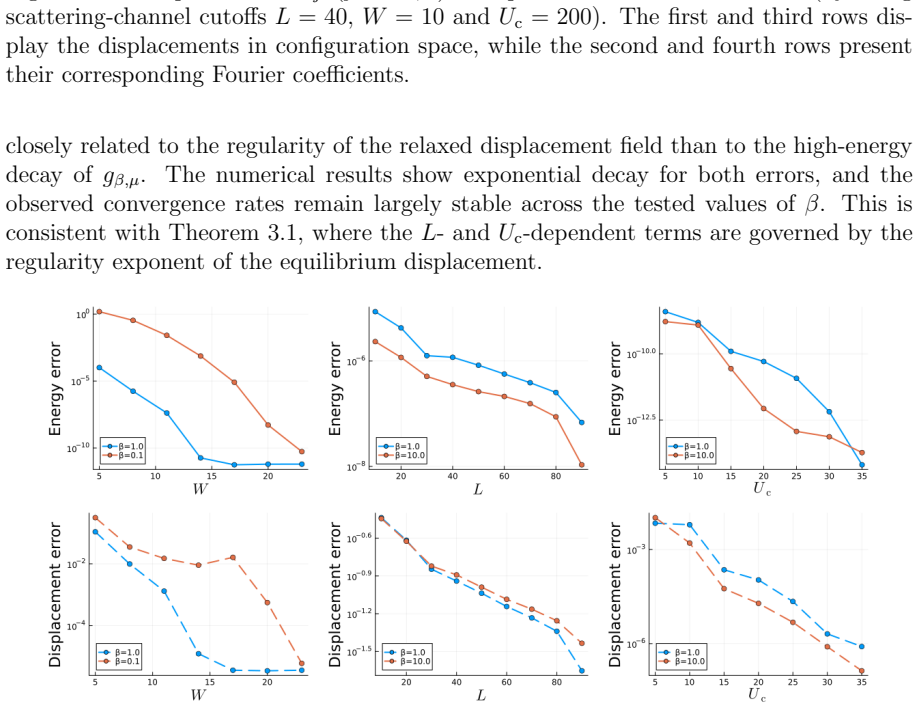

Figure 4.4. Figure 4.4: Convergence with respect to the truncation parameters [PITH_FULL_IMAGE:figures/full_fig_p013_4_4.png] view at source ↗
Figure 4.5

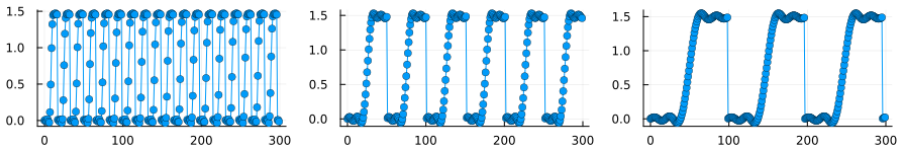

Figure 4.5. Figure 4.5: Inter-layer shift of equilibria with different mismatch ratios (by using [PITH_FULL_IMAGE:figures/full_fig_p015_4_5.png] view at source ↗
Figure 4.6
Figure 4.6. Figure 4.6: Inter-layer shift of equilibria with different vertical distances (by using [PITH_FULL_IMAGE:figures/full_fig_p015_4_6.png] view at source ↗
Figure 4.7
Figure 4.7. Figure 4.7: LDoS in reciprocal space for d = 3.6 (top row) and d = 2.0 (bottom row). Left: unrelaxed LDOS. Middle: relaxed LDOS. Right: difference between the relaxed and unrelaxed LDoS [PITH_FULL_IMAGE:figures/full_fig_p016_4_7.png] view at source ↗
Figure 4.8

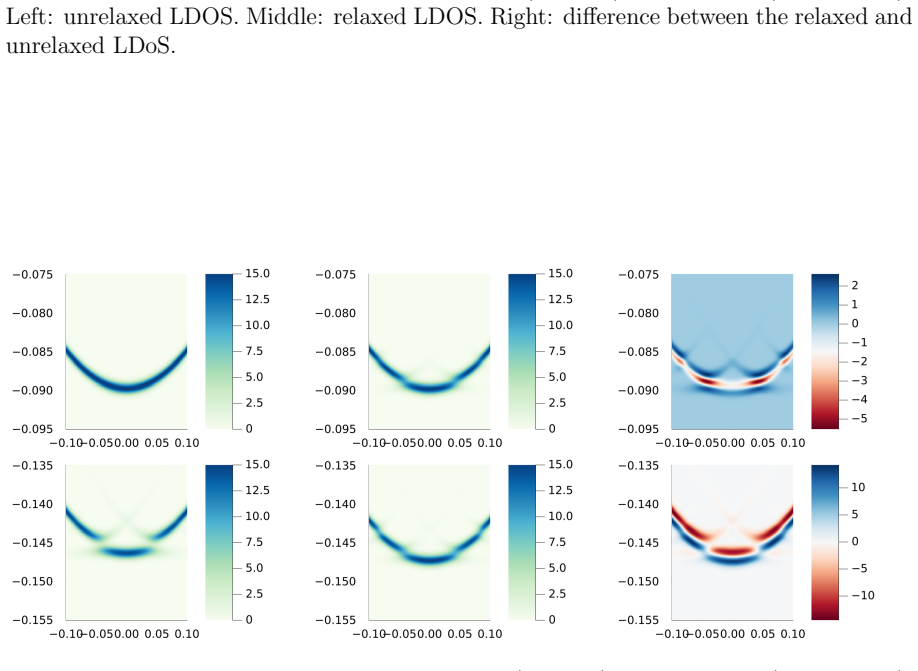

Figure 4.8. Figure 4.8: LDoS in reciprocal space for σz = σx (top row), and σz = 2σx (bottom row). Left: unrelaxed LDOS. Middle: relaxed LDOS. Right: difference between the relaxed and unrelaxed LDoS. 16 [PITH_FULL_IMAGE:figures/full_fig_p016_4_8.png] view at source ↗
read the original abstract

Accurately modeling structural relaxation in incommensurate systems is intrinsically challenging due to the absence of global translational symmetry. In this work, we develop a variational quantum framework for structural relaxation in incommensurate Schr\"{o}dinger models, where displacement fields are formulated on the configuration space and the electronic Hamiltonian is represented in reciprocal space. This yields well-defined relaxed energy, local density of states, and forces through thermodynamic limits. We propose an anisotropic scattering-channel approximation, and prove exponential convergence of the approximate equilibria. Numerical experiments are performed to support the analysis and show that the model captures domain-wall formation and its impact on the electronic spectrum.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper develops a variational quantum framework for structural relaxation in incommensurate Schrödinger models. Displacement fields are formulated on the configuration space and the electronic Hamiltonian is represented in reciprocal space. This is claimed to yield well-defined relaxed energy, local density of states, and forces through thermodynamic limits. An anisotropic scattering-channel approximation is proposed with a proof of exponential convergence of the approximate equilibria. Numerical experiments support the analysis by showing domain-wall formation and its impact on the electronic spectrum.

Significance. If the thermodynamic limit exists rigorously and the convergence proof is valid, the framework could advance modeling of relaxation in systems without global translational symmetry, such as moiré structures or quasicrystals, by providing a variational approach with controlled approximations and explicit convergence rates.

major comments (1)
  1. Abstract: The assertion that the variational formulation 'yields well-defined relaxed energy, local density of states, and forces through thermodynamic limits' is the load-bearing premise for the entire framework, including the anisotropic approximation and exponential convergence proof. No explicit construction of the limit, control of boundary terms, or verification that the limit is independent of cutoff procedure is visible; if this premise fails, all downstream claims become undefined.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thorough review and for highlighting the foundational role of the thermodynamic limit in our framework. We address the single major comment below and will revise the manuscript accordingly to strengthen the exposition.

read point-by-point responses

  1. Referee: Abstract: The assertion that the variational formulation 'yields well-defined relaxed energy, local density of states, and forces through thermodynamic limits' is the load-bearing premise for the entire framework, including the anisotropic approximation and exponential convergence proof. No explicit construction of the limit, control of boundary terms, or verification that the limit is independent of cutoff procedure is visible; if this premise fails, all downstream claims become undefined.

    Authors: We agree that the thermodynamic limit is central and that its construction requires explicit detail. In the manuscript, the configuration-space formulation of displacements and the reciprocal-space Hamiltonian are introduced in Section 2, with the relaxed quantities defined via limits of finite-domain approximations as the cutoff tends to infinity. However, the referee is correct that a self-contained subsection rigorously constructing the limit, bounding boundary terms, and proving cutoff independence is not present. We will add this material (new subsection 2.4) in the revision, including the requisite estimates. This will also clarify how the limit underpins the subsequent anisotropic approximation and its exponential convergence. The abstract claim will be retained but cross-referenced to the new subsection. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper formulates displacement fields on configuration space and the Hamiltonian in reciprocal space, then asserts that thermodynamic limits produce well-defined relaxed energy, LDOS, and forces. It introduces an anisotropic scattering-channel approximation and proves exponential convergence of the resulting approximate equilibria. No quoted step reduces a claimed prediction or equilibrium to a fitted parameter, self-definition, or self-citation chain; the convergence proof is presented as an independent mathematical result rather than a renaming or tautology. The thermodynamic-limit premise is an assumption, not a circular redefinition of the outputs. This is the normal case of a self-contained derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Review based solely on abstract; no explicit free parameters, axioms, or invented entities are identifiable from the provided text.
