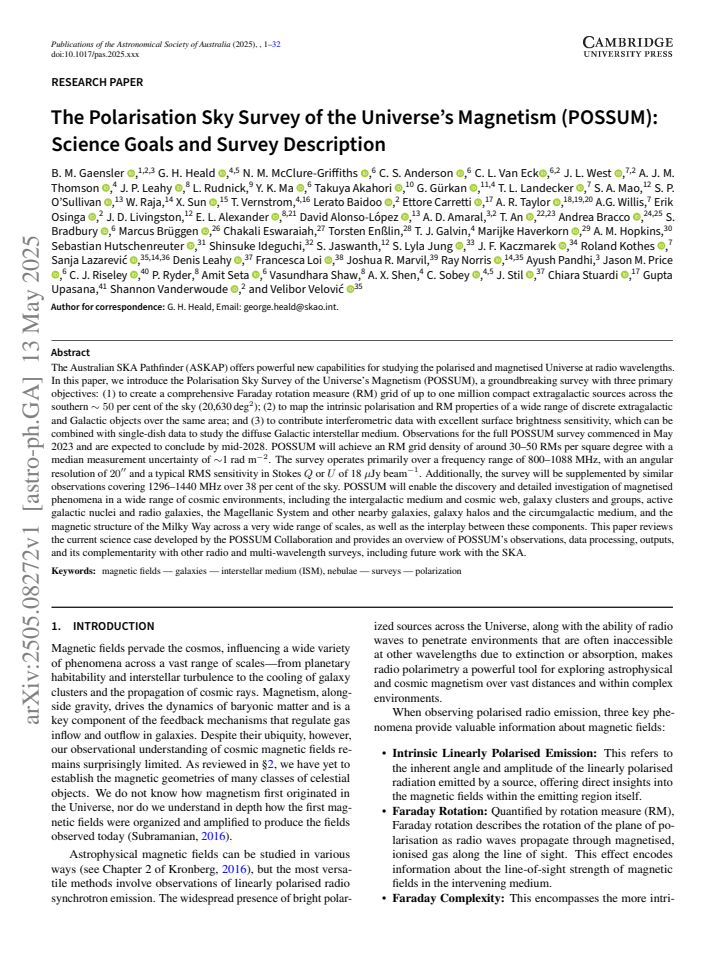

The Polarisation Sky Survey of the Universe's Magnetism (POSSUM): Science Goals and Survey Description

T0 review · 2 major / 4 minor · reviewed 2026-08-15 · deepseek-v4-flash

Pith's one-line read POSSUM will chart half the sky's magnetism through a grid of up to one million Faraday rotation measures of background galaxies.

desk verdict Solid, honest survey description with one internal inconsistency: the abstract and §8 claim a survey-wide median RM uncertainty of ~1 rad m^-2, which the paper's own §3.3 numbers do not support. read the letter →

arxiv 2505.08272 v1 pith:QCE745HI submitted 2025-05-13 astro-ph.GA

classification astro-ph.GA
keywords FaradayrotationmeasureRMgridradiopolarimetrycosmicmagneticfieldsASKAPintergalacticGalacticinterstellarmediumpolarisationsurvey
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper describes POSSUM, a radio-polarisation survey that aims to measure Faraday rotation toward as many as one million compact extragalactic sources across 20,630 square degrees, half of the celestial sphere. At a projected density of 30 to 50 rotation measures per square degree and a median uncertainty near $1\ \mathrm{rad\,m^{-2}}$, the survey would be the densest and most precise RM grid ever built, tens of times denser than the largest existing catalogue. Alongside the grid it will deliver polarisation spectra, Faraday-depth cubes, and maps of diffuse Galactic emission. If these projections hold, POSSUM would turn magnetic fields from the Milky Way's gas to galaxy clusters and the cosmic web into a routinely measurable quantity rather than a poorly mapped curiosity.

What carries the argument

The load-bearing object is the Faraday rotation measure grid: an ensemble of background polarised radio sources whose polarisation angles are rotated by foreground magnetised plasma according to $\mathrm{RM} = 0.812 \int n_e B_{\parallel}\, dl$ in $\mathrm{rad\,m^{-2}}$. Each source is a line of sight through the magneto-ionic medium, so a dense grid turns a source catalogue into a tomographic tracer of magnetic fields along every sight line. The paper's pipelines convert measured polarisation spectra $P(\lambda^2)$ into Faraday dispersion functions using RM synthesis, and run this transformation both per detected source (the 1D pipeline) and pixel-by-pixel over full Stokes cubes (the 3D pipeline). The expected density and precision rest on scaling the pilot survey's measured counts to the full 853-field tiling, using an $8\sigma$ polarised-intensity detection threshold of $144\ \mu\mathrm{Jy\,beam^{-1}}$.

What would settle it

In the first public data release, count polarised sources with signal-to-noise ratio above 8 within the 98 scheduling blocks that received the double leakage correction and within the Galactic-plane fields with bright diffuse emission; if their density falls below 30 per square degree there, the stated grid density and the projected total of 620,000 to 1,030,000 RMs cannot be met even if the rest of the survey performs as piloted.

Watch

Extended reading notes

Core claim

The central claim is that the survey's observing design—a 30-square-degree instantaneous field of view, full-Stokes spectra across 800–1088 MHz, and long-track synthesis observations—will produce a catalogue of up to one million linearly polarised background radio galaxies, with 30–50 rotation measures per square degree and a median RM uncertainty of roughly $1\ \mathrm{rad\,m^{-2}}$. Every source in the commensal total-intensity catalogue will carry measured polarisation spectra and a Faraday dispersion function, whether or not it is detected in polarisation. The rotation-measure spread function in band 1 has FWHM $58\ \mathrm{rad\,m^{-2}}$, giving RM errors near $3\ \mathrm{rad\,m^{-2}}$ at the detection limit and means and medians of 2.1 and 1.6 $\mathrm{rad\,m^{-2}}$ over the detected population; combining bands tightens the median to about $1\ \mathrm{rad\,m^{-2}}$. The paper argues this grid, together with resolved polarisation maps of more than a hundred radio galaxies and all-sky diffuse emission maps, will enable the first systematic measurements of magnetic fields in the intergalactic medium, cluster and group outskirts, galaxy halos, and the multiphase Milky Way.

Load-bearing premise

The million-source projection assumes the polarised-source density measured in the pilot survey—42 per square degree in an extragalactic field and 20 per square degree in a Galactic-plane field—holds across the entire 20,630-square-degree footprint, including regions of bright diffuse emission and the roughly 10 percent of observations that received an erroneous double leakage correction.

Editorial extensions

If this is right

  • The RM grid will contain roughly 35 times more sources per square degree than the NVSS catalogue, with about ten times smaller median RM uncertainty, making coherent magnetic structures visible at arcminute scales where previous surveys showed noise.
  • Cluster and group science will shift from individual targets to ensembles: over a dozen clusters with 100+ sight lines inside the virial radius and at least a hundred more with 50+ sight lines, enabling RM stacking in bins of mass and redshift.
  • For the Milky Way, the dense grid supports an all-sky Faraday rotation map at sub-degree resolution, allowing direct tests of disk dynamo models and reconstruction of the halo magnetic field geometry.
  • Polarisation spectra for roughly $10^5$ blazars and resolved RM maps of hundreds to thousands of radio galaxies will let population studies separate intrinsic AGN magneto-ionic structure from environmental Faraday rotation.
  • Combining band-1 with band-2 data cuts the rotation-measure spread-function width from 58 to 36 $\mathrm{rad\,m^{-2}}$ and pushes the median uncertainty to about 1 $\mathrm{rad\,m^{-2}}$, improving precision without losing the 800–1088 MHz source density.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the pilot density holds only in clean extragalactic fields and not in bright diffuse regions, the final catalogue may contain roughly 600,000–800,000 RMs rather than the advertised 'up to one million'; the paper's own range of $6.2$–$10.3 \times 10^5$ already brackets this uncertainty.
  • The 98 scheduling blocks that received the erroneous double leakage correction form a natural reproducibility experiment: comparing re-reduced leakage-corrected products with the archived versions would directly test whether the double correction introduced residuals larger than the claimed $1\ \mathrm{rad\,m^{-2}}$ median error.
  • Pairing each RM with a redshift from the commensurate continuum survey would convert the statistical grid into a three-dimensional magnetic-field map of the intervening medium, since RM alone yields only the line-of-sight integral of electron density times field strength.
  • A testable extension the paper points toward but does not promise: merge POSSUM's diffuse polarisation maps with single-dish data to separate emission from Faraday rotation along the line of sight, which would let the survey constrain the 3D structure of the magnetised interstellar medium.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. This paper presents the survey design, science goals, data products, and expected performance of POSSUM, an ASKAP polarisation survey covering 20,630 deg^2 (50% of the sky) in band 1 (800-1088 MHz) with an ancillary band-2 component (1296-1440 MHz) over 15,470 deg^2. The central claims are that POSSUM will deliver an RM grid of up to one million compact extragalactic sources at a density of 30-50 RMs per square degree, with a median RM uncertainty of about 1 rad m^-2, 20 arcsecond resolution, and about 18 microJy/beam sensitivity in Stokes Q and U. The paper describes the observational setup, the pilot-survey basis for the expected yield, the calibration and processing pipelines, the public data products, and the complementarity with other radio and multi-wavelength surveys, including future SKA work.

Significance. If the stated performance is achieved, POSSUM will be a transformative resource for cosmic magnetism studies: it will increase the extragalactic RM grid density by roughly an order of magnitude over NVSS, improve per-source RM precision by a similar factor, and open the under-explored southern sky to RM-grid science across the IGM, clusters, galaxy halos, the Milky Way ISM, and AGN. A particular strength of the paper is that the headline yield and precision numbers are grounded in the POSSUM pilot survey (Vanderwoude et al. 2024) rather than asserted from simulations alone, and the paper is transparent about several caveats, including the double-leakage correction affecting 98 scheduling blocks and the lack of single-dish short-spacing data for diffuse emission. The survey description is detailed enough to be useful to future users of the dataset, and the comparison table with other polarisation surveys is a valuable reference. My main reservation is an internal inconsistency in the headline RM-precision claim, which is consequential for one of the stated science drivers.

major comments (2)
  1. [Abstract, §3.3, Table 1, §8] The abstract, Section 1, and Section 8 state that POSSUM will achieve a survey-wide median RM uncertainty of about 1 rad m^-2, but this is contradicted by the numbers in Section 3.3 and Table 1. Section 3.3 reports a median RM uncertainty of 1.6 rad m^-2 for band-1-only data and about 1 rad m^-2 only for areas with both band-1 and band-2 coverage; Table 1 gives the dual-band overlap as 36.75% of the survey area, so roughly 63% of the survey will have only band-1 precision. A properly weighted survey-wide median therefore lies between 1.0 and 1.6 rad m^-2 and cannot be quoted as about 1. This matters because Section 2.3.1 identifies delta RM <~ 1 rad m^-2 as the precision needed to detect halo fields around external edge-on spirals; the unqualified wording overstates the capability available over most of the survey. Please quote band-dependent medians or a properly weighted survey-wide median, and qualify the Section 2.3.1 science forecast accordingly.
  2. [§3.3, Fig. 2, §5.1] The headline yield of 30-50 RMs per square degree and the corresponding (6.2-10.3) x 10^5 RM total are extrapolated from a single extragalactic pilot field (42 RMs deg^-2) and a single Galactic-plane pilot field (20 RMs deg^-2). The Galactic-plane value is a factor of about two lower than the extragalactic value, and the survey deliberately includes the Galactic plane (Figure 2) as well as 98 scheduling blocks affected by the double leakage correction (Section 5.1). I do not regard the pilot measurements as circular or invalid, but the extrapolation is the principal uncertainty in the central yield claim. Please state the pilot coverage explicitly in Section 3.3, quantify the systematic uncertainty in the yield estimate, or present the yield as an environment-dependent estimate (e.g., applying the Galactic-plane density separately to the plane region).
minor comments (4)
  1. [§7.2.3] The heading 'Low-freqeuncy surveys' contains a typo; it should read 'Low-frequency surveys'.
  2. [§7.2.4] The heading 'Galactic Plane Purveys' contains a typo; it should read 'Galactic Plane Surveys'.
  3. [§5.1] The double-leakage caveat for the 98 affected scheduling blocks is appropriately disclosed, but the effect on the expected RM grid density for those 10% of survey fields is not quantified; a sentence estimating the impact on source yield or RM precision would help readers assess the overall survey forecast.
  4. [Table 1] Table 1 is dense and very informative, but the distinction between the phi_max and phi_max-scale columns could be made more explicit in the caption; currently the footnote defines the quantities but the physical difference is not described.

Circularity Check

0 steps flagged · score 0.0 of 10

No circular reasoning: the survey yield and RM precision claims are empirical extrapolations from the independent POSSUM pilot survey, not from the science goals they support.

full rationale

The paper's central quantitative claims—RM grid density, total yield, and RM uncertainty—are not derived from the science goals or from the survey's own conclusions. Section 3.3 states that the 30–50 RMs deg^-2 projection is based on previous polarisation studies and is now supported by the POSSUM pilot survey (Vanderwoude et al. 2024), which measured 42 RMs deg^-2 in an extragalactic field and 20 RMs deg^-2 in a Galactic-plane field. The RM precision values (median 1.6 rad m^-2 in band 1, ≈1 rad m^-2 in dual-band areas) are likewise presented as measured properties of the pilot survey's detected source population. These are empirical inputs, not quantities defined by POSSUM's science objectives, so there is no self-definitional or fitted-input-called-prediction circularity. The paper also cites earlier POSSUM-related work for context and for the pilot measurements, but these citations are not used as the sole justification of the target result; the pilot data are external, falsifiable observations. The only substantive weakness is internal rather than circular: the abstract and Section 8 state a survey-wide median RM uncertainty of ~1 rad m^-2, while Section 3.3 reports 1.6 rad m^-2 for band-1-only coverage and ≈1 rad m^-2 only where dual-band data exist, so the survey-wide median should be a weighted intermediate value. That is a support/consistency gap, not a circular derivation, and it does not affect the yield estimates. No circular step is present under the required standards.

Assumptions & free parameters 0 free parameters · 3 assumptions · 0 invented entities

No free parameters are fitted in this descriptive paper; survey parameters are design choices or measurements from the pilot survey. The axioms are standard physics and instrumentation assumptions that underlie the interpretation of the planned data. No new entities are postulated.

assumptions (3)
  • domain assumption Faraday rotation, RM = 0.81 * integral(n_e * B_parallel * dl), can be used to infer line-of-sight magnetic fields from polarized radio sources.
    This is the foundational relation used throughout Section 2 to interpret RM grids. It is standard astrophysics and not derived in this paper.
  • domain assumption RM synthesis and broadband spectropolarimetric techniques can reliably recover Faraday rotation from the observed polarized spectra.
    Section 4.4 uses RM-Tools and RM synthesis to produce Faraday dispersion functions and RMs. The reliability of these methods is assumed from prior literature.
  • domain assumption ASKAP polarimetric calibration maintains the stated purity (leakage around 0.2 percent across the field, on-axis corrected to better than 0.1 percent) over the full survey.
    Section 3.1 and 5.1 describe the calibration approach and note that 98 scheduling blocks were affected by a double leakage correction, implying this assumption is not yet fully satisfied for about 10 percent of the survey area.

how reviews work

0 comments
Cite this review

Pith. "Pith review of The Polarisation Sky Survey of the Universe's Magnetism (POSSUM): Science Goals and Survey Description." pith.science (2026). https://pith.science/paper/QCE745HI

@misc{pith2026250508272,
  author       = {Pith},
  title        = {Pith review of: The Polarisation Sky Survey of the Universe's Magnetism (POSSUM): Science Goals and Survey Description},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/QCE745HI}},
  note         = {Machine review of arXiv:2505.08272}
}
abstract

The Australian SKA Pathfinder (ASKAP) offers powerful new capabilities for studying the polarised and magnetised Universe at radio wavelengths. In this paper, we introduce the Polarisation Sky Survey of the Universe's Magnetism (POSSUM), a groundbreaking survey with three primary objectives: (1) to create a comprehensive Faraday rotation measure (RM) grid of up to one million compact extragalactic sources across the southern ~50 per cent of the sky (20,630 deg$^2$); (2) to map the intrinsic polarisation and RM properties of a wide range of discrete extragalactic and Galactic objects over the same area; and (3) to contribute interferometric data with excellent surface brightness sensitivity, which can be combined with single-dish data to study the diffuse Galactic interstellar medium. Observations for the full POSSUM survey commenced in May 2023 and are expected to conclude by mid-2028. POSSUM will achieve an RM grid density of around 30-50 RMs per square degree with a median measurement uncertainty of ~1 rad m$^{-2}$. The survey operates primarily over a frequency range of 800-1088 MHz, with an angular resolution of 20'' and a typical RMS sensitivity in Stokes $Q$ or $U$ of 18 $\mu$Jy beam$^{-1}$. Additionally, the survey will be supplemented by similar observations covering 1296-1440 MHz over 38 per cent of the sky. POSSUM will enable the discovery and detailed investigation of magnetised phenomena in a wide range of cosmic environments, as well as the interplay between these components. This paper reviews the current science case developed by the POSSUM Collaboration and provides an overview of POSSUM's observations, data processing, outputs, and its complementarity with other radio and multi-wavelength surveys, including future work with the SKA. [Abstract abridged]

Figures

Figures reproduced from arXiv: 2505.08272 by the authors.

Figure 1
Figure 1. Comparison of NVSS (left; Taylor et al., 2009) and POSSUM (right) Band 1 RMs within the Fornax cluster’s virial radius (grey dashed circle), showcasing POSSUM’s transformative capability to probe magnetised gas in clusters, groups, and many other ∼degree-scale extragalactic objects. The background is a Digitized Sky Survey optical image (greyscale). Solid circles indicate the position, magnitude, and sign of RMs mea… view at source ↗
Figure 2
Figure 2. Planned sky coverage of POSSUM. The coverage of the band 1 (800–1088 MHz) component, commensal with the EMU survey, is shaded purple, and the band 2 (1296–1440 MHz) component, commensal with the WALLABY survey, is shaded green. (Regions covered by both components appear dark green.) The location of the Galactic Centre is marked by the cyan cross. The background greyscale map in the top panel is the reprocessed Hasla… view at source ↗
Figure 4
Figure 4. [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
Figures from the paper (7 more)
Figure 4
Figure 4. Figure 4: Comparison of POSSUM’s performance with other surveys listed in [PITH_FULL_IMAGE:figures/full_fig_p014_4.png]
Figure 3
Figure 3. Figure 3: The expected percentage of polarised sources for Stokes I fluxes above various thresholds (top) and percentage of polarised sources for var￾ious polarised fractions (bottom) computed using the Vanderwoude et al. (2024) prototype POSSUM catalogues. pertain to polarisati…
Figure 5
Figure 5. Figure 5: An illustration of the dramatic improvement in RM grid density and precision between the NVSS (top; Taylor et al., 2009) and POSSUM (bottom) band 1 surveys, focusing on mid-northern Galactic latitudes where the surveys currently overlap. POSSUM provides approximately 3…
Figure 6
Figure 6. Figure 6: Similar to the bottom panel of [PITH_FULL_IMAGE:figures/full_fig_p020_6.png]
Figure 7
Figure 7. Figure 7: POSSUM band 1 images of selected radio galaxies, illustrating POSSUM’s remarkable combination of resolution and sensitivity to large-scale emission. Each row features a different object, decreasing in angular size from top to bottom. POSSUM is expected to map the polar…
Figure 8
Figure 8. Figure 8: Part of a field centred at (ℓ, b) = (49.75◦, −29.5◦), demonstrating POSSUM’s excellent sensitivity to Galactic ISM emission structures. The top left panel shows the all-sky Wilkinson Microwave Anisotropy Probe (WMAP; Bennett et al., 2003) linearly polarised intensity i…
Figure 9
Figure 9. Figure 9: Comparison of NVSS (Condon et al., 1998) and ASKAP EMU/POSSUM maps in a typical extragalactic field. The top left panel shows the NVSS Stokes I map, while the top right panel presents the corresponding NVSS linearly polarised intensity. The bottom left panel displays t…
