Multi-wavelength disk images reveal how dust settles as disks age

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

A tutorial that reviews the physics and observational methods for measuring dust sizes and vertical settling in protoplanetary disks.

T0 review reviewed 2026-08-04 challenge →

load-bearing objection A sound, clearly written tutorial that accurately synthesizes known methods for dust settling and grain size inference; the only new element is a small model grid, and the summary overstates settling confidence slightly relative to its own caveats. the 1 major comments →

arxiv 2509.10614 v1 pith:STTQHOUZ submitted 2025-09-12 astro-ph.SR astro-ph.EP

An Introduction to Dust Evolution and Vertical Transport in Protoplanetary Disks

Marion Villenave This is my paper
classification astro-ph.SR astro-ph.EP
keywords protoplanetary disksdust settlinggrain growthmulti-wavelength observationsdust opacityradiative transferturbulenceplanet formation
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This tutorial argues that combining spatially resolved observations at optical, near-infrared, and millimeter wavelengths lets astronomers map where dust grains of different sizes sit in a protoplanetary disk. From those maps one can read off grain sizes, the height of the emitting or scattering surface, and how far dust has settled toward the midplane relative to gas. The payoff is a direct view of where dust accumulates and grows, which is where planet formation begins. The author shows that in the outer regions of Class II disks, millimeter-sized grains are typically settled into a thin midplane layer, while in younger Class 0/I systems settling is weak or absent.

Core claim

Working through the physics of dust-gas coupling (Stokes number), opacity as a function of grain size and wavelength, and radiative transfer with scattering, the author establishes an interpretive scheme: each observing wavelength is dominated by grains close to its resonance size, so multi-wavelength images act like a sieve on grain size; and each tracer's vertical extent—the dark-lane width in edge-on disks, the offset of scattered-light rings, the minor-axis shape of millimeter rings, the channel-map emission surface of molecular lines—can be converted into a physical height above the midplane. The synthesis shows that in mature Class II disks the outer regions have dust scale heights of

What carries the argument

The central objects are the Stokes number St, which sets how tightly a grain is coupled to the gas, and the settling–diffusion balance H_d/H_g = (1 + St Sc/α_z)^(-1), which turns a measured dust scale height into a turbulence level. On the observational side, the workhorse is the intensity equation including scattering (Equation 10), used at multiple millimeter wavelengths to fit grain size and column density, plus three geometric converters: the near/far channel-map ellipse (Equation 11) for molecular emission height, the minor-axis offset (Equation 12) for scattered-light surfaces, and the minor-axis profile shape of edge-on disks for millimeter dust heights.

Load-bearing premise

The entire interpretive chain rests on modeling grains as compact spheres in the Epstein drag regime with a single isotropic turbulence coefficient; if grains are porous aggregates or turbulence is anisotropic, the inferred sizes and scale heights are systematically biased.

What would settle it

Measure the same disk's dust scale height from two independent tracers whose opacities depend differently on porosity—e.g., millimeter continuum scattering and near-infrared polarimetry. If the inferred scale heights disagree beyond the compact-sphere model uncertainties, the single-grain-population assumption fails. Alternatively, directly resolving the vertical structure of a Class 0 disk at sub-millimeter wavelengths and finding a thin midplane layer would contradict the claim that young disks are un-settled.

Watch this falsifier. Get emailed when new claim-graph text bears on it.

If this is right

  • A measured dust-to-gas scale-height ratio yields a direct constraint on vertical turbulence α_z, typically implying values below about 10^-3 in settled outer disk regions.
  • Azimuthal brightness asymmetries in rings (the wall effect and the optically-thin ring effect) diagnose whether substructures are vertically thick or thin and where dust is concentrated.
  • Inferred maximum grain sizes around millimeters to centimeters imply growth is often limited by fragmentation or radial drift rather than by sticking alone.
  • Settled outer disks are favorable sites for pebble accretion, so planet formation may proceed efficiently exactly where dust has fallen into a thin midplane layer.
  • Comparing CO emission surfaces with scattered-light surfaces constrains the vertical temperature and gas structure and quantifies the degree of dust–gas separation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If grains are porous, the same observations would imply larger physical grain sizes and looser constraints on α_z; combining scattering albedo with polarization fractions could partially break this degeneracy.
  • A direct test would measure gas and dust scale heights independently in the same disk; a mismatch beyond the isotropic-turbulence prediction would indicate anisotropic or non-uniform turbulence.
  • The geometric methods assume circular, axisymmetric rings; applying them to spiral or warped disks would bias height estimates, so a natural extension is to generalize these methods to non-axisymmetric geometries.
  • The thin dust layers implied by the tutorial are prime sites for streaming instability, so searching for unresolved optically thick azimuthal brightness enhancements could identify where planetesimals form.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

1 major / 5 minor

Summary. This tutorial paper, intended as an introduction for beginners, connects basic theory of dust transport and evolution in protoplanetary disks with observational methods for inferring dust grain sizes and vertical structure. It recaps the standard equations for Epstein-regime stopping time, Stokes number, vertical settling, radial drift, and turbulent mixing; discusses dust opacities and porosity; and then reviews methods for constraining dust sizes from multi-wavelength millimeter observations and for measuring the vertical extent of dust and gas in edge-on and moderately inclined disks. It also presents a small parameterized mcfost model grid (Fig. 7) to illustrate how major-axis and minor-axis profiles depend on dust mass, scale height, and inclination, and it summarizes current observational constraints, emphasizing that millimeter dust is commonly vertically settled in outer Class II disks while settling may be less efficient in younger systems.

Significance. If the technical content is corrected, this tutorial would be a valuable pedagogical reference. Its strengths are the clear organization, the explicit listing of model parameters for the illustrative mcfost grid, the citation of publicly available analysis tools (disksurf, DISCMINER, ALFAHOR, DRAGyS), and the balanced presentation of open issues such as porosity, composition degeneracies, and the difficulty of measuring gas scale heights. The paper makes no claim to new observational results; it is a synthesis of existing methods and findings, with the author's own prior work cited appropriately for specific observational constraints. The main value lies in giving early-career readers a single, well-structured entry point to this literature.

major comments (1)
  1. [Sec. 2.1, Eqs. (5) and (6)] The dust scale-height ratio is mis-stated. The standard solution for vertical settling balanced by turbulent diffusion is H_d/H_g = (1 + St Sc/α_z)^(-1/2) (e.g., Dubrulle et al. 1995; Youdin & Lithwick 2007), not the exponent −1 printed in Eq. (5). The same issue affects Eq. (6), where the standard radial dust-ring width relation is w_d/w_g = (1 + St Sc/α_r)^(-1/2) (Dullemond et al. 2018). As written, these equations imply a linear rather than square-root dependence on St/α; in the well-coupled limit St/α ≪ 1, the inferred α_z would be off by a factor of two. This is not purely cosmetic: Section 5.2.3 and Section 6 interpret observed h_mm/r upper limits as constraints on α_z/St by reference to Eq. (5), so the incorrect exponent changes the quantitative translation from observations to turbulence parameters. Please correct the exponent and verify the prefactor against the cited sources.
minor comments (5)
  1. [Abstract and Sec. 6] The gas-scale-height limitation is correctly acknowledged in Sec. 5.1 and at the end of Sec. 6, but the abstract and the opening sentence of Sec. 6 state the settling conclusion without that caveat. Consider adding a short clause such as 'under current gas-scale-height assumptions' to avoid overstating the observational consensus.
  2. [Throughout] There are numerous typographical errors. Examples: 'co-called' → 'so-called' (Sec. 2.1), 'refereed to as' → 'referred to as' (Sec. 1), 'phenomenons' → 'phenomena' (Sec. 1), 'particule'/'particules' → 'particle'/'particles' (multiple), 'wavelenghts' → 'wavelengths' (multiple), 'an larger impact' → 'a larger impact' (Sec. 3.1), 'The later parameter' → 'The latter parameter' (Sec. 4.2), 'At the other hand' → 'On the other hand' (Sec. 5.1.2).
  3. [Fig. 5] The axis labels of Fig. 5 are garbled in the typeset version (the unicode for log(τ_ν) and ω_ν appears corrupted). Please ensure the figure is regenerated with clear axis labels.
  4. [Sec. 2.1, Eq. (1)] For readers unfamiliar with the Epstein regime, it would help to state explicitly that Eq. (1) is a proportionality, with the numerical constant of order unity (e.g., sqrt(π/8)) omitted. The current text is not wrong, but the notation could be clearer.
  5. [Sec. 3.3] The sentence 'Compact grains scatter most efficiencly within a short range of wavelength' is grammatically awkward and contains a typo. Rephrase as 'Compact grains scatter efficiently only over a narrow range of wavelengths.'

Circularity Check

0 steps flagged

No significant circularity; tutorial/review reports standard methods and independent observational constraints.

full rationale

The paper is an introductory tutorial and review rather than a derivation whose predictions reduce to fitted inputs. Its physical equations (Epstein stopping time, Stokes number, settling/drift velocities, H_d/H_g balance, radiative-transfer intensity with scattering, geometric emission-height relations) are standard results cited to independent literature (Youdin & Lithwick 2007; Dubrulle et al. 1995; Sierra et al. 2019; Pinte et al. 2018; Avenhaus et al. 2018), not results imported from the author's own prior work. The illustrative mcfost models in Fig. 7 are forward models with chosen scale heights, used to display morphology, not fits that are then relabeled as measurements. The summary statements about vertical settling cite a mix of the author's observational papers and independent teams (e.g., Tazaki et al. 2025; Ribas et al. 2024; Doi & Kataoka 2021), so the self-citations are not load-bearing. The paper also explicitly acknowledges the main assumption that limits its summary claim, noting in Sect. 5.1 that gas scale-height constraints remain limited and that several settling constraints rely on radiative-transfer-model midplane temperatures, needing future direct gas constraints. This is an honest limitation rather than a hidden circular step. No equation or inference was found to reduce to its own inputs by construction.

Axiom & Free-Parameter Ledger

4 free parameters · 6 axioms · 0 invented entities

The tutorial relies on standard disk physics and assumptions from prior literature. The free parameters listed are only the illustrative choices for Figure 7, not parts of the tutorial's logical structure. These assumptions are appropriate for an introduction, but readers should be aware they are simplifications.

free parameters (4)
  • H0 (dust/gas scale height at 100 au in Fig. 7 models) = 10 au, 3 au, 1 au
    Illustrative model choices in Sect. 5.1.2 for Figure 7, not fitted to data.
  • Dust mass (for Fig. 7 models) = 1e-5, 1e-4, 1e-3 Msun
    Varied to illustrate the effect of disk mass on observed profiles.
  • Size distribution slope p = 3.5
    Standard ISM value (Mathis et al. 1977) used in Fig. 7 models.
  • Radial scaling exponent for Hd = 1.125
    Chosen for the Figure 7 models; flared disk assumption.
axioms (6)
  • domain assumption Epstein drag regime applies to observable dust grains (Eq. 1)
    Used throughout Sect. 2.1 to derive Stokes number and settling/drift velocities; real grains may be in the Stokes regime if larger than the mean free path.
  • domain assumption Vertically isothermal, non-self-gravitating gas in hydrostatic equilibrium (Eq. 2)
    Used to define gas scale height; more complex vertical temperature structures exist.
  • domain assumption Small dust-to-gas ratio for Eqs 4a and 4b
    Stated in text: 'Equation 4a and 4b are valid if the dust-to-gas ratio is small (≪1)'.
  • domain assumption Turbulent mixing balances settling, giving Eq. 5 (Youdin & Lithwick 2007; Dubrulle et al. 1995)
    Used to relate dust scale height to turbulence level; assumes steady-state balance and a single alpha_z.
  • domain assumption Dust opacities for compact astronomical silicates (Laor & Draine 1993)
    Used in Figures 1-3 and discussed in Sect. 3.1; real dust composition and porous aggregates differ.
  • domain assumption Keplerian rotation and circular orbits for gas emission surface method (Eq. 11)
    Assumed in Sect. 5.2.1 for the geometric method to retrieve emitting heights; radial and vertical motions are neglected.

reviewed 2026-08-04 · how reviews work

0 comments
Cite this review

Pith. "Pith review of An Introduction to Dust Evolution and Vertical Transport in Protoplanetary Disks." pith.science (2026). https://pith.science/paper/STTQHOUZ

@misc{pith2026250910614,
  author       = {Pith},
  title        = {Pith review of: An Introduction to Dust Evolution and Vertical Transport in Protoplanetary Disks},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/STTQHOUZ}},
  note         = {Machine review of arXiv:2509.10614}
}
Share X Bluesky LinkedIn Reddit HN
read the original abstract

This tutorial is an introduction to observational studies of dust transport and evolution in protoplanetary disks. Spatially resolved observations of disks at multiple wavelengths can allow to infer the distribution of various dust grains and gas species. Combining these observations offers a more complete understanding of dust structure and properties across different disk locations. For example, by better characterizing the disk vertical structure, observations help to constrain the level of vertical settling and identify regions of high dust density, which are favorable for grain growth and planet formation. This tutorial describes various methodologies for inferring dust properties and vertical height of different tracers, as an introduction for beginners.

Figures

Figures reproduced from arXiv: 2509.10614 by Marion Villenave.

Figure 1

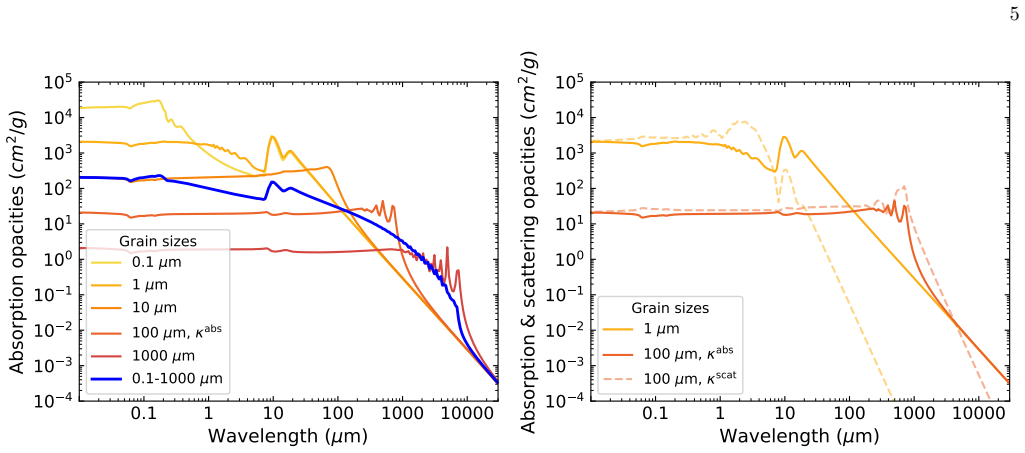

Figure 1. Figure 1: Opacities of astronomical silicates as a function of wavelength. The grains are assumed to be compact spheres. Left: Absorption opacities of mono-disperse dust distributions (yellow to red lines) and of a dust size distribution with grains between 0.1 µm and 1 mm with a number exponent of p = 3.5 (thick blue line). Right: Absorption (solid lines) and scattering (dashed lines) opacities for grains of 1 µm a… view at source ↗
Figure 2
Figure 2. Figure 2: Total opacities as a function of grain size for different wavelengths. Grains are assumed to be compact spheres. Grain sizes contributing the most at the different wavelengths are highlighted with a vertically filled region of the same color as the opacity curves. 0.1 1 10 100 1000 10000 Wavelength ( m) 10 4 10 3 10 2 10 1 10 0 10 1 10 2 10 3 10 4 10 5 A b s orptio n & s c atterin g o p a citie s (c m2 /g)… view at source ↗
Figure 3
Figure 3. Figure 3: Effect of porosity on the absorption (solid lines) and scattering (dashed lines) opacities of 1 mm grains as a function of wavelength. The filling factor f = 1 represents compact grains, while more porous particles have a lower f value. With this figure, and for the dust composition assumed here, we can see directly that emission at 1 µm is dom￾inated by grains between 0.1 and 1 µm, while emission at 1.3 m… view at source ↗
Figure 4

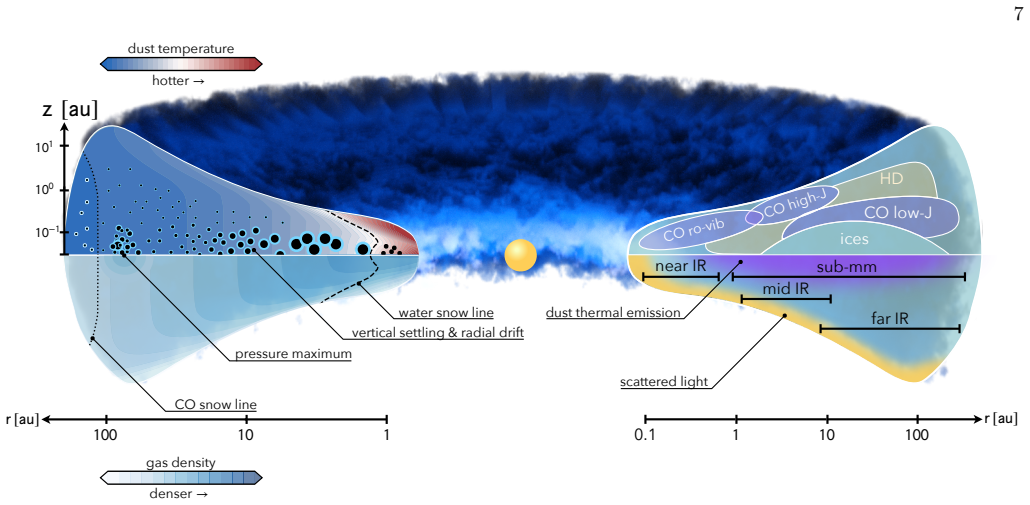

Figure 4. Figure 4: Illustration of the temperature structure, dust distribution, and observational constraints in protoplanetary disks from Miotello et al. (2023); Credit: T. Birnstiel. Left: main dust transport mechanisms and temperature structure. Right: typical dust and gas emission regions. The axes show the logarithmic distance to the central star, in the radial and vertical direction. the maximum of the emission λpeak … view at source ↗
Figure 5
Figure 5. Figure 5: Ratio between the emergent intensity with or without scattering effects, R = I abs+scat ν /Iabs ν , as a function of the albedo ων and the optical depth κν, from Sierra & Lizano (2020). Scattering can decrease (top right) or increase (top left) the expected intensity compared to the absorption only case. The inclusion of long wavelength observations (e.g., in the centimeter) is particularly critical to obt… view at source ↗
Figure 6
Figure 6. Figure 6: Resolved 1.3 mm images of edge-on disks at dif￾ferent evolutionary stages (from Lee et al. 2017; Lin et al. 2023; Tazaki et al. 2019b). The ellipse on the bottom left corner indicates the beam size, while the horizontal bar cor￾responds to a size of 25 au. distribution and vertical settling efficiency in the upper layers of the disks. In addition, direct molecular gas observations can be used to further di… view at source ↗
Figure 7
Figure 7. Figure 7: Integrated minor and major profiles of edge-on (solid lines) and highly inclined (dashed lines) disk models for different dust mass (left panels) or different dust scale heights (right panels) computed at 0.89 mm. are needed to fully quantify the vertical extent of the larger grains. At millimeter wavelengths, edge-on disks typically show a rectangular shape (see [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Single channel map with a schematic of the quan￾tities used to estimate the height of the emitting surface. The central object is marked by a star. For every x along the ma￾jor axis direction, the minor axis maxima can be identified. Connecting these points by an ellipse of a unique height and centered on the star it is possible to retrieve the height of the emitting layer (Equation 11). Credit: Pinte et a… view at source ↗
Figure 9
Figure 9. Figure 9: Emission surfaces of 12CO (blue) and 13CO (black) in two well characterized disks (adapted from Law et al. 2021). The diamond show hτ=1 for individual rings based on scattered light observations. The red dashed line shows inferred scattered light surfaces for a sample of disks. 2024; Derkink et al. 2024; Roumesy et al. 2025). A nu￾merical implementation of this method is publicly avail￾able in the DRAGyS s… view at source ↗
Figure 10
Figure 10. Figure 10: Schematic representation of different characteristics expected in a vertically thick (left) or vertically thin (right) disk, with rings. At millimeter wavelengths, dust is typically optically thinner than in the optical or infrared, which allows the observer to trace material closer to the midplane. Thus, rings are typically not strongly offset from the central location at these wavelengths and instead ot… view at source ↗
